AX93322

產品階段 : 供應中

8- Port LAN Module with Intel® I350-AM4 GbE Ethernet Controller

產品規格表 (PDF)

立即詢價

產品特色
產品規格
訂購資訊
技術文件
相關新聞
常見問題

產品特色

Intel® I350-AM4 Ethernet controller
8 SFP or 4 SFP and 4 RJ-45
PCIe 2.0 x8 golden finger
2-pair LAN Bypass (optional)
Supports Intel® Virtualization Technology for connectivity
RoHS compliant

產品規格

Controller	Intel® I350-AM4
Speed/Connector	8 x SFP or 4 x SFP & 4 x RJ-45
Interface	PCIe 2.0 x8
LAN Bypass	Optional (refer to ordering Information)
Jumbo Frames	Yes
Virtualization	VMDq, SR-IOV
Acceleration	DPDK
Watchdog Timer	Yes
Available Models	NA363R, NA580, NA590, NA592, NA720, NA721, NA860, NA861, and NA870
Operation Temperature	0°C to +40°C (+32°F to +104°F)
Humidity	10% - 90% RH, non-condensing
Dimensions	78.9 x 175 x 42.8 mm (3.11" x 6.89" x 1.69")

訂購資訊

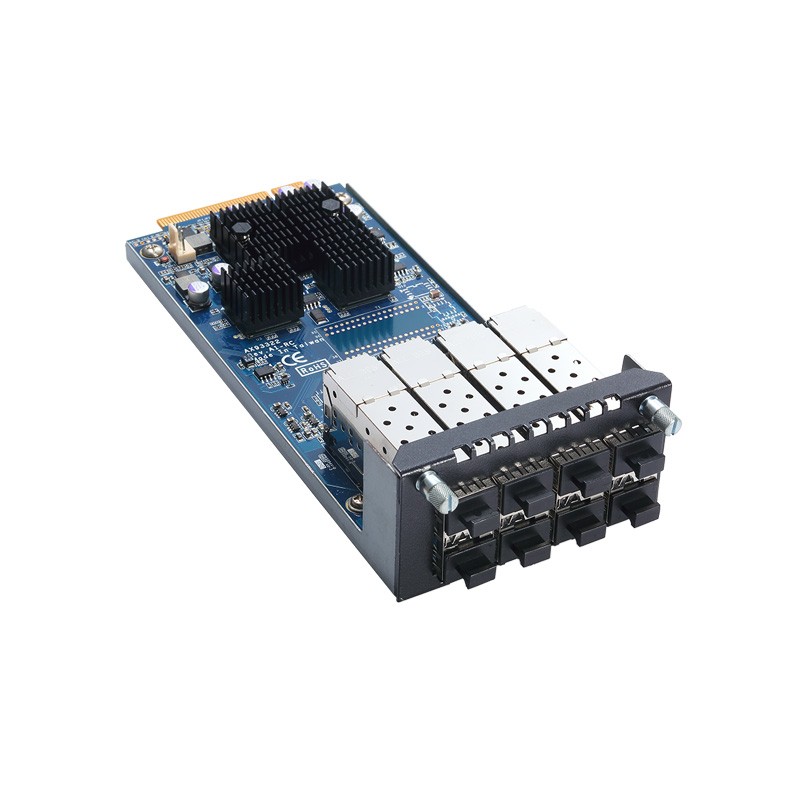

AX93322-8FI-350 LAN Module (P/N-E393322102)
LAN module with Intel® I350-AM4 and 8 fiber LAN ports with LAN tray

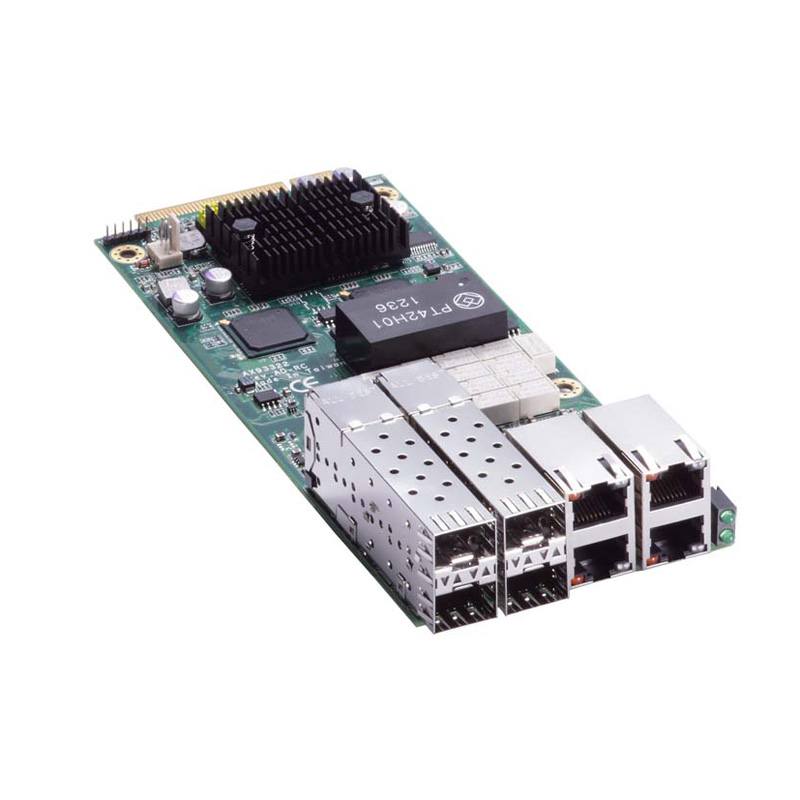

AX93322-8MIL-350 LAN Module (P/N-E393322103)
LAN module with Intel® I350-AM4, 4 copper, and 4 fiber LAN ports with 2-pair LAN bypass

技術文件

此內容目前更新中，請稍後再查看。

常見問題FAQ

What is the AX93322 LAN module designed for?+

What controller does the AX93322 use?+

What network features does the AX93322 support?+

Does the AX93322 offer network protection features?+

Why choose the AX93322 LAN module?+
