Its combination of high-density ports, expandable LAN modules, server-class processing, and robust memory support ensures reliable, scalable, and high-performance networking for enterprise and industrial applications.
It is powered by Intel® Xeon® D-1700 family processors (Ice Lake D) with options from two to ten cores, delivering server-class computing performance for network security applications such as IDS, IPS, NGFW, and UTM.
The NA721 supports six DDR4-2933 non-buffered non-ECC or ECC R-DIMM/U-DIMM slots, with a maximum of 384GB system memory for high-performance processing of network-intensive workloads.
It features eight GbE RJ-45 ports, four 10GbE SFP+ ports, and two expandable LAN module slots supporting 1GbE, 10GbE, 25GbE, 40GbE, fiber, copper, and bypass configurations, allowing up to 28 high-density ports for maximum network flexibility.
The system supports LAN bypass to maintain essential communications during power outages or system failures, and its rugged industrial design ensures stable operation under heavy network loads.
It provides two internal 2.5-inch SATA HDD/SSD bays and one M.2 Key B 2242 slot with SATA interface support for flexible storage and caching applications.

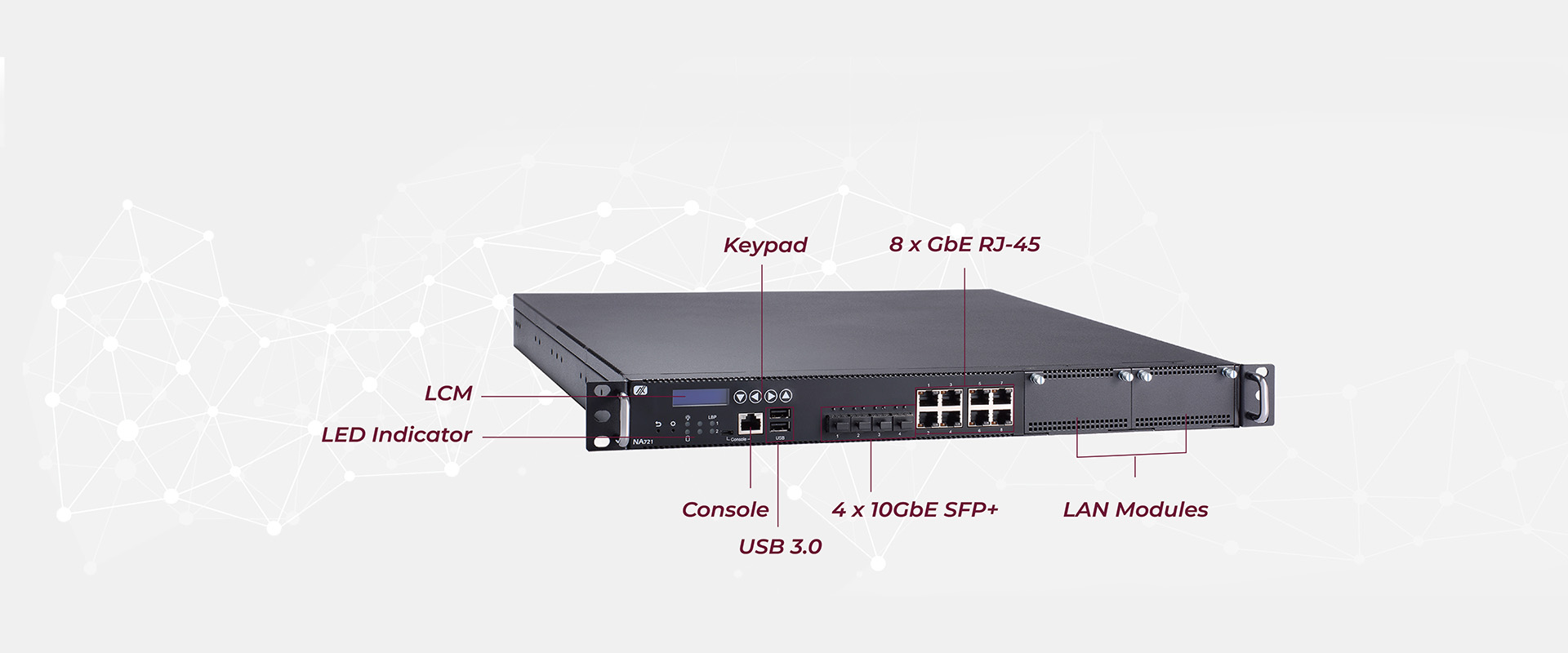

The NA721 includes one RJ-type console port, two USB 3.0 ports, eight RJ-45 ports, four SFP+ ports, an optional VGA, LED indicators for power/HDD/GPIO programmable/LAN bypass/Link/Act, and an LCD module with four keypads for system monitoring and status feedback.
It includes onboard BMC AST2500 and optional IPMI 2.0 for remote monitoring and management, along with TPM 2.0 for hardware-level security.
