NA592

產品階段 : 供應中

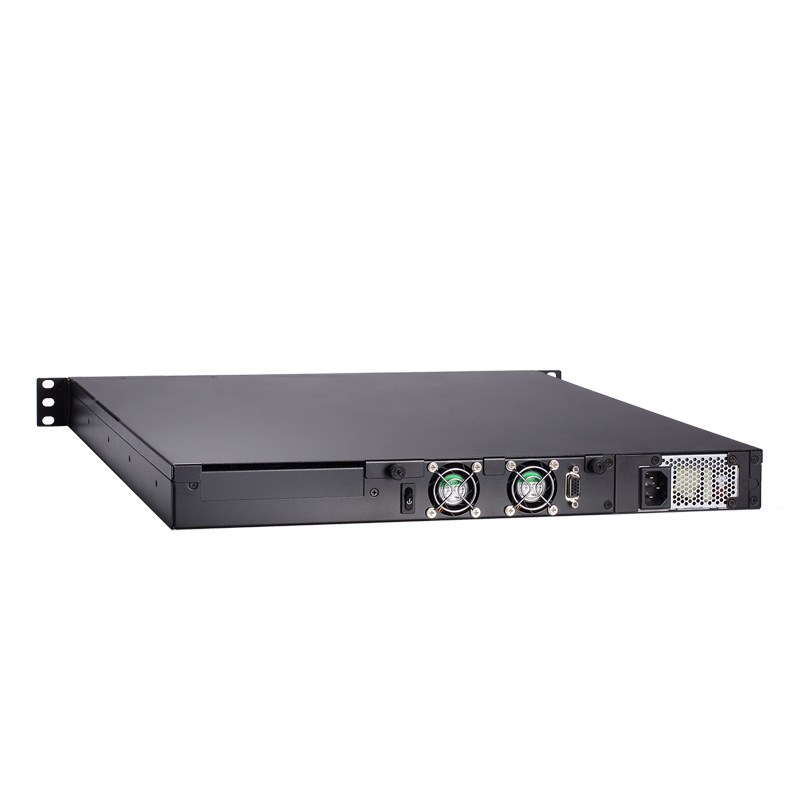

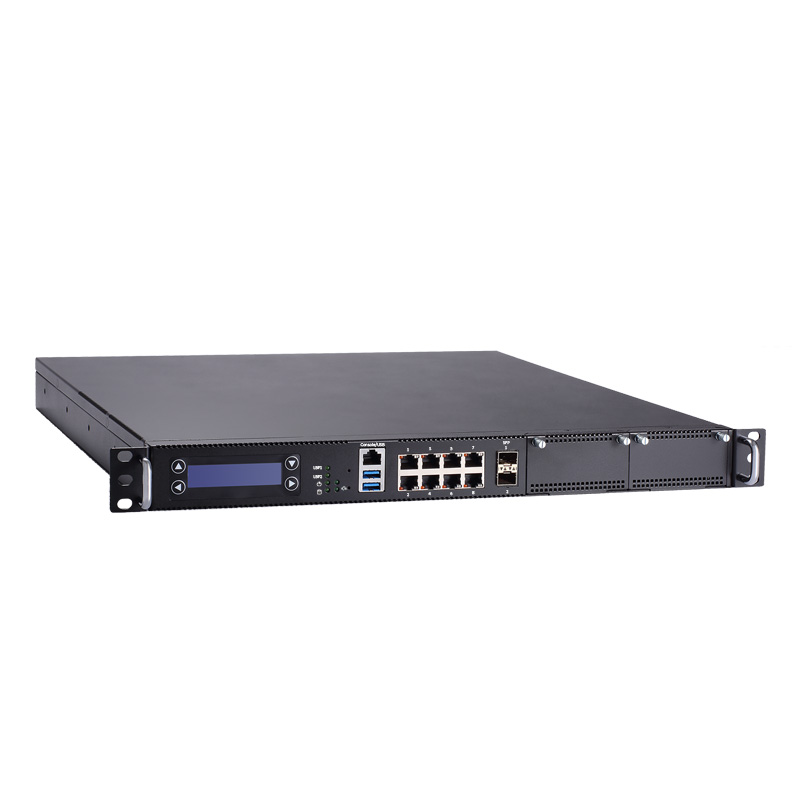

1U 19" Rackmount Network Appliance with Intel® Xeon® W-1200 or 10th Gen Intel® Core™ Processor (Comet Lake) and up to 26 LAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
NA592
NA592
IPMI

IPMI

LAN Bypass

LAN Bypass

NIC Module

NIC Module

Redundant Power

Redundant Power

Smart Fan

Smart Fan

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Intel® Xeon® W-1200 or 10th gen Intel® Core™ i9/i7/i5/i3 processor
  • Intel® W480E chipset
  • 4 DDR4 2933MHz ECC (By CPU) or non-ECC UDIMM, max.128GB
  • 8 GbE RJ-45, 2 SFP (Intel® I350), and 2 NIC modules
  • 2 pairs of LAN Bypass
  • 2 USB 3.0 and 2 2.5" HDD/SSD bays
  • 1 PCIe x8 FH/HL (optional), 3 M.2 Key B/E/M, and 1 PCIe Mini Card slot
  • 2 smart fans

產品規格

Form Factor
  • 1U rackmount
CPU
  • Intel® Xeon® W-1200 or 10th gen Intel® Core™ i9/i7/i5/i3 processor
Chipset
  • Intel® W480E
System Memory
  • 4 x DDR4 2933MHz ECC (By CPU) or non-ECC UDIMM, up to 128GB
BIOS
  • AMI
Ethernet
  • 8 x GbE RJ-45
  • 2 x SFP (Intel® i350)
  • 2 x NIC modules through AX98621 I/O board (optional)
LAN Bypass
  • 2-pair LAN Bypass
LAN Module
  • 2 x NIC modules through AX98621 I/O board (optional)
Storage
  • 2 x 2.5" SATA HDD/SSD bays
  • 1 x M.2 2242 Key B slot (SATA)
Expansion
  • 1 x PCIe x8 through AX96708 riser card (optional)
  • 1 x M.2 Key E 2230 (PCIe x1)
  • 1 x M.2 Key M 2242/2280 (PCIe x4) through AX98621 I/O board (optional)
  • 1 x PCIe Mini Card slot (PCIe x1 in default, SATA by BOM option)
  • 1 x Nano SIM socket
I/O Interface
  • 1 x Console (RJ-45)
  • 2 x USB 3.0
  • 1 x LCM with 4 keypads
  • 1 x VGA (optional)
Power Supply
  • 300W single power supply
  • 400W 1U redundant power supply
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 44 x 430 x 450 mm (1.73" x 16.93" x 17.7")
Weight (net/gross)
  • 6.0 kg/9.5 kg (single power)
  • 7.3 kg/10.8 kg (redundant power)
OS
  • Linux/Windows® 10
Certifications
  • CE/FCC Class A
Others
  • Onboard TPM 2.0
  • BMC AST2500, IPMI 2.0 (optional)

訂購資訊

  • NA592-480E-A (P/N-E26E592100)
    1U 19" Rackmount Network Appliance with Intel® Xeon® W-1200 or 10th gen Intel® Core™, Intel® W480E, 4 8RJ+2SFP LAN ports, 2-pair LAN Bypass, IPMI (by project), TPM 2.0, 2 optional NIC slots, 1 x PCIe x8 (optional, only supports 1 NIC slot), AC single 300W
  • NA592-480E-B (P/N-E26E592101)
    1U 19" Rackmount Network Appliance with Intel® Xeon® W-1200 or 10th gen Intel® Core™, Intel® W480E, 4 8RJ+2SFP LAN ports, 2-pair LAN Bypass, IPMI (by project), TPM 2.0, 2 optional NIC slots, 1 x PCIe x8 (optional, only supports 1 NIC slot), AC redundant 400W
  • 83986211050E
    AX98621, I/O board for 2 NIC slots and M.2 SFP
  • 83967081000E
    AX96708, riser card for PCIe x8 (rear)
  • 83986211060E
    AX98621, I/O board for 1 NIC slot, M.2, and 1 PCIe x8 slot
  • 5916E552000E
    DB9F-RJ-45, 1.8M console cable for Cisco
  • 594E8602000E
    VGA cable IDC 16P 2.0/D_SUB 15P, L=37cm
  • 59906000010E
    Power cord YP-12/YC-12 (Japan)
  • 59903000000E
    Power cord YP-22/YC-12 (Europe)
  • 59905000000E
    Power cord YP-35/YC-12 (Australia)
  • 59904010000E
    Power cord/UK YP-61A/YC-12, L = 1830 mm
  • E393316109
    AX93316-8GI-i350 with LAN tray
  • E393322102
    AX93322-8FI-350 with LAN tray
  • E393322103
    AX93322-8MIL-350 with LAN tray
  • E393336102
    AX93336-4GIL-i350 2 LBP with LAN tray
  • E393336103
    AX93336-4FI-i350 with LAN tray
  • E393307100
    AX93307-2FI 10G 82599ES with LAN tray
  • E393327101
    AX93327-4FI 10G XL710 with LAN tray
  • E393331100
    AX93331-2QFI dual-port 40GbE with LAN tray
  • E393332100
    AX93332-25FI dual-port 25GbE with LAN tray

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2022/01/28 User's Manual A1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2022/07/18 UKCA Declaration of Conformity
2022/03/11 FCC Verification
2022/03/11 CE-Conformity DeclarationA1
2022/03/11 CE EMC Verification
2022/03/11 CE LVD Verification
