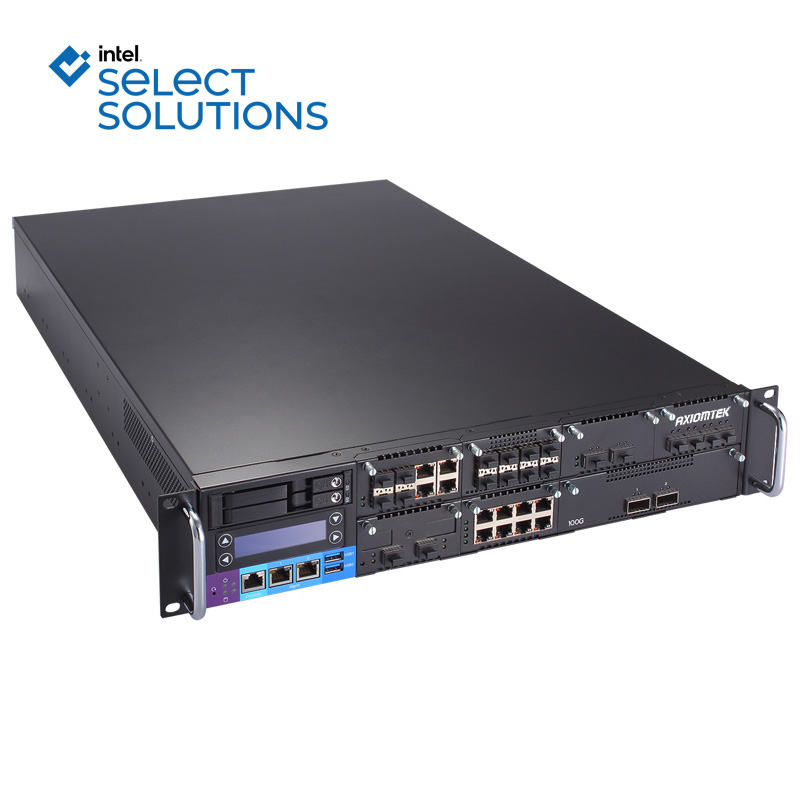

The NA870 is a high-performance 2U network appliance designed for cloud computing, 5G infrastructure, high-performance computing, network security, and multi-access edge computing applications. Its dual-processor architecture, high-density network expansion, and redundant power design make it suitable for demanding, data-intensive workloads.
The NA870 supports dual LGA4189 3rd Gen Intel® Xeon® Scalable processors based on the Ice Lake-SP architecture, with up to 40 cores and a thermal design power of up to 270W per processor. It is available with the Intel® C621A chipset as standard or the Intel® C627A chipset by project.
The NA870 provides 20 DDR4-3200 R-DIMM slots and supports up to 1,280GB of system memory, providing the capacity required for large-scale data processing, virtualization, and high-performance network workloads.
A single-processor configuration supports up to four optional NIC modules and a maximum of 34 LAN ports. A dual-processor configuration supports up to eight NIC modules and a maximum of 66 LAN ports, enabling flexible, high-density network deployment.
The NA870 includes two onboard Gigabit Ethernet ports and supports optional NIC modules with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Copper, fiber, and LAN bypass options are available depending on the selected module.
Yes. The NA870 supports optional dual-port 100GbE NIC modules powered by the Intel® Ethernet Controller E810, including the AX93357 and AX93358 modules.
The NA870 provides two hot-swappable 2.5-inch SATA drive bays and two M.2 Key M 2242/2280 slots. One M.2 slot supports PCIe storage, while the other supports PCIe/SATA storage according to the selected hardware configuration.
The NA870 supports up to two optional PCIe x16 expansion slots through riser cards. One slot is connected to CPU0, while the second is connected to CPU1, providing expansion flexibility for accelerator, storage, and network interface cards.
The NA870 integrates onboard TPM 2.0 for hardware-based system security. When configured with the Intel® C627A chipset, it also supports Intel® Crypto Acceleration to improve encryption and cryptographic workload performance.
Yes. The NA870 supports an optional onboard AST2500 baseboard management controller with IPMI 2.0, enabling remote system monitoring, management, and troubleshooting.

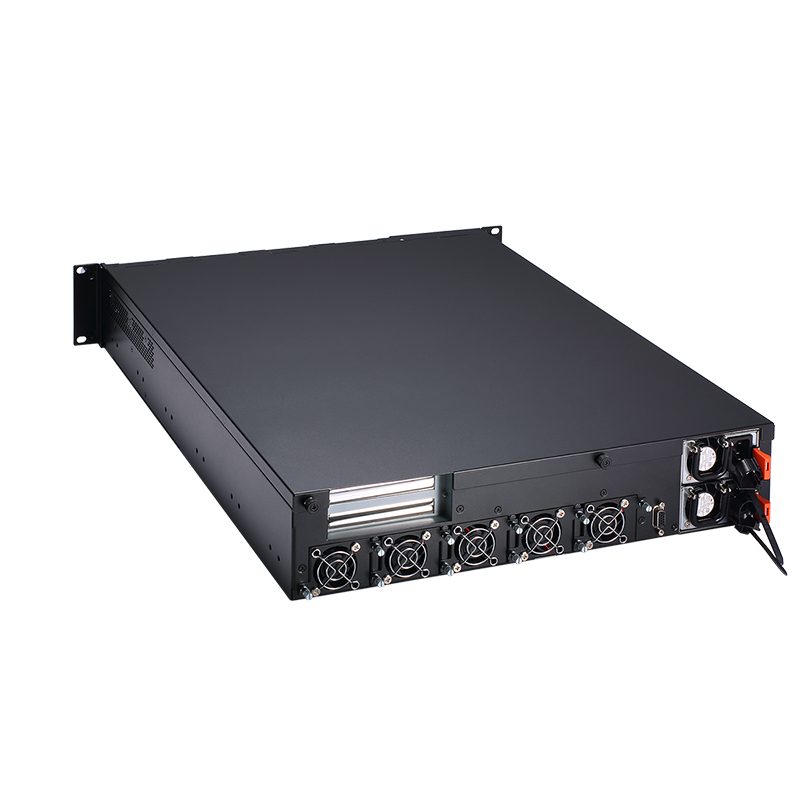

Yes. The system features a 1,300W redundant power supply and two hot-swappable 2.5-inch SATA drive bays to improve system availability and simplify maintenance.
The NA870 supports Linux-based operating systems for network security, virtualization, edge computing, and high-performance networking applications.
