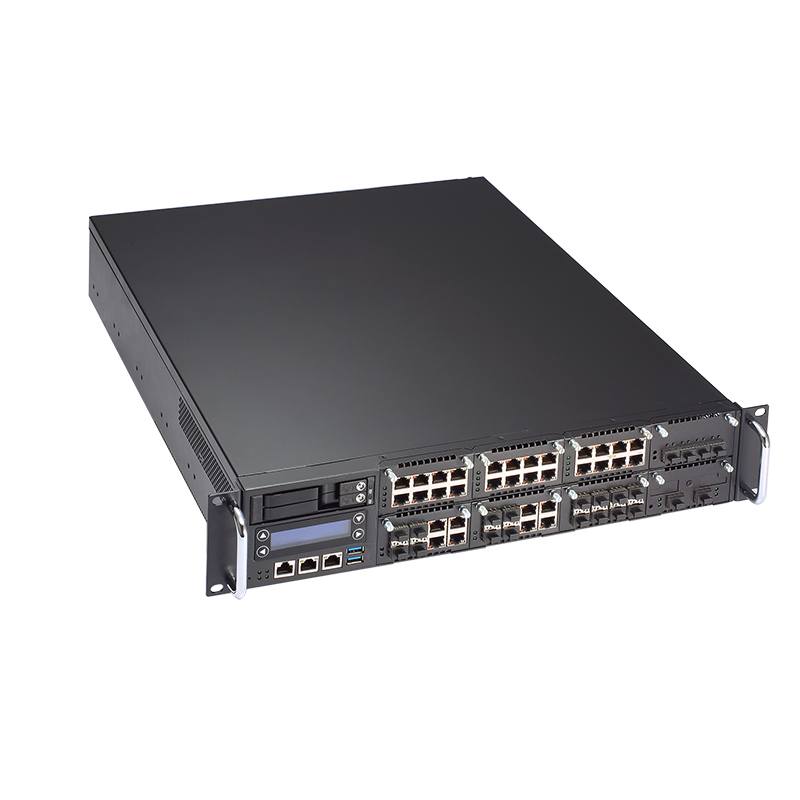

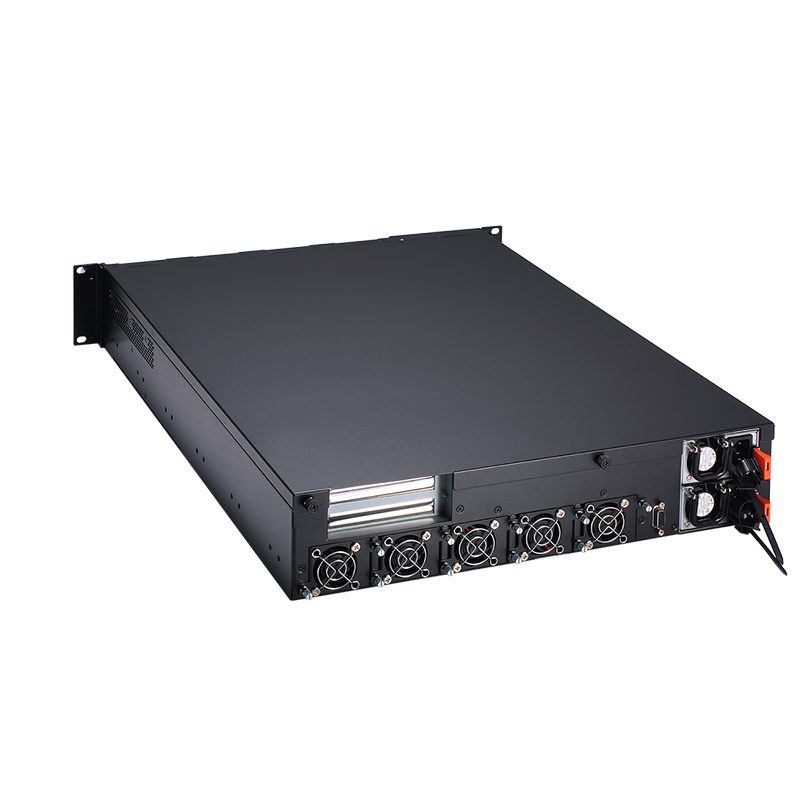

2U Rackmount Network Appliance with Intel Skylake Server - NA860

產品特色

Form Factor	2U rackmount
CPU	Dual LGA3647 socket Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Chipset	Intel® C621
System Memory	12 x DDR4-2400 R-DIMM, up to 384GB non-buffer non-ECC/ECC memory
BIOS	AMI
Ethernet	2 x GbE RJ-45 (Intel® i210) Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports Dual CPU: 8 x LAN module (optional), max. up to 66 LAN ports
LAN Bypass	LAN Bypass function through latch relay (depends on LAN modules)
LAN Module	Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports Dual CPU: 8 x LAN module (optional), max. up to 66 LAN ports
Storage	2 x 2.5" SATA HDD hot swappable 1 x mSATA
Expansion	2 x PCIe x8 through AX96709 riser card (optional)
I/O Interface	1 x Console (RJ-type) 2 x USB 3.0 2 x RJ-45 1 x VGA
Power Supply	800 W 2U redundant power supply
LCM Module	Yes
Watchdog Timer	255 stepping for system reset 8 stepping for LAN Bypass
Operating Temperature	0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)	88 x 430 x 562 mm (3.46" x 16.92” x 22.12")
Weight (net/gross)	12 kg (26.4 lb)/20 kg (44 lb)
OS	Linux
Certifications	FCC class A CE class A
Others	Onboard TPM 2.0 Onboard BMC AST2500, IPMI 2.0 for optional

NA860-R2GI-C621-US (P/N-E26E860100)
2U rackmount appliance with dual LGA3647 socket Intel® Xeon® Scalable processors and 2 GbE LAN
5916E552000E
DB9F-RJ-45 1.8M console cable for Cisco
