NA363R

產品階段 : 供應中

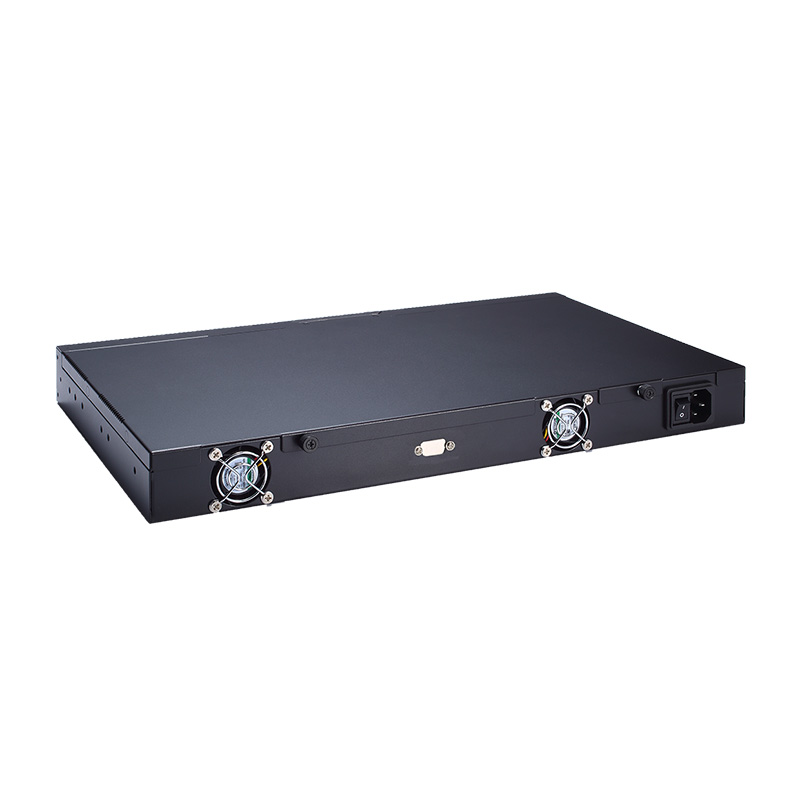

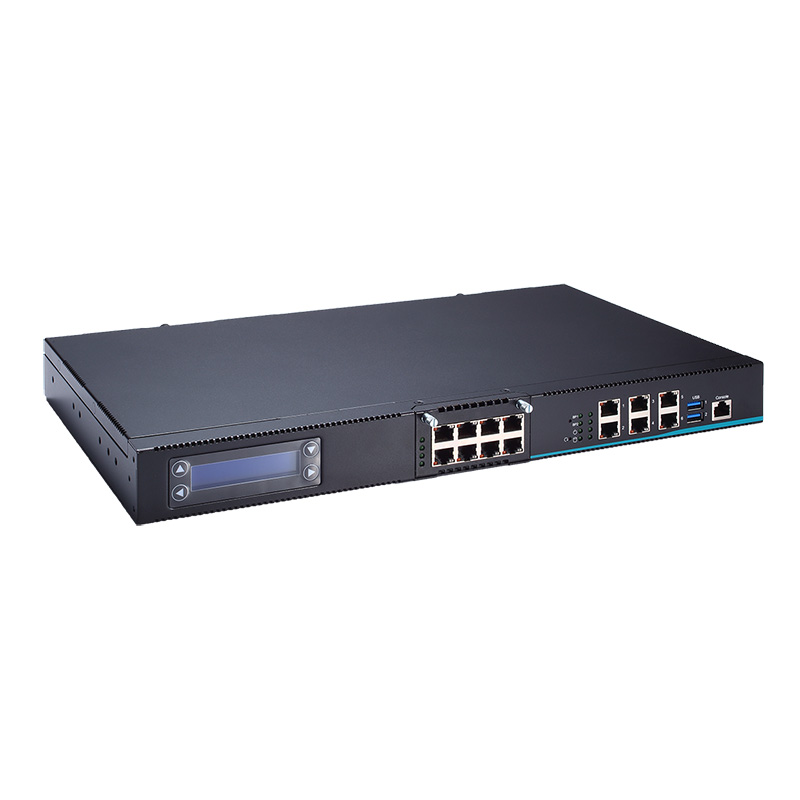

1U Rackmount Network Appliance Platform with Intel Atom® Processor C3558/C3758 and up to 14 LAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
NA363R
NA363R
LAN Bypass

LAN Bypass

Low Power

Low Power

TPM

TPM

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Intel Atom® processor C3558/C3758
  • 4 DDR4 R-DIMM/U-DIMM for up to 128GB of memory
  • 6 RJ-45 GbE and 1 expandable LAN module (C3758)
  • Supports Intel® QuickAssist Technology (Intel® QAT)
  • Supports Intel® Data Plane Development kit (Intel® DPDK)
  • Suitable for VPN, network bandwidth controller, firewall and UTM applications

產品規格

Form Factor
  • 1U rackmount
CPU
  • Intel Atom® processor C3558/C3758 (Denverton)
Chipset
  • SoC Integrated
System Memory
  • 4 x DDR4 R-DIMM/U-DIMM, up to 128GB memory
BIOS
  • AMI
Ethernet
  • 6 x RJ-45 GbE (Intel® X553 and Marvell® 88E1543)
  • 1 x LAN module (available for C3758 SKU only), supports up to 14 LAN
LAN Bypass
  • 1 pair of LAN Bypass function through latch relay
  • 2 pairs of LAN Bypass (optional)
LAN Module
  • 1 x LAN module through AX98614 (available for C3758 SKU only)
Storage
  • 2 x 2.5" SATA3 HDD
  • 1 x 3.5" SATA3 HDD (optional)
  • 1 x Full-size mSATA
Expansion
  • 1 x Full-size PCIe Mini Card slot (PCIe+USB2)
  • 1 x Full-size PCIe Mini Card slot (SATA+USB2)
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 6 x GbE RJ-45
  • 1 x VGA (optional)
Power Supply
  • 120W open frame
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions<br>(H x W x D)
  • 44 x 430 x 250 mm (1.73’’ x 16.93” x 9.84'')
Weight (net/gross)
  • 3.5 kg (7 lb)/4.5 kg (9 lb)
OS
  • Linux
Certifications
  • CE, FCC Class A
Others
  • Onboard TPM 2.0 (optional)

訂購資訊

  • NA363R-R6GI-C3558-US with 1 LBP (P/N-E26E363100)
    1U rackmount network appliance with Intel Atom® processor C3558 (2.20GHz 4C 16W), 6 LAN, 1 LAN Bypass (LBP), and onboard TPM
  • NA363R-R6GI-C3758-US with 1 LBP (P/N-E26E363101)
    1U rackmount network appliance with Intel Atom® processor C3758 (2.20GHz 8C 25W), 6 LAN, 1 LAN Bypass (LBP), and onboard TPM and 1 NIC slot
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2021/11/04 NA363R User's Manual VA1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2025/02/26 CE LVD Verification
2022/07/18 UKCA Declaration of Conformity
2020/02/15 CE-Conformity Declaration
2020/02/15 CE EMC Verification
2020/02/15 FCC Verification
