NA362R

產品階段 : 供應中

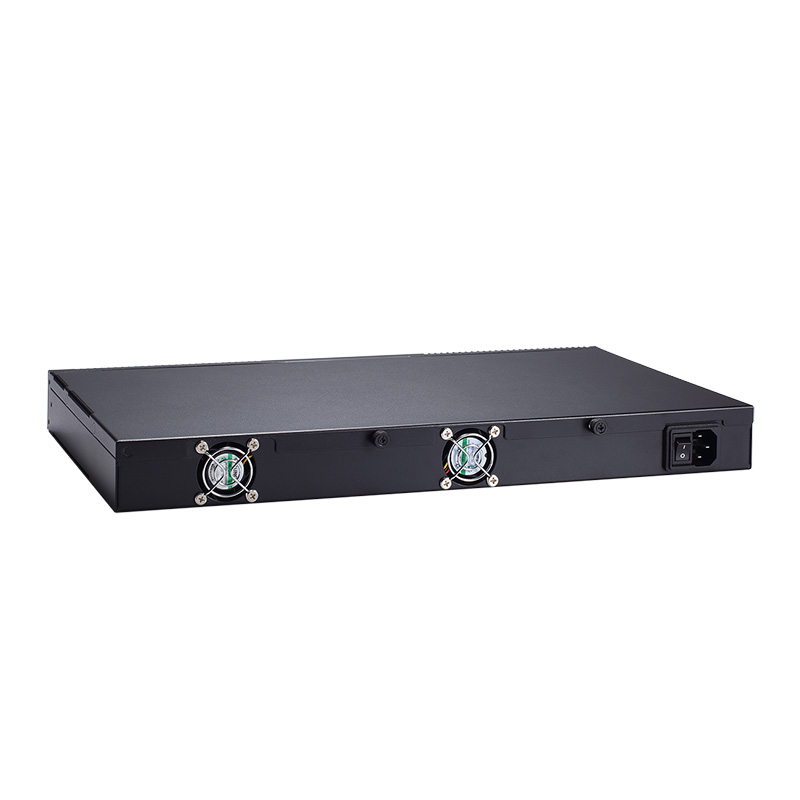

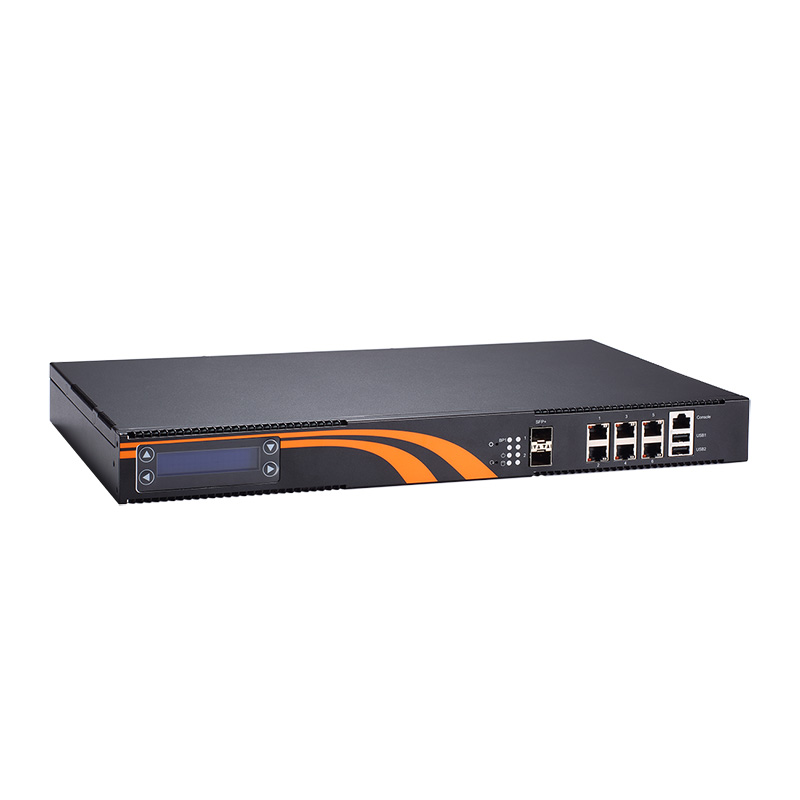

1U Rackmount Network Appliance Platform with Intel® Atom® Processor C3558/C3758 and up to 10 LAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
NA362R
NA362R
  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Intel® Atom® processor C3558/C3758 (Denverton)
  • 4 DDR4 R-DIMM/U-DIMM for up to 128GB of memory
  • 6 1GbE RJ45 and 4 10GbE SFP+ ports
  • Supports Intel® QuickAssist Technology
  • Supports Intel® Data Plane Development Kit (Intel® DPDK)
  • Suitable for VPN, network bandwidth controller, firewall and UTM applications

產品規格

Form Factor
  • 1U rackmount
CPU
  • Intel® Atom® processor C3558/C3758 (Denverton)
Chipset
  • SoC integrated
System Memory
  • 4 x DDR4 R-DIMM/U-DIMM. up to 128GB non-buffer non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 6 x GbE RJ-45 (Intel® i210)
  • 2 x 10GbE SFP+ (C3558)/4 x 10GbE SFP+ (C3758)
LAN Bypass
  • LAN Bypass function through latch relay (one pair)
LAN Module
  • N/A
Storage
  • 2 x 2.5" SATA3 HDD
  • 1 x mSATA
Expansion
  • N/A
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 6 x RJ-45 + 2 x SFP+ (C3558); 4 x SFP+ (C3758)
Power Supply
  • 120W open frame
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions<br>(H x W x D)
  • 44 x 430 x 250 mm (1.73" x 16.93" x 9.84")
Weight (net/gross)
  • 3.5 kg (7 lb)/4.5 kg (9 lb)
OS
  • Yocto, Linux
Certifications
  • CE/FCC Class B
Others
  • Onboard TPM 1.2/2.0 (optional)

訂購資訊

  • NA362R-R8MI-C3558-US (P/N-E26E362103)
    1U rackmount network appliance with Intel® Atom® processor C3558, 6 GbE LAN and 2 SFP+ ports
  • NA362R-RAMI-C3758-US (P/N-E26E362104)
    1U rackmount network appliance with Intel® Atom® processor C3758, 6 GbE LAN and 4 SFP+ ports
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2024/12/06 NA362 User's Manual VA4 VA4

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2022/07/18 UKCA Declaration of Conformity
2020/03/25 CE LVD Verification
2018/03/05 FCC Verification
2018/03/05 CE-Conformity Declaration
2018/03/05 CE EMC Verification
2018/03/05 CE LVD Verification
