mHPC202

產品階段 : 供應中

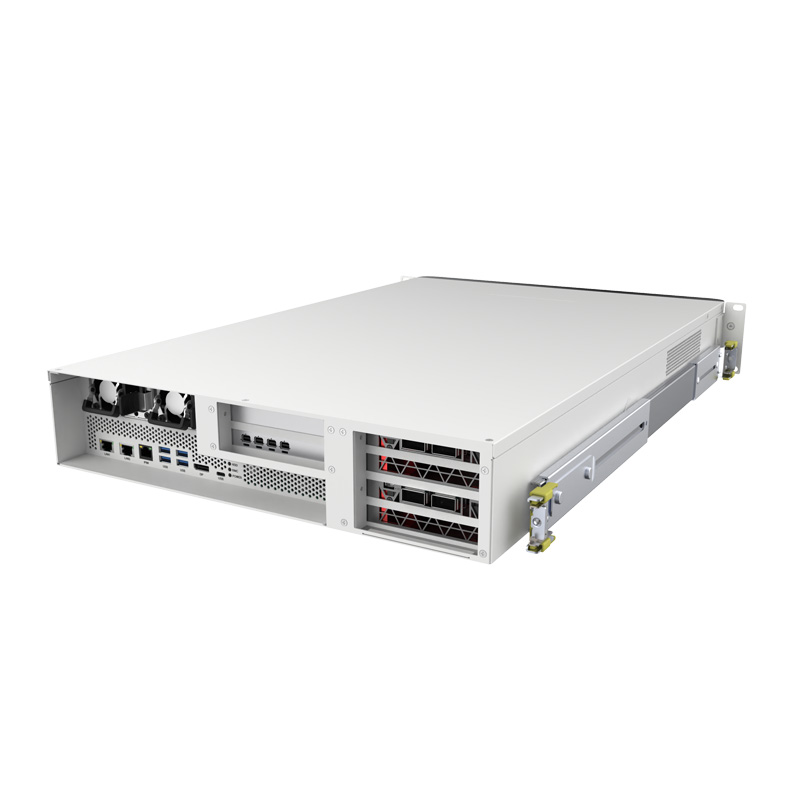

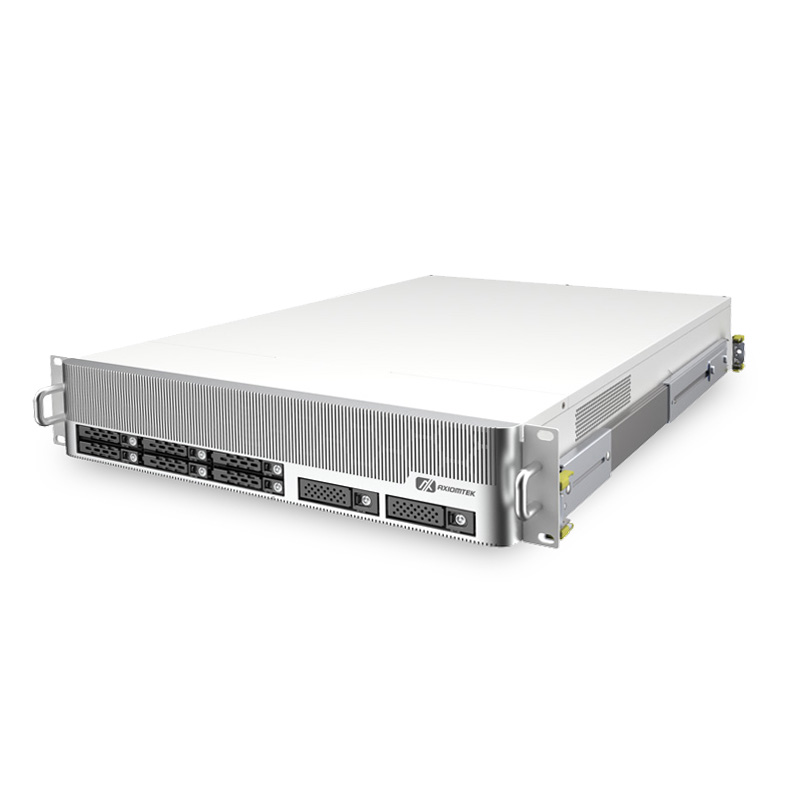

2U Rackmount Server with Dual 5th/4th Gen Intel® Xeon® Scalable Processors and Intel® C741 PCH for HPC in Medical Applications

產品規格表 (PDF)
產品規格表 (PDF)
立即詢價
立即詢價
mHPC202
mHPC202
IPMI

IPMI

Redundant BIOS

Redundant BIOS

Redundant Power

Redundant Power

Swappable HDD

Swappable HDD

USB 3.2

USB 3.2

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Dual 5th/4th gen Intel® Xeon® Scalable processors, up to 270W
  • 16 DDR5-4800 ECC registered DIMM
  • Supports 2 U.3 SSD and 6 SATA SSD slots
  • 1600W redundant ATX power supply
  • Supports full HD output via DisplayPort
  • Supports dual 10G Base-T connectivity

產品規格

CPU
  • Dual FCLGA4677 sockets for 5th/4th gen Intel® Xeon® Scalable processors, up to 270W
Chipset
  • Intel® C741, TDP 11W
  • BMC: ASpeed AST2600
System Memory
  • 16 x DDR5-4800 ECC RDIMM, up to 1TB
Graphics
  • TBD
BIOS
  • AMI
Remote Management
  • IPMI 2.0 supported by OpenBMC
COM
  • N/A
USB
  • 4 x USB 3.0
  • 1 x USB 3.0 Type-C
Ethernet
  • 2 x 10G Base-T
  • 1 x IPMI GbE LAN
Display
  • 1 x DisplayPort 1.1a (2560x1600)
Storage
  • 6 x Swappable 2.5" SATA SSD, supporting RAID 0, 1, 5, 10
  • 2 x Swappable 2.5" U.3 SSD
Expansion
  • 2 x PCIe x16 Gen 5.0 slot for double-width cards
  • 2 x PCIe x16 Gen 5.0 slot
  • 1 x M.2 Key M 2280 slot with PCIe x4 (NVMe
Others
  • 1 x Green LED for system power-on
  • 1 x Green LED for SSD active
  • 1 x Green/Orange LED for system health status
Power Supply
  • 2 x 1600W redundant ATX power supply
Watchdog Timer
  • Reset: 1 to 65535 sec./min. and 1 sec. or 1 min./step
Operating Temperature
  • 0°C to +40°C (32°F to +104°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration Endurance
  • N/A
Dimensions (W x D x H)
  • 430 x 700 x 88 mm (19” x 27.5” x 3.5”)
Weight (net/gross)
  • 13 kg (28.66 lb)
EOS Support
  • TBD
Certifications
  • TBD

訂購資訊

  • mHPC202-CCL
    2U 19" rackmount server with dual 5th/4th gen Intel® Xeon® Scalable processors, 512GB DDR5-4800 ECC registered DIMM memory,
  • 2 Micron PCIe NVMe U.3 SSD slots, 6 SATA III SSD slots, two 10GbE Base-T LAN, and dedicated IPMI LAN port
  • RAM (P/N-MTC40F2046S1RC48BA1)
    64GB DDR5 4800 REG-DIMM 2Rx4, quantity
  • U.3 SSD
    Micron 7450 max series 3.84TB NVMe U.3 SSD, quantity
  • SATAIII SSD (P/N-E9B2F1256R)
    Transcend 2.5“ 256GB SATA III SSD (TS256S2MAX02IK1), quantity
  • 22" Rack rail (P/N-7421A610000E)
    NJ-21A61 server slide 22”

技術文件

此內容目前更新中，請稍後再查看。
