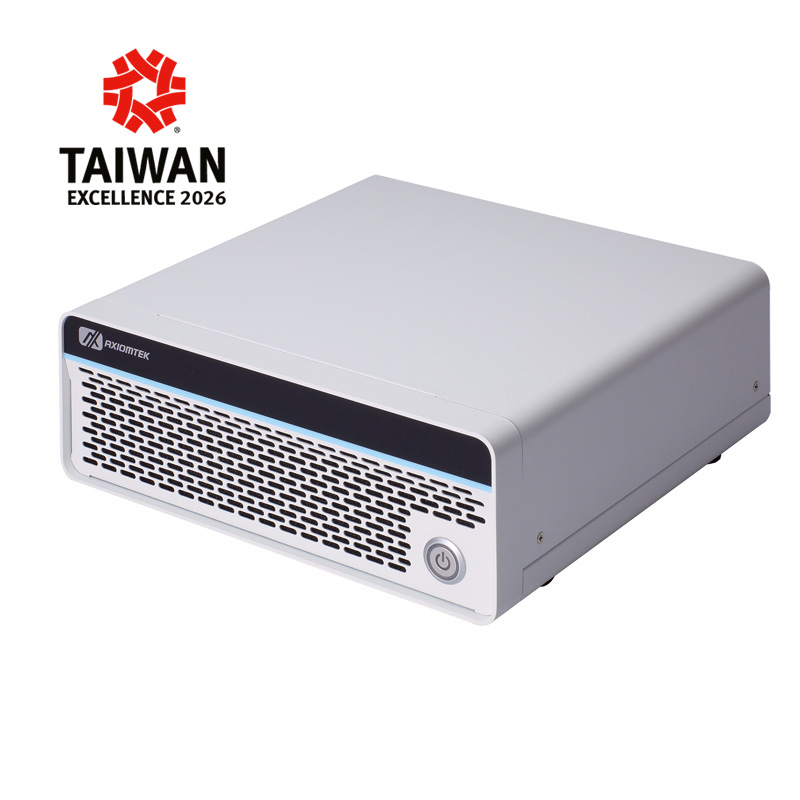

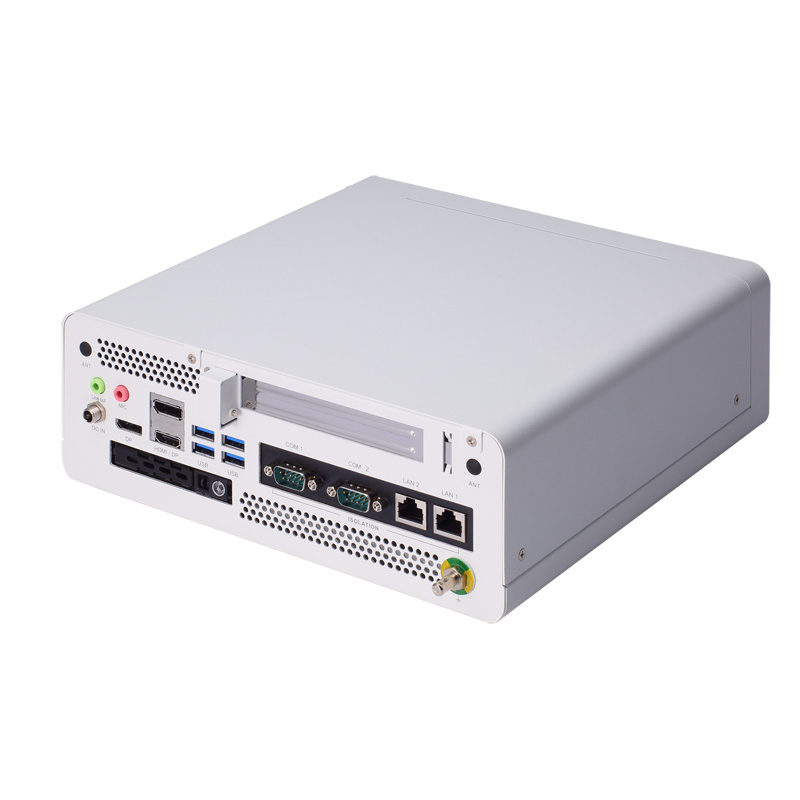

mBOX600

產品階段 : 供應中

Medical Grade System with 9th/8th Gen Intel® Core™ i7/i5 Processor for Smart Healthcare Applications

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
mBOX600
mBOX600
4K

4K

Isolation

Isolation

Triple-View

Triple-View

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • 9th/8th Gen Intel® Core™ i7/i5 processor, TDP 45W
  • 2 DDR4-2666 SO-DIMM for up to 64GB memory
  • 1 HDMI and 2 DisplayPort++ with 4K UHD supported
  • 2 COM and 2 GbE LAN with isolation supported
  • Supports half-size PCIe x16 slot
  • Swappable 2.5" SATAIII SSD tray with security lock
  • Antimicrobial coating chassis (optional)

產品規格

CPU
  • 9th/8th gen Intel® Core™ i7/i5 processor (Coffee Lake) with TDP 45W
Chipset
  • Intel® QM370
System Memory
  • 2 x 260-pin DDR4-2666 non-ECC SO-DIMM, up to 64GB
Graphics
  • Intel® UHD Graphics 630
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 with isolation supported
USB
  • 4 x USB 3.1 Gen2
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT & Intel® I219-LM, AMT supported)
Display
  • 1 x HDMI 1.4
  • 2 x DisplayPort 1.2
Audio
  • N/A
Storage
  • 1 x 2.5" SATAIII SSD/HDD
  • 1 x M.2 Key M 2280 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCIe signal)
  • 1 x Half size PCI Express x16 Gen3 slot
Others
  • 1 x Power on/off button
  • 1 x DC power input connector
  • 2 x SMA-type antenna connector
TPM
  • TPM 2.0
Power Supply
  • 24 VDC power supply
Watchdog Timer
  • 65535 levels, 1 to 65535 sec.
Operating Temperature
  • 0°C to 40°C (32°F to 104°F)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration Endurance
  • 3Grms STD, random, 5 to 500 Hz, 1 hr/axis
Dimensions (W x D x H)
  • 250 x 240 x 90 mm (9.8" x 9.44" x 3.54")
Weight (net/gross)
  • 4 kg
EOS Support
  • Win 10, Linux
Certifications
  • CE, FCC Part 18
  • EN 60601-1:2006 + A1:2013 + A12: 2014
  • BS EN 60601-1:2006 + A1:2013 + A12:2014
  • EN 60601-1-2:2015 + A1:2021
  • BS EN 60601-1-2:2015 + A1:2021
  • ISO 14971:2019

訂購資訊

  • mBOX600-i7-9850HE (P/N-E27N600101)
    Medical grade system with Intel® Core™ i7-9850HE processor, 16G DDR4 memory, HDMI 1.4, 2 DisplayPort 1.2, 2 COM, 2 GbE LAN, 4 USB 3.1 Gen 2, and Mic-in/Line-out
  • mBOX600-i5-8400H (P/N-E27N600100)
    Medical grade system with Intel® Core™ i5-8400H processor, 16G DDR4 memory, HDMI 1.4, 2 DisplayPort 1.2, 2 COM, 2 GbE LAN, 4 USB 3.1 Gen 2, and Mic-in/Line-out
  • DDR4 non-ECC SO-DIMM, up to 64GB
  • 2.5” SATA HDD/SSD
  • M.2 Key M 2280 (PCIe x4) NVMe SSD

技術文件

Drivers

日期 說明 版本 下載檔案
2023/08/11 05. Audio_R281 VA1.0
2023/08/11 04. Intel LAN Driver_23.2 VA1.0
2023/08/11 03. ME_2103.15.0.2125 VA1.0
2023/08/11 02. Graphic_27.20.100.9466 VA1.0
2023/08/11 01. Chipset-10.1.18634.8254 VA1.0

Software

Manual

日期 說明 版本 下載檔案
2023/09/08 mBOX600 User's Manual VA1-08-28-2023 VA1.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2024/10/08 CE-Conformity Declaration
2024/10/08 CE LVD Verification
2023/06/21 FCC Verification
2023/06/21 CE EMC Verification

常見問題FAQ
