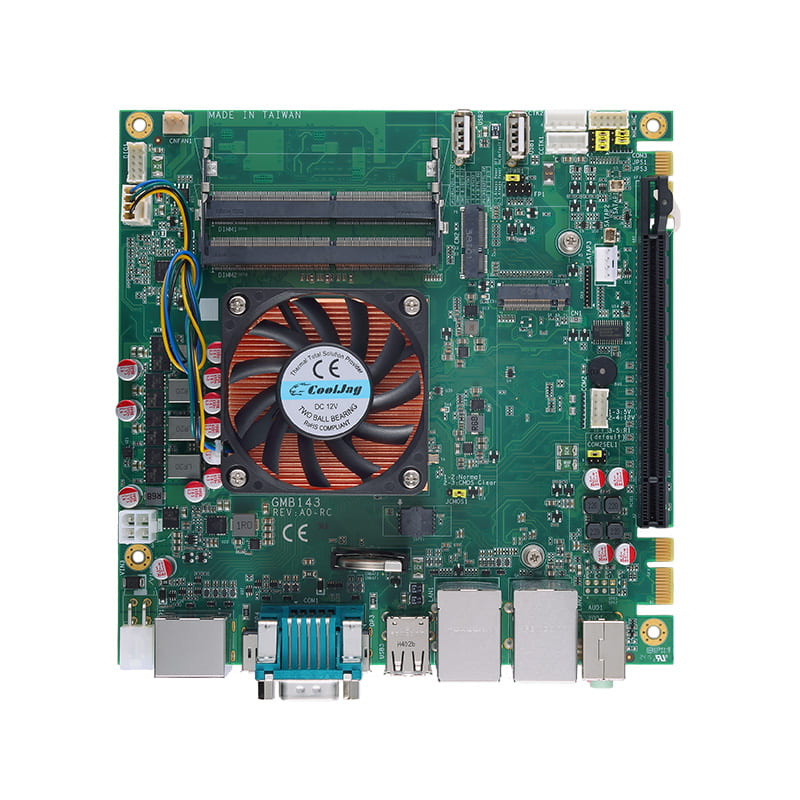

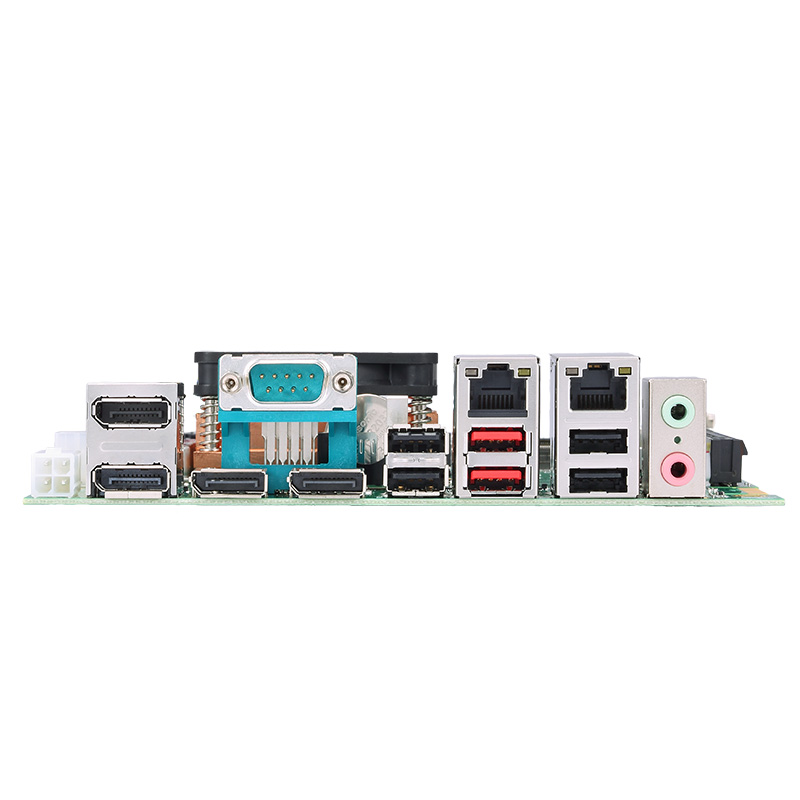

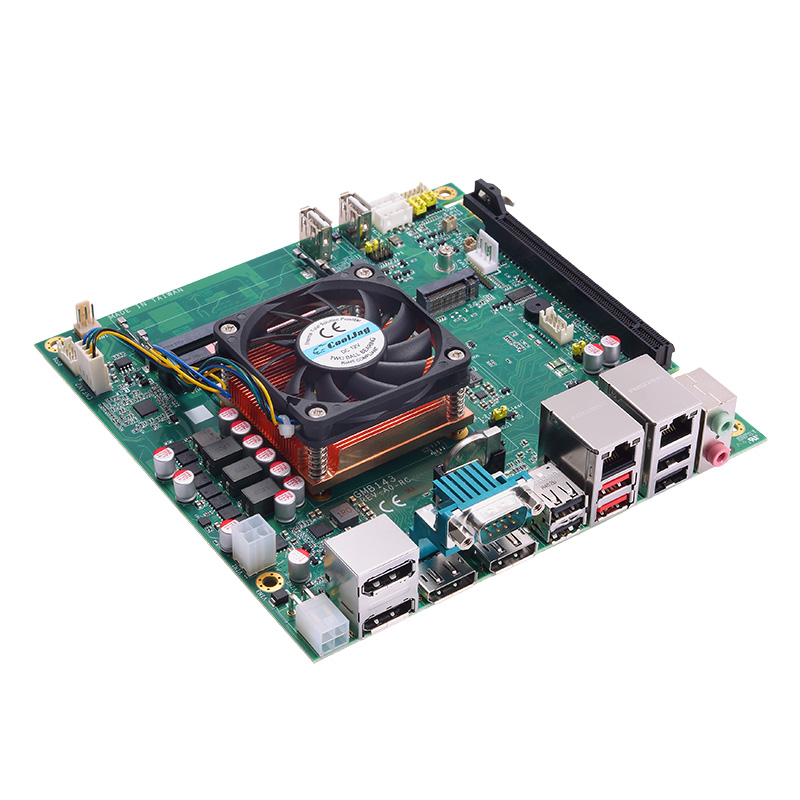

GMB143

產品階段 : 供應中

Mini-ITX Gaming Board with AMD Ryzen™ Embedded R2000 SoC

產品特色

CPU	AMD Ryzen™ Embedded R2544, Quad Core, 8 CU, 3.35GHz (3.7GHz), 35-54W AMD Ryzen™ Embedded R2514, Quad Core, 8 CU, 2.1GHz (3.7GHz), 12-35W AMD Ryzen™ Embedded R2314, Quad Core, 6 CU, 2.1GHz (3.5GHz), 12-35W
Chipset	SoC integrated
System Memory	2 x DDR4 SO-DIMM up to 3200 MHz, max. up to 32 GB
BIOS	AMI-uEFI
Watchdog Timer	1 sec to 255 min
USB	2 x USB 3.2 Gen2x1 (10Gb/s) (USB Type A) 4 x USB 2.0 (USB Type A) 2 x USB 2.0 (Vertical USB Type A)
Serial Interface	1 x Full RS-232 DB9 (COM1 supports RS-232/422/485) 1 x Full RS-232 box header (COM2) 1 x 3in1 Simple RS-232 box header (COM3~5)
Ethernet	2 x GbE LAN
Audio	HD audio 5.1 channels Line-out Stereo 6 W + 6 W audio amplied output
Display	4 x DP++, up to 4 indepent displays with 4096 x 2160 resolution per display output
GPIO	1 x 8-bit GPIO box header
Expansion	1 x PCIe x16 (PCIe x8 signal) 1 x M.2 Key E 2230(PCIe x1) 2 x PCIe golden nger expansion for Axiomtek Gaming I/O Module
Storage	1 x M.2 Key M 2280( PCIe x4) NVMe support 3 x Power conn. for SATA expansion (2x5V & 1x12V)
Security	TPM 2.0 engine RSA2048 and AES256 hybrid encryption
Power Input	DC +12 V
Dimensions	170 mm x 170 mm
Operating Temperature	0°C to 60°C (32°F to 140°F)
Humidity	10% to 90%, non-condensing
OS	Windows® 11 IoT Enterprise, Linux
Software	SAS 6.02 COM port driver (via Gaming I/O module)

GMB143-R2544
Mini-ITX board supports AMD Ryzen™ Embedded R2544 with VEGA graphics, 4 x DP++, 5 x COM, 8 x USB, 2 x GbE, Audio, M.2, DC 12V input
GMB143-R2514
Mini-ITX board supports AMD Ryzen™ Embedded R2514 with VEGA graphics, 4 x DP++, 5 x COM, 8 x USB, 2 x GbE, Audio, M.2, DC 12V input
GMB143-R2314
Mini-ITX board supports AMD Ryzen™ Embedded R2314 with VEGA graphics, 4 x DP++, 5 x COM, 8 x USB, 2 x GbE, Audio, M.2, DC 12V input
