Its combination of AMD Ryzen™ Embedded performance, multi-display 4K support, GLI-compliant security features, gaming I/O expandability, and long-term availability makes it an excellent platform for next-generation gaming machines.
The GMB140 is powered by AMD Ryzen™ Embedded V1000 or R1000 Series processors, combining strong CPU performance with integrated AMD Radeon™ Vega Graphics.
The GMB140 supports up to four independent displays through DisplayPort++ outputs. V1000 models support four displays, while R1000 models support up to three displays.
Yes, it supports high-resolution 4K displays, enabling immersive visual experiences for gaming and multimedia applications.
With integrated AMD Radeon™ Vega Graphics and up to 3.6 TFLOPS of compute performance, the GMB140 delivers excellent graphics processing for demanding applications.
It supports up to 32GB of DDR4 memory through two SO-DIMM slots.
The motherboard includes one PCIe x16 slot and one PCIe Mini Card slot, allowing flexible expansion for gaming I/O modules and additional peripherals.
Yes, it features GLI-verified Trusted Boot and optional support for SAS 6.02 through a 9-bit serial port, making it suitable for regulated gaming environments.
Security features include GLI-verified Trusted Boot, TPM 2.0 support, and hybrid encryption technologies utilizing RSA-2048 and AES256.

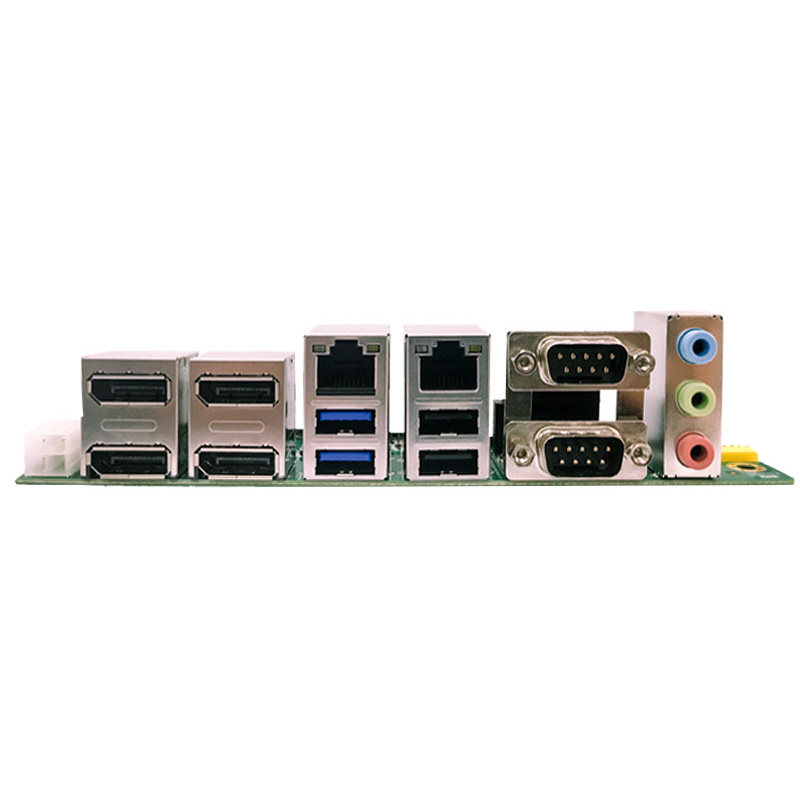

It offers seven USB ports, six RS-232 ports, dual Gigabit Ethernet ports, HD audio, dual SATA 3.0 ports, and 8-bit GPIO.
Yes, the motherboard is supported with a lifetime long-term supply program, helping customers maintain platform consistency over extended product lifecycles.
