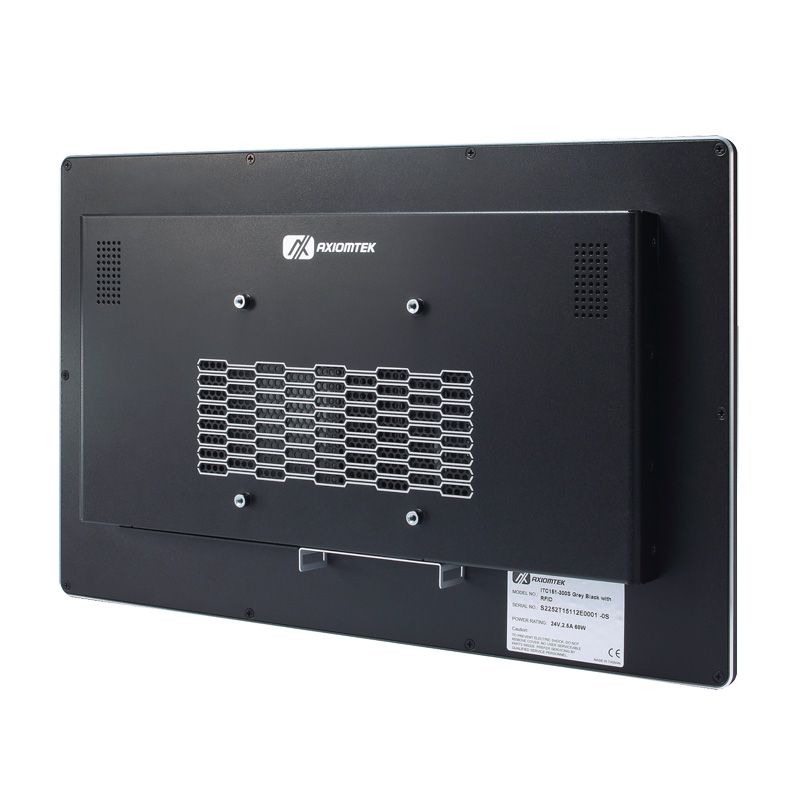

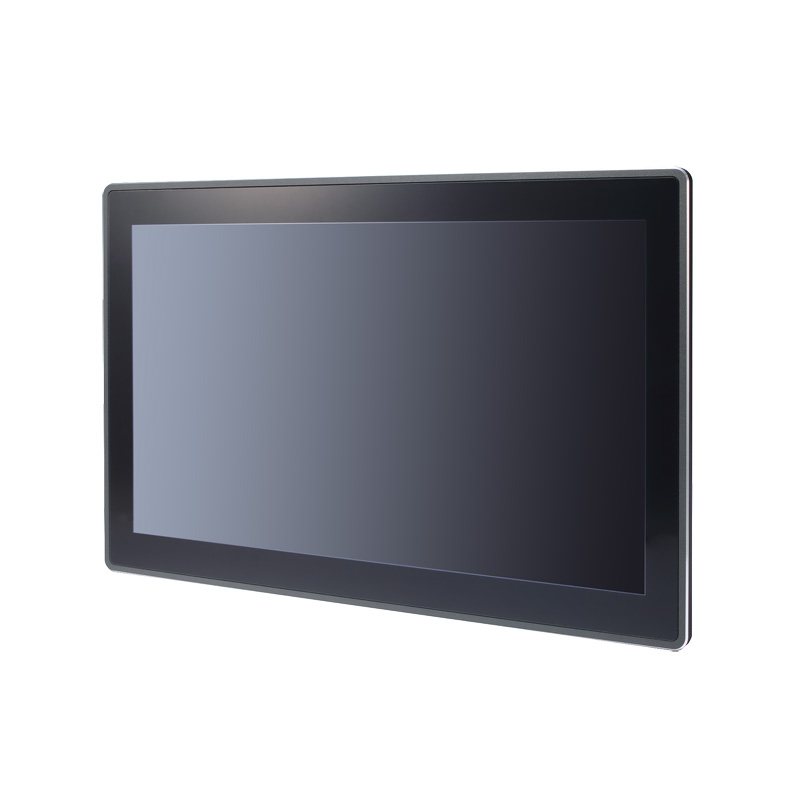

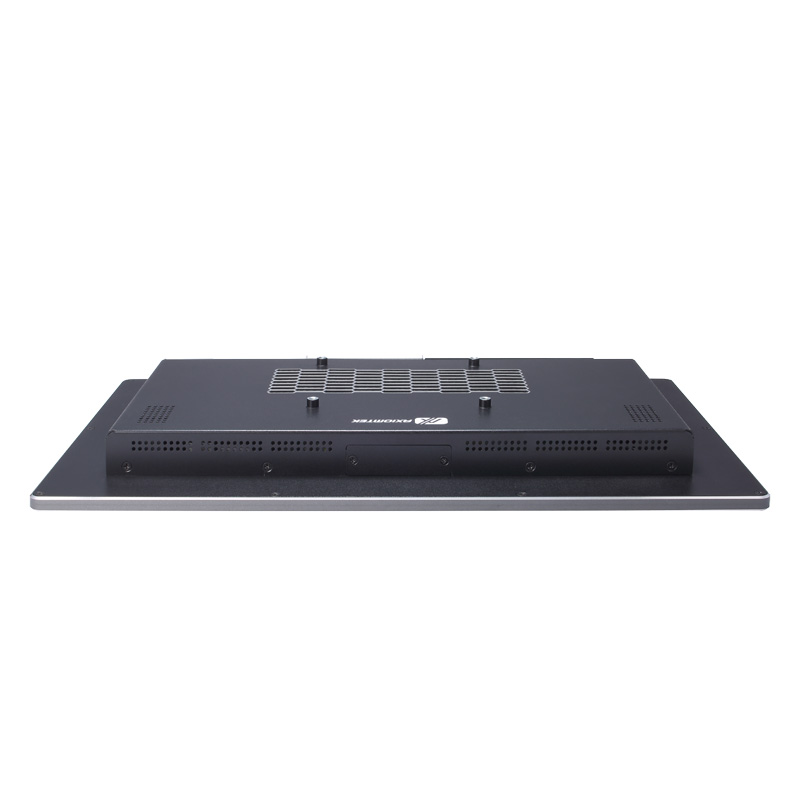

ITC151

Status : Available

15.6" HD TFT LCD Slim Bezel Modular Panel PC with Intel® Smart Display Module (SDM) CPU Card

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ITC151
ITC151
ITC151
ITC151
Intel SDM

Intel SDM

PCAP

PCAP

QR code

QR code

RAID

RAID

Thermal Tickets Printer

Thermal Tickets Printer

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 15.6" HD TFT LCD
  • 16:9 aspect ratio; 220 nits brightness
  • Diamond-cut slim bezel under 33.5 mm thickness
  • Projected capacity touch supported (10-point touch)
  • Swappable Intel® SDM CPU card
  • Modular design for various applications
  • Supports an add-on RFID reader, barcode scanner, and camera modules (optional)
  • Supports a thermal printer (optional)
  • Supports countertop/floor stand and wall mount (optional)

Specifications

LCD Panel
  • 15.6" HD TFT LCD
  • 220 nits
  • 16:9 ratio
  • 1366 x 768 pixels
SDM Module
  • Intel® SDM Small (SDM-S, 60 x 100 mm)
  • Intel® SDM Large (SDM-L, 175 x 100 mm)
CPU
  • SDM300S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
  • SDM310S: Intel® Celeron® processor J6412
  • SDM510L: 12th gen Intel® Celeron® 7305E processor or Intel® Core™ i3/i5 processor (optional)
Chipset
  • SoC integrated
System Memory
  • SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
  • SDM310S: LPDDR4 4GB memory onboard (8GB optional)
  • SDM510L: 2 x 260-pin DDR4-3200 SO-DIMM slot, up to 64GB
SDM-S I/O

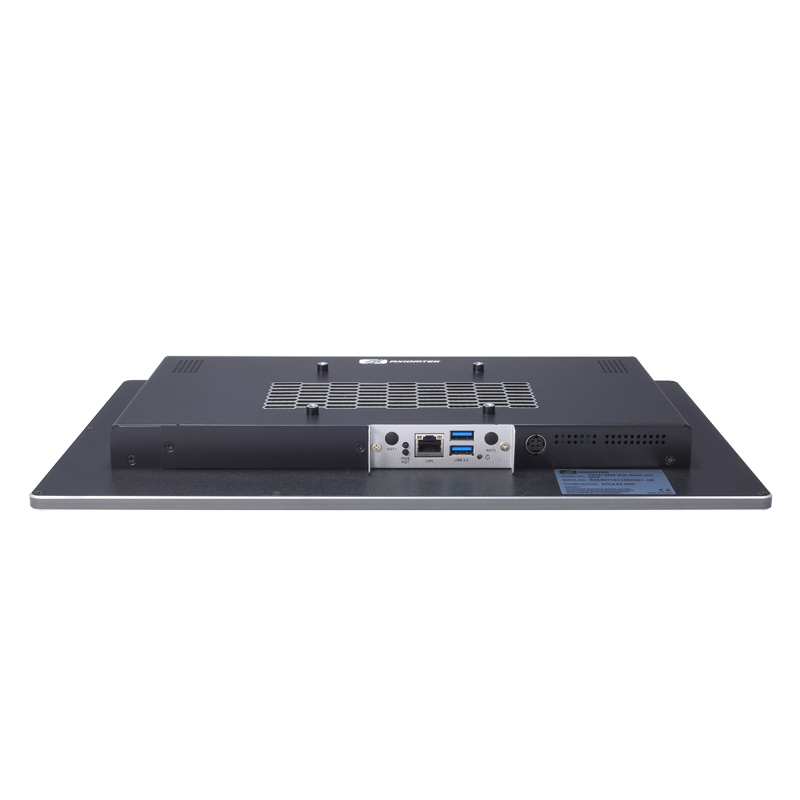

  • SDM300S:
  • 1 x LAN
  • 2 x USB 3.0 Type A
  • 2 x SMA antenna reserved hole
  • 1 x Power button and reset button
  • SDM310S:
  • 1 x LAN
  • 1 x USB 3.2 Gen2 Type C
  • 1 x USB Type C DisplayPort 1.2a (4K@60Hz) (rear I/O)
  • 1 x Power button and reset button
SDM-L I/O
  • SDM510L:
  • 1 x Power button with LED
  • 1 x 2.5 GbE LAN
  • 3 x USB 3.2 Gen2
  • 1 x USB 2.0
  • 3 x HDMI 2.0
  • 2 x SMA antenna reserved hole
I/O
  • N/A
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • TBD
Storage
  • SDM300S: eMMC 64GB onboard
  • SDM310S: 64GB eMMC onboard (128GB optional)
  • SDM510L: 1 x M.2 Key M 2242 slot
Expansion
  • SDM300S: 1 x M.2 Key E 2230 slot (for Wi-Fi)
  • SDM500L: 1 x M.2 Key E 2230 slot (for Wi-Fi)
Others
  • 2 x S.P.L. 88dB, 1.5W, 4 ohm
Power Supply
  • 24V AC to DC power adapter
Power Consumption
  • Average 45W
Dimensions
  • 393.5 x 33.5 x 248.5 mm (15.5'' x 1.3'' x 9.8'')
Weight (net/gross)
  • 3.1 kg (6.9 lb)/5.6 kg (12.4 lb)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Operating Humidity
  • 20% - 90%, non-condensing
Certications
  • CE, FCC Class A

Ordering Information

  • ITC151-SDM300S -N4200
    15.6" HD PCAP touch slim bezel panel with SDM300S Intel® Pentium® N4200 processor, onboard DDR4 4G, eMMC 64GB, 1 LAN, 2 USB 3.0, and 2 speakers
  • ITC151-SDM510L-i5-12600HE (P/N
    E22T151100)
  • ITC151-SDM310S -J6412
    15.6" HD PCAP touch slim bezel panel with SDM310S Intel® Celeron® processor J6412, LPDDR4 4GB, eMMC 64GB, 1 LAN, 1 Type C (USB 3.2), 1 Type C (USB 3.2/DisplayPort 1.2a), 2 speaker. (Onboard memory option
  • RFID module
  • Barcode scanner module
  • Camera module
  • Thermal printer with countertop stand or floor stand
  • SSD
    M.2 2242-M (SDM510L)
  • DDR4 SO-DIMM
    4GB - 32GB (SDM510L)
  • 822T1500050E
    Mounting kit
  • 8812T1500A0E
    Wi-Fi kit
  • 59903000000E
    AC power cord EU, L=1830 mm
  • 599000001100
    AC power cord US, L=1830 mm
  • 59909010000E
    AC power cord China, L=1830 mm
  • 59906000010E
    AC power cord Japan, L=1830 mm
  • 59905000000E
    AC power cord Australia, L=1830 mm
  • 59918000000E
    AC power cord Brazil, L=1830 mm

Download

Drivers

Software

Manual

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2025/10/16 UKCA Declaration of Conformity
2025/10/16 CE-Conformity Declaration

Frequently Asked Questions

You Might Also Like

Picture of ITC211

ITC211
Picture of ITC241

ITC241

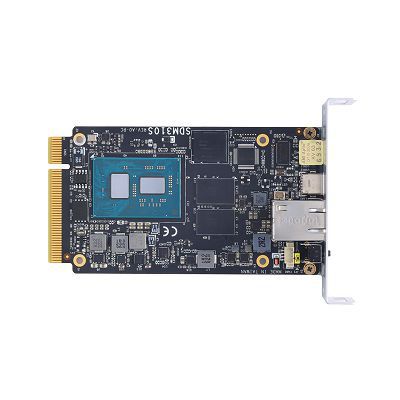

Picture of SDM310S
