ITC211

Status : Available

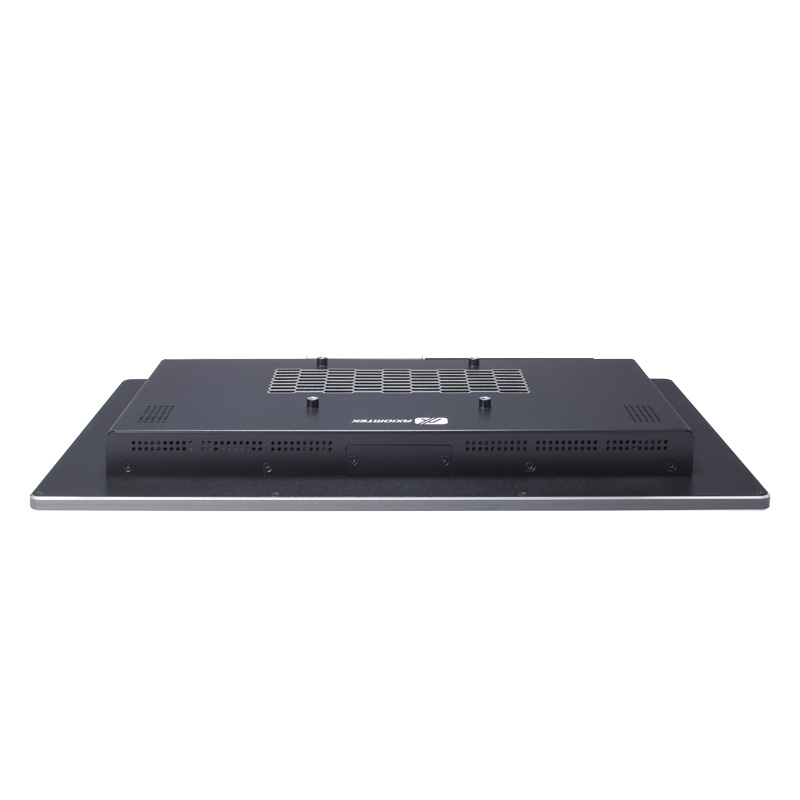

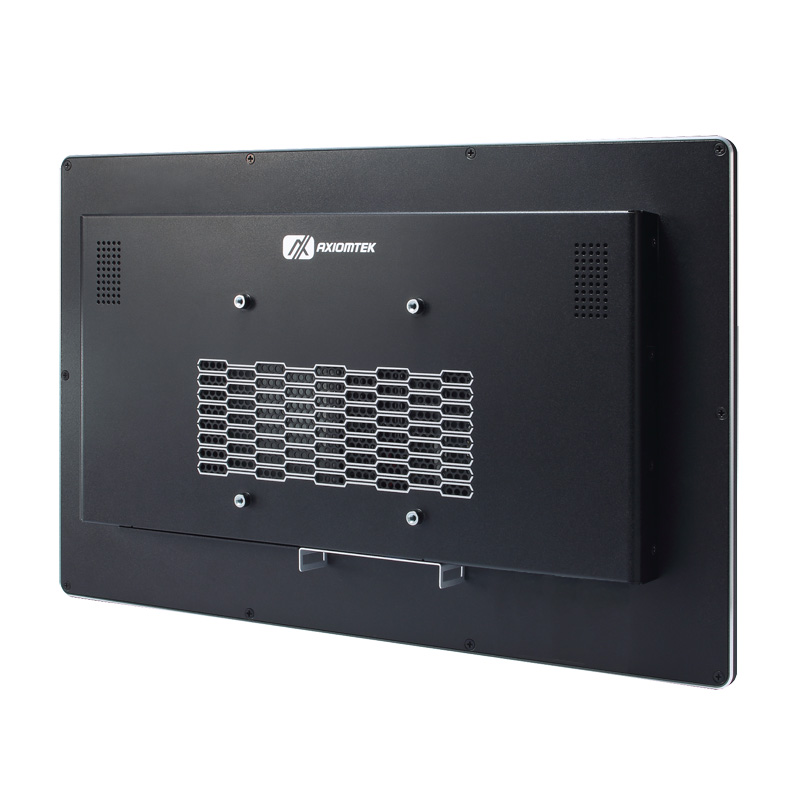

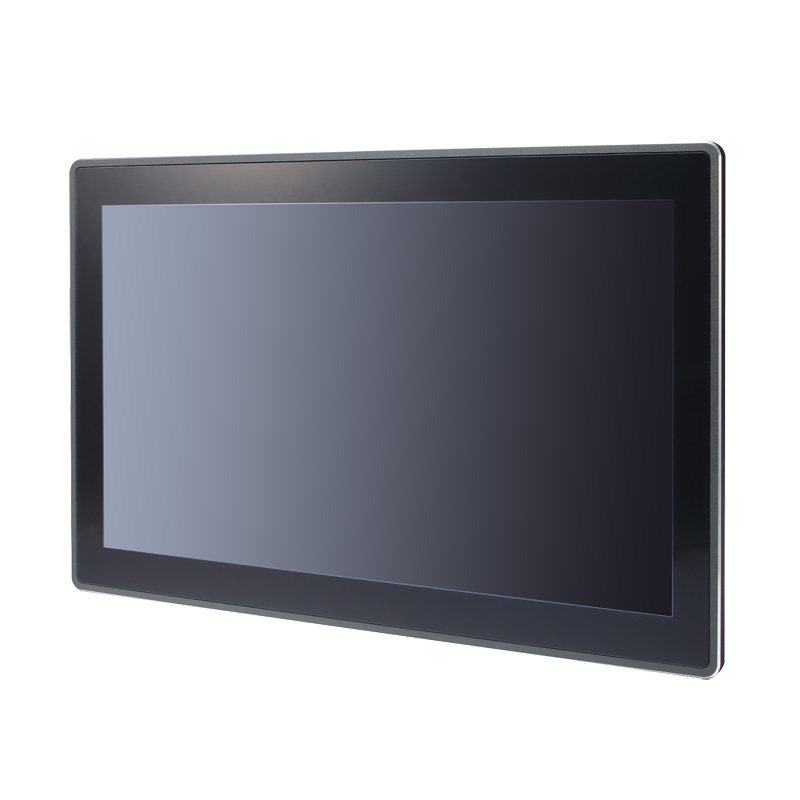

21.5" Full HD TFT LCD Slim Bezel Modular Panel PC with Intel® Smart Display Module (SDM) CPU Card

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ITC211
ITC211
ITC211
ITC211
10-Point Touchscreen

10-Point Touchscreen

Intel SDM

Intel SDM

Slim Bezel

Slim Bezel

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 21.5" Full HD TFT LCD
  • 16:9 aspect ratio; 250 nits brightness
  • Diamond-cut slim bezel under 41.5 mm thickness
  • Projected capacity touch supported (10-point touch)
  • Swappable Intel® SDM CPU card
  • Modular design for various applications
  • Supports an add-on RFID reader, barcode scanner, LED
  • lightbar, keypad, and camera modules (optional)
  • Supports a thermal printer (optional)
  • Supports countertop/floor stand, and wall mount (optional)

Specifications

LCD Panel
  • 21.5" Full HD TFT LCD
  • 250 nits
  • 16:9 ratio
  • 1920 x 1080 pixels
SDM Module
  • Intel® SDM Small (SDM-S, 60 x 100 mm)
  • Intel® SDM Large (SDM-L, 175 x 100 mm)
CPU
  • SDM300S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
  • SDM500L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
Chipset
  • SoC integrated
System Memory
  • SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
  • SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB

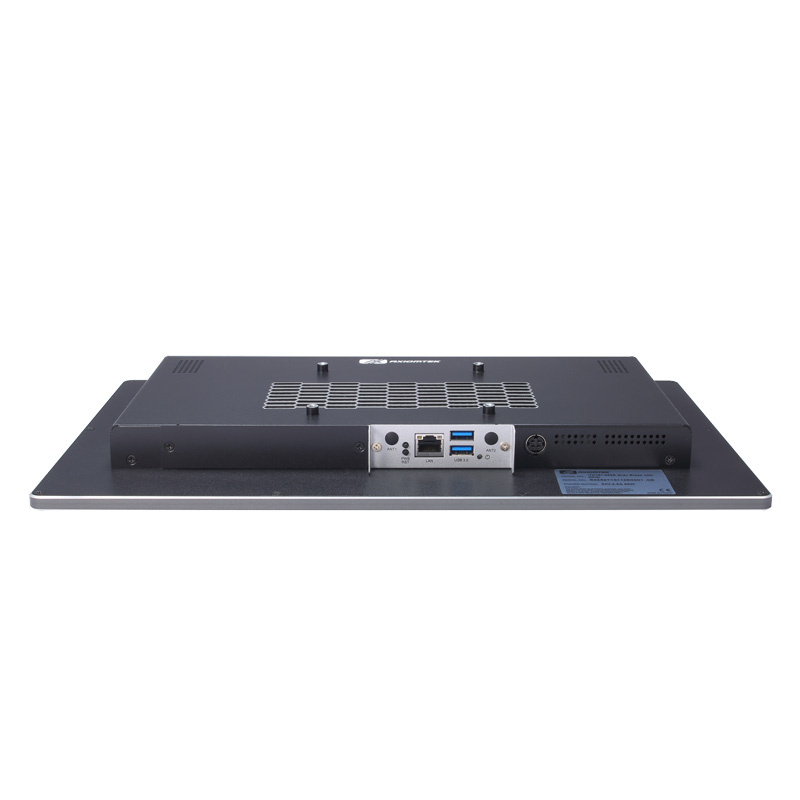

SDM-S I/O
  • 1 x GbE LAN
  • 2 x USB 3.0 Type A
  • 2 x SMA antenna reserved hole
SDM-L I/O
  • 1 x Power button with LED
  • 1 x GbE LAN
  • 4 x USB 3.0 Type A
  • 1 x Audio output
  • 1 x Microphone input
  • 2 x SMA antenna reserved hole
I/O
  • N/A
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • TBD
Storage
  • SDM300S: eMMC 64GB onboard
  • SDM500L: 1 x M.2 Key B 2242 slot
Expansion
  • SDM300S: 1 x M.2 Key E 2230 slot (for Wi-Fi)
  • SDM500L: 1 x M.2 Key E 2230 slot (for Wi-Fi)
Others
  • 2 x S.P.L. 88dB, 1.5W, 4 ohm
Power Supply
  • 24V AC to DC power adapter
Power Consumption
  • Average 60W
Dimensions
  • 526.1 x 46.3 x 317.6 mm (20.7" x 1.8" x 12.5")
Weight (net/gross)
  • 6.9 kg (15.2 lb)/10.2 kg (22.4 lb)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Operating Humidity
  • 20% to 90%, non-condensing
Certications
  • CE, FCC Class A

Ordering Information

  • ITC211-SDM300S -N4200
    21.5 FHD PCAP touch slim bezel panel with SDM300S Intel® Pentium® N4200 processor, onboard DDR4 4G, eMMC 64GB, 1 LAN, 2 USB 3.0, and 2 speakers
  • ITC211-SDM510L-i5-12600HE
    21.5 FHD PCAP touch slim bezel panel with SDM510L Intel® Core™ i5 12600HE processor, 2 SO-DIMM, 1 M.2 SSD slot, 2.5G LAN, 3 USB 3.2 Gen2, 1 USB2.0, and 2 speakers
  • RFID module
  • Barcode scanner module
  • Camera module
  • Thermal printer with counter-top stand or floor stand
  • SSD
    M.2 2242-M (SDM510L)
  • DDR4 SO-DIMM
    4GB to 32GB (SDM510L)
  • 822T1500050E
    Mounting kit
  • 8812T1500A0E
    Wi-Fi kit
  • 59903000000E
    AC power cord EU, L=1830 mm
  • 599000001100
    AC power cord US, L=1830 mm
  • 59909010000E
    AC power cord China, L=1830 mm
  • 59906000010E
    AC power cord Japan, L=1830 mm
  • 59905000000E
    AC power cord Australia, L=1830 mm
  • 59918000000E
    AC power cord Brazil, L=1830 mm

Download

Drivers

Software

Manual

Date Description Version Download File
2026/06/01 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2025/12/03 CE-Conformity Declaration

Frequently Asked Questions

You Might Also Like

Picture of ITC151

ITC151

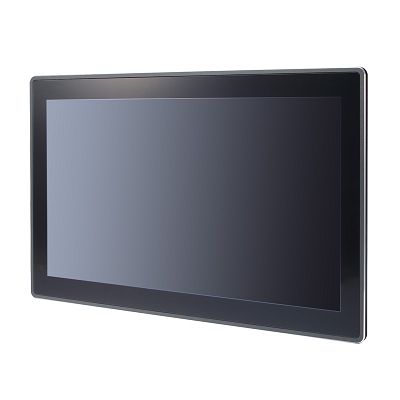

Picture of ITC241
