Making Warehouses More Efficient with Artificial Intelligence
Artificial Intelligence (AI) and machine vision are gradually being applied to warehouses to improve efficiency, enhance safety, and free workers from repetitive manual tasks so they can focus on more valuable roles. According to a report from LogisticsIO, warehouse automation is expected to be worth an estimated USD 30 billion by 2026, growing at a CAGR of 14% during the forecast period. By using industrial PCs, computer vision, and edge AI systems across various applications, warehouses can build a more comprehensive automated environment.

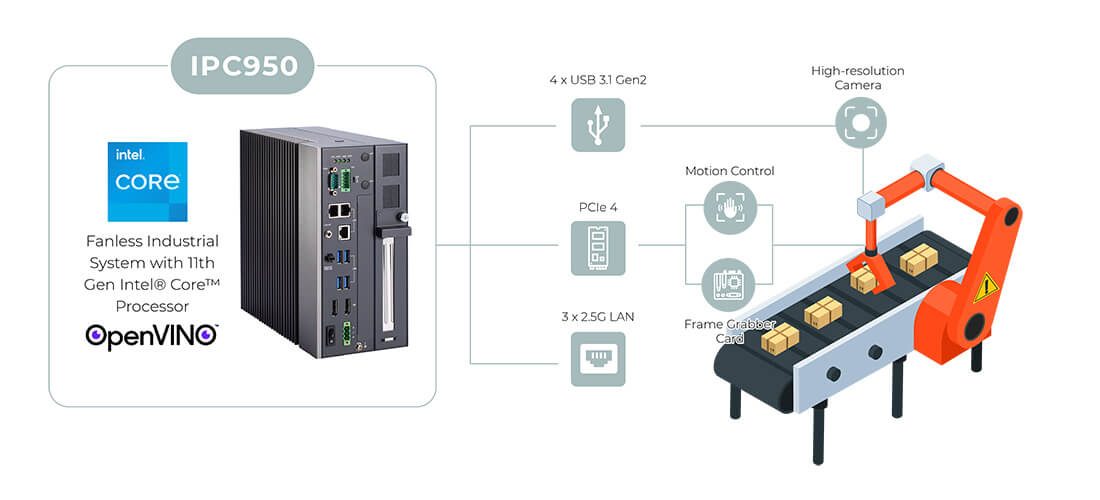

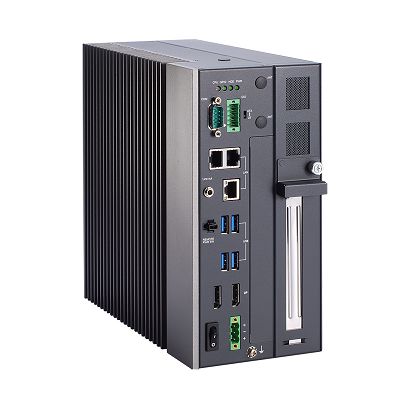

IPC950: Engineered for Robotic Arms
High-Performance Processor
Its high performance comes from 11th Gen Intel® Core™ i7/i5/i3 or Celeron® 6305E processors and support for up to 64GB DDR4 SO-DIMM memory. The IPC950 can handle computing and operational control tasks simultaneously without the need for additional accelerator cards.
Supports Frame Grabber Cards
The IPC950 supports an additional PCIe x4 slot for motion control and frame grabber cards, enabling it to detect incoming items, identify them, and then pick and place them into boxes for delivery.
High-Speed Vision Connectivity
Four USB 3.1 Gen2 ports are ready to connect to multiple high-resolution cameras. In addition, the 2.5GbE LAN port ensures smooth data transmission with low latency.

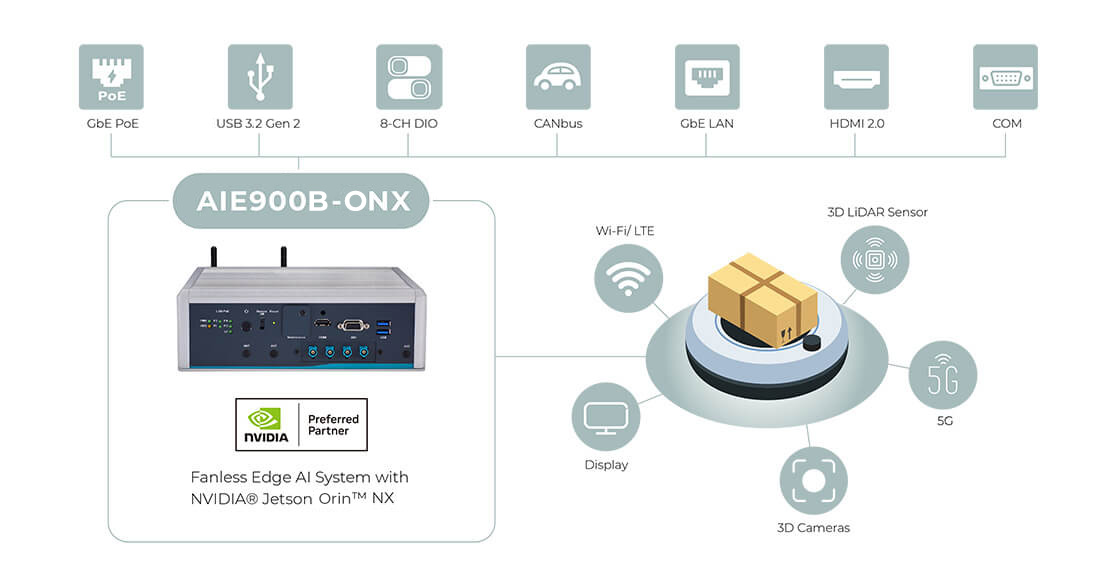

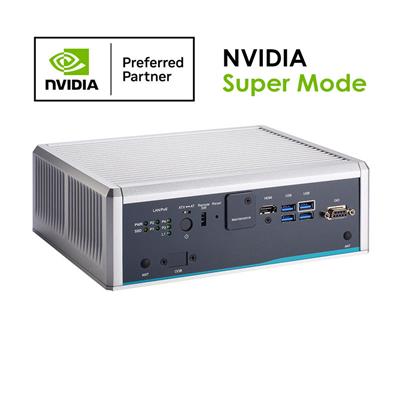

AIE900B-ONX: Compact Edge AI System Powered by NVIDIA® Jetson Orin™ NX
NVIDIA® Jetson Orin™ NX
The AIE900B-ONX is powered by the NVIDIA® Jetson Orin™ NX, delivering high AI performance for machine vision, mapping, navigation, and automated operation. Its advanced GPU and AI computing capability make it suitable for AMR applications that require real-time perception and decision-making at the edge.
Compact and Rugged Design
Measuring 239 mm x 185.3 mm x 79.4 mm (W x D x H), the AIE900B-ONX fits easily into AMRs of various sizes. It supports an extended operating temperature range from -25°C to +50°C and a wide 9–36 VDC power input, with optional ignition power control.
Rich I/O for Numerous Sensors
The AIE900B-ONX offers rich I/O interfaces, including COM, PoE, LAN, USB 3.2, HDMI, CAN bus, and 8-channel DIO, enabling seamless connectivity with 3D LiDAR sensors, 3D cameras, displays, and other end devices.

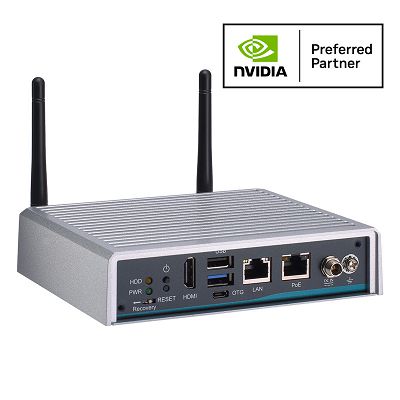

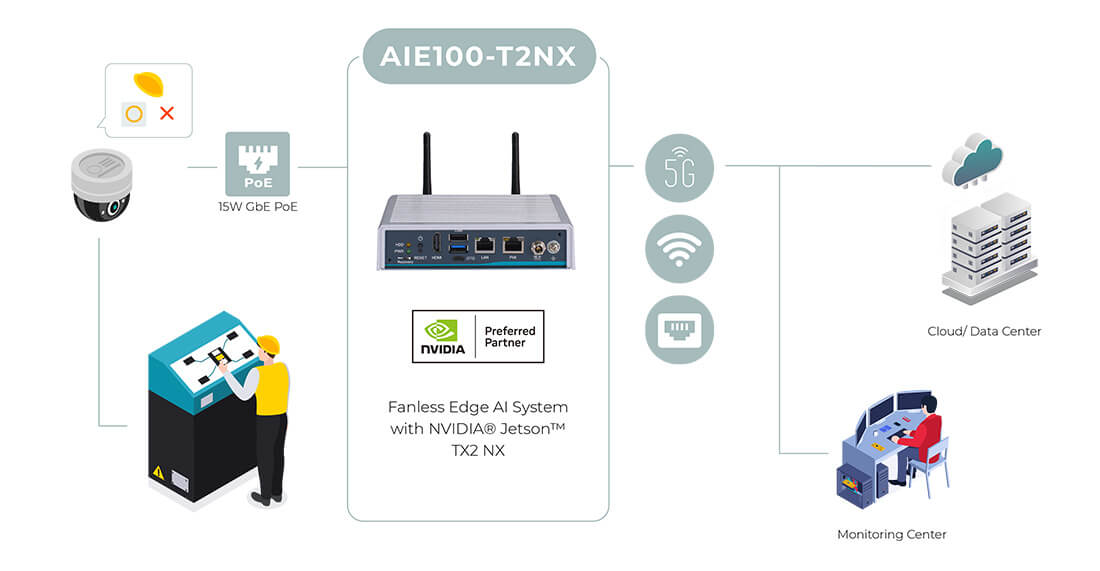

AIE100-T2NX: Superb Choice for Safety Monitoring Systems
NVIDIA® Jetson™ TX2 NX
The AIE100-T2NX is powered by the NVIDIA® Jetson™ TX2 NX, featuring a Pascal™ architecture GPU with 256 cores to deliver excellent graphics processing and edge AI performance for safety monitoring applications.
Durable Design
The AIE100-T2NX can operate across a wide temperature range from -30°C to +60°C and withstand vibrations up to 3 Grms. Its fanless design, wall-mount brackets, and waterproof IP42-rated cover kit allow easy installation in rugged environments.
15W GbE PoE Port
To facilitate IP camera deployment, the AIE100-T2NX is equipped with a 15W GbE PoE port for both power and video transmission. Additionally, it includes one PCI Express Mini Card slot and one SIM slot for wireless network connections to transmit data to central management systems.

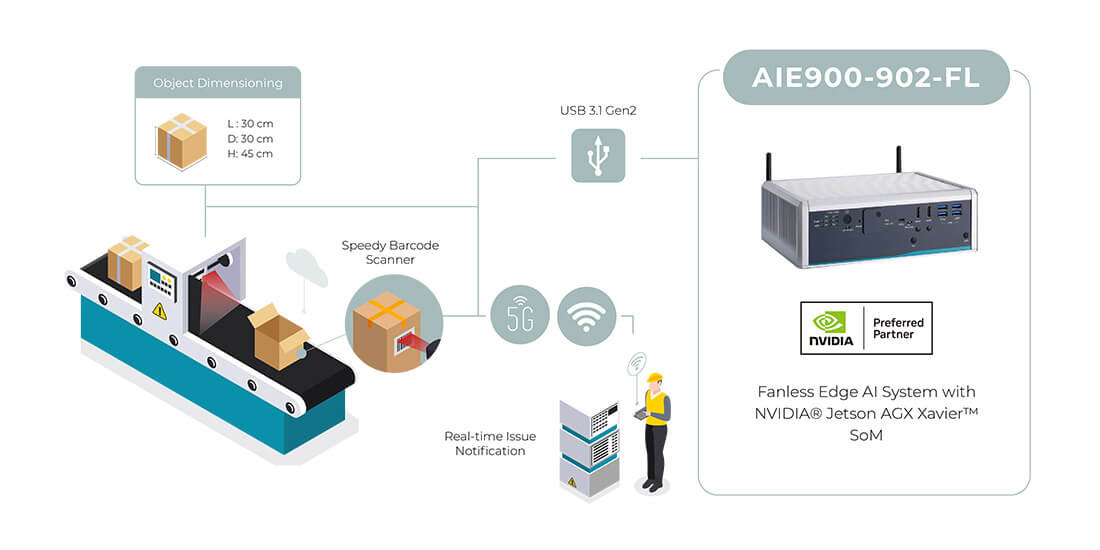

AIE900-902-FL: Designed for Machine Vision and AI with a High-Performance NVIDIA Processor
NVIDIA® Jetson AGX Xavier™
The AIE900-902-FL is powered by the NVIDIA® Jetson AGX Xavier™ platform, featuring a 512-core NVIDIA Volta™ GPU with 64 Tensor Cores, capable of AI processing speeds up to 32 TOPS.
Storage Expansion
In addition to the AGX Xavier’s 32GB LPDDR4 and 32GB eMMC, the AIE900-902-FL is equipped with an M.2 M-Key 2280 slot with PCIe x4 for an optional NVMe SSD, a MicroSD slot, and a swappable external 2.5-inch SATA bay to meet different data storage needs.
Fast USB and PoE for Smart Cameras
The AIE900-902-FL provides two USB 3.1 Gen2 ports and two USB 3.1 Gen1 ports for connecting 3D cameras or barcode scanners. It also comes with four PoE ports for additional cameras.
