Edge AI and IoT-Based Wildfire Prediction and Real-Time Flood Monitoring Systems
The U.N. weather agency issued a “red alert” about global warming in June 2024. Although global efforts to implement environmental policies continue, the world’s attempts to reverse the trend remain insufficient. As extreme weather risks surge, wildfires and floods have become increasingly prevalent in certain areas. Authorities are seeking practical and cost-effective solutions to reduce the impact on citizens, with AI and IoT emerging as key enabling technologies.

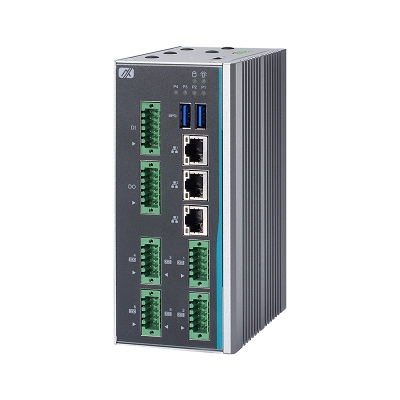

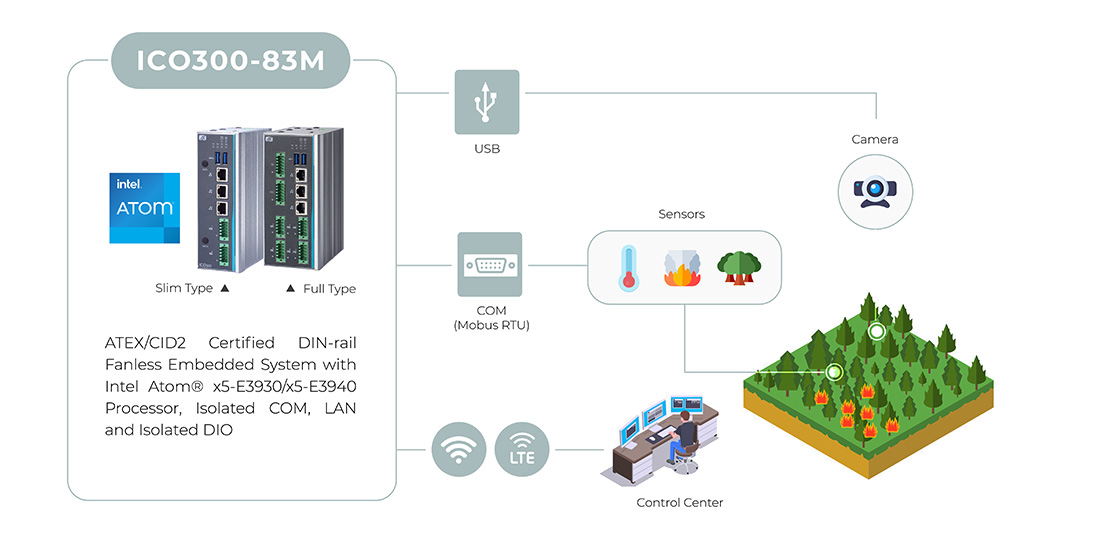

ICO300-83M: Anti-Explosion DIN-Rail Gateway for Hazardous Field Sites
Compact, Rugged, and Power-Efficient
The ICO300-83M, powered by an energy-efficient Intel® Atom® processor with a TDP of no more than 10W, is certified by ATEX and CID2 to ensure safe operation in hazardous sites. It operates within a temperature range of -40°C to +75°C, has a wide 9–36 VDC power input range, and can withstand vibration up to 3 Grms.
Rich I/O Options
The ICO300-83M comes in two models: slim type and full type. Both feature 2 x USB, 3 x LAN, 1 x HDMI, and 2 x isolated COM, while the full type offers an additional 4 x COM and 1 x DIO, enabling seamless connectivity with various sensors.
DigiHub and eAPI for Easy Integration
Axiomtek’s DigiHub and eAPI streamline system integration, making it easier for customers to connect with their own devices while accelerating development and deployment.

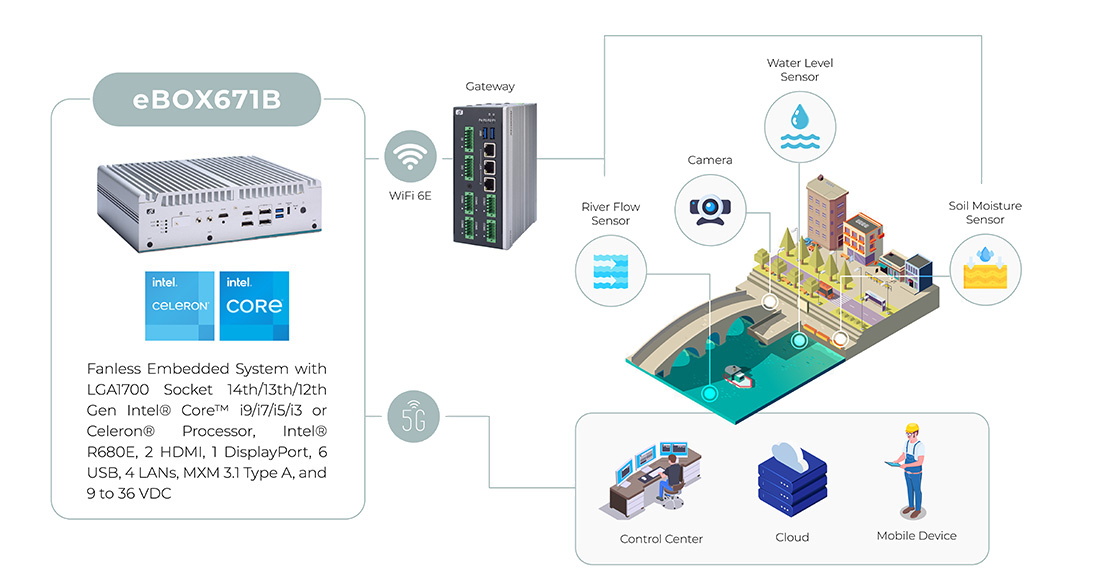

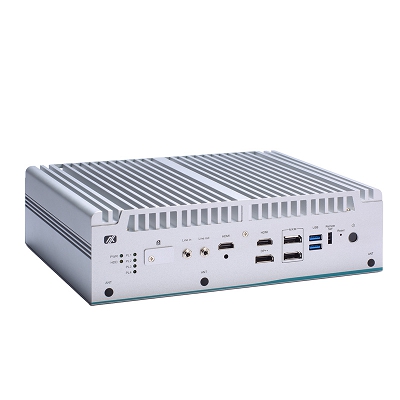

eBOX671B: High-Performance Edge AI System for Flood Monitoring
Designed to Enhance Edge AI Capabilities
The eBOX671B is powered by 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processors and supports MXM 3.1 Type A GPU cards. High-efficiency storage options, including NVMe M.2 and dual 2.5-inch SATA HDD/SSD with RAID support, ensure fast data access and efficient AI processing.
Rich I/O and Multi-Display Support
With MXM GPU support, the eBOX671B enables up to five simultaneous displays, making it ideal for monitoring centers. Extensive I/O, including 6 x USB, 4 x COM, 4 x LAN, and a flexible I/O window, allows seamless integration across applications.
Reliable and Rugged Design
Built with an IP40-rated enclosure, a wide operating temperature range from -40°C to +65°C without MXM, 3 Grms vibration resistance, and 9–36 VDC power input, the eBOX671B is designed for demanding environments. Tested NVIDIA MXM modules and an optional fan kit further enhance thermal performance.
