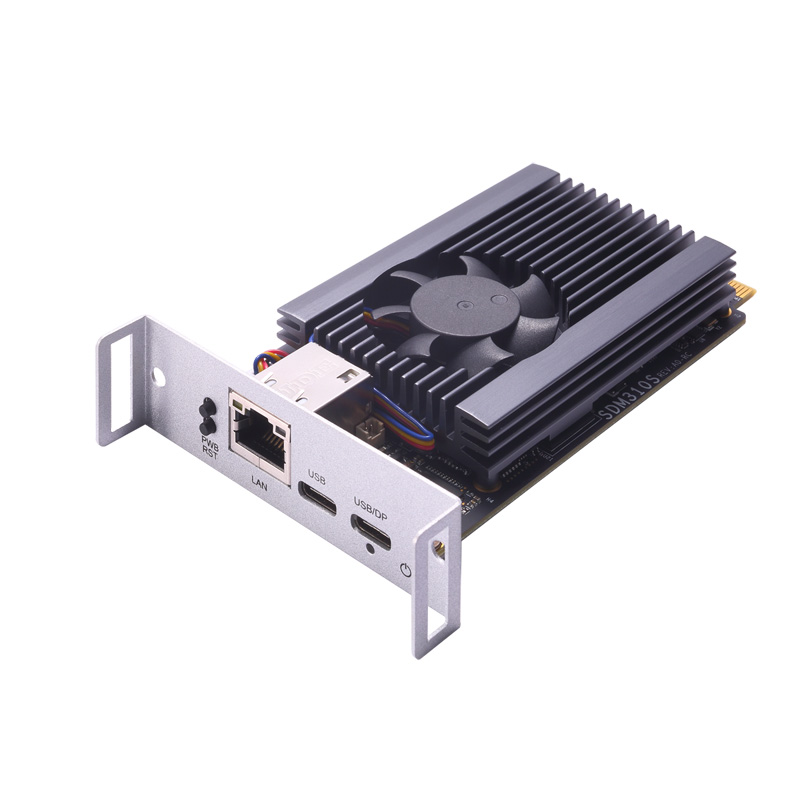

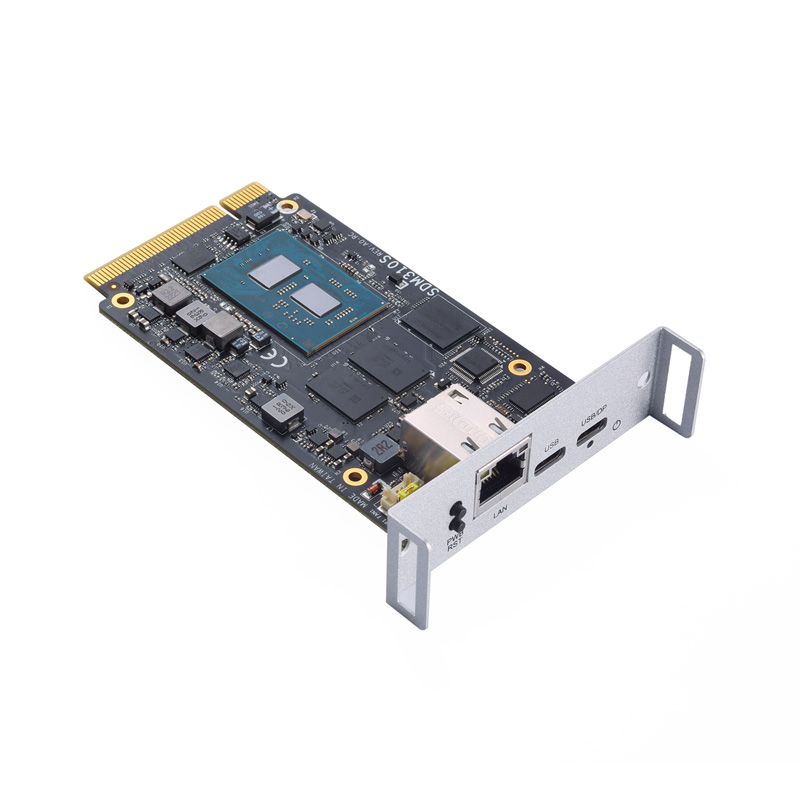

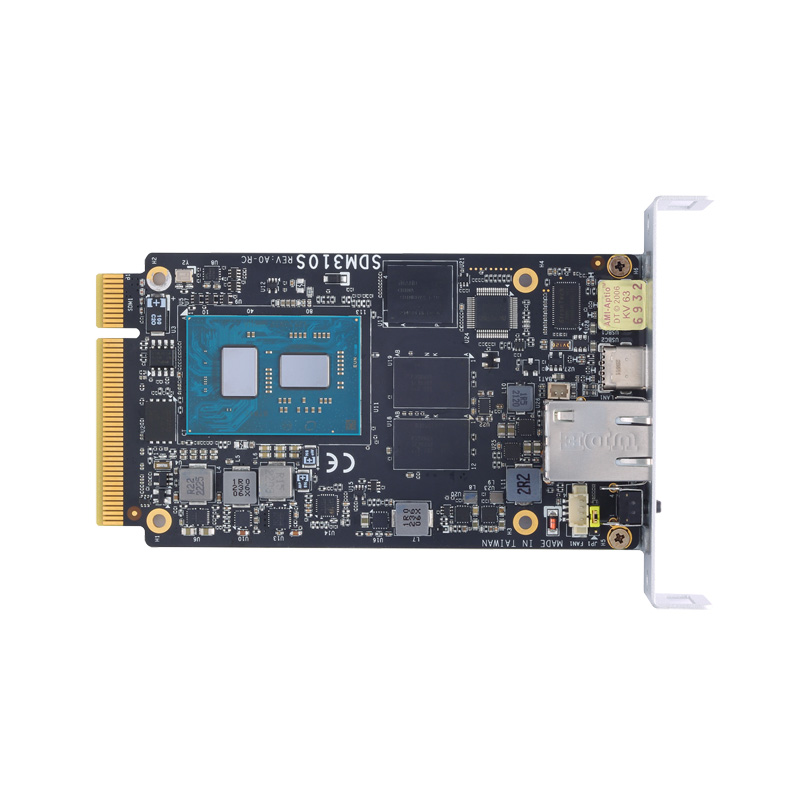

What is the SDM310? + The SDM310S is a compact Intel® Smart Display Module Small (SDM-S) signage computer designed for high-performance display applications, making it ideal for digital signage, interactive kiosks, video walls, magic mirrors, and interactive flat panel displays in space-constrained environments.
Which processor powers the SDM310S? + It is powered by the Intel® Celeron® J6412 processor (Elkhart Lake) with Intel® UHD Graphics, delivering energy-efficient performance suitable for demanding display applications.
What memory and storage options are available? + The module comes with 4GB LPDDR4 memory as standard, with an optional upgrade to 8GB, and includes 64GB eMMC storage with an optional 128GB configuration, providing sufficient capacity for media content and signage software.
What display capabilities does the SDM310S support? + The SDM310S supports dual-view 4K displays through both SDM Gold Finger connectors (HDMI 2.0b and DisplayPort 1.2a) and USB Type-C with DisplayPort Alt-mode, offering flexible, high-resolution visual output for immersive signage experiences.

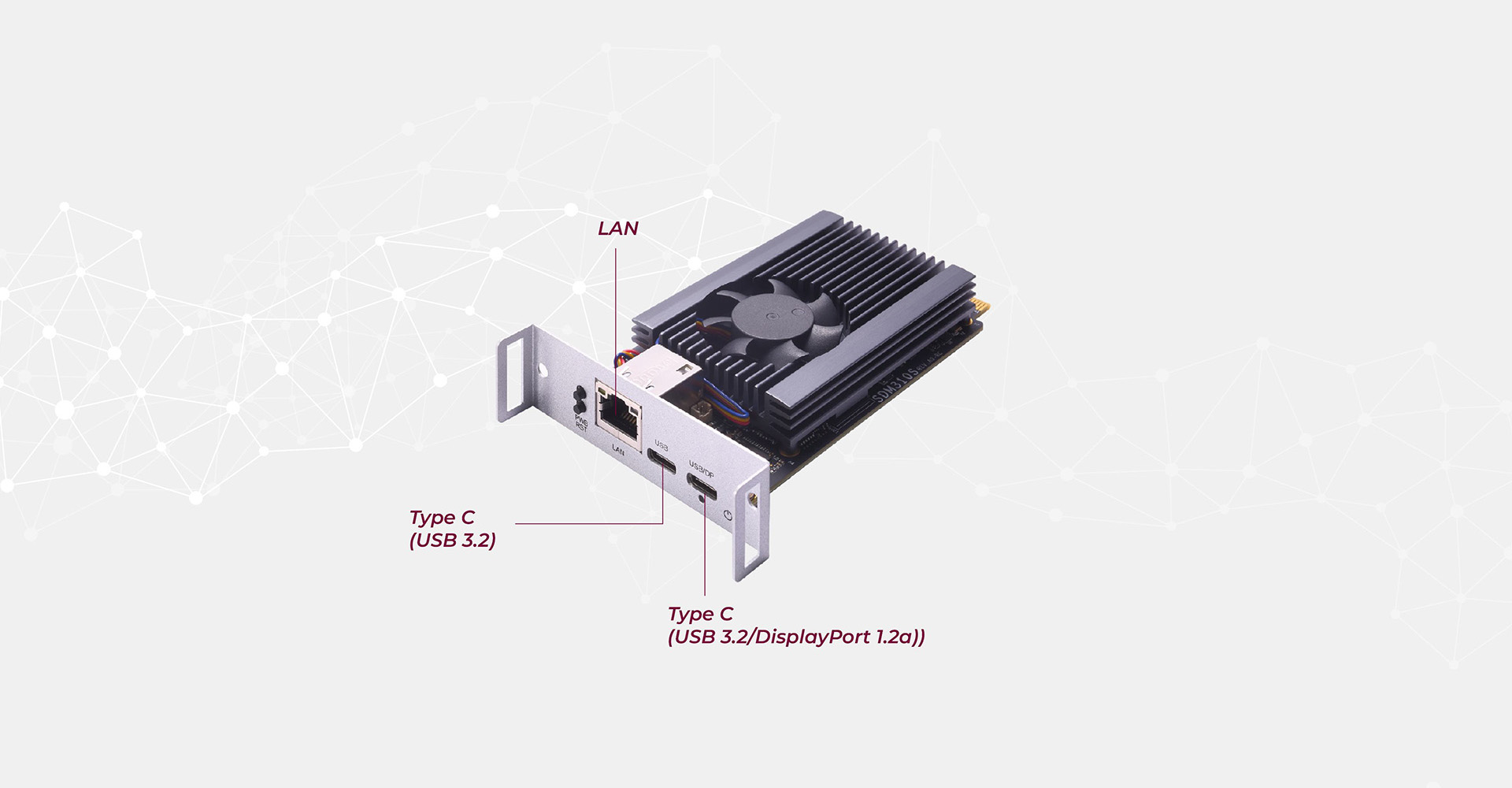

What connectivity and I/O features are available? + It provides two USB Type-C ports (USB 3.2), one GbE LAN port with Wake-on-LAN and PXE Boot ROM functions, SDM Gold Finger interfaces including USB 3.0, HDMI 2.0b, DisplayPort 1.2a, Serial TX/RX, two I2C, and PCIe x1, delivering versatile connectivity for modern signage systems.
What makes the SDM310S easy to integrate into display systems? + With its compact SDM-S form factor and high-speed PCIe edge connector, the SDM310S can be easily integrated into SDM-compliant displays and has been tested with major display brands, enabling plug-and-play installation and rapid deployment.
What differentiates the SDM310S from other SDM-S modules? + It is the only Intel® SDM-S module supporting dual USB Type-C ports and dual-view 4K output, providing enhanced flexibility, convenience, and a true plug-and-play experience for professional signage and interactive display solutions.
How does the SDM310S support cost-effective, scalable deployments? + Its compact design, flexible connectivity, and interoperability with a wide range of SDM-compliant displays allow system integrators to deploy high-performance signage solutions with minimal hardware overhead and streamlined installation.
