P6151-V3

Status : Available

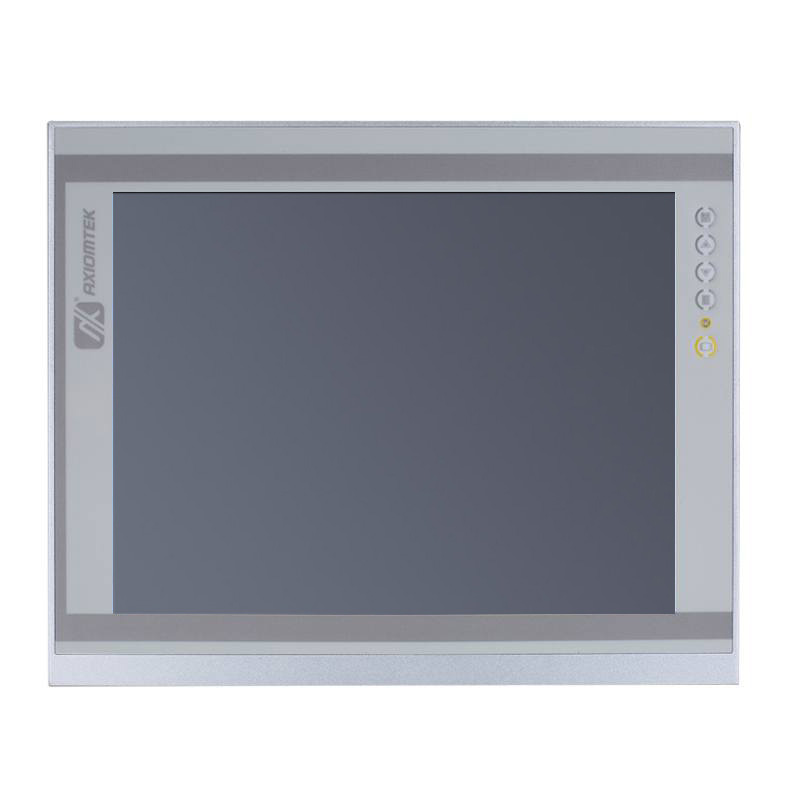

15" XGA TFT Industrial LCD Monitor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P6151-V3
P6151-V3
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 15" XGA TFT LCD with 420 nits of brightness
  • Resistive touch
  • NEMA 4/12 (IP65) compliant front bezel
  • Full range screw-type (locked) AC-in or 24 VDC in (optional)
  • HDMI, DisplayPort, and VGA with multi-signal inputs
  • Supports panel mount, wall mount, and VESA mount
  • Built-in speakers

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel
  • 15" XGA TFT LCD
Max Colors
  • 16.2 M
Active Area (mm)
  • 304.128 x 228.096
Max. Resolution
  • 1024 x 768
Backlight
  • LED
Pixel Pitch (mm)
  • 0.297 x 0.297
Backlight MTBF (hrs)
  • 30,000 hrs
Viewing Angle (H/V)
  • 160°/160°
Response Time
  • 16ms
Contrast Ratio
  • 800 (TYP.)
LCD Brightness (cd/m²)
  • 420 nits
Display Control
  • OSD (on screen display)

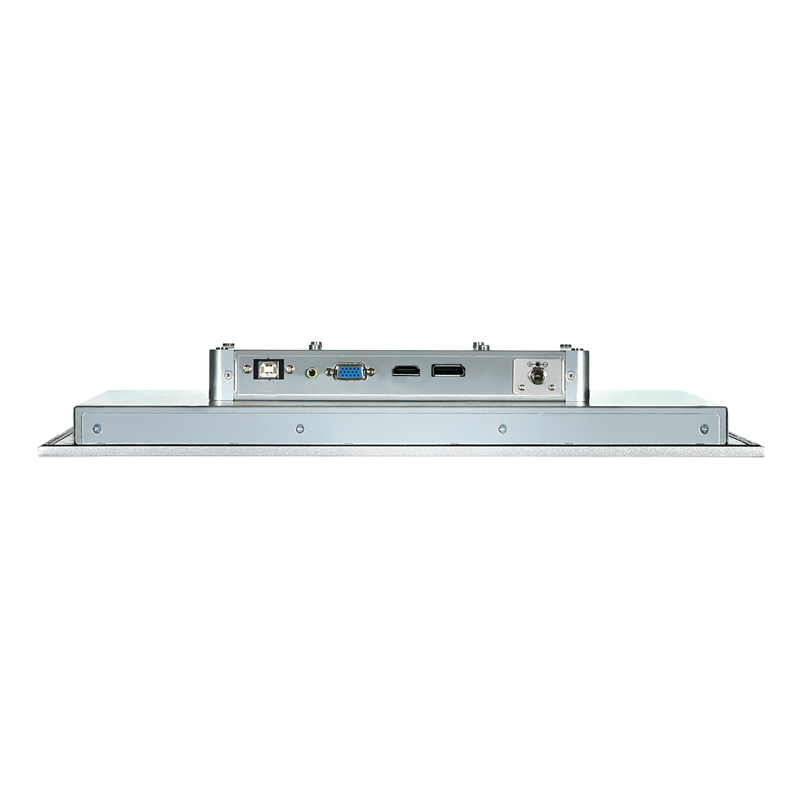

I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Power input with screw type connector (AC version)
  • 1 x Power input with terminal block (DC version)
Touchscreen
  • 5-wire resistive touch
Audio
  • 2 x Speaker
Power Adapter
  • AC version: 100 - 240 VAC-DC, 12V3A, 36W power adapter
  • DC version: 24 VDC
Power Comsumption
  • 14W
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Dimensions
(W x D x H)
  • 377.9 x 58 x 309.3 mm (14.88” x 2.28” x 12.18”)
Weight (net/gross)
  • 3.7 kg (8.15 lb)/5.9 kg (13 lb)
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

Ordering Information

  • P6151PR-AC-U-V3 (P/N-E226151116)
    15" industrial monitor with resistive touch screen (USB interface) and AC version
  • P6151PR-DC-U-V3 (P/N-E226151118)
    15" industrial monitor with resistive touch screen (USB interface) and DC version
  • 509000001500
    Adaptor 24V/120W,wire only
  • 599000001100
    US 1.8M power cord
  • 59904010000E
    UK 1.83M power cord
  • 59903000000E
    EU 1.83M power cord
  • 590000012700
    HDMI cable
  • 590000020900
    DisplayPort cable 2M
  • E29R131106
    Panel mount kit
  • E29R131114
    Wall mount kit
  • E226171119
    Desktop stand

Download

Drivers

Date Description Version Download File
2024/08/08 Touch driver VA1

Software

Manual

Date Description Version Download File
2021/08/17 User's manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/11 DC_UKCA Declaration of Conformity
2023/12/11 DC_FCC Verification
2023/12/11 DC_CE-Conformity Declaration
2023/12/11 DC_CE EMC Verification
2023/12/11 AC_UKCA Declaration of Conformity
2023/12/11 AC_CE LVD Verification
2023/12/11 AC_FCC Verification
2023/12/11 AC_CE-Conformity Declaration
2023/12/11 AC_CE EMC Verification

You Might Also Like

Picture of P6171-V3

P6171-V3

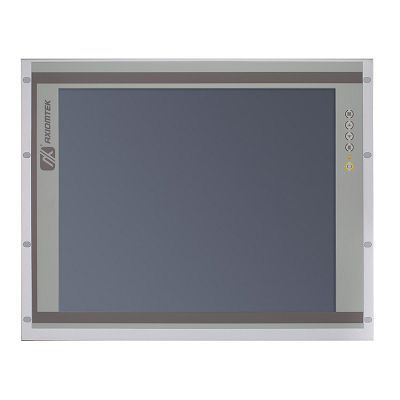

Picture of P6191-V3
