P6191-V3

Status : Available

19" SXGA TFT Industrial LCD Monitor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

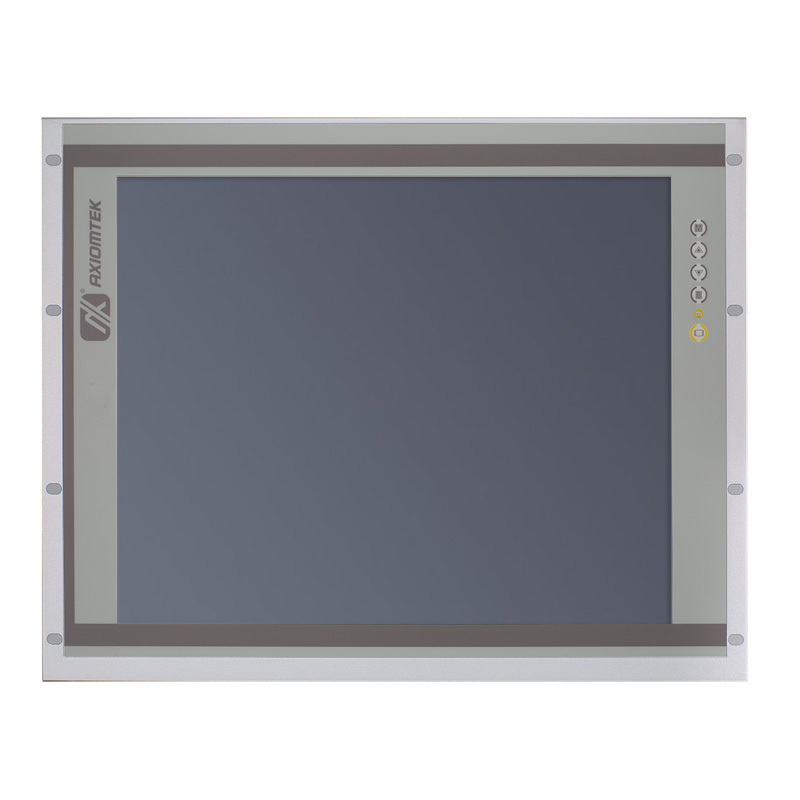

P6191-V3

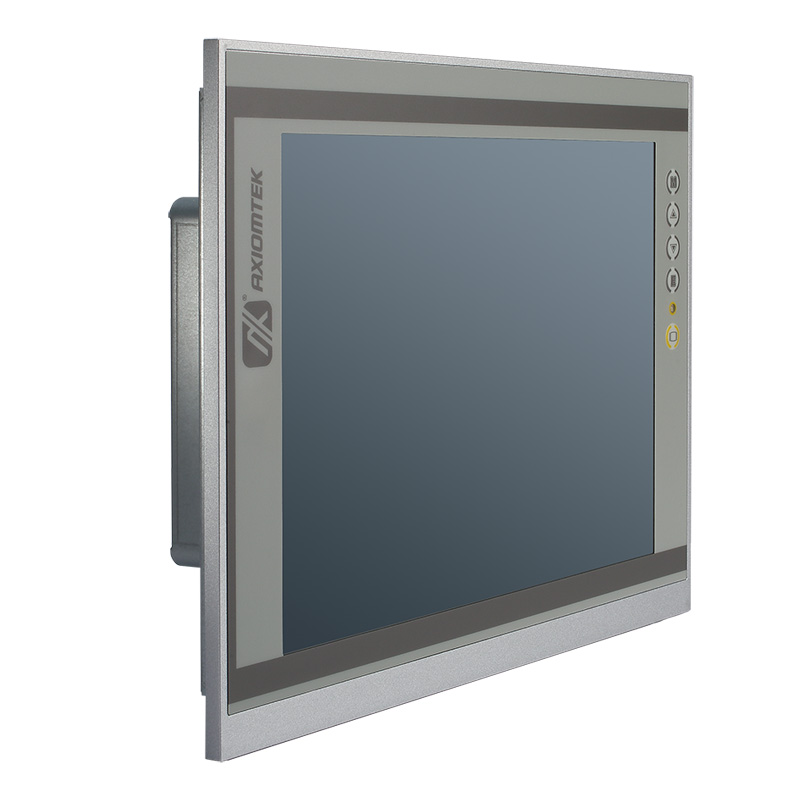

P6191-V3
P6191-V3
IP65 Rating

IP65 Rating

Modular Design

Modular Design

Slim Bezel

Slim Bezel

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 19" SXGA TFT LED backlight LCD
  • NEMA 4/12 (IP65)-compliant panel mounting flat panel monitor
  • Supports panel mount, wall mount, rack mount, and VESA arm
  • Resistive touchscreen
  • 24 VDC power input
  • VGA, HDMI, and DisplayPort with multi-signal inputs

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel
  • 19" SXGA TFT LCD
Max Colors
  • 16.7M
Active Area (mm)
  • 376.32 x 301.06
Max. Resolution
  • 1280 x 1024
Backlight
  • LED
Pixel Pitch (mm)
  • 0.294 x 0.294
Backlight MTBF (hrs)
  • 30,000 hrs
Viewing Angle (H/V)
  • 170°/160°
Response Time
  • 5ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 250 nits
Display Control
  • OSD (on screen display)

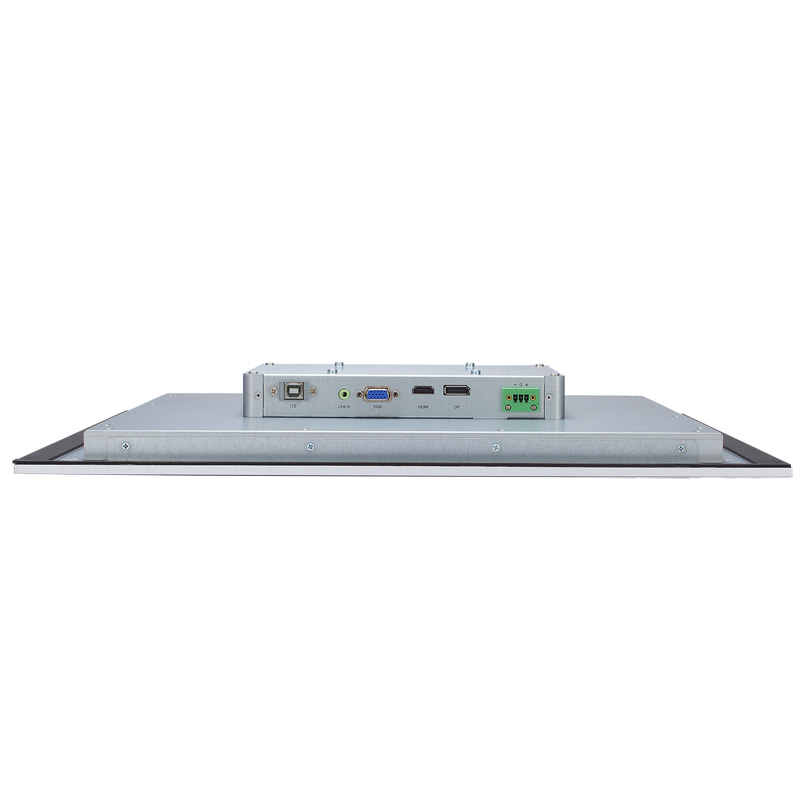

I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DP
  • 1 x HDMI
  • 1 x Power input with terminal block (DC version)
Touchscreen
  • 5-wire resistive touch
Audio
  • N/A
Power Adapter
  • 24VDC
Power Comsumption
  • 17W
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F)
Dimensions
(W x D x H)
  • 482 x 55 x 380 mm (18.98" x 2.17" x 14.96")
Weight (net/gross)
  • 6 kg (13.23 lb)/7.5 kg (16.53 lb)
Mounting
  • Panel mount
  • Wall mount
  • Desktop stand
  • VESA arm
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

Ordering Information

  • P6191PR-DC-U-V3 (P/N-E226191115)
    19" industrial resistive touch screen, DC version, USB interface
  • 509000001500
    Adaptor 24V/120W, wire only
  • 599000001100
    US 1.8M power cord
  • 59904010000E
    UK 1.83M power cord
  • 59903000000E
    EU 1.83M power cord
  • 590000012700
    HDMI cable
  • 590000020900
    DisplayPort cable 2M
  • E29R131107
    Panel mount kit
  • E29R131114
    Wall mount kit
  • E221177116
    Desktop stand
