P6171-V3

Status : Available

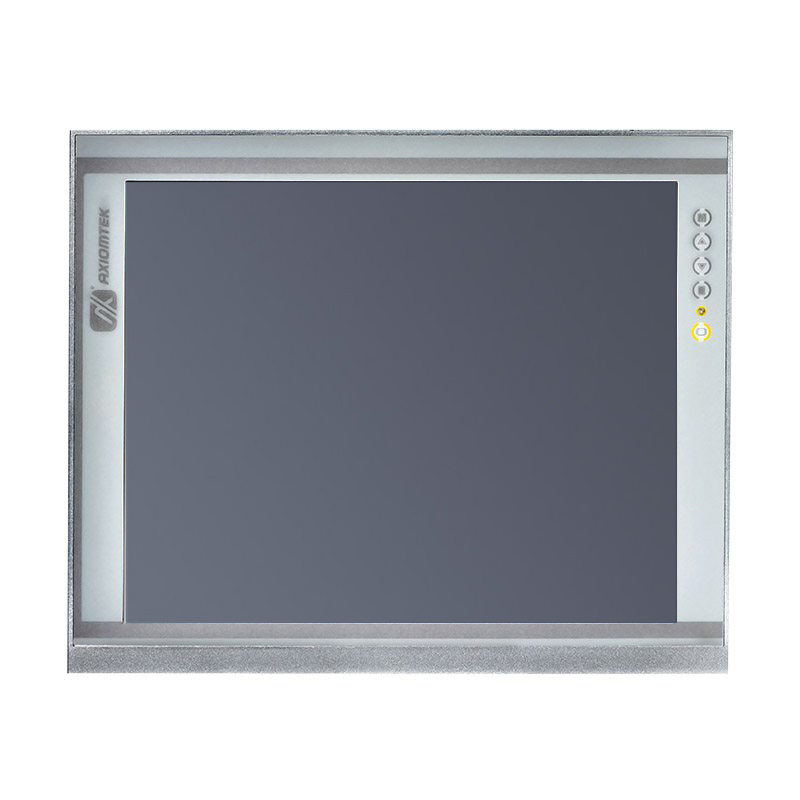

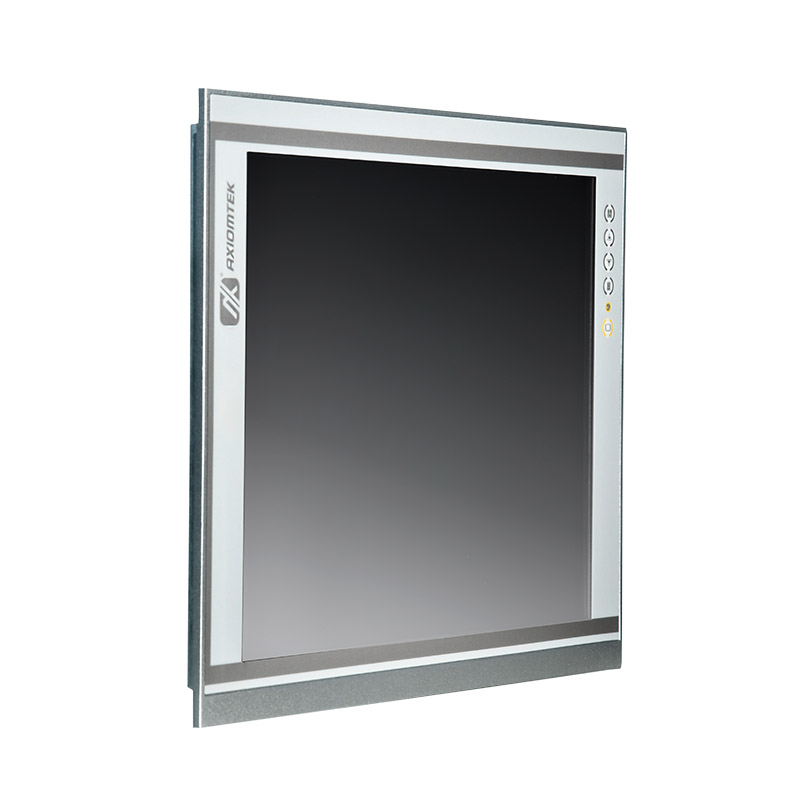

17" SXGA TFT Industrial LCD Monitor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P6171-V3
P6171-V3
P6171-V3
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 17" SXGA TFT LED backlight LCD
  • NEMA 4/12 (IP65) compliant flat panel monitor
  • Supports panel mount, wall mount, rack mount, and VESA arm
  • Resistive touchscreen
  • Full range screw-type (locked) AC-in or 24VDC in (optional)
  • HDMI, DisplayPort, and VGA with multi-signal inputs

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel
  • 17" SXGA TFT LCD
Max Colors
  • 16.2 M
Active Area (mm)
  • 337.92 x 270.33
Max. Resolution
  • 1280 x 1024
Backlight
  • LED
Pixel Pitch (mm)
  • 0.264 x 0.264
Backlight MTBF (hrs)
  • 30,000 hrs
Viewing Angle (H/V)
  • 170°/160°
Response Time
  • 5ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 250 nits
Display Control
  • OSD (on screen display)

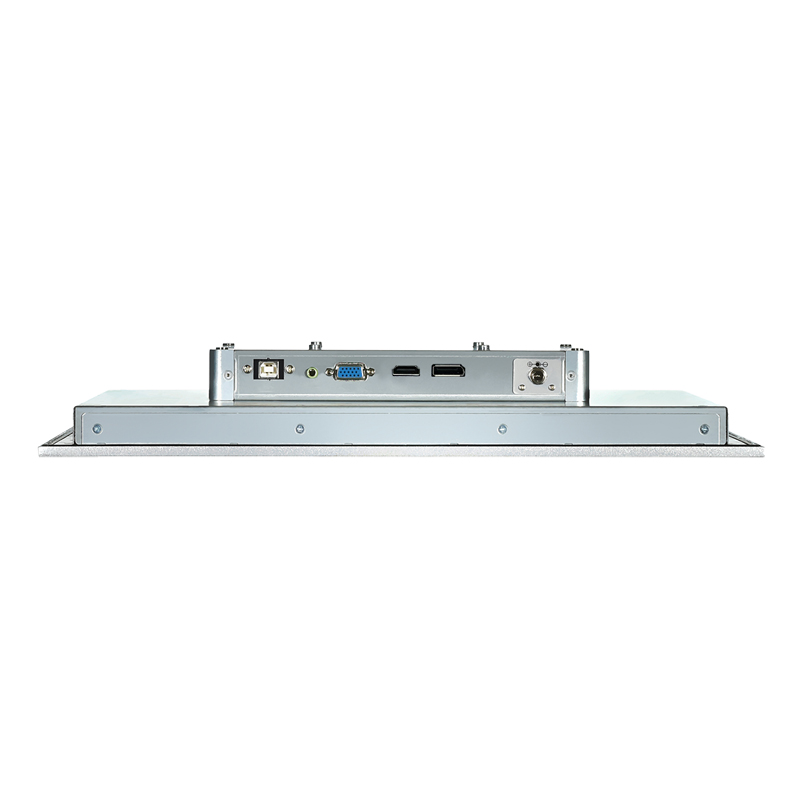

I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DP
  • 1 x HDMI
  • 1 x Power input with screw-type connector (AC version)
  • 1 x Power input with terminal block (DC version)
  • 2 x Speaker
Touchscreen
  • 5-wire resistive touch
Audio
  • 2 x Speaker
Power Adapter
  • AC version: 100 - 240 VAC-DC 12V3A, 36W power adapter
  • DC version: 24 VDC
Power Comsumption
  • 19W
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F)
Dimensions
(W x D x H)
  • 410 x 58 x 338.3 mm (16.15” x 2.28” x 13.32”)
Weight (net/gross)
  • 4.45 kg (9.82 lb)/6.71 kg (14.8 lb)
Mounting
  • Panel mount
  • Wall mount
  • Rackmount
  • VESA arm
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

Ordering Information

  • P6171PR-AC-U-V3 (P/N-E226171122)
    17" industrial resistive touch screen, AC version, USB interface
  • P6171PR-DC-U-V3 (P/N-E226171123)
    17" industrial resistive touch screen, DC version, USB interface
  • 509000001500
    Adaptor 24V/120W, wire only
  • 599000001100
    US 1.8M power cord
  • 59904010000E
    UK 1.83M power cord
  • 59903000000E
    EU 1.83M power cord
  • 590000012700
    HDMI cable
  • 590000020900
    DisplayPort cable 2M
  • E29R131114
    Wall mount kit
  • E29R131106
    Panel mount kit
  • E29R131101
    Rack mount kit
  • E221177116
    Desktop stand for 15.6" to 21.5"

Download

Drivers

Software

Manual

Date Description Version Download File
2023/11/17 User's manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/11 DC_UKCA Declaration of Conformity
2023/12/11 DC_FCC Verification
2023/12/11 DC_CE-Conformity Declaration
2023/12/11 DC_CE EMC Verification
2023/12/11 AC_UKCA Declaration of Conformity
2023/12/11 AC_CE LVD Verification
2023/12/11 AC_CE-Conformity Declaration
2023/12/11 AC_FCC Verification
2023/12/11 AC_CE EMC Verification
