P6121-V3

Status : Available

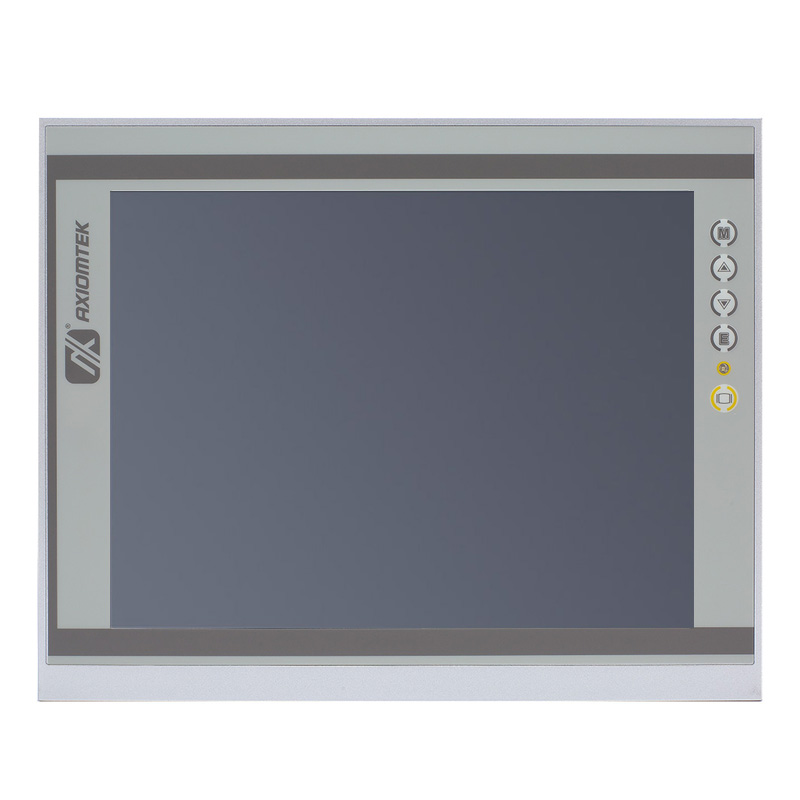

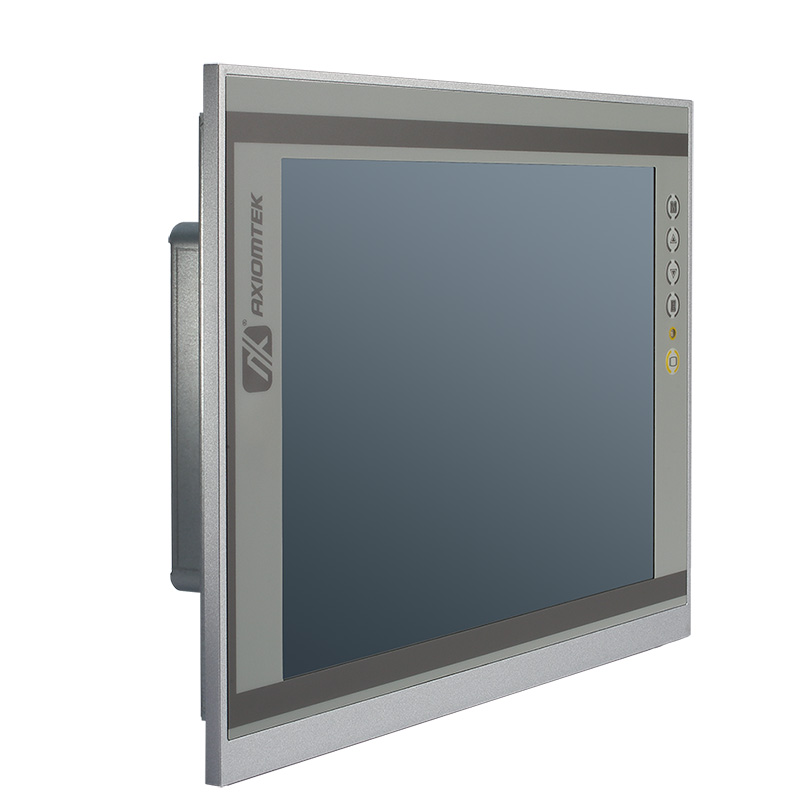

12.1" XGA TFT Industrial LCD Monitor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P6121-V3
P6121-V3
P6121-V3
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 12.1" XGA TFT LED backlight LCD with 500 nits of brightness
  • NEMA 4/12 (IP65) compliant flat panel monitor
  • Supports panel mount, wall mount, and VESA arm
  • Resistive touchscreen
  • 24 VDC power input
  • HDMI, DisplayPort, and VGA with multi-signal inputs

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, metal front bezel
LCD Panel
  • 12.1" XGA TFT LCD
Max Colors
  • 16.7M
Active Area (mm)
  • 245.76 x 184.32
Max. Resolution
  • 1024 x 768
Backlight
  • LED
Pixel Pitch (mm)
  • 0.24 x 0.24
Backlight MTBF (hrs)
  • 30,000 hrs
Viewing Angle (H/V)
  • 178°/178°
Response Time
  • 25ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 500 nits
Display Control
  • OSD (on screen display)

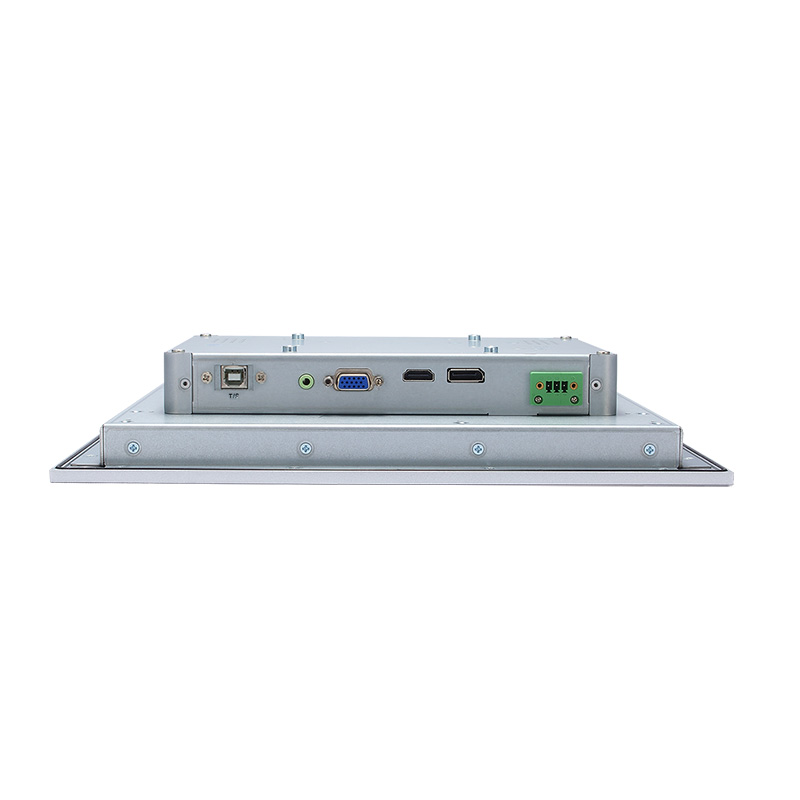

I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Power input with terminal block (DC version)
Touchscreen
  • 5-wire resistive touch
Audio
  • 2 x Speaker
Power Adapter
  • 24VDC
Power Comsumption
  • 22W
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Dimensions
(W x D x H)
  • 311.81 x 54.95 x 250.31 mm (12.28" x 2.16 x 9.85")
Weight (net/gross)
  • 2.35 kg (5.18 lbs)/2.8 kg (6.17 lbs)
Mounting
  • Panel mount kit
  • Wall mount kit
  • Desktop stand
  • VESA arm
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

Ordering Information

  • P6121PR-DC-U-V3 (P/N-E226121114)
    12.1" industrial monitor with resistive touch screen and DC version
  • 509000001500
    Adaptor 24V/120W, wire only
  • 599000001100
    US 1.8M power cord
  • 59904010000E
    UK 1.83M power cord
  • 59903000000E
    EU 1.83M power cord
  • 590000012700
    HDMI cable
  • 590000020900
    DisplayPort cable 2M
  • E29R131102
    Panel mount kit
  • E29R131114
    Wall mount kit
  • E226171119
    Desktop stand

Download

Drivers

Software

Manual

Date Description Version Download File
2022/09/15 User Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/11 DC_FCC Verification
2023/12/11 DC_UKCA Declaration of Conformity
2023/12/11 DC_CE-Conformity Declaration
2023/12/11 DC_CE EMC Verification
2023/12/11 AC_CE LVD Verification
2023/12/11 AC_FCC Verification
2023/12/11 AC_UKCA Declaration of Conformity
2023/12/11 AC_CE-Conformity Declaration
2023/12/11 AC_CE EMC Verification

You Might Also Like

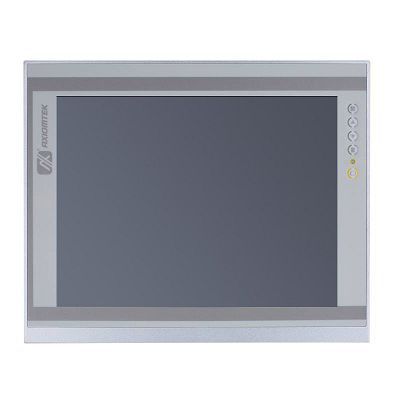

Picture of P6151-V3

P6151-V3

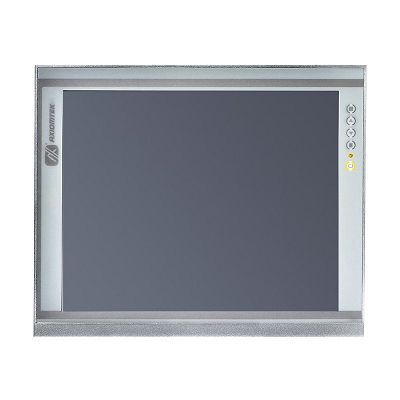

Picture of P6171-V3
