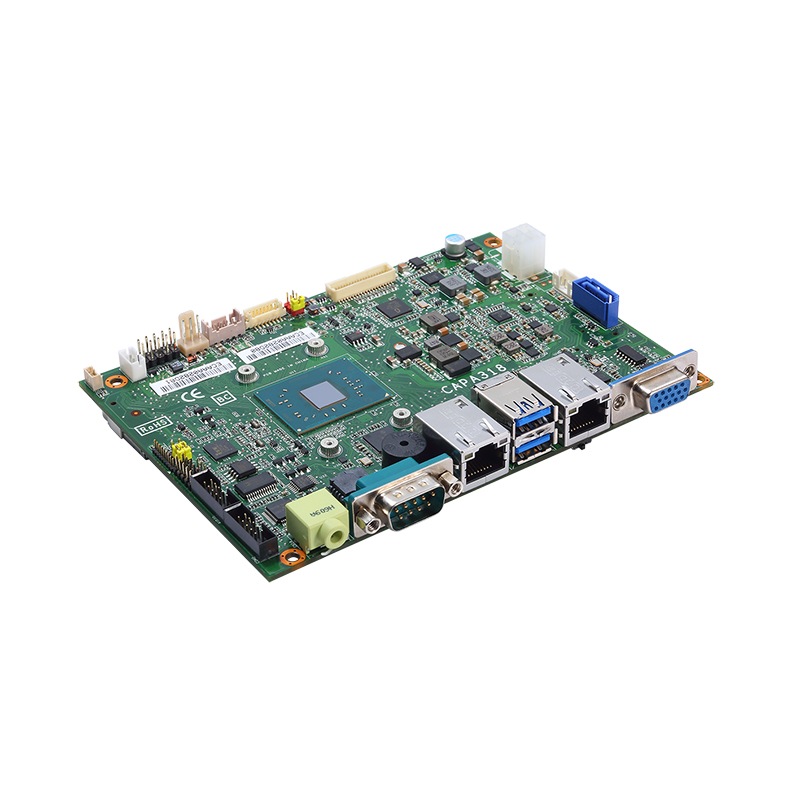

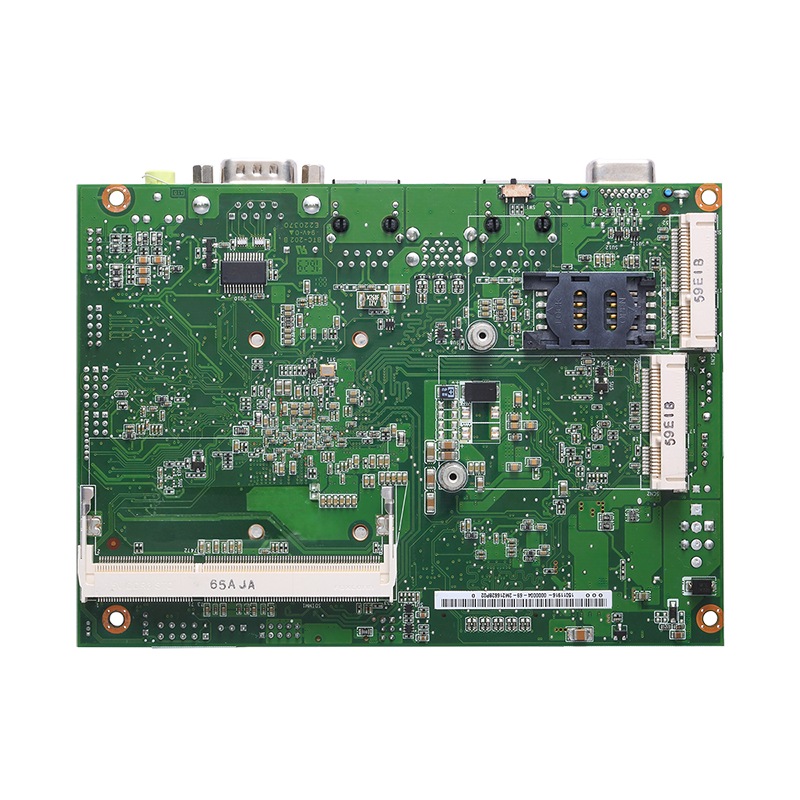

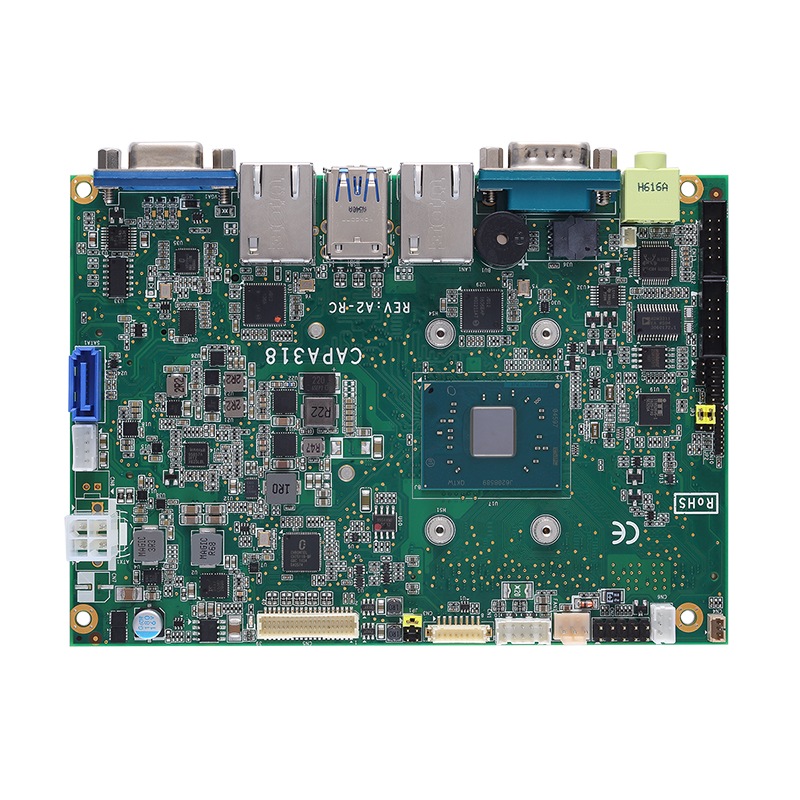

CAPA318

Status : Available

3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, VGA/LVDS, Dual LANs and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA318
CAPA318
CAPA318
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Pentium® processor N4200/Celeron® processor N3350
  • 1 DDR3L SO-DIMM, up to 8GB
  • 2 USB 2.0 and 2 USB 3.0 ports
  • PCI Express Mini Card with mSATA supported

Specifications

CPU
  • Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I225-V)
Display
  • 1 x VGA
  • 1 x LVDS
Digital I/O
  • 8 channels IN/OUT programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x SATA-600
Expansion
  • 1 x Full-size PCI Express Mini Card with mSATA
  • 1 x Full-size PCI Express Mini Card
  • 1 x SIM slot
Others
  • I2C Bus for advanced monitoring/control
Battery
  • Lithium 3 V/220 mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L:
  • Max. RMS. +12V @ 1.5A
  • Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L:
  • Max. RMS. +12V @ 1.3A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA318VGGA-N4200 (P/N-E38E318103)
    3.5" Embedded SBC with Intel® Pentium® processor N4200 (1.1 to 2.5 GHz, 2MB Cache, 6W) VGA/LVDS, 2 GbE LANs, audio and heatsink
  • CAPA318VGGA-N3350 (P/N-E38E318102)
    3.5" Embedded SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB Cache, 6W) VGA/LVDS, 2 GbE LANs, audio and heatsink
  • 59382620000E
    1 x COM with bracket, P=2.0 mm, L=300 mm
  • 59384500100E
    Audio cable w/bracket, P=2.0 mm, L=450 mm
  • 594E8422800E
    2 x USB 2.0 wafer cable w/bracket. 180 mm
