CAPA312

Status : Available

3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, HDMI/LVDS, Dual GbE LANs and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

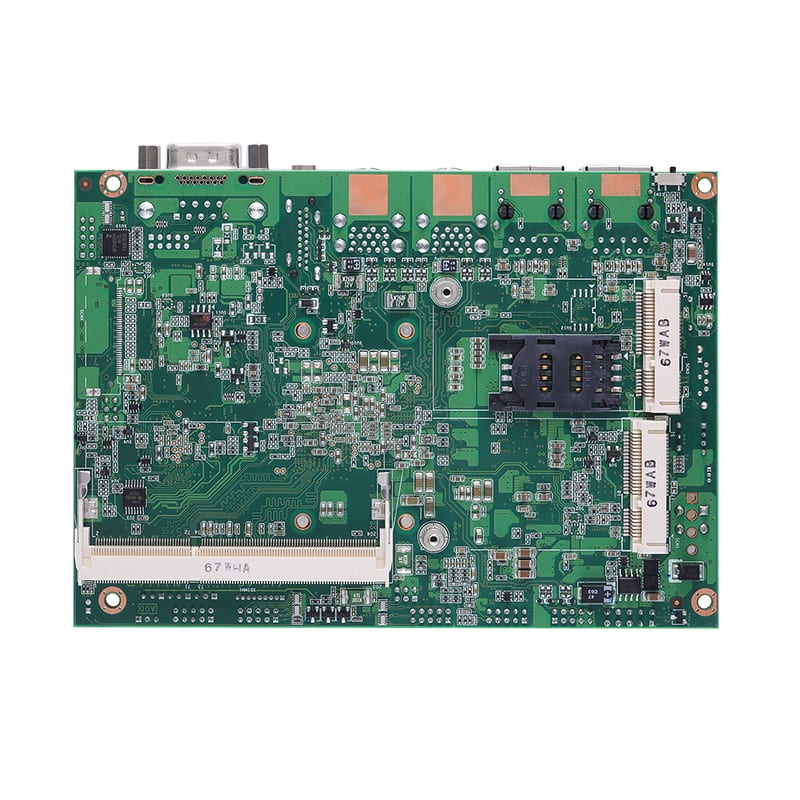

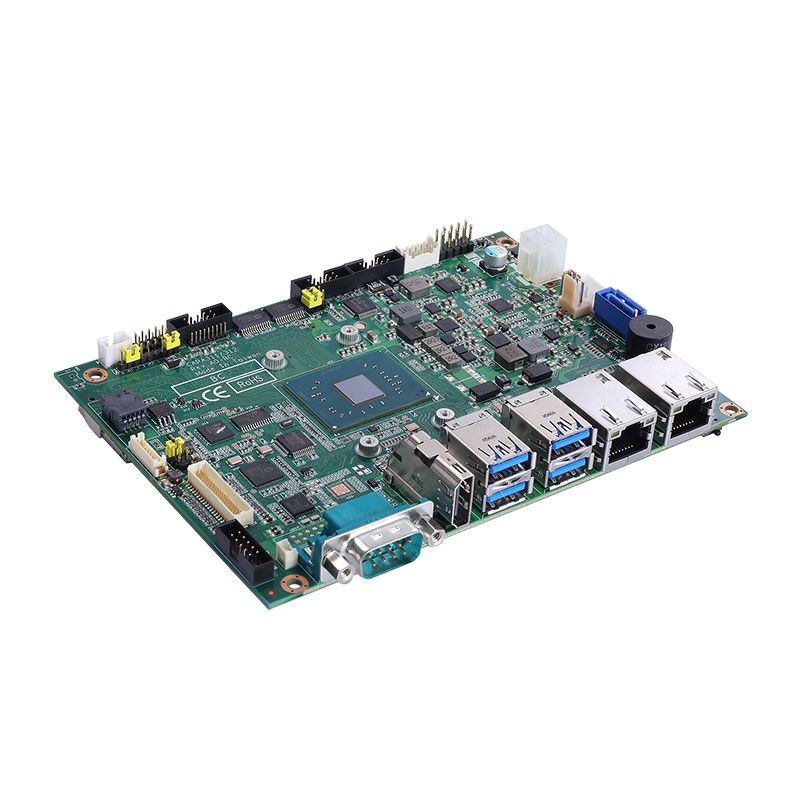

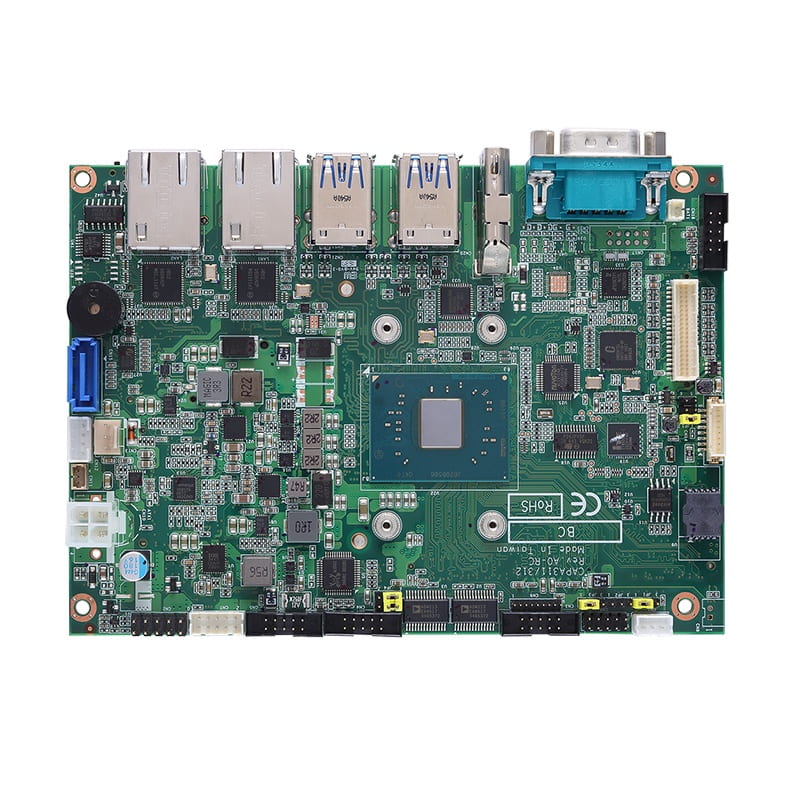

CAPA312
CAPA312
CAPA312
CAPA312
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Pentium® processor N4200/Celeron® processor N3350
  • 1 DDR3L SO-DIMM, up to 8GB
  • 2 USB 2.0 and 4 USB 3.0
  • 2 PCI Express Mini Card slots

Specifications

CPU
  • Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 2 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x LVDS
  • 1 x HDMI
  • 1 x VGA (optional)
  • 1 x eDP (optional)
Digital I/O
  • 8 channels in/out programmable
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x SATA-600
Expansion
  • 1 x Full-size PCI Express Mini Card with mSATA supported
  • 1 x Full-size PCI Express Mini Card
  • 1 x SIM slot
Others
  • TPM 1.2
  • I2C
  • SMBus
Battery
  • Lithium 3 V/220 mAH
Power Input
  • 2 x 2-pin cinnector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L:
  • Max. RMS. +12V @ 1.5A
  • Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L:
  • Max. RMS. +12V @ 1.2A
Watchdog Timer
  • 65536 levels, 1 - 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • Standard: -20°C to +60°C (-4°F to +140°F)
  • Optional: -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

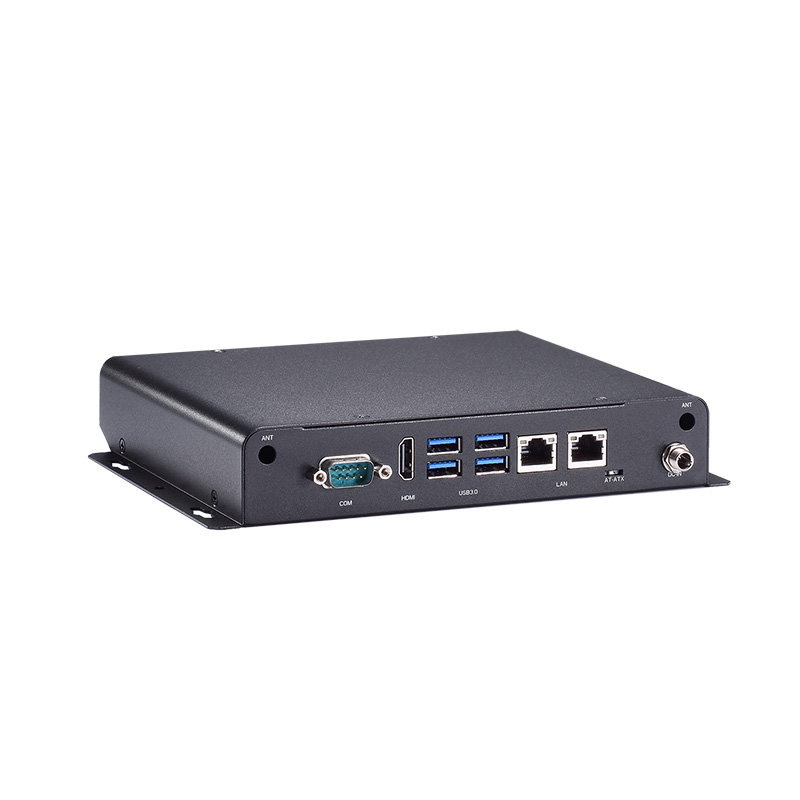

Industrial Chassis
  • APC202: Embedded chassis with CAPA312HGGA-N3350 w/heatsink (P/N: E38E312102), 8GB RAM, 64GB M.2 Key B card and 12V/60W adapter
  • I/O: 2 x GbE LAN, 4 x USB 3.0, 1 x HDMI, 1 x RS-232/422/485, 1 x 12V DC Jack
  • Dimensions (with wall mount ear): 207.5 x 140 x 35mm (8.17” x 5.51” x 1.37”)
  • Operating Temperature: -10 C to +50 C (+14 F to +122 F)

Ordering Information

  • CAPA312HGGA-N4200 (P/N-E38E312100)
    3.5" Embedded SBC with Intel® Pentium® processor N4200 (1.1 to 2.5 GHz, 2MB Cache, 6 W), LVDS/HDMI, 2 GbE LAN, audio, and heatsink
  • CAPA312HGGA-N3350 (P/N-E38E312102)
    3.5" Embedded SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB Cache, 6 W), LVDS/HDMI, 2 GbE LAN, audio, and heatsink
  • APC202 (P/N-E27P202100)
    Embedded chassis with CAPA312HGGA-N3350 w/heatsink, 8GB RAM, 64GB mSATA and 12V/60W adapter

Download

Drivers

Date Description Version Download File
2023/05/04 LAN Driver VA1.1
2023/05/04 Audio Driver VA1.1
2023/05/04 TXE Driver VA1.1
2023/05/04 Graphic Driver VA1.1
2023/05/04 Chipset Driver VA1.1

Software

Manual

Date Description Version Download File
2024/12/23 User Manual VA5
2017/07/10 Quick Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
2017/08/07 CE-Conformity Declaration
