CAPA315

Status : Available

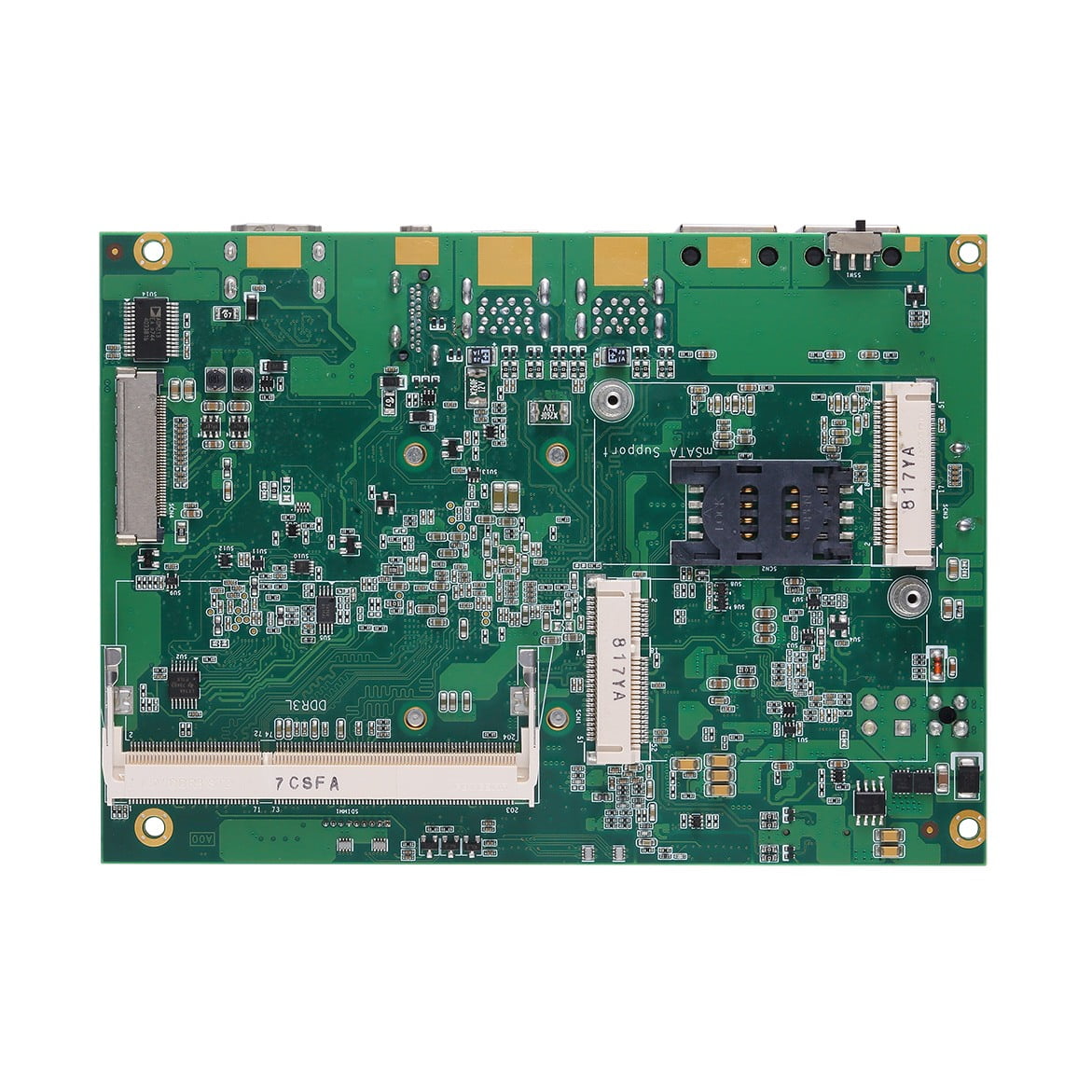

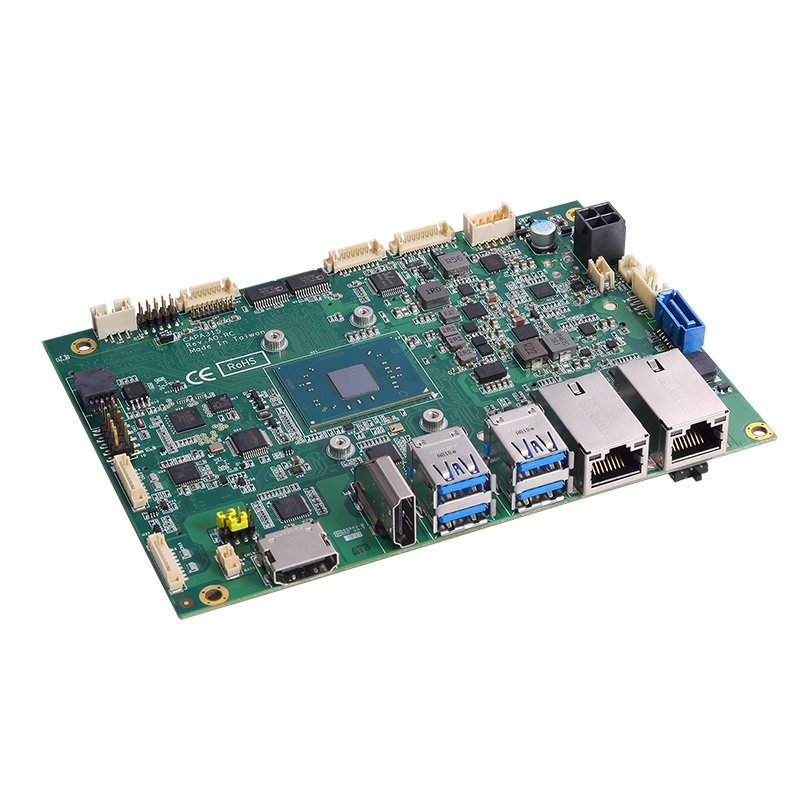

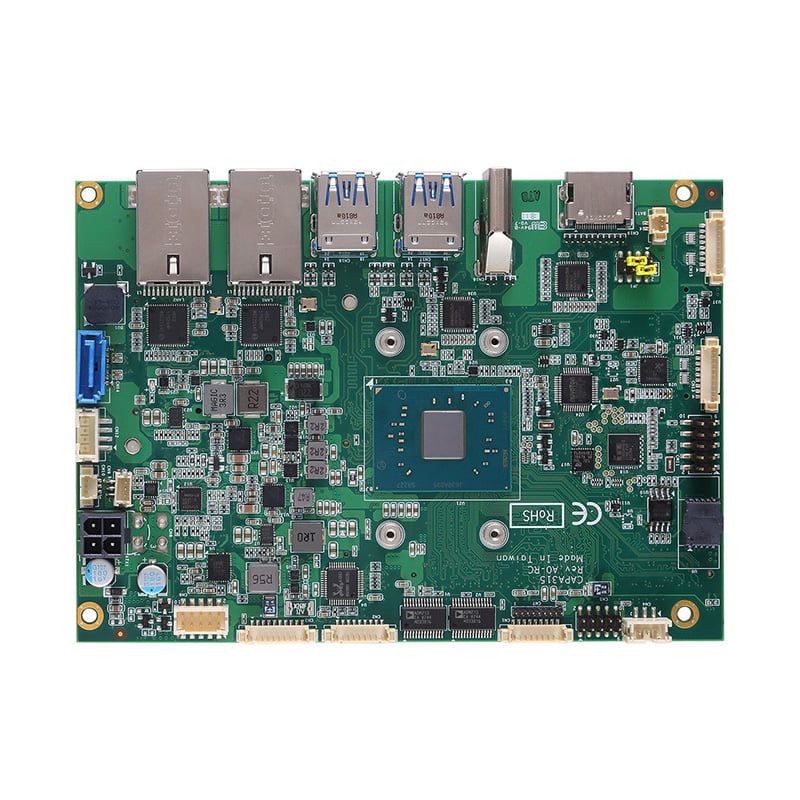

3.5” Embedded SBC with Intel® Pentium® N4200 or Celeron® Processor N3350, eDP, 2 HDMI, 2 GbE LAN, and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA315
CAPA315
CAPA315
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Pentium® N4200/Celeron® N3350 processor
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 2 USB 2.0 and 4 USB 3.0
  • 2 HDMI and 1 eDP
  • 1 PCI Express Mini Card slot

Specifications

CPU
  • Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 3 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I225-V)
Display
  • 2 x HDMI
  • 1 x eDP
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line out
Storage
  • 1 x SATA-600
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot
Others
  • TPM 1.2 or TPM 2.0 (optional)
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin DC in power connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L
  • Max. RMS: +12V @ 1.5A
  • Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L
  • Max. RMS: +12V @ 1.2A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20 to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA315HGGA-N4200 (P/N-E38E315101)
    3.5” embedded SBC with Intel® Pentium® processor N4200 (1.1 to 2.5 GHz, 2MB cache, 6W), dual HDMI, eDP, 2 GbE LANs, audio and heatsink
  • CAPA315HGGA-N3350 (P/N-E38E315100)
    3.5” embedded SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB cache, 6W), dual HDMI, eDP, 2 GbE LANs, audio and heatsink
  • 59380880250E
    COM port cable DB9-9 x 1P, P=1.25 mm, L=250 mm
  • 59312260020E
    Audio cable with bracket, P=1.25 mm, L=450mm (RC)
  • 594E8422800E
    2 x USB 2.0 cable with bracket 180 mm

Download

Drivers

Date Description Version Download File
2025/10/15 HD Audio driver VA1.2
2025/10/15 LAN driver VA1.2
2025/10/15 TXE driver VA1.2
2025/10/15 Graphic driver VA1.2
2025/10/15 Chipset driver VA1.2

Software

Manual

Date Description Version Download File
2025/10/21 User's Manual VA1.4
2018/11/20 CAPA315 Quick Manual VA1_07-06-2018 VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration
