NA366

產品階段 : 供應中

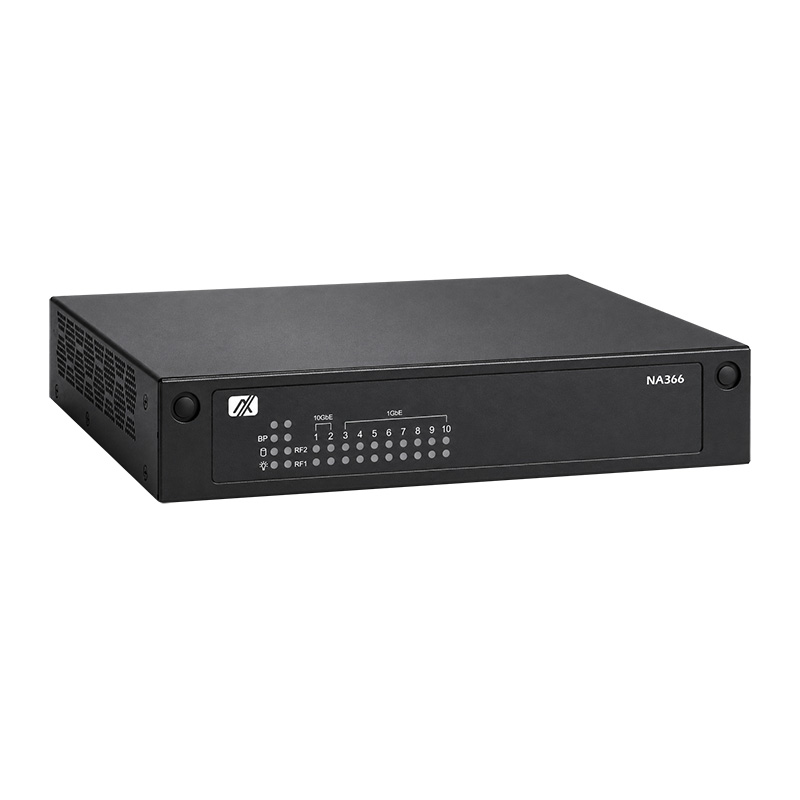

Desktop Network Appliance with Intel Atom® x7000C Processor, supporting up to 10 LANs for VPN, 5G Edge Gateway, Firewall, and UTM

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
NA366
NA366
NA366
10G LAN

10G LAN

5G

5G

DDR5

DDR5

LAN Bypass

LAN Bypass

TPM

TPM

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Intel Atom® x7000C processor
  • 1 DDR5-4800 SO-DIMM, up to 16GB
  • 2 10G SFP+ and 8 GbE RJ-45 (4 1G SFP by SKU)
  • 1-pair LAN bypass
  • 1 M.2 Key M slot and 1 2.5" HDD/SSD for SSD
  • 1 M.2 Key B slot with SIM socket for 5G NR/LTE
  • 1 full-size PCI Express Mini Card slot for Wi-Fi
  • Supports onboard TPM 2.0

產品規格

Form Factor
  • 1U desktop
CPU
  • Intel Atom® processor x7000C (Amston Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR5-4800 SO-DIMM, up to 16GB
BIOS
  • AMI
Ethernet
  • 2 x 10G SFP+ (Intel® X710)
  • 4 x RJ-45 GbE (Intel® I350)
  • 4 x RJ-45 GbE or 1G SFP (Intel® I350) by SKU
LAN Bypass
  • 1 pair LAN bypass
LAN Module
  • N/A
Storage
  • 1 x M.2 Key M 2242/2280 slot (SATA 3.0)
  • 1 x 2.5" SATA 3.0 HDD/SSD
Expansion
  • 1 x M.2 Key M 2242/2280 slot (SATA 3.0)
  • 1 x M.2 Key B 3042/3052 slot with Nano SIM socket (USB 2.0 + USB 3.0)
  • 1 x full-size PCI Express Mini Card slot (PCIe x1 + USB 2.0)
I/O Interface
  • 1 x console (RJ-45 Type, shared Type-C interface, one active only)
  • 1 x console (USB Type-C, shared RJ Type interface, one active only)
  • 2 x USB 2.0
  • 2 x 10G SFP+
  • 4 x RJ-45 GbE
  • 4 x RJ-45 GbE or SFP by SKU
  • 1 x reset button
  • 1 x DC Jack (screw-type)
  • 1 x power button with LED
  • 5 x antenna openings
Power Supply
  • 1 x DC power adapter 12V/5A or 12V/7A by SKU
LCM Module
  • N/A
TPM
  • Onboard TPM 2.0
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 44 x 257 x 197 mm (1.73" x 10.12" x 7.76")
Weight (net/gross)
  • 1.85 kg (4.08 lbs)/3.2 kg (7.05 lbs)
EOS Support
  • Linux
Certifications
  • CE/FCC

訂購資訊

  • NA366-x7405C-A (P/N-E26E366100)

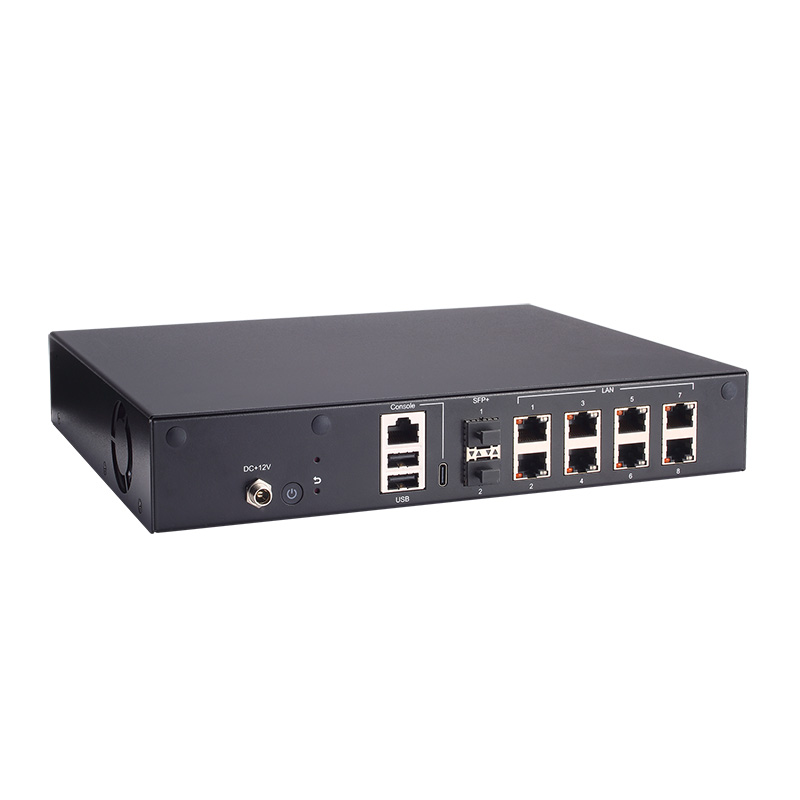

    Fanless network appliance with Intel® Atom® x7405C processor, 2 x 10G SFP+, 8 x RJ-45, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 60W power adapter
  • NA366-x7405C-B (P/N-E26E366101)

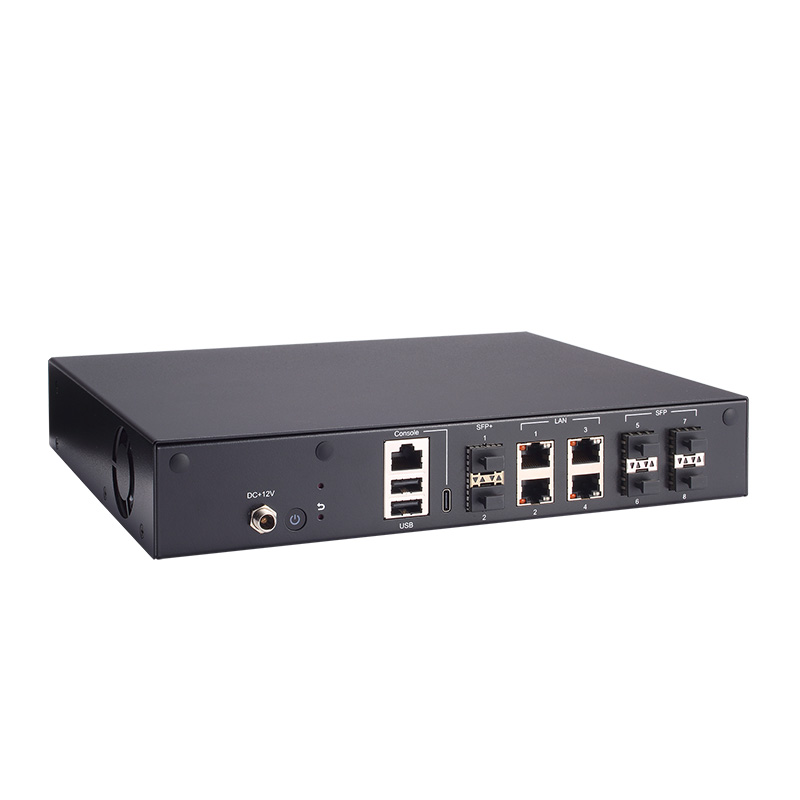

    Fanless network appliance with Intel® Atom® x7405C processor, 2 x 10G SFP+, 4 x RJ-45, 4 x 1G SFP, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 60W power adapter
  • NA366-x7809C-A (P/N-E26E366102)
    Fanless network appliance with Intel® Atom® x7809C processor, 2 x 10G SFP+, 8 x RJ-45, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 84W power adapter
  • NA366-x7809C-B (P/N-E26E366103)
    Fanless network appliance with Intel® Atom® x7809C processor, 2 x 10G SFP+, 4 x RJ-45, 4 x 1G SFP, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 84W power adapter
