NA346B

產品階段 : 供應中

Fanless Ultra Compact Network Appliance with Intel® Celeron® Processor N3350 and up to 4 LAN for uCPE, VPN, and Security Gateway

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Intel® Celeron® processor N3350
  • 1 DDR3L-1600 SO-DIMM for up to 8GB of memory
  • 4 GbE RJ-45 LAN ports (Realtek RTL8111H)
  • 1 PCIe Mini Card slot for mSATA
  • One 8GB eMMC Flash (SanDisk)
  • Supports TPM 2.0 onboard
  • Small form factor with fanless and noiseless design
  • Suitable for uCPE, VPN, and IoT security gateway applications
Powerful Yet Energy-Efficient
Powerful Yet Energy-Efficient

Intel® Celeron® processor N3350
TDP lower than 9 W

Easy Management
Easy Management

Flexible software configuration
Low-maintenance fanless design

For Small Business
For Small Business

Compact & palm-sized
Cost-effective

Low-Power Consumption

Powered by the Intel® Celeron® processor N3350, the NA346B delivers solid performance with outstanding energy efficiency. It is designed for sustainable operations, helping reduce energy costs while maintaining reliable computing performance.



Compact, Fanless & Noiseless

The NA346B features a sleek, space-saving design with versatile functionality, making it ideal for small offices and space-constrained environments. Its fanless architecture ensures silent operation, low maintenance, and reliable 24/7 performance.



Cost-Effective Solution

The NA346B offers a cost-effective solution for small businesses, delivering high performance with low power consumption to help reduce both initial investment and ongoing operating costs.

Flexible Expansion

The NA346B is equipped with a full-size PCIe Mini Card slot (USB signal) and a Nano SIM socket, enabling seamless support for 4G/5G wireless modules. This design ensures reliable cellular connectivity.

Flexible Expansion

Reliable Storage Design

The NA346B comes with onboard 8GB eMMC storage (SanDisk) for stable system operation and a full-size mSATA slot for flexible storage expansion. This dual-storage design provides both reliability and scalability.

Reliable Storage Design

Rich I/O Interfaces

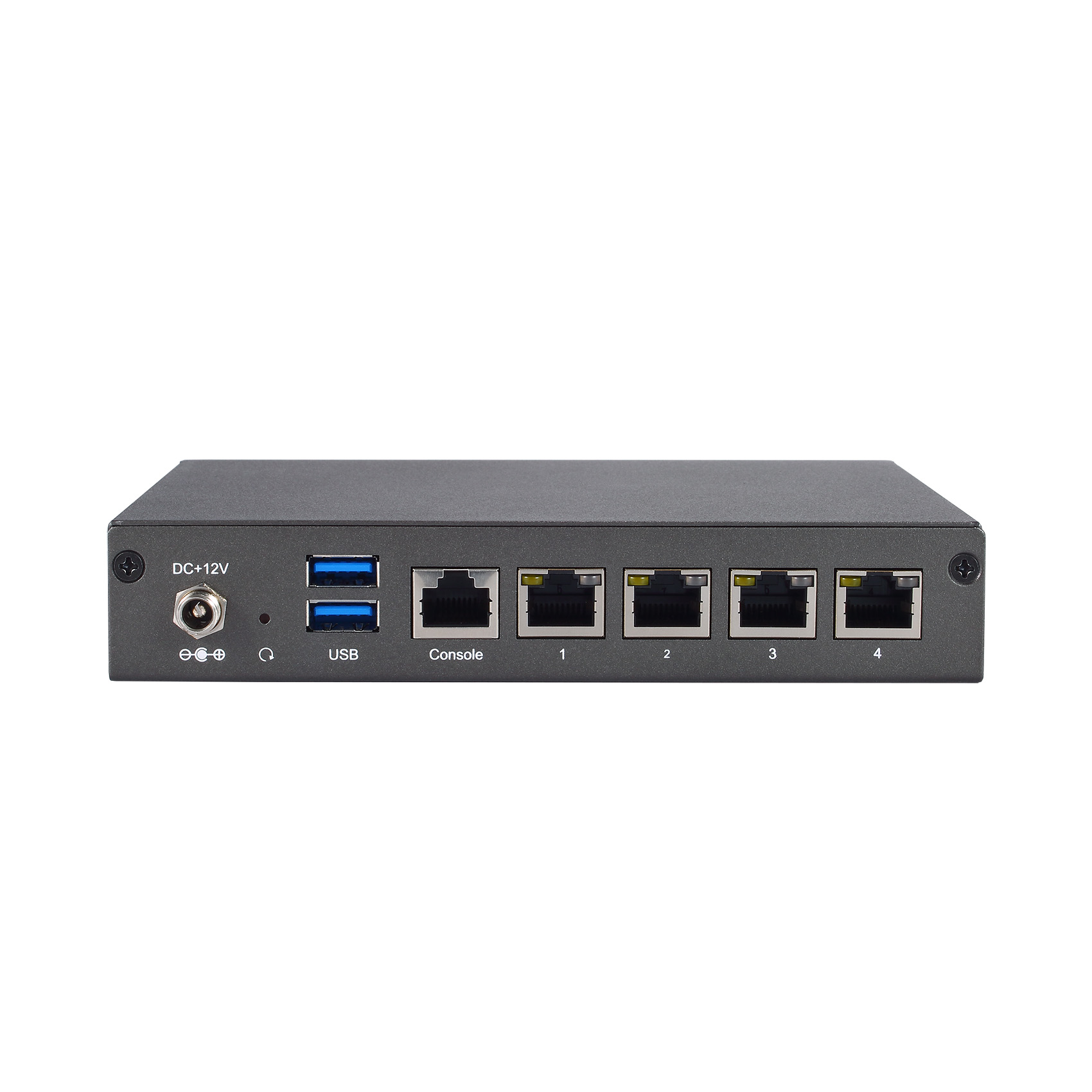

Rear View

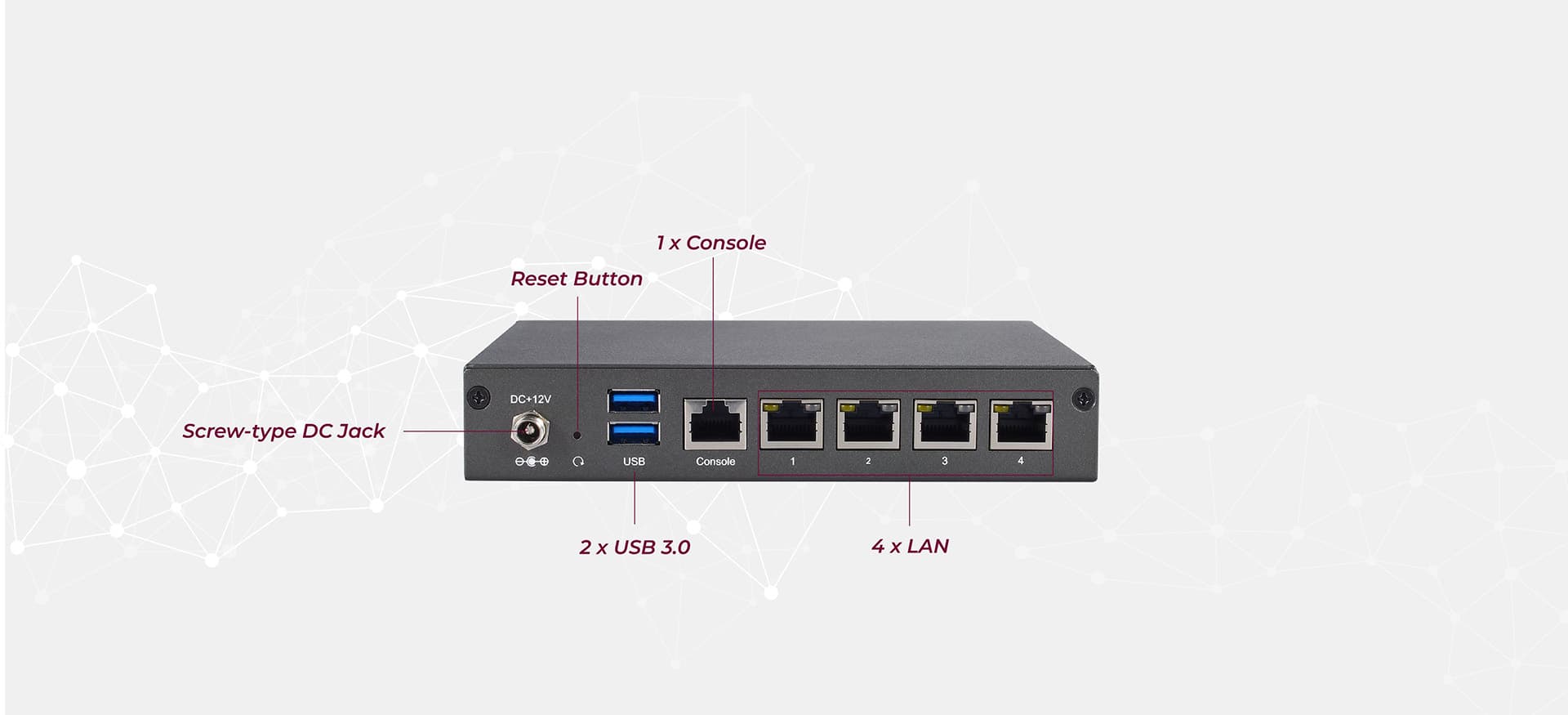

NA346B Rear I/O

產品規格

Form Factor
  • Desktop, small form factor and fanless
CPU
  • Intel® Celeron® processor N3350 (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
Ethernet
  • 4 x GbE RJ-45 (Realtek RTL8111H)
LAN Bypass
  • N/A
LAN Module
  • N/A
Storage
  • 1 x 8GB eMMC Flash onboard (SanDisk)
  • 1 x Full-size mSATA (SATA + USB signal)
Expansion
  • 1 x Full-size PCIe Mini Card slot with Nano SIM (USB signal)
  • 1 x Nano SIM Socket
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 4 x GbE RJ-45
  • 1 x Reset button
  • 1 x DC Jack (screw-type)
Power Supply
  • 1 x DC Jack (screw-type)
LCM Module
  • N/A
TPM
  • Onboard TPM 2.0
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 31 mm (1.22") (H) x 166 mm (6.54") (W) x 118.2 mm (4.65") (D)
Weight (net/gross)
  • 0.284 kg (0.63 lb)/0.786 kg (1.73 lb)
EOS Support
  • Linux
Certifications
  • CE/FCC Class B

訂購資訊

  • NA346B-N3350-A (P/N-E26E346B00)
    Fanless ultra compact network appliance with Intel® Celeron® N3350 processor (2C 1.10GHz 6W), eMMC, 4 LAN, TPM 2.0, without LAN Bypass (LBP)
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
  • 59906000010E
    Power cord YP-12/YC-12 (JP)
  • 59903000000E
    Power cord YP-22/YC-12 (EU)
  • 59905000000E
    Power cord YP-35/YC-12 (AU)
  • 59904010000E
    Power cord YP-61A/YC-12 (UK)

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2025/06/10 User Manual VA1.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2025/03/28 CE LVD Verification
2025/03/28 CE-Conformity Declaration
2025/03/28 CE EMC Verification
2025/03/28 UKCA Declaration of Conformity
2025/03/28 FCC Verification
