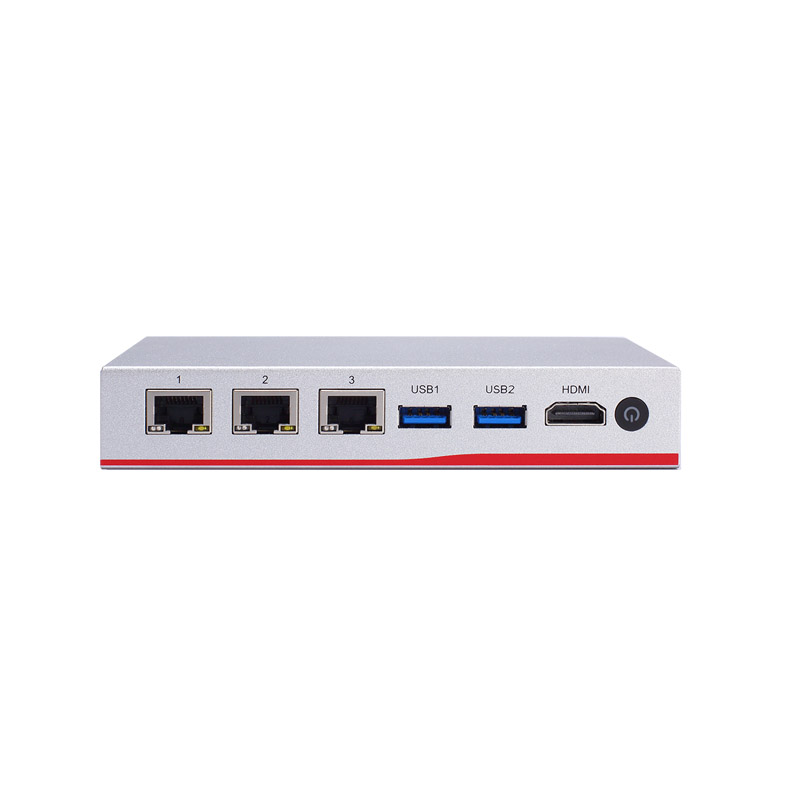

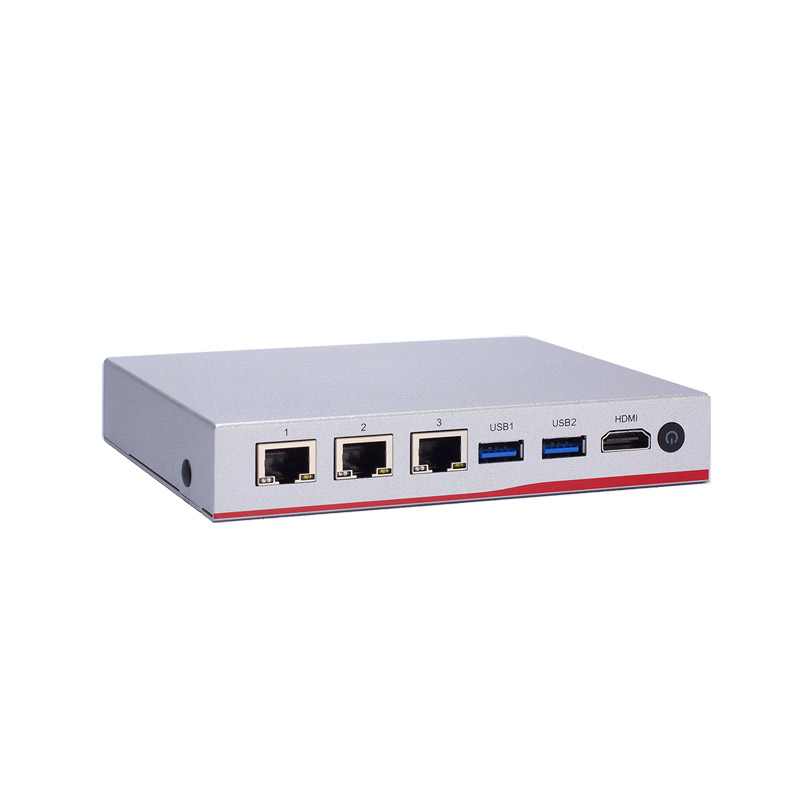

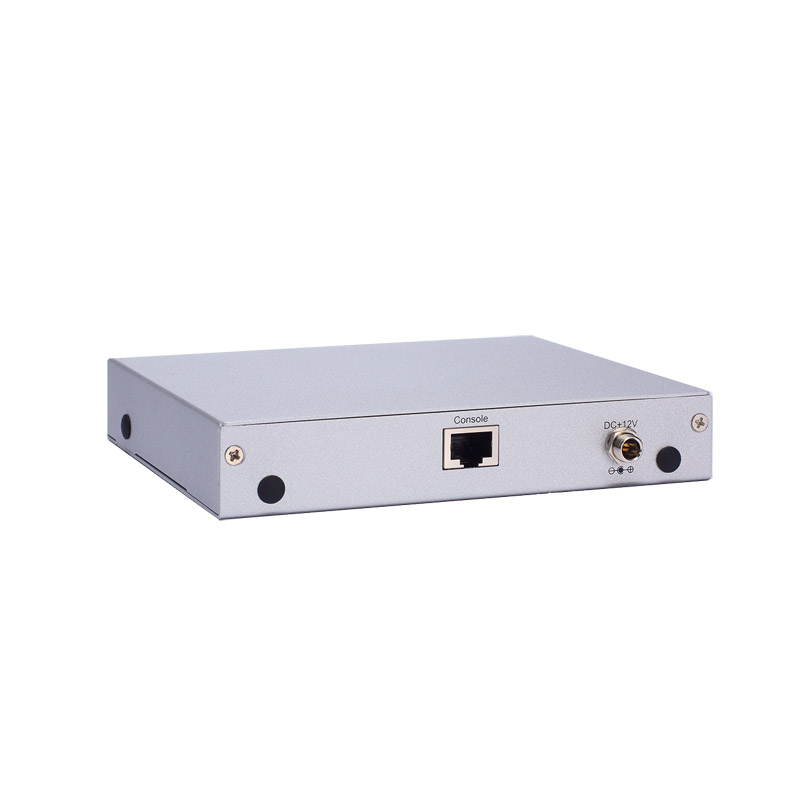

NA347

產品階段 : 供應中

Fanless Ultra Compact Network Appliance with Intel® Celeron® Processor N3350 and up to 3 LAN for Entry Level SD-WAN, VPN and Security Gateway

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
NA347
NA347
NA347
Compact

Compact

Fanless

Fanless

LAN Bypass

LAN Bypass

Low Power

Low Power

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Intel® Celeron® processor N3350
  • 1 DDR3L-1600 SO-DIMM for up to 8GB of non-ECC memory
  • 3 GbE RJ-45 ports (Intel® I210)
  • 1 PCIe Mini Card slot for Wi-Fi or LTE module
  • 1 M.2 Key B 2242 slot for SATA storage
  • Small form factor with fanless and noiseless design
  • Suitable for SD-WAN, VPN and IoT security gateway applications

產品規格

Form Factor
  • Desktop, small form factor and fanless
CPU
  • Intel® Celeron® processor N3350, 2-core, 1.10 GHz (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 3 x GbE RJ-45 (Intel® I210)
LAN Bypass
  • Optional
LAN Module
  • N/A
Storage
  • 1 x M.2 Key B 2242 slot (SATA)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (PCIe/USB signal)
  • 1 x Nano SIM socket
I/O Interface
  • 1 x Console (RJ-type)
  • 3 x RJ-45
  • 2 x USB 3.0
  • 1 x HDMI
  • 1 x DC Jack (screw type)
  • 1 x Power Button with LED
Power Supply
  • 12V, 3A power adapter
LCM Module
  • N/A
TPM
  • N/A
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 26 x 146 x 118.2 mm (1.24" x 5.57" x 4.65")
Weight (net/gross)
  • 0.284 kg (0.63 lb) / 0.786 kg (1.73 lb)
EOS Support
  • Linux
Certifications
  • CE/FCC Class B

訂購資訊

  • NA347-D3GI-N3350 (P/N-E26E347100)
    Fanless ultra compact network appliance with Intel® Celeron® N3350 (1.10 GHz 2C 6W) 3 x GbE w/o LBP (On board TPM and 1 LBP for optional)
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
  • 599000000900
    Power Cord - US
  • 59903000080E
    Power Cord - EU
  • 59910050000E
    Power Cord - JP
  • 59904000050E
    Power Cord - UK
  • M.2 2242 SSD
  • DDR3L SO-DIMM
  • Wireless module
  • Rack mount kit
  • Wall mount kit

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2022/01/13 User's Manuel A1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2022/07/18 UKCA Declaration of Conformity
2021/05/19 CE EMC Verification
2021/05/19 CE LVD Verification
2021/05/19 FCC Verification
2021/05/19 CE-Conformity Declaration

常見問題FAQ
