AX61135TM

產品階段 : 供應中

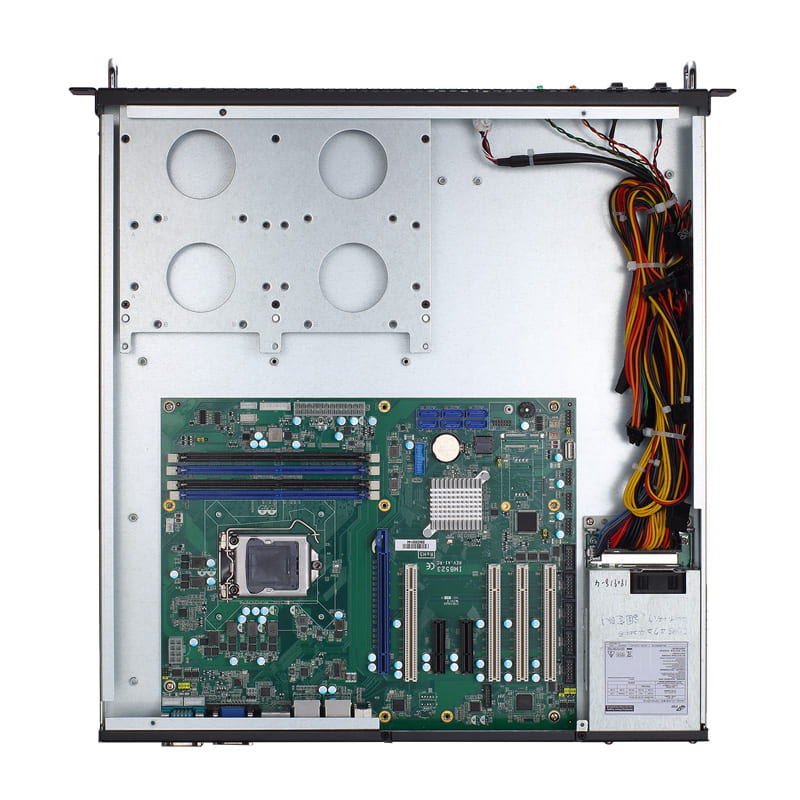

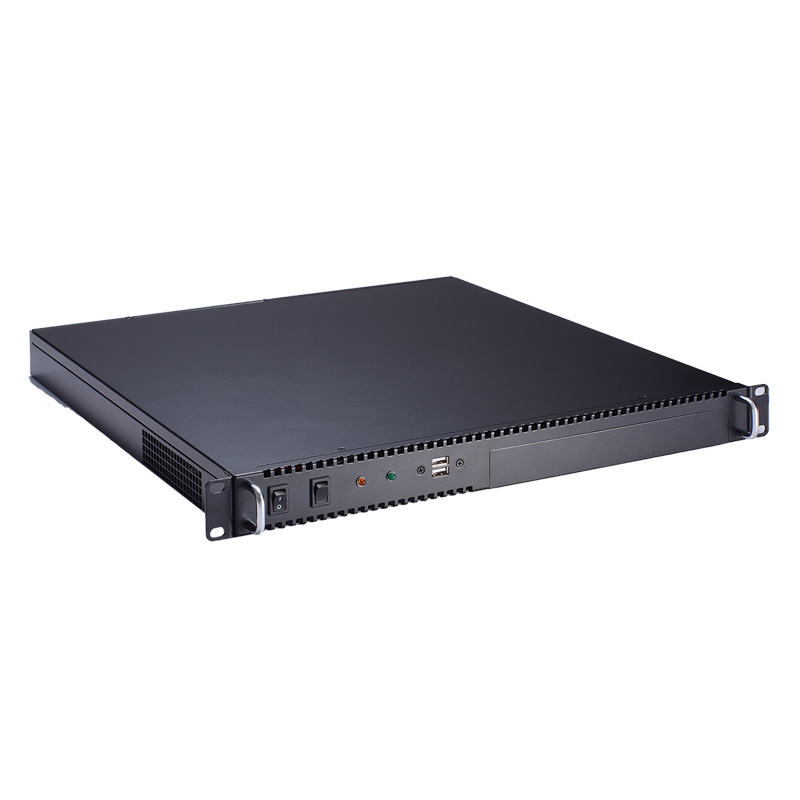

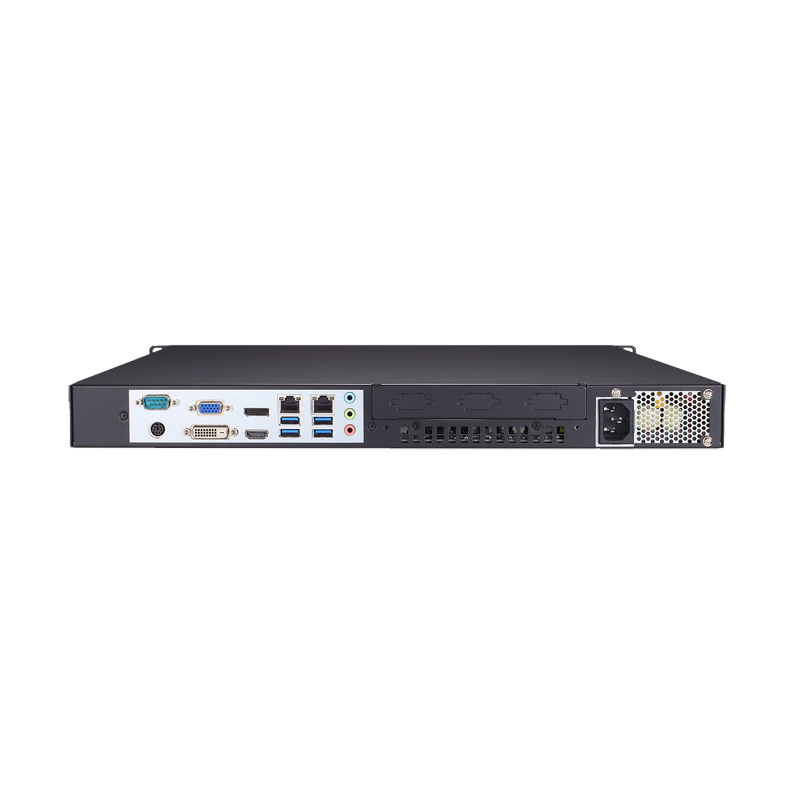

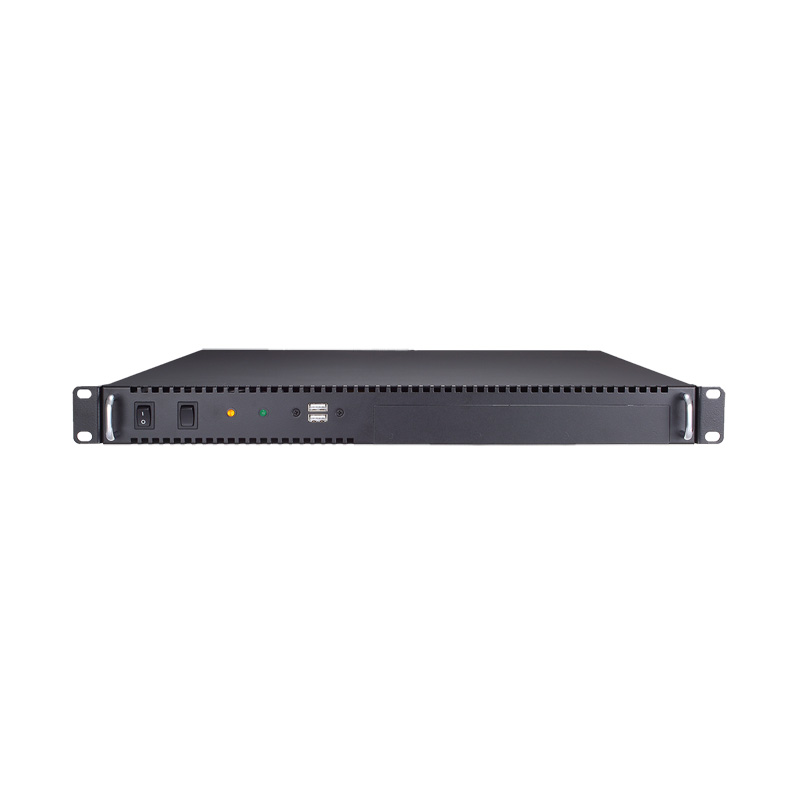

1U Rackmount Chassis for ATX Motherboard

產品特色

Height	1U
Expansion	1 x PCIe x16 slot via riser card
Drive Bay	Internal 2 x 3.5" HDD or internal 2 x 2.5" HDD
Cooling System	2 x 4 cm ball-bearing fan
System Board	12" x 9.6" ATX motherboard
Backplane Options	N/A
I/O Interface	2 x USB 2.0
Front Panel Indicators	1 x Power on/off 1 x HDD
Front Panel Controls	1 x Power on/off
Power	1U Flex ATX
Operating Temperature	0°C to +40°C (+32°F to +104°F)
Dimensions<br>(W x D x H)	440 ± 1.0 x 471.50 ± 1.0 x 44 ± 1.0 mm (18.98" x 18.48" x 1.73")
Weight (net/gross)	4.2 kg (9.26 lb)/6.7 kg (14.77 lb)
Certifications	CE

AX61135TM (P/N-E261135100)
1U rackmount chassis for ATX motherboard w/o PSU
50954724200E
ATX 300W FSP300-57FCB, L=750 mm
Motherboard options

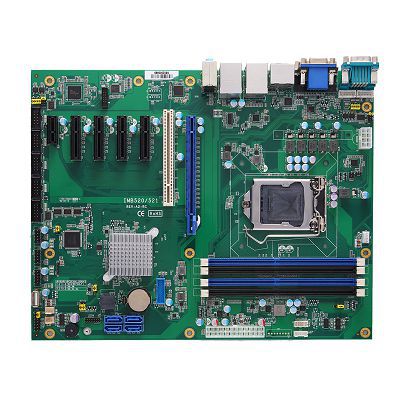

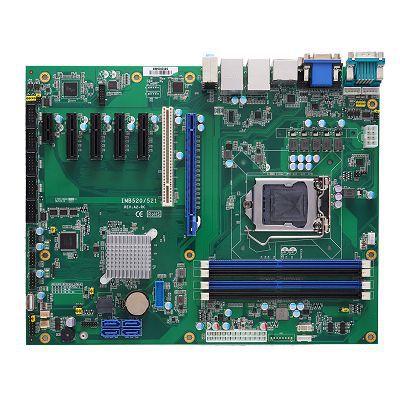

IMB540, IMB530, IMB520(R), IMB521(R), IMB523(R), IMB524(R), IMB525(R)
881611352A0E
AX61135TM, PCI riser card (slot 7) kit (E)
881611351A0E
AX61135TM, PCIe riser card (slot 1 and 3) kit (E)
881611350A0E
Hot-swappable HDD tray set (Need to buy 594L3220B00E)
594L3220B00E
Hot-swappable HDD power cable
594G5208010E
SATA3 Cable 180D w/B.sleeve L=50cm
594G5208000E
SATA3 Cable 180D w/lock & B.sleeve L=50cm
59401210530E
Power cable 6 x 2 to 4P x 2/SATA x 2/AT x 8, L=65 cm
5076E510000E
LGA1151/LGA1200 CPU heatsink
59380703000E
COM Cable x2 w/BKT (,40), P=2.54 mm, L=300 mm
59380402010E
COM Cable x1 w/Bracket, P=2.54 mm, L=300 mm
59384500100E
SBC84500 Audio Cable w/BKT, P=2, L=420 mm
5938A808020E
USB Cable w/BKT USB x 2, 2 x 5 (10P-KEY) 400 mm
