IMB520R

產品階段 : 供應中

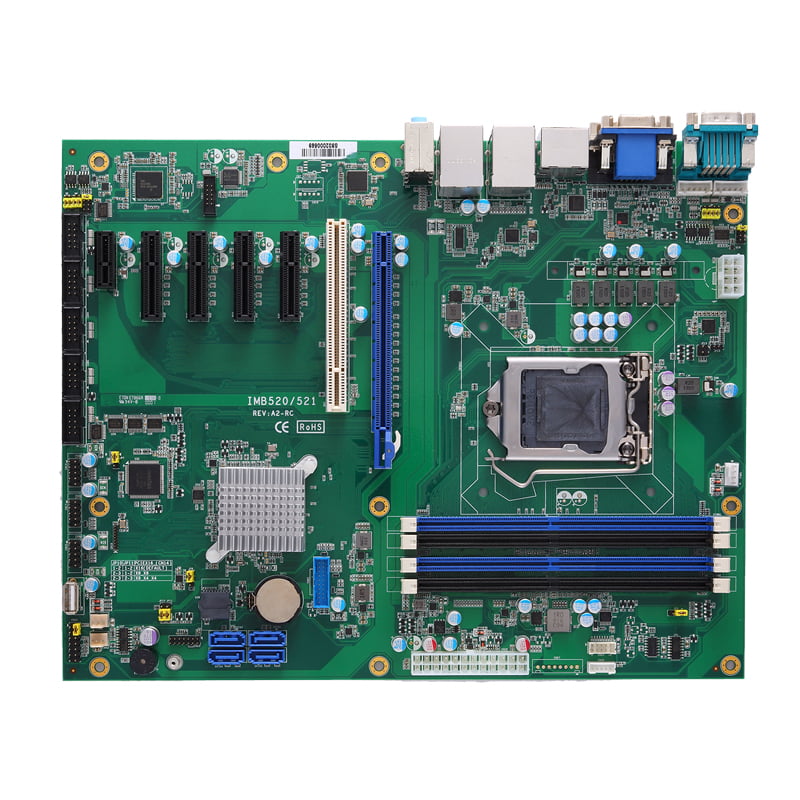

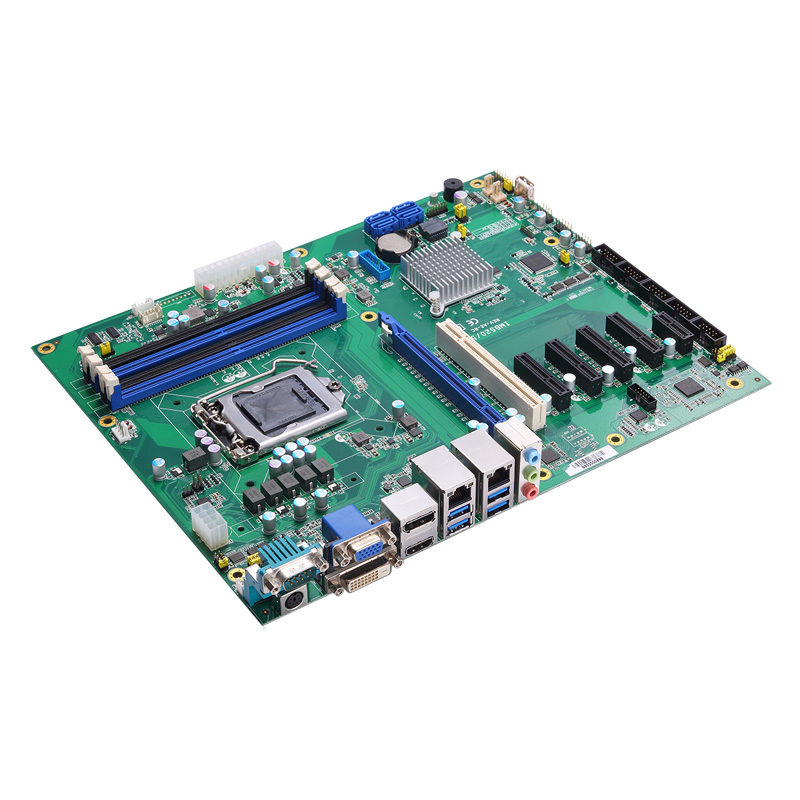

ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® Q370, USB 3.2 Gen1/Gen2, SATA 3.0, Dual LAN, VGA, DisplayPort++, DVI-D, and HDMI

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
IMB520R
IMB520R
PCIe Expansion

PCIe Expansion

RAID

RAID

TPM

TPM

Triple-View

Triple-View

USB 3.2

USB 3.2

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
  • Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
  • VGA, DisplayPort++, DVI-D and HDMI with triple-view supported
  • 4 SATA-600 with RAID 0/1/5/10
  • Two USB 3.2 Gen2x1 (10Gbps) and four USB 3.2 Gen1x1 (5Gbps)
  • TPM 2.0 supported (optional)

產品規格

CPU
  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (up to 95W)
Chipset
  • Intel® Q370
System Memory
  • 4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
BIOS
  • AMI
COM
  • 4 x RS-232 (Internal box header)
  • 2 x RS-232/422/485 (1 rear I/O, 1 internal box header)
USB
  • 2 x USB 3.2 Gen2x1 (10Gbps, rear I/O)
  • 4 x USB 3.2 Gen1x1 (5Gbps, rear I/O, internal box header)
  • 7 x USB 2.0 (pin header, 180D type A)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I219-LM, AMT)
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x DisplayPort++
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
Expansion
  • 1 x PCIe x16 slot
  • 4 x PCIe x4 slot
  • 1 x PCIe x1 slot
  • 1 x PCI
Others
  • 1 x PS/2 keyboard and mouse
  • SMBus
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • TPM 2.0 (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

訂購資訊

  • IMB520R (P/N-E38F520103)
    ATX motherboard with LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, Intel® Q370, USB 3.2 Gen1/Gen2, SATA 3.0, 2 GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen1x1 (5Gbps) cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=450 mm
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 5076E510000E
    CPU heatsink for 1U chassis (AX61135TM)
  • 50761222000E
    CPU cooler for 2U, 4U, and wall mount chassis

技術文件

Drivers

日期 說明 版本 下載檔案
2023/03/24 WIn11_64_LAN_Driver V1.2
2023/03/24 WIn10_64_Chipset_driver V1.2
2023/03/24 WIn10_64_Graphic_Driver V1.2
2023/03/24 WIn10_64_LAN_Driver V1.2
2023/03/24 WIn10_64_ME_Driver V1.2
2023/03/24 WIn10_64_Realtek Audio_Driver V1.2
2023/03/24 WIn10_64_RST_Driver V1.2

Software

Manual

日期 說明 版本 下載檔案
2020/09/02 User's Manual V2.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/03 UKCA Declaration of Conformity
2020/05/05 CE-Conformity Declaration
