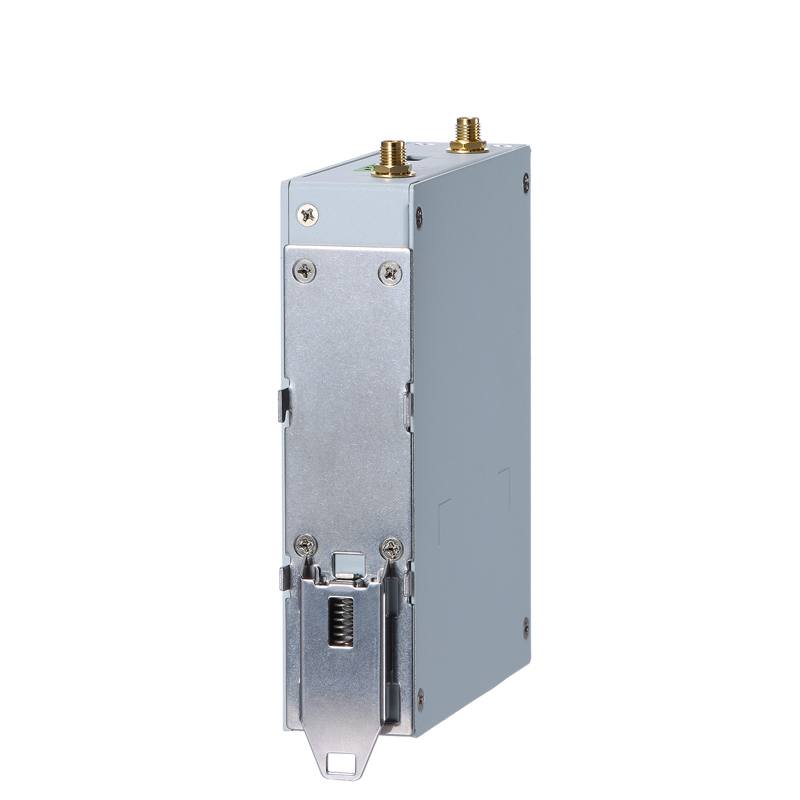

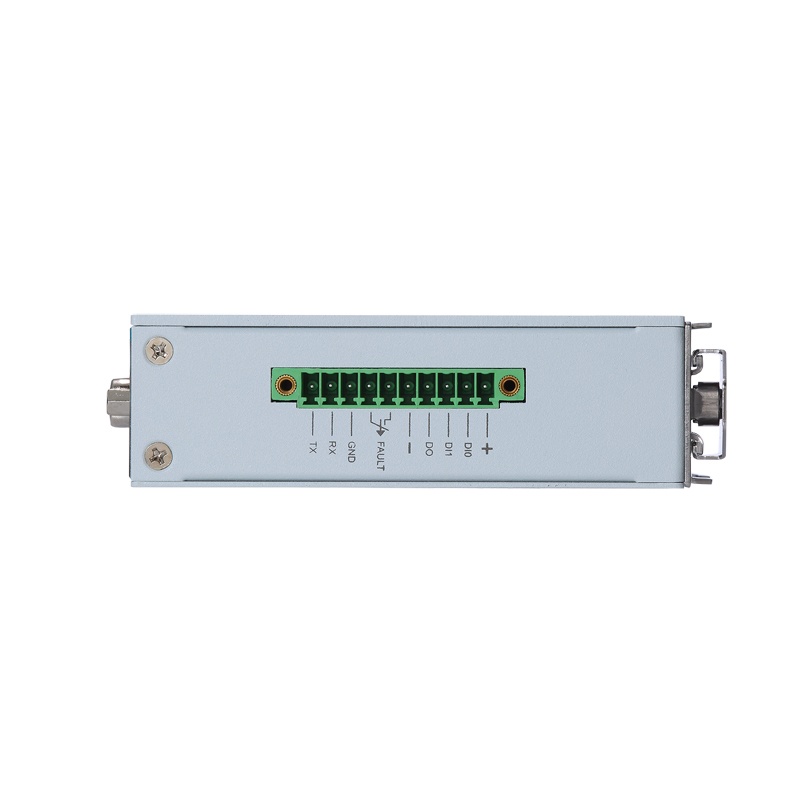

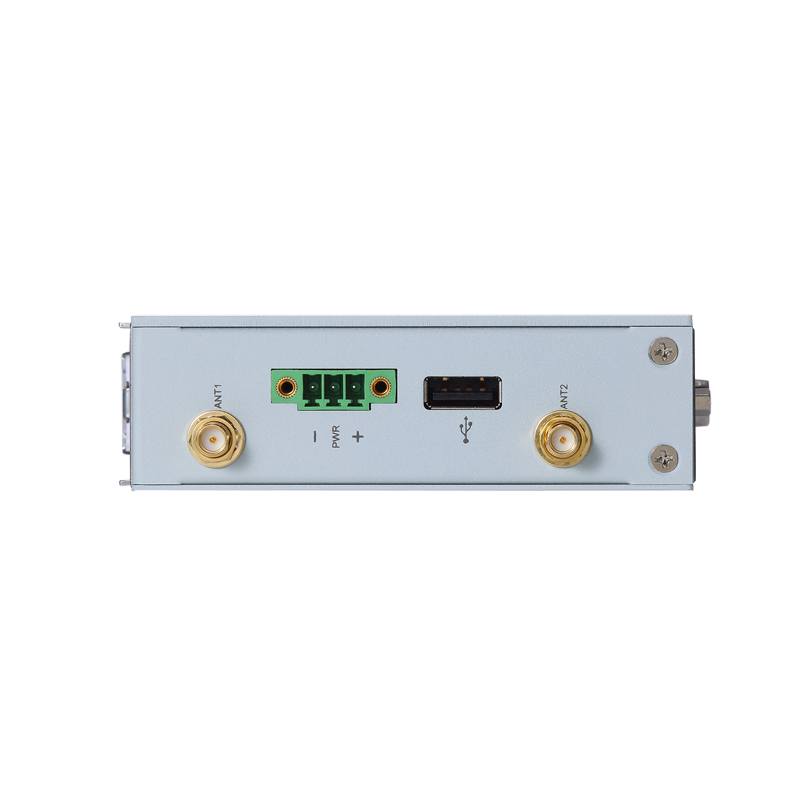

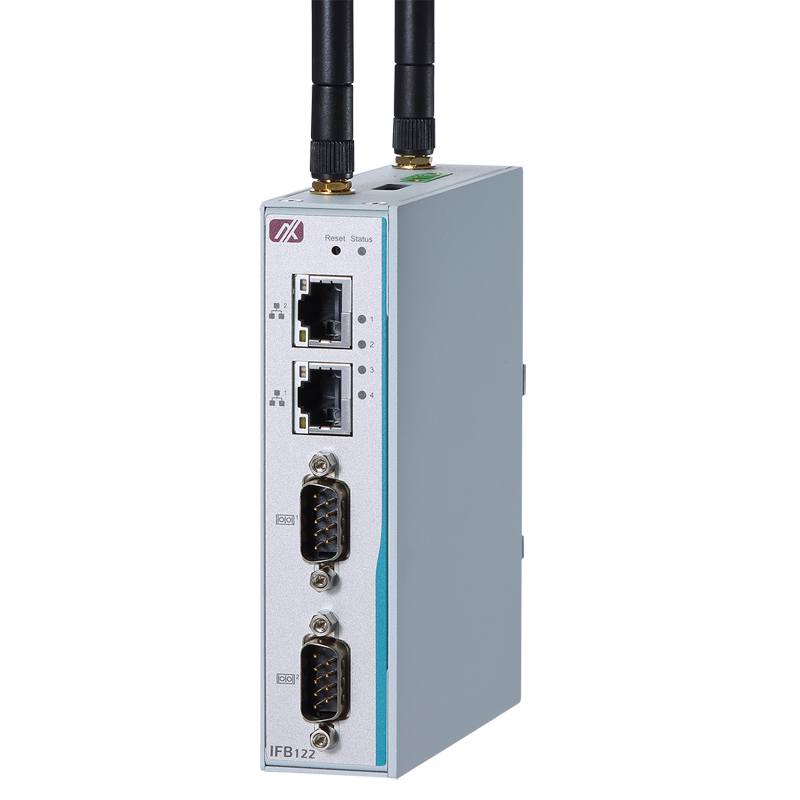

IFB122

產品階段 : 供應中

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 2 COM, 2 LANs and DIO (2-In/1-Out)

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
IFB122
IFB122
IFB122
IFB122
Fanless

Fanless

IP40 Rating

IP40 Rating

Low Power

Low Power

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 256MB DDR3 SDRAM onboard
  • 8GB eMMC flash onboard
  • 1 PCI Express Mini Card slot (Wi-Fi or 3G/4G)
  • 2 digital inputs and 1 digital output
  • Power input range of 9V to 48V DC with terminal block
  • Embedded Linux operating system (Yocto)
  • Fanless and compact design
  • Wide operating temperature range from -40°C to +70°C

產品規格

CPU
  • NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset
  • SoC integrated
System Memory
  • 256 MB DDR3-1600 onboard
COM
  • 2 x RS-232/422/485
USB
  • 1 x USB 2.0
Ethernet
  • 2 x 10/100 Mbps Ethernet
  • Magnetic isolation protection 1.5KV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DIO (2-In/1-Out)
Analog Input
  • N/A
Display
  • N/A
Expansion
  • 1 x PCI Express Mini Card slot (USB signal only)
  • 1 x SIM card socket
Storage
  • 1 x eMMC 8 GB Flash onboard
Others
  • 1 x Relay
  • 1 x EEPPROM (2 Kb)
  • Console port
  • RTC
Power
  • 9 to 48 VDC power input
Watchdog Timer
  • WDT 1: 0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 10% to 95%
Vibration
  • 5 Gms @ (10 to 150Hz random; operation)
Dimensions (W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.94" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.66 lb)/0.44 kg (0.97 lb)
Certifications
  • FCC part 15, Heavy Industrial CE
EOS Support
  • OS: Yocto 3.3 (Hardknott)
  • Kernel: 5.10.72
Mounting
  • DIN-rail
  • Wall mount

訂購資訊

  • IFB122-UL8E-A (P/N-E26V122109)
    Robust DIN-rail fanless embedded system with i.MX 6UL processor, 8GB eMMC, 2 COM, 2 LAN, and DIO (2-in/1-out) (-40°C to +70°C)
  • Wall mount kit
  • Wireless (3G/GPS or Wi-Fi) module

技術文件

Drivers

Software

日期 說明 版本 下載檔案
2025/12/12 IFB122 Linux BSP V1.1.4

Manual

日期 說明 版本 下載檔案
2023/05/31 Linux User Manual VA6
2019/10/28 User Manual VA5
2017/11/06 IFB122 Quick Guide VA1-12-12-2016 VA1.1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2022/12/27 CE LVD Verification
2022/12/27 UKCA Declaration of Conformity
2022/12/27 FCC Verification
2022/12/27 CE-Conformity Declaration
2017/06/27 CE EMC Verification

您可能也會喜歡

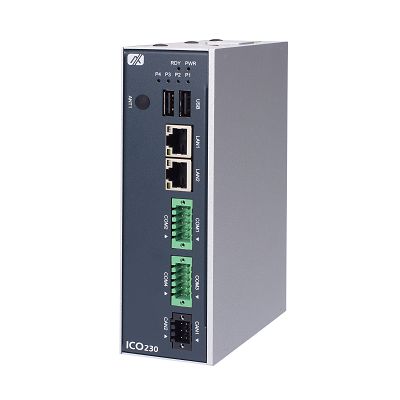

產品圖片 ICO230
