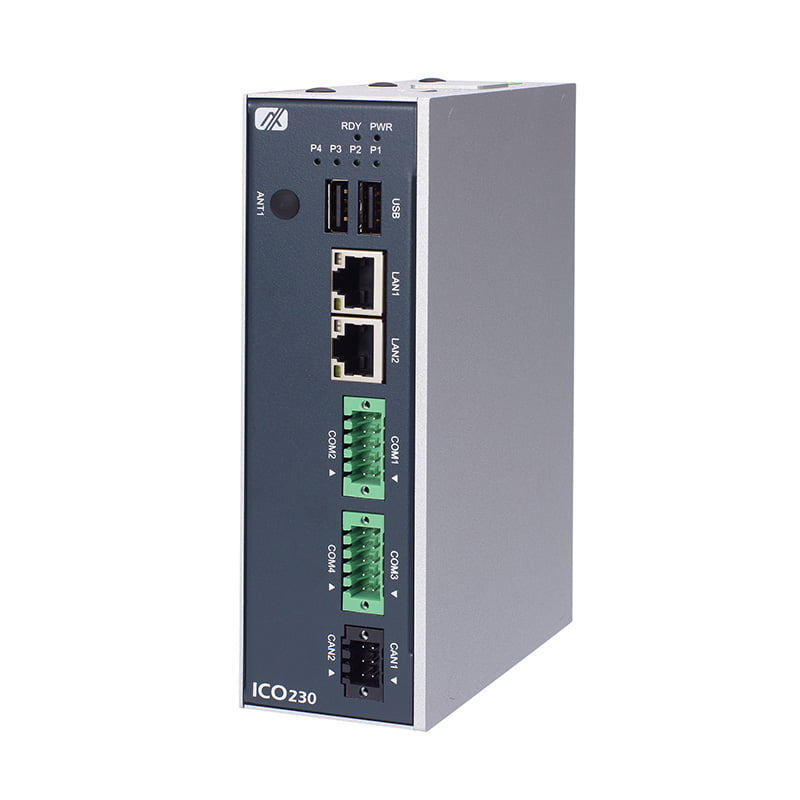

The ICO230 is a fanless, RISC-based DIN-rail embedded system designed for industrial edge communication, factory automation, wayside systems, and renewable energy applications. It provides reliable, low-power edge computing and gateway functionalities in remote or demanding environments.
The ICO230 is powered by the NXP i.MX 8M-Plus processor from NXP Semiconductors, offering efficient computing, low power consumption, and strong parallel processing capabilities, making it ideal for energy-sensitive and remote industrial applications.
The ICO230 includes four isolated COM ports, two isolated CAN FD ports, two Ethernet ports with 1.5 KV magnetic isolation, two USB 2.0 ports, and one HDMI port. These features ensure reliable communication, data integrity, and minimized electrical noise in industrial environments.
The ICO230 supports a -40°C to +70°C operating temperature range, 9–48 VDC wide power input, and 5 Grms vibration resistance. Its fanless DIN-rail form factor, aluminum and steel construction, and IP40 protection make it suitable for harsh and space-constrained industrial deployments.
Yes. The ICO230 offers an M.2 Key E 2230 slot for Wi-Fi/Bluetooth, a full-size PCIe Mini Card slot for LTE, and an externally accessible SIM socket, allowing flexible wireless expansion and simplified maintenance.
It comes with 2GB LPDDR4 onboard memory and 16GB eMMC storage, providing efficient data management, improved performance, and fast processing for industrial edge applications.

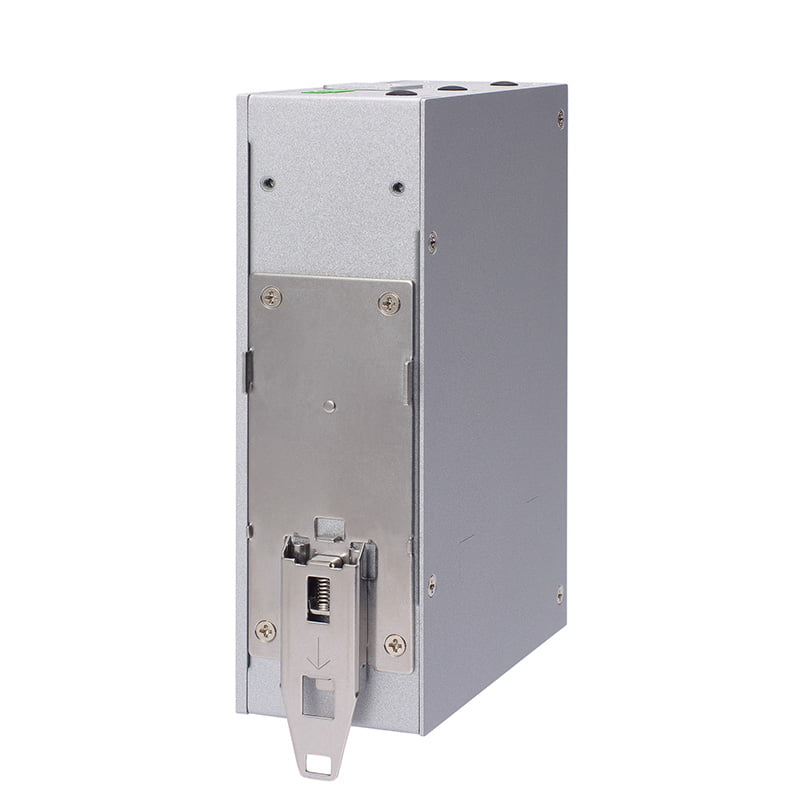

The ICO230’s fanless DIN-rail form factor allows easy installation in sealed or space-constrained cabinets. Its rugged aluminum and steel construction ensures durability while keeping the footprint small, offering a cost-effective, reliable solution for industrial IoT and automation.
The ICO230 is ideal for IoT, Industry 4.0, factory automation, transportation wayside systems, and renewable energy applications, providing reliable edge communication, gateway functions, and low-power operation in challenging industrial environments.
