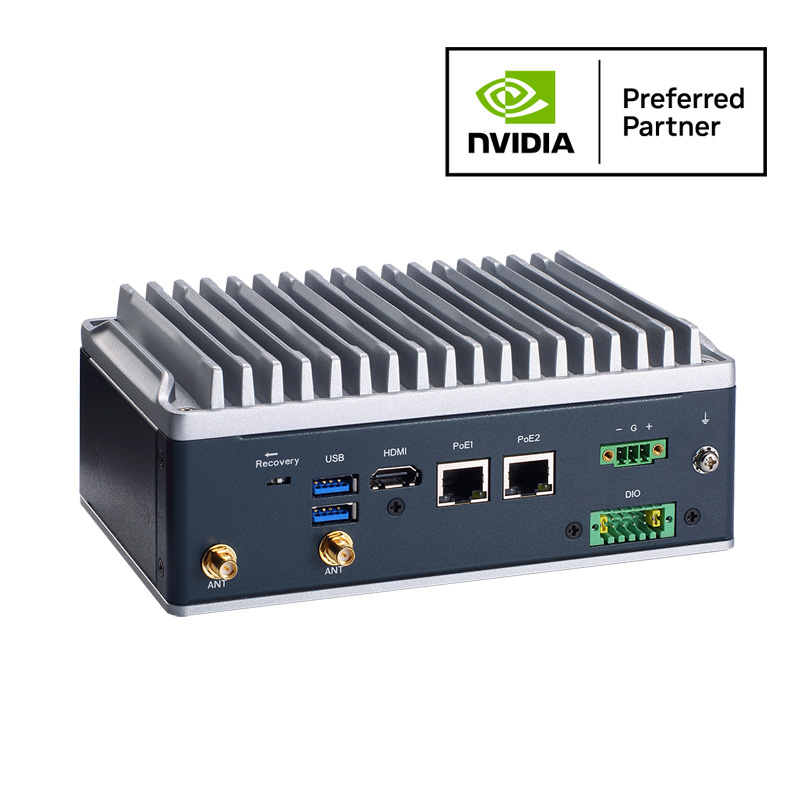

AIE510-ONX

產品階段 : 供應中

Fanless Edge AI System with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE PoE, one 2.5 GbE PoE, 2 USB, 1 COM/CAN, Isolated DIO (4-in/4-out), and 4-CH GMSL for AMR and Robotics

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
AIE510-ONX
AIE510-ONX
AIE510-ONX
AIE510-ONX
  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • NVIDIA® Jetson Orin™ NX (100 TOPS)
  • Seamless connectivity with 5G, Wi-Fi 6E, and 2.5 GbE combined
  • Effortless management with USB and PoE device power control
  • Supports dual PoE for camera and sensor connectivity
  • Wide operating temperature from -25°C to +60°C
  • Supports the NVIDIA Isaac™ Robot Operating System (ROS) SDK for AI-powered robot development
  • Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
AI Development
AI Development

NVIDIA® Jetson Orin™ NX / Up to 100 TOPS
NVIDIA Isaac™ Robot Operating System (ROS) SDK

Rugged Design
Rugged Design

Operating temperature -25°C to +60°C
IP40 Rating

AI Vision
AI Vision

PoE & GMSL interfaces



Powered by NVIDIA® Jetson Orin™ NX

The edge AI system AIE510-ONX is powered by the NVIDIA® Jetson Orin™ NX, which features an 8-core Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) and integrates an advanced 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, delivering outstanding AI performance with up to 100 TOPS.



Supports the NVIDIA Isaac™ Robot Operating System (ROS)

The NVIDIA Isaac™ Robot Operating System (ROS) SDK includes multiple open-source options, allowing developers to build high-performance AI solutions on NVIDIA hardware such as NVIDIA® Jetson™. The AIE510-ONX joins the NVIDIA ecosystem to expedite the development process for developers.



Speedy Connection Without Latency

The AIE510-ONX seamlessly integrates 5G, Wi-Fi 6E, and 2.5 GbE to offer unparalleled connectivity, enabling rapid data transfer and real-time communication essential for mission-critical applications. Additionally, customers may choose the GMSL interface version for high-speed data transmission between automotive cameras and sensors.



IP67 Version Available

Built to withstand the harshest environments, the AIE510-ONX supports an IP67 version tailored to specific project requirements to ensure durability and reliability in demanding outdoor conditions, such as smart roadside units and intelligent traffic management.

IP67-rated Waterproof Enclosure

Rugged & Reliable

The AIE510-ONX supports a wide voltage range operating from 9–36 VDC and is equipped with ignition power control for in-vehicle usage. It also features a wide operating temperature range from -25°C to +60°C.

Rugged Vehicle Power Design

Expansion Capability

  • 1 x M.2 Key B 3042/3052 for 5G/Wi-Fi
  • 1 x M.2 Key E 2230 slot for Wi-Fi 6E
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot for LTE/Wi-Fi
  • 1 x Nano SIM slot

Applications

Industrial Automation

  • Improving Accuracy and Precision
  • Object Classification
  • Optimized Production
  • Logistics Management

Computer Vision

  • Object Counting
  • Quality Judgment
  • Sorting & Grading
  • Automated Inspection

Traffic Management

  • Outdoor Monitoring
  • Vehicle Classification
  • License Plate Analysis

Rich I/O Interfaces

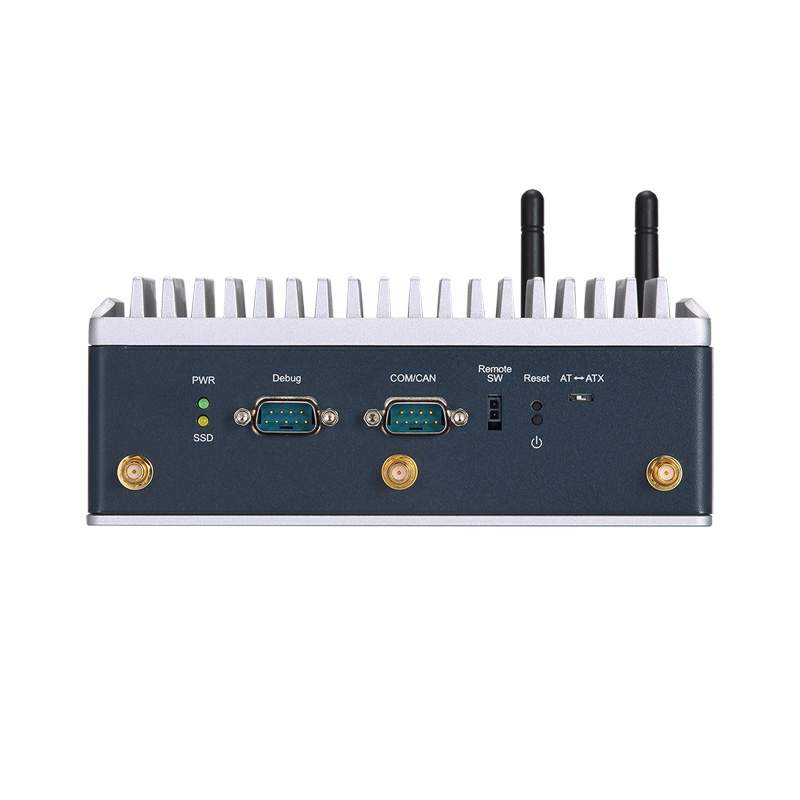

Front View

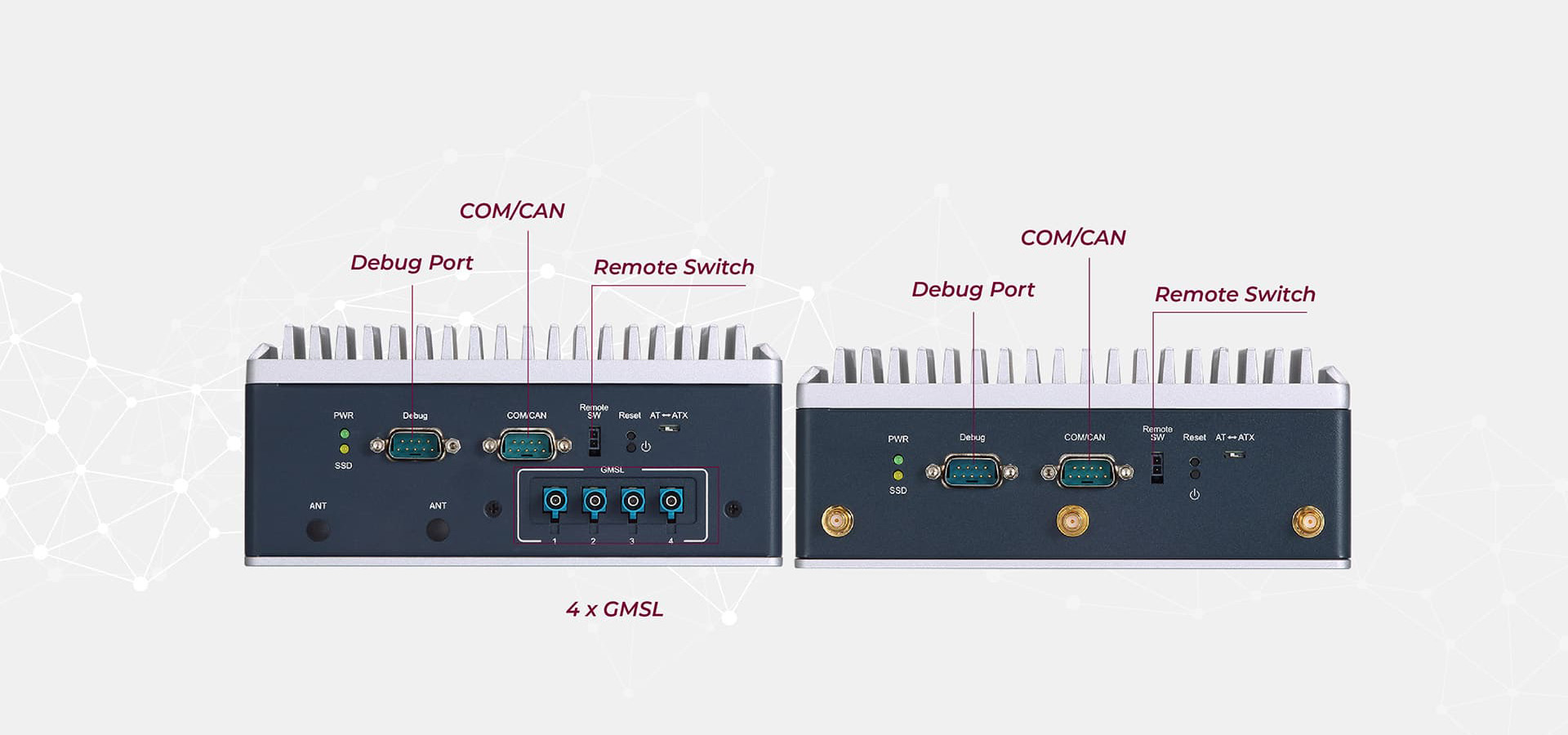

AIE510-ONX Front I/O

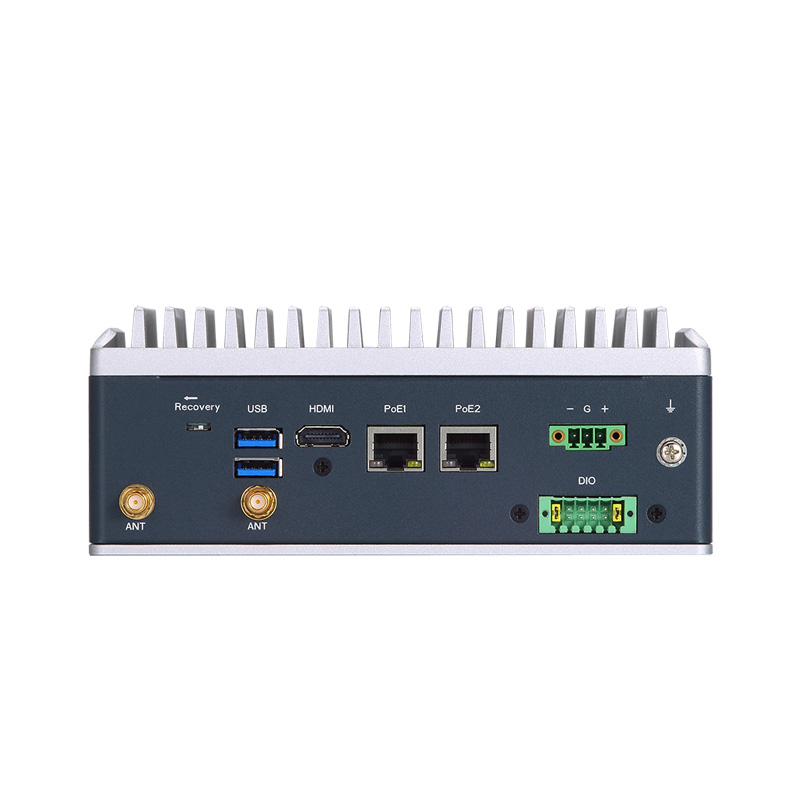

Rear View

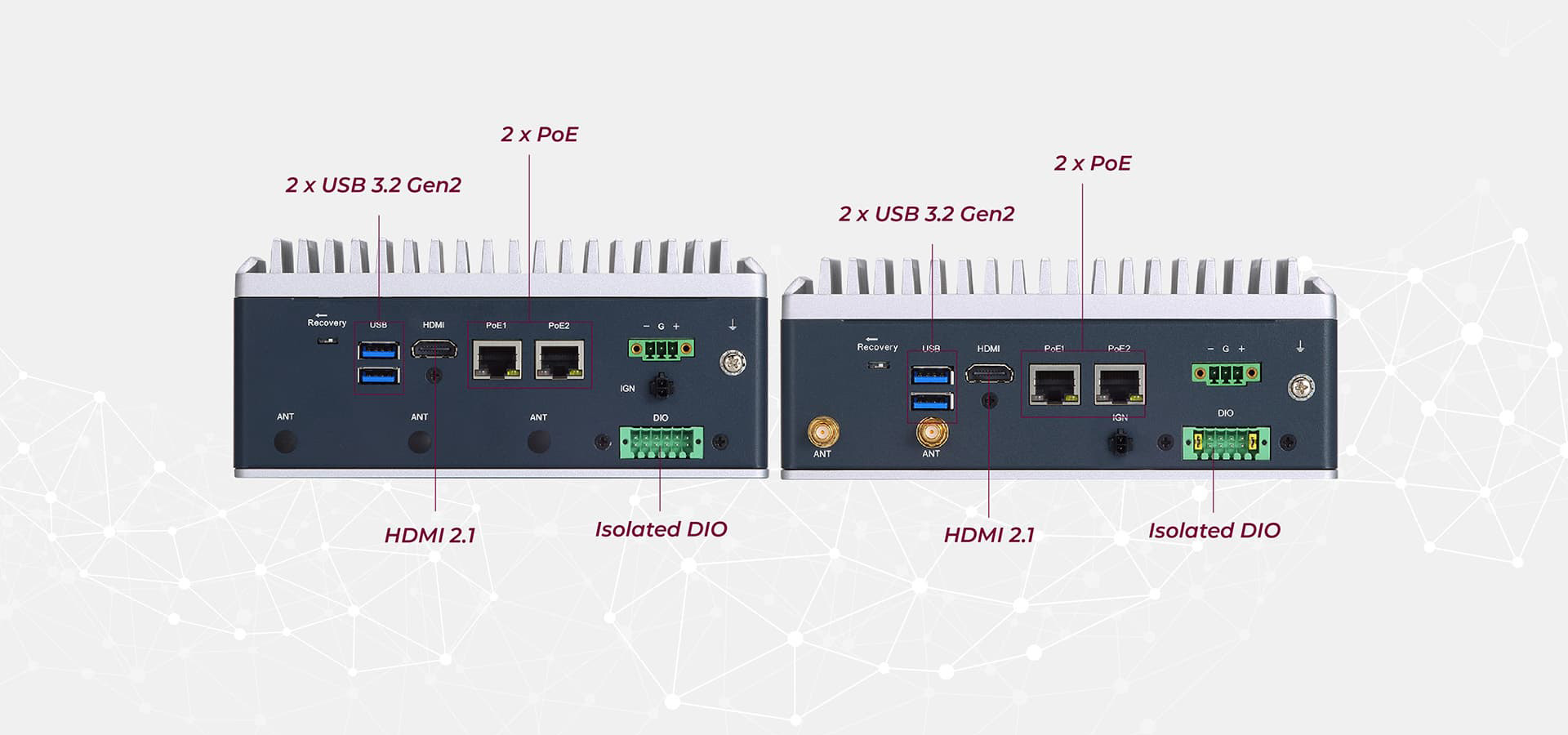

AIE510-ONX Rear I/O

產品規格

AI Accelerator
  • NVIDIA® Jetson Orin™ NX 16GB (100 TOPS)
  • By project: NVIDIA® Jetson Orin™ NX 8GB (70 TOPS), Orin™ Nano 8GB (67 TOPS) or Orin™ Nano 4GB (34 TOPS).
CPU
  • 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
System Memory
  • 16GB 128-bit LPDDR5 onboard
Serial
  • 1 x DB9 for debug port
  • 1 x DB9 for RS-232 and CAN (supports CAN 2.0A/B and CAN FD)
  • Supports CAN termination resistor.
USB
  • 2 x USB 3.2 Gen2
Ethernet/PoE
  • 1 x 1GbE PoE (via Orin™ NX)
  • 1 x 2.5GbE PoE (Intel® I226-IT)
  • IEEE 802.3at, up to 30 watts of power.
Display
  • 1 x HDMI 2.1 with 4K2K supported
GMSL

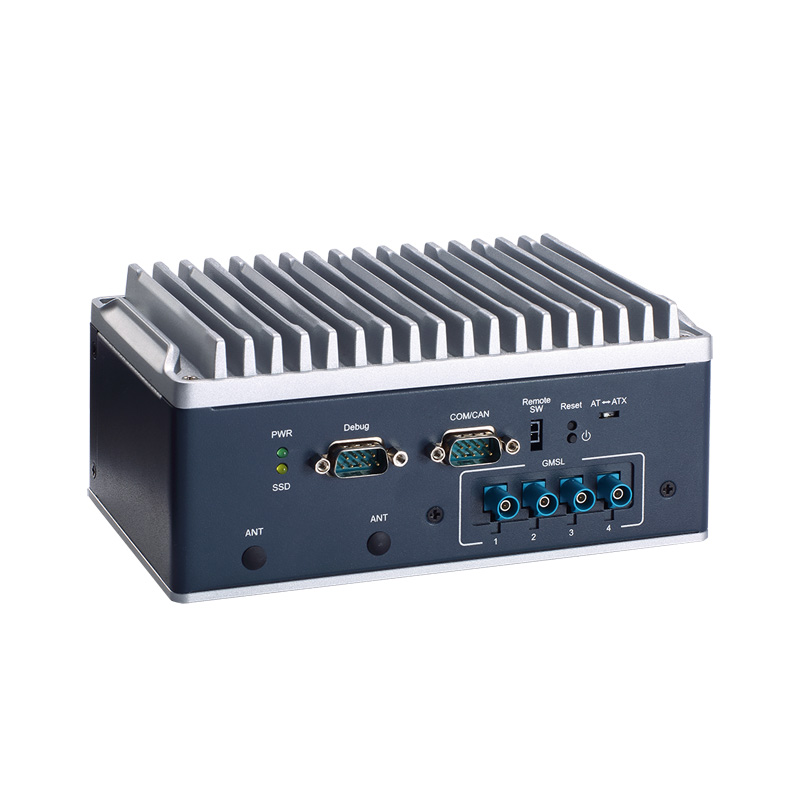

  • 4 x Fakra-Z connector for GMSL1/2 automotive camera (only for AIE510-ONX-GMSL)
GPIO
  • 1 x Isolated DIO (4-in/4-out)
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion
  • 1 x M.2 Key E 2230 slot for Wi-Fi 6E
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) for Wi-Fi/LTE
  • 1 x M.2 Key B 3042/3052 slot for 5G/LTE
  • 1 x Nano SIM slot
Others
  • 1 x recovery switch (for image update)
  • 1 x remote power switch
  • 1 x AT/ATX switch
  • 1 x reset button
  • 1 x power button
  • 1 x grounding screw
  • 5 x SMA-type antenna connector
  • 1 x out-of-band (OOB) module for remote management (optional)
Power Consumption (max.)
  • 36W (with 12 VDC)
  • 38.4W (with 24 VDC)
Power Supply
  • Input: 9 to 36 VDC (typical 12/24 VDC) with ignition power control
  • Inrush current: 0.69A/3.08A
Watchdog Timer
  • Built-in Orin NX
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • 25W power mode: -25°C to +60°C (-13°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Dimensions (W x D x H)
  • AIE510-ONX-16GB: 180 x 124 x 71.7 mm (7.08" x 4.88" x 2.82")
  • AIE510-ONX-GMSL: 180 x 124 x 80.7 mm (7.08" x 4.88" x 3.17")
Weight (net/gross)
  • AIE510-ONX-16GB: 1.4 kg (3.15 lb)/3.1 kg (6.83 lb)
  • AIE510-ONX-GMSL: 1.5 kg (3.31 lbs)/3.3 kg (7.28 lb)
Certifications
  • CE, FCC Class A, UKCA, and E-Mark
OS Support
  • Linux Ubuntu 20.04 or later
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

訂購資訊

  • AIE510-ONX-16GB (P/N-E27H510100)
    Fanless edge AI system with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, and isolated DIO (4-in/4-out)
  • AIE510-ONX-GMSL (P/N-E27H510105)
    Fanless edge AI system with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, isolated DIO (4-in/4-out), and 4-CH GMSL
  • E29R150107
    Wall mount kit
  • E29R150108
    DIN-rail mount kit
  • E29R150106
    VESA mount kit
  • M.2 NVMe SSD
    128GB or above
  • LTE module kit
  • Wi-Fi module kit
  • 5G module kit
  • Power cord
  • 509000001500
    24V/120W adapter

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2025/12/02 User's Manual VA2

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2024/12/30 AIE510-ONA-8GB_CE-Conformity Declaration
2024/12/30 AIE510-ONA-8GB_UKCA Declaration of Conformity
2024/12/30 AIE510-ONX-16GB_CE-Conformity Declaration
2024/12/30 AIE510-ONX-GMSL_UKCA Declaration of Conformity
2024/12/30 AIE510-ONX-16GB_UKCA Declaration of Conformity
2024/12/30 AIE510-ONX-GMSL_CE-Conformity Declaration
2024/12/27 RCM Verification
2024/12/27 FCC Verification
2024/12/27 CE EMC Verification

常見問題FAQ

您可能也會喜歡

產品圖片 AIE900A-AO

AIE900A-AO
新品
產品圖片 AIE900B-ONX

AIE900B-ONX

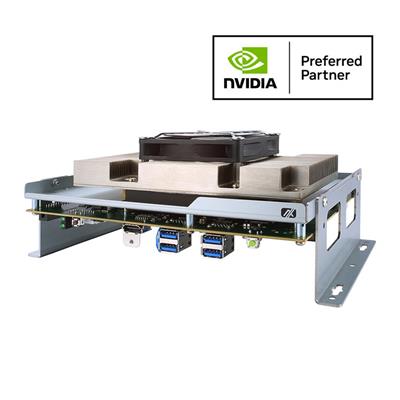

產品圖片 AIE015-AT
