| AI Accelerator |
- NVIDIA® Jetson Orin™ NX 16GB (Up to 157 TOPS)
- * Under planning: NVIDIA® Jetson Orin™ NX 8GB (117 TOPS), Orin™ Nano 8GB (67 TOPS) or Orin™ Nano 4GB (34 TOPS).
|
| CPU |
- 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
|
| GPU |
- 1024-core NVIDIA Ampere™ GPU with 32 Tensor Cores
|
| System Memory |
- 16GB 128-bit LPDDR5 onboard
|
| Serial |
- 2 x DB9 for COM (RS-232/422/485) & CAN
- * Supports CAN 2.0A/B and CAN FD.
- * Supports software-controlled CAN termination resistor switching.
|
| USB |
- 4 x USB 3.2 Gen2 (one for image update)
|
| Ethernet/PoE |
- 1 x 10/100/1000 Mbps (via Orin™ NX)
- 4 x 10/100/1000 Mbps PoE (Intel® I210-IT)
- * PSE, IEEE 802.3at, up to 30 watts of power.
|
| Display |
- 1 x HDMI 2.1 with 4K2K supported (lockable)
|
| GMSL |

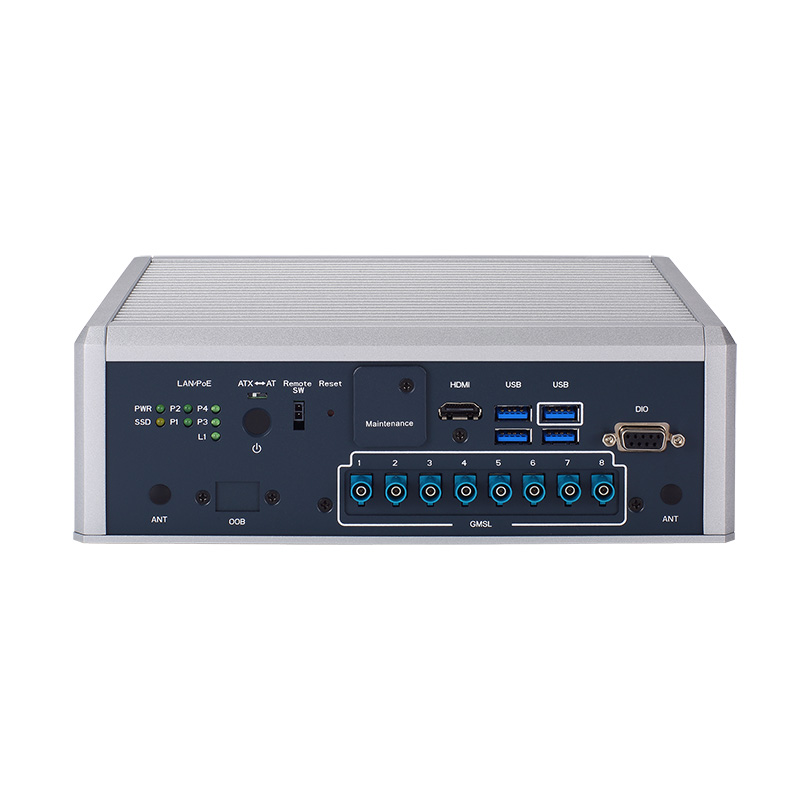

- 8 x Fakra-Z connector for GMSL1/2 camera (refer to AIE900B-ONX-GMSL)
|
| GPIO |
|
| Audio |
|
| Storage |
- 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
|
| Expansion |
- 1 x full-size PCI Express Mini Card slot (USB + PCI Express signal) for Wi-Fi/LTE
- 1 x M.2 Key B 3042/3052 slot for LTE/5G
- 1 x Nano SIM slot
|
| Others |
- 1 x recovery switch (for image update)
- 1 x AT/ATX switch
- 1 x reset button
- 1 x power button
- 1 x remote power switch
- 1 x grounding screw
- 5 x SMA-type antenna openings
- 1 x out-of-band (OOB) module for remote management (optional)
|
| TPM |
|
| Power Supply |
- Input: 9 to 36 VDC (typical 12/24 VDC) with smart ignition control
- Inrush current: 1.87A/1.37A
|
| Power Consumption (max.) |
|
| Watchdog Timer |
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- 40W power mode: -25°C to +70°C (-13°F to +158°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Shock |
- IEC 60068-2-27 (with SSD: 50G, half-sine, and 11 ms duration)
- MIL-STD-810H, Method 516.8, and Procedure I
|
| Vibration |
- IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, and 1 hr/axis)
- MIL-STD-810H, Method 514.8, and Category 20
|
| Dimensions (W x D x H) |
- 239 x 185.3 x 79.4 mm (9.41" x 7.3" x 3.13")
|
| Weight (net/gross) |
- 2.54 kg (5.6 lbs)/4.59 kg (10.12 lbs)
|
| Certifications |
- CE, FCC Class A, and UKCA
|
| OS Support |
- Linux Ubuntu 22.04 or later
|
| Mounting |
- Wall mount kit
- DIN-rail mount kit
- VESA mount kit
|
| Software |
- NVIDIA® Isaac™ ROS, Axiomtek Robotics Builder Package
|
