AIE100-ONX

產品階段 : 供應中

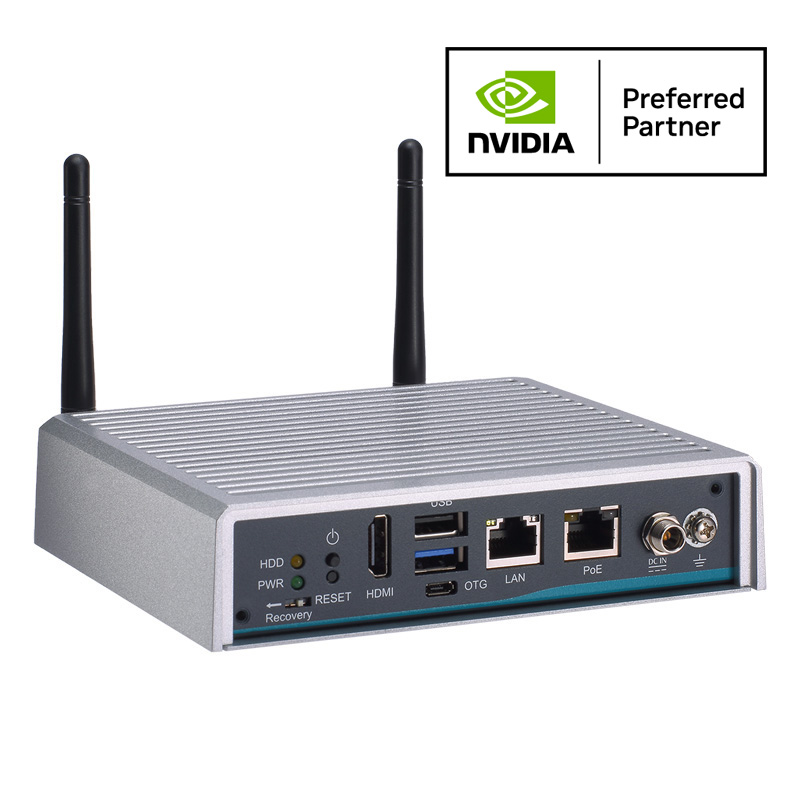

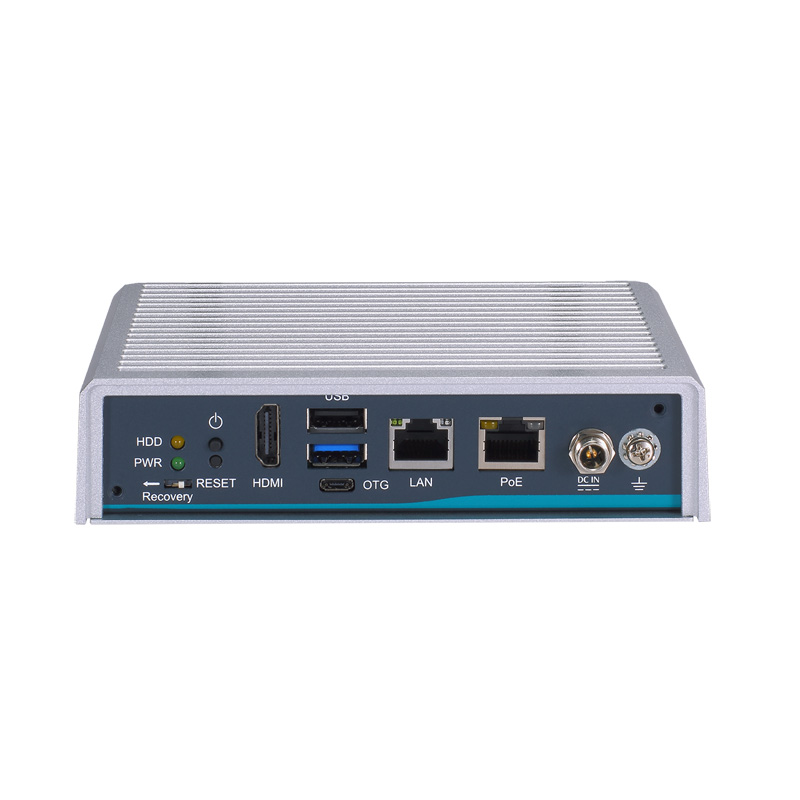

Fanless Edge AI System with NVIDIA® Jetson Orin™ NX, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB, featuring Remote Management Service Powered by Allxon

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
AIE100-ONX
AIE100-ONX
AIE100-ONX
  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
  • Ideal for edge AI smart city applications
  • Supports one 15W GbE PoE for camera
  • Wide operating temperature from -25°C to +60°C
  • Optional IP42 cover kit for semi-outdoor applications
  • Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

產品規格

AI Accelerator
  • NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
CPU
  • 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
  • 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 16GB: 16GB 128-bit LPDDR5 onboard
  • 8GB: 8GB 128-bit LPDDR5 onboard
Serial
  • N/A
USB
  • 1 x USB 3.2 Gen2
  • 1 x USB 2.0
  • 1 x Micro USB for image flash
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ NX)
  • 1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)
GMSL
  • N/A
Display
  • 1 x HDMI 2.1 with 4K2K supported
GPIO
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button

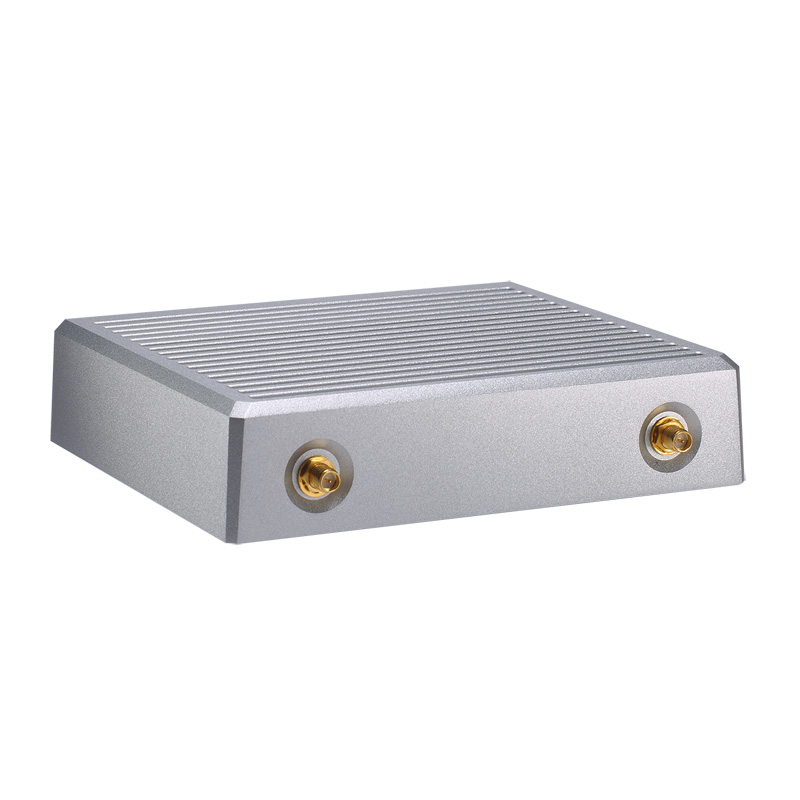

  • 2 x SMA-type antenna connector
Power Supply
  • 1 x 12 VDC screw-type power input connector
Watchdog Timer
  • Built-in Orin NX
Construction
  • Aluminum extrusion and heavy-duty steel, IP40 (IP42 by optional cover kit)
Operating Temperature
  • -25°C to +60°C (-13°F to +140°F) (power mode: 25W)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Shock
  • IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Dimensions (W x D x H)
  • 148.6 x 129.8 x 34.6 mm (5.85" x 5.11" x 1.36")
Weight (net/gross)
  • 0.9 kg (1.93 lb)/1.8 kg (3.97 lb)
Certifications
  • CE, FCC Class A, and UKCA
OS Support
  • Linux Ubuntu 20.04 or later
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

訂購資訊

  • AIE100-ONX-16GB (P/N-E27H100105)
    Fanless edge AI system with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
  • AIE100-ONX-8GB (P/N-E27H100108)
    Fanless edge AI system with NVIDIA® Jetson Orin™ NX 8GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
  • E29R150100
    Wall mount kit
  • E29R150102
    DIN-rail kit
  • E29R150101
    VESA mount kit
  • E29R150103
    IP42 waterproof cover kit
  • M.2 NVMe SSD
    128GB or above
  • LTE module
  • Wi-Fi module
  • Power cord
  • 50966124050E
    12V/60W adapter

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2023/06/26 User's Manual VA1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2024/01/09 CE-Conformity Declaration
2024/01/09 UKCA Declaration of Conformity
2024/01/09 FCC Verification
2024/01/09 CE LVD Verification
2024/01/09 UKCA Declaration of Conformity
2024/01/09 CE EMC Verification
2024/01/09 CE-Conformity Declaration
