AIE100-903-FL

產品階段 : 供應中

Fanless Edge AI System with NVIDIA® Jetson Nano™, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

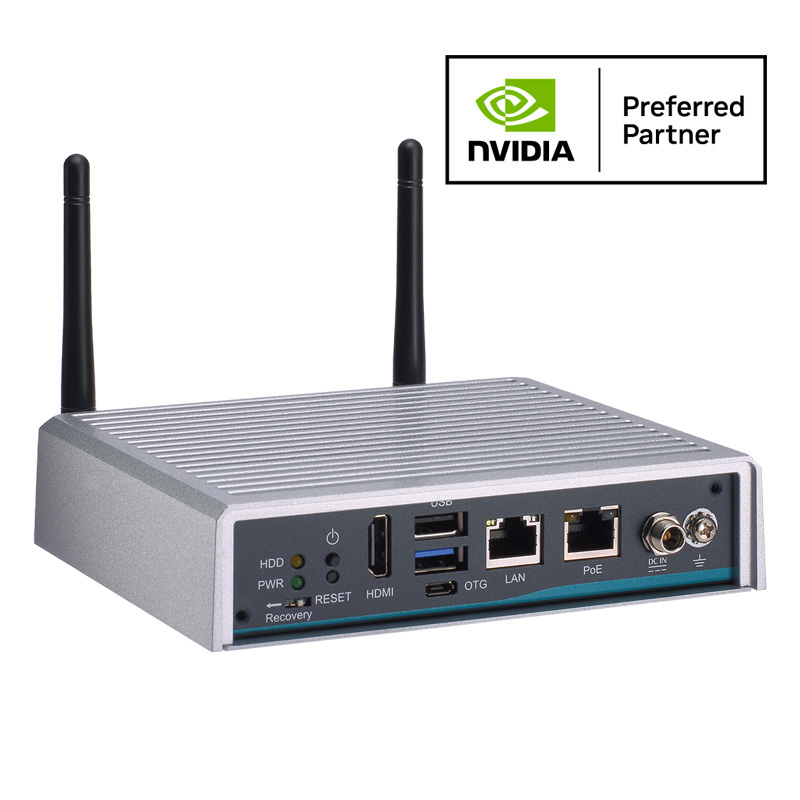

AIE100-903-FL
AIE100-903-FL
AIE100-903-FL
4K

4K

AI Computing

AI Computing

allxon

allxon

Fanless

Fanless

IP40 Rating

IP40 Rating

Low Power

Low Power

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • NVIDIA® Jetson Nano™ (472 GFLOPS)
  • Ideal for edge AI smart city applications
  • Supports one 15W GbE PoE for camera
  • Wide operating temperature from -30°C to +60°C
  • Optional IP42 cover kit for semi-outdoor applications
  • Enable 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

產品規格

AI Accelerator
  • NVIDIA® Jetson Nano™ (472 GFLOPS)
CPU
  • Quad-core ARM® Cortex®-A57 MPCore processor
GPU
  • 128-core NVIDIA Maxwell™ GPU
Chipset
  • SoC integrated
System Memory
  • 4GB 64-bit LPDDR4 onboard
Serial
  • N/A
USB
  • 1 x USB 3.2 Gen1
  • 1 x USB 2.0
  • 1 x Micro USB for image flash
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (via Jetson Nano™)
  • 1 x 10/100/1000 Mbps PoE (Intel® I210-IT, up to 15W)
Display
  • 1 x HDMI 2.0 with 4K2K supported
GMSL
  • N/A
GPIO
  • N/A
Audio
  • N/A
Storage
  • Onboard 16GB eMMC (via Jetson Nano™)
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  • 1 x Micro SD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 VDC power input connector
  • 2 x SMA-type antenna connector
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Built-in Nano
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Dimensions (W x D x H)
  • 148.6 x 129.8 x 34.6 mm (5.85" x 5.11" x 1.36")
Weight (net/gross)
  • 0.9 kg (1.93 lb)/1.8 kg (3.97 lb)
Certifications
  • CE, FCC Class A, and UKCA
OS Support
  • Linux Ubuntu 18.04
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

訂購資訊

  • AIE100-903-FL (P/N-E27H100100)
    Fanless edge AI system with NVIDIA® Jetson Nano™, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
  • E29R150100
    Wall mount kit
  • E29R150102
    DIN-rail kit
  • E29R150101
    VESA mount kit
  • E29R150103
    IP42 waterproof cover kit
  • M.2 NVMe SSD
    128GB or above
  • LTE module
  • Wi-Fi module
  • Power cord
  • 50966124050E
    12V/60W adapter

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2022/09/20 User manual VA2

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/09/02 UKCA-Conformity Declaration
2021/05/11 CE LVD Verification
2021/05/11 FCC Verification
2021/05/11 CE-Conformity Declaration
2021/05/11 CE EMC Verification
