P712

產品階段 : 供應中

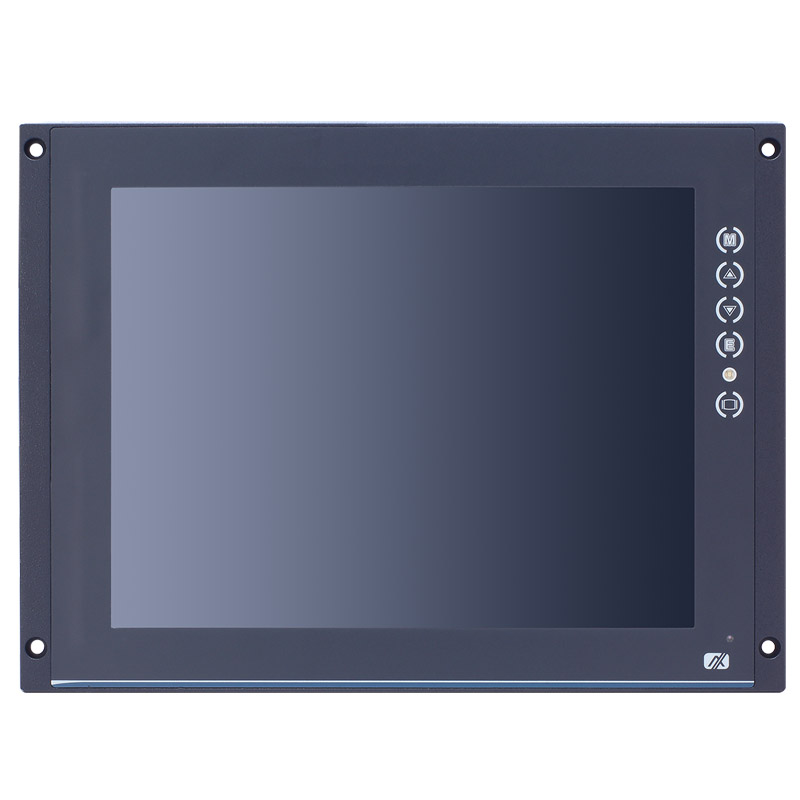

12.1" XGA TFT LCD Railway Touchscreen Monitor (-25°C to +55°C)

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
P712
P712
P712
P712
EN 45545

EN 45545

EN 50155

EN 50155

High Brightness

High Brightness

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • EN 50155 and EN 45545-2 certified railway monitor
  • 12.1" high brightness XGA TFT touchscreen LCD
  • Wide viewing angle and a high brightness of 600 nits
  • Supports VGA, DVI-D, and HDMI
  • Light sensor for auto-dimming
  • Typical 24 to 110 VDC wide power input
  • -25°C to +55°C wide temperature range
  • Supports 5 OSD keys on the front bezel

產品規格

Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
LCD Panel
  • 12.1" XGA TFT LCD
Max Colors
  • 16.7M/262k
Active Area (mm)
  • 245.76 (H) x 184.32 (V)
Max. Resolution
  • 1024 x 768
Input Signal
  • VGA
  • HDMI
  • DVI-D
  • Line-in
  • Multi-function of T/S & remote control
Pixel Pitch (mm)
  • 0.24 (H) x 0.24 (V)
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 178°/178°
Response Time
  • 25ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 600 nits
Display Control
  • OSD (on screen display)

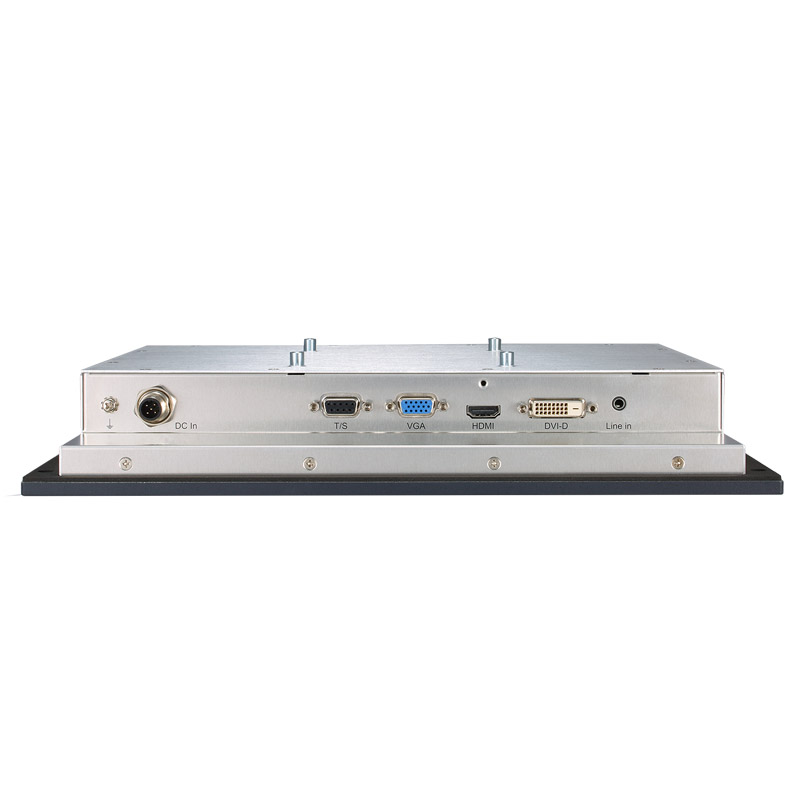

I/O Interface
  • 1 x M12 A-coded Male 5-pin DC-in
  • 1 x Multi-function of T/S & remote control
  • 1 x DVI-D
  • 1 x VGA
  • 1 x HDMI
  • 1 x Line-in
Touchscreen
  • 5-wire resistive touchscreen
  • Transparency: 80%
  • Durability: 35 million times
  • Controller interface: RS-232
Power Supply
  • Typical 24 VDC to110 VDC
Relative Humidity
  • 20% to 90% @ +40°C, non-condensing
Operating Temperature
  • -25°C to +55°C (-13°F to +131°F)
Dimensions (W x D x H)
  • 330 x 50.2 x 245 mm (12.99" x 1.98" x 9.65")
Weight (net/gross)
  • 2.3 kg (5.07 lb)/4.36 kg (9.62 lb)
Mounting
  • Panel mount
  • VESA arm
Certifications
  • CE, FCC, EN 50155, EN 50121-3-2, EN 61373, and EN 45545-2 certified

訂購資訊

  • P712-RS1-M (P/N-E226712100)
    12.1" XGA LCD railway touchscreen monitor with 24 to 110 VDC power input
  • 594B8120B30E
    DC in cable M12 female 5P 180cm w/o ACC

技術文件

Drivers

日期 說明 版本 下載檔案
2022/03/10 Windows 10_Remote_Driver VA1
2022/03/10 Windows 10_Touch_Driver VA1

Software

Manual

日期 說明 版本 下載檔案
2022/03/10 User's Manual VA1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/04/28 EN50155 Certificate
2022/05/06 UKCA Declaration of Conformity
2022/05/06 FCC Verification
2022/05/06 CE-Conformity DeclarationA1
2022/05/06 CE LVD Verification
2022/05/06 CE EMC Verification

常見問題FAQ

您可能也會喜歡

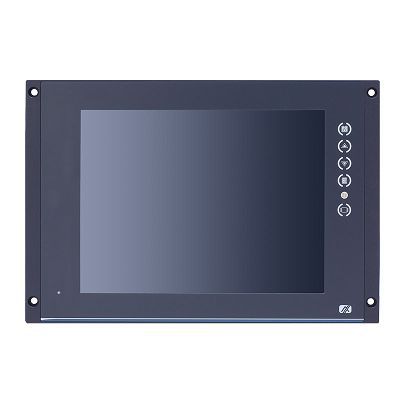

產品圖片 P710
