P710

產品階段 : 供應中

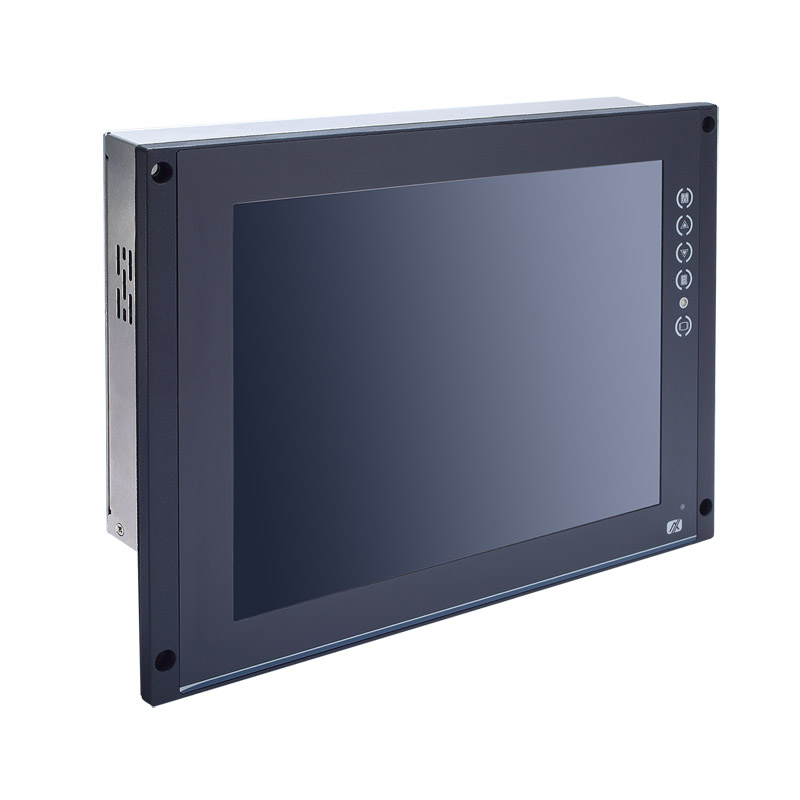

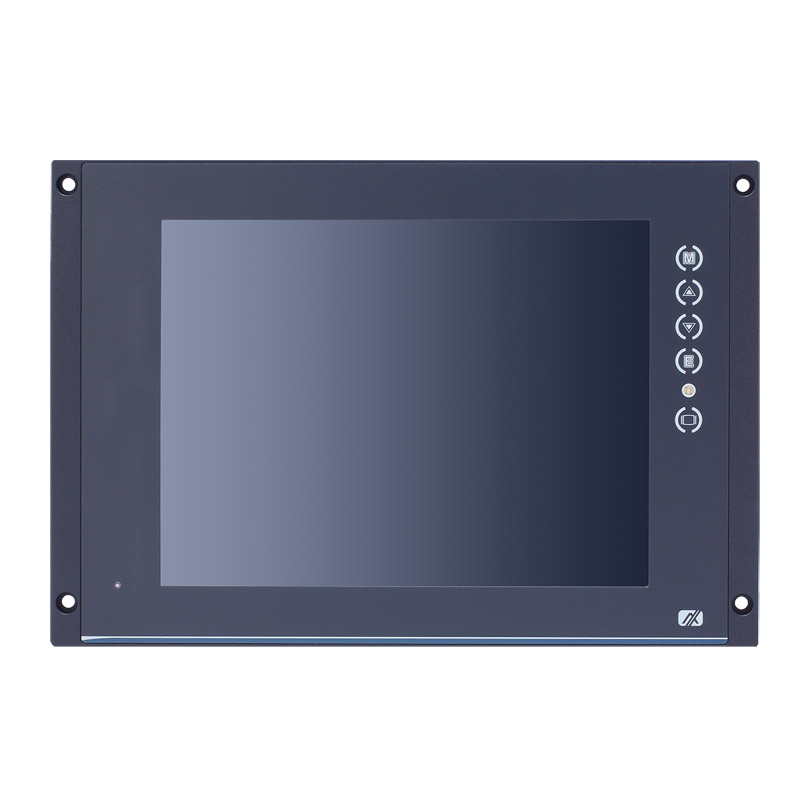

10.4" XGA TFT LCD Railway Touchscreen Monitor (-25°C to +55°C)

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
P710
P710
P710
Auto Diming

Auto Diming

EN 45545

EN 45545

EN 50155

EN 50155

High Brightness

High Brightness

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Certified with EN 50155 and EN 45545-2 standards
  • 10.4" high brightness XGA TFT touchscreen LCD
  • Wide viewing angle and high brightness of 500 nits
  • Supports VGA, DVI-D, and HDMI
  • Light sensor for auto-dimming
  • Typical 24 to 110 VDC wide power input range
  • -25°C to +55°C wide temperature range
  • Supports 5 OSD keys on the front bezel

產品規格

Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
LCD Panel
  • 10.4" TFT LCD
Max Colors
  • 16.2M/262k
Active Area (mm)
  • 210.4 (H) x 157.8 (V)
Max. Resolution
  • 1024 x 768
Input Signal
  • VGA
  • HDMI
  • DVI-D
  • RS-232 for touchscreen and IR remote control
Pixel Pitch (mm)
  • 0.0685 (H) x 0.2055 (V)
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 176°/176°
Response Time
  • 25ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 500 nits
Display Control
  • OSD (on screen display)

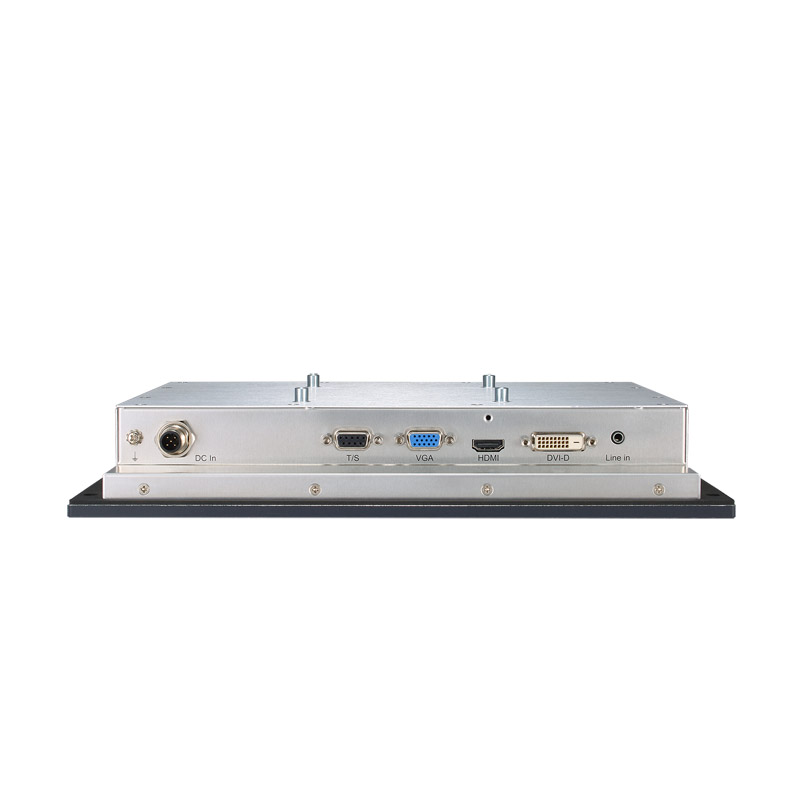

I/O Interface
  • 1 x RS-232 for touchscreen and remote control
  • 1 x M12 A-coded Male 5-pin DC-in
  • 1 x DVI - D
  • 1 x VGA
  • 1 x HDMI
  • 1 x Line-in
Touchscreen
  • 5-wire resistive touchscreen
  • Thickness: 2.2 mm
  • Light Transmission: 80%
  • Touch Life: 35 million touches
  • Controller Interface: RS-232 DB9 male connector
Power Supply
  • Typical 24 VDC to110 VDC
Relative Humidity
  • 20% to 90% @ +40°C, non-condensing
Operating Temperature
  • -25°C to +55°C (-13°F to +131°F)
Dimensions (W x D x H)
  • 310 x 49.2 x 214 mm (12.20" x 1.94" x 8.43")
Weight (net/gross)
  • 1.85 kg (4.08 Ib)/3.29 kg (7.26 lb)
Mounting
  • Panel mount
  • VESA arm
Certifications
  • CE, FCC, EN 50155, EN 50121-3-2, EN 61373, and EN 45545-2 certified

訂購資訊

  • P710-RS1-M (P/N-E226710100)
    10.4" XGA LCD railway touchscreen monitor with 24-110 VDC power input

技術文件

Drivers

日期 說明 版本 下載檔案
2022/03/10 Windows 10_Remote_Driver VA1
2022/03/10 Windows 10_Touch_Driver VA1

Software

Manual

日期 說明 版本 下載檔案
2022/03/10 User's Manual VA1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/04/28 EN50155 Certificate
2022/05/06 UKCA Declaration of Conformity
2022/05/06 CE-Conformity DeclarationA1
2022/05/06 FCC Verification
2022/05/06 CE LVD Verification
2022/05/06 CE EMC Verification

常見問題FAQ

您可能也會喜歡

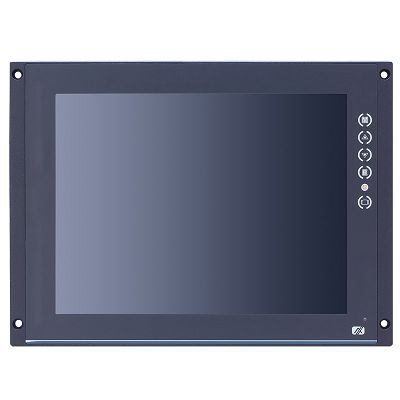

產品圖片 P712

P712

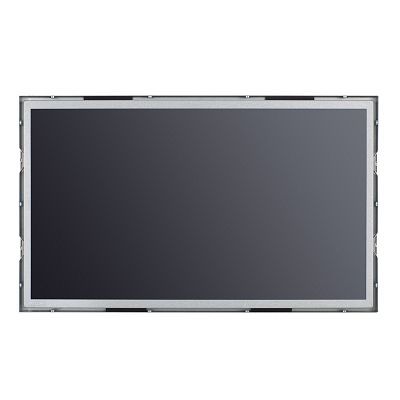

產品圖片 P718O
