Q7M310

產品階段 : 供應中

Qseven Module with Intel® Atom® x5 and x7 Processors

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

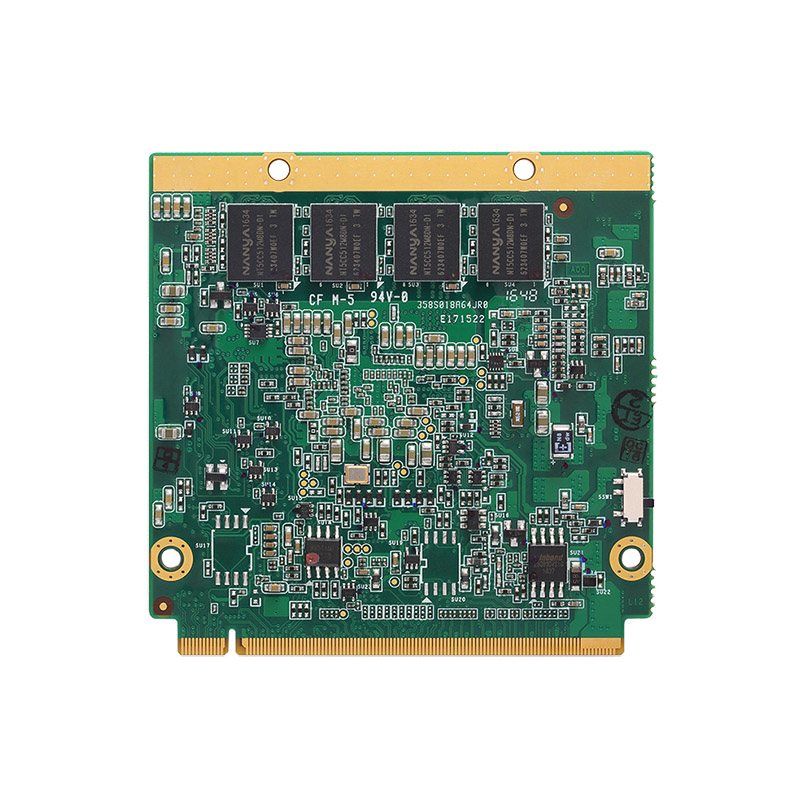

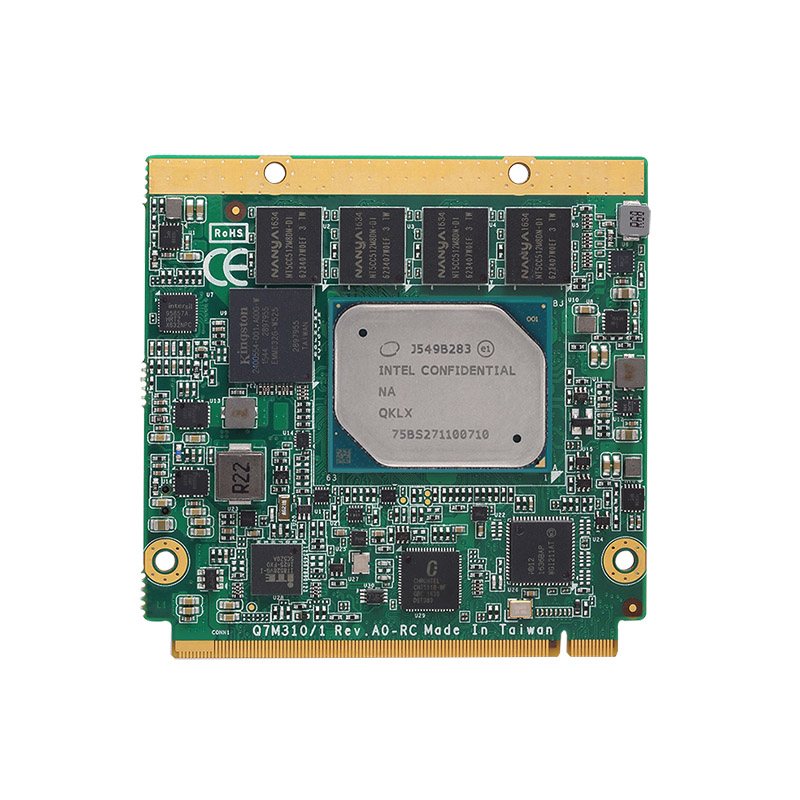

Q7M310
Q7M310
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Intel Atom® x5 and x7 processors (Apollo Lake)
  • 4GB DDR3L memory onboard
  • 4 lanes of PCI Express slot
  • 2 SATA-600
  • 3 USB 3.0 and 4 USB 2.0 or 2 USB 3.0 and 6 USB 2.0 (optional)

產品規格

CPU
  • Intel® Atom® x7-E3950 (2.0 GHz)
  • Intel® Atom® x5-E3940 (1.8 GHz)
  • Intel® Atom® x5-E3930 (1.8 GHz)
Chipset
  • SoC integrated
System Memory
  • Onboard 4GB DDR3L memory
BIOS
  • AMI
COM
  • 1 x Serial TX/RX
USB
  • 2 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210-IT)
Display
  • 1 x DDI (DisplayPort, HDMI, DVI)
  • 1 x LVDS; 18/24-bit dual channel (eDP optional)
Audio
  • HD link interface to baseboard for Codec
GPIO
  • 8 x GPIO
I2C
  • 1 x I2C
CAN
  • N/A
SPI
  • 1 x SPI
Storage
  • 2 x SATA-600
  • eMMC 32GB (optional)
Expansion
  • 4 x PCIe x1 (3 x PCIe x1 if onboard LAN is supported)
Others
  • 1 x SDIO
  • 1 x LPC (optional with GPIO)
Battery
  • N/A
Power Requirement
  • ATX: 5V, +5VSB
  • AT: 5V
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC to +85ºC (-40ºF to +185ºF)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 70 x 70 mm
Board Thickness
  • 1.2 mm
Certifications
  • CE

訂購資訊

  • Q7M310PG-E3950-4G (Ind.) (P/N-E38Q310102)
    Qseven module with Intel Atom® x7-E3950, 4GB DRAM, DDI, LVDS, USB 3.0 and GbE LAN (Industrial temperature)
  • Q7M310PG-E3940-4G (Ind.) (P/N-E38Q310101)
    Qseven module with Intel Atom® x5-E3940, 4GB DRAM, DDI, LVDS, USB 3.0 and GbE LAN (Industrial temperature)
  • Q7M310PG-E3930-4G (Ind.) (P/N-E38Q310104)
    Qseveni module with Intel Atom® x5-E3930, 4GB DRAM, DDI, LVDS, USB 3.0 and GbE LAN (Industrial temperature)
  • Q7M310-E3930+4GB (P/N-E38Q310105)
    Qseven module with Intel Atom® x7-E3950, 4GB DRAM, DDI, LVDS, USB 3.0 and GbE LAN
  • Q7M310-E3940+4GB (P/N-E38Q310106)
    Qseven module with Intel Atom® x5-E3940, 4GB DRAM, DDI, LVDS, USB 3.0 and GbE LAN
  • Q7M310-E3950+4GB (P/N-E38Q310107)
    Qseveni module with Intel Atom® x5-E3930, 4GB DRAM, DDI, LVDS, USB 3.0 and GbE LAN
  • 7128Q310000E
    Q7M310 heat spreader
  • 7118Q310000E
    Q7M310 heatsink without fan

技術文件

Drivers

日期 說明 版本 下載檔案
2020/03/31 Serial IO Driver VA1.3
2020/03/31 Graphic Driver VA1.3
2020/03/31 LAN Driver VA1.3
2020/03/31 TXE Driver VA1.3
2020/03/31 Chipset Driver VA1.3

Software

Manual

日期 說明 版本 下載檔案
2020/03/31 Quick Manual VA2
2020/03/31 User Manual VA4

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/08 UKCA Declaration of Conformity
2020/03/31 CE-Conformity Declaration

您可能也會喜歡

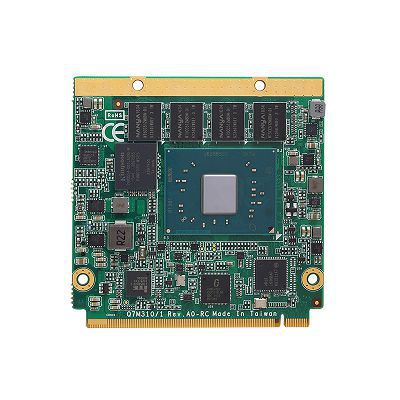

產品圖片 Q7M311
