SHB160

產品階段 : 供應中

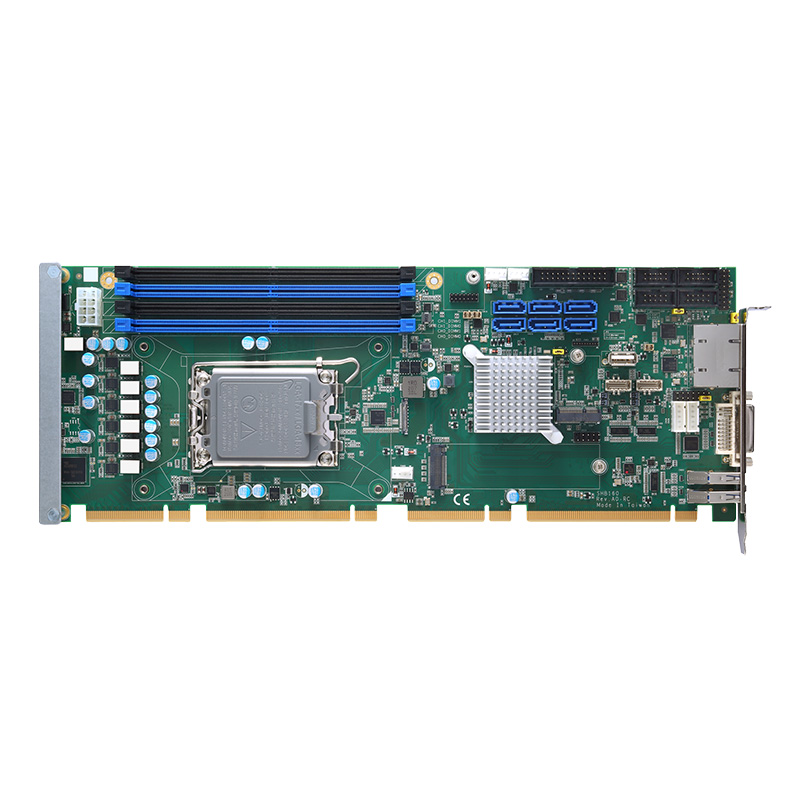

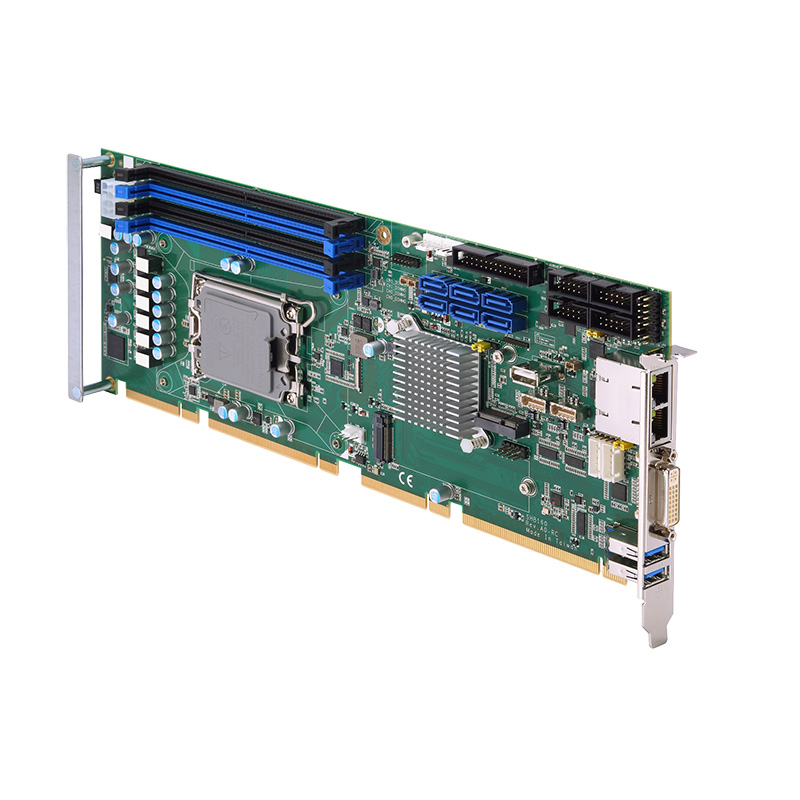

PICMG 1.3 Full-size CPU Card with LGA1700 14th/13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® Processor, Intel® R680E/H610E, SATA 3.0, M.2 Key E/M, USB 3.2 Gen 1/Gen 2, Dual 2.5GbE LAN, and DVI-I

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
SHB160
SHB160
2.5G LAN

2.5G LAN

DDR5

DDR5

PCIe Expansion

PCIe Expansion

TPM

TPM

USB 3.2

USB 3.2

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • LGA1700 14th/13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
  • Intel® R680E/H610E chipset
  • DDR5-4400 ECC (for R680E)/non-ECC U-DIMM, up to 192GB
  • Supports Intel® AMT and vPro (R680E)
  • Supports TPM 2.0 (optional)
  • Supports dual 2.5GbE LAN
  • Supports LPT port
  • Supports M.2 Key M and Key E
  • Supports PCIe 4.0 via the gold fingers

產品規格

CPU
  • LGA1700 14th/13th/12th gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® R680E/H610E
System Memory
  • 4 x DDR5-4400 ECC or non-ECC U-DIMM, up to 192GB (R680E)
  • 2 x DDR5-4400 non-ECC U-DIMM, up to 64GB (H610E)
BIOS
  • AMI
COM
  • 2 x RS-232
  • 2 x RS-232/422/485 with mode selection controlled via software
USB
  • 2 x USB 3.2 Gen 2x1 (rear I/O)
  • 4 x USB 3.2 Gen 1x1 (internal box headers; H610E supports only two ports)
  • 3 x USB 2.0 (2 via internal pin headers and 1 with a 180D Type-A connector). Note that the H610E does not include the 180D Type-A
  • 4 x USB 2.0 via SHB connector-C golden fingers
Ethernet
  • 1 x 2.5GbE (Intel® I226-LM; Intel® AMT with Intel vPro®)
  • 1 x 2.5GbE (Intel® I226-V)
Display
  • 1 x DVI-I (co-lay VGA by project)
  • 1 x DisplayPort (internal header)
Digital I/O
  • N/A
Audio
  • 1 x HD Codec audio as Mic-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage
  • M.2 Key M 2280 with PCIe 4.0 x4 support (R680E only)
  • 6 x SATA-600, support RAID 0/1/5/10 (R680E)
  • 4 x SATA-600 (H610E)
Expansion
  • 1 x PCIe Gen 4 x16
  • 1 x PCIe Gen 3 x4 or 4 x PCIe Gen 3 x1
  • 4 x 32-bit PCI bus master
  • 1 x M.2 Key E 2230
TPM
  • TPM 2.0 (optional)
Others
  • 1 x PS/2 keyboard internal connector
  • 1 x PS/2 mouse internal connector
  • 1 x LPT
  • 1 x Smart CPU fan
  • 2 x Smart system fan
Battery
  • Lithium 3V/220 mAH
Power Input
  • 8-pin ATX connector support
Power Consumption (Max.)
  • Intel® Core™ i5-12400 with 32GB (4 x DDR5-4400)
  • Power requirements:
  • +12V_CPU @ 5.2A
  • +5V @ 4.64A
  • +3.3V @ 1.76A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Detect CPU/system temperature, voltage, and fan speed
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 338 x 126 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE, UKCA

訂購資訊

  • SHB160-R680E-DGG PCIex4 (P/N-E38C160100)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® R680E, ECC, DVI-I, 2.5GbE LAN, 6 SATA, and PCIe x4 BIOS
  • SHB160-H610E-DGG PCIex4 (P/N-E38C160101)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® H610E, DVI-I, 2.5GbE LAN, 4 SATA, and PCIe x4 BIOS
  • SHB160-R680E-DGG PCIex1 (P/N-E38C160102)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® R680E, ECC, DVI-I, 2.5GbE LAN, 6 SATA, and PCIe x1 BIOS
  • SHB160-H610E-DGG PCIex1 (P/N-E38C160103)
    PICMG 1.3 full-size CPU card with 14th/13th/12th LGA1700 socket, Intel® H610E, DVI-I, 2.5GbE LAN, 4 SATA, and PCIe x1 BIOS
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 59401502800E
    1 x dual USB 3.2 (Gen 2 x1) cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500 mm
  • E393242100
    AX93242-RC HD audio converter kit
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 594826A0010E
    DVI-I to DVI-D+VGA Y cable
  • 83935151000E
    TPM 2.0 module (AX93515)
  • E398709102
    DisplayPort kit with15 cm cable
  • 711000001500
    2U special cooler kit for SHB160, compatible, 125W
  • 711000001400
    1U special cooler kit for SHB160, compatible, 65W
  • 711000003800
    1U special cooler with blower fan for SHB160
