SHB150R

產品階段 : 供應中

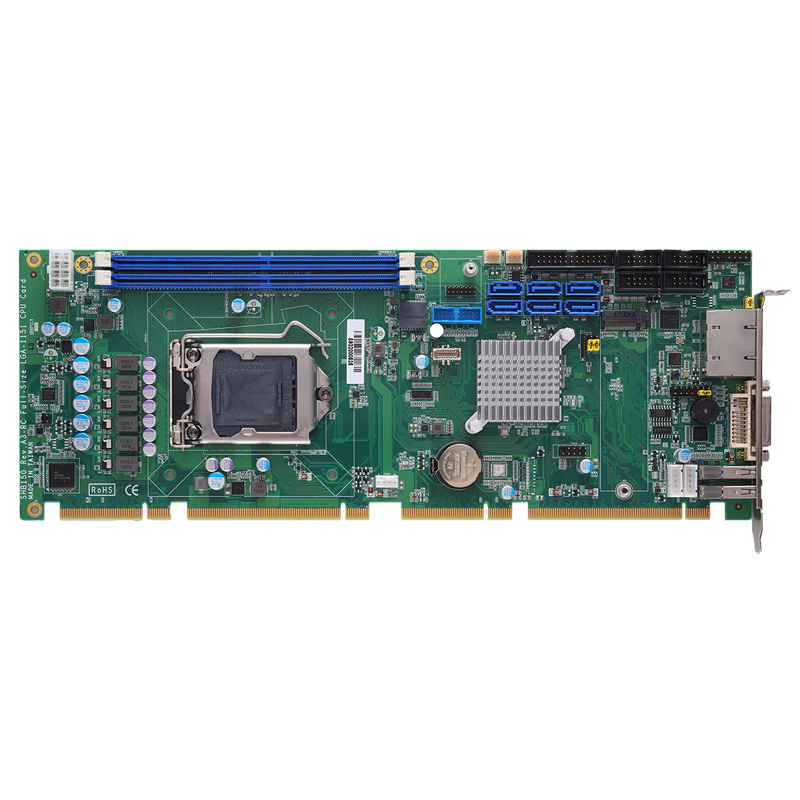

PICMG 1.3 Full-size CPU Card with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® Processor, Intel® C246/Q370/H310, SATA 3.0, USB 3.2 Gen1/Gen2, Dual LAN, and DVI-I

產品規格表 (PDF)

加入比較

立即詢價

Axiomtek EAPI

RAID

TPM

Triple-View

USB 3.2

產品特色
產品規格
訂購資訊
技術文件
相關新聞

產品特色

LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (Intel® C246), Pentium® or Celeron® processor (up to 95W)
Intel® C246/Q370/H310 chipset
2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory
Supports Intel® AMT and vPro (Intel® C246/Q370)
Supports TPM 2.0 (optional)
Supports M.2 Key M (Intel® C246/Q370)

產品規格

CPU	LGA1151 Socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246), Pentium® or Celeron® processor (up to 95W)
Chipset	Intel® C246/Q370 (Intel® vPro supported) Intel® H310
System Memory	Intel® C246: 2 x 288-pin 2666/2400 with ECC un-buffered Long-DIMM (Intel® Core™ i7/i5 only supports non-ECC), up to 64GB Intel® Q370/H310: 2 x 288-pin 2666/2400 un-buffered Long-DIMM, up to 64GB
BIOS	AMI
COM	2 x RS-232 2 x RS-232/422/485, mode selection by SW
USB	Intel® C246/Q370: 2 x USB 3.2 Gen2x1, 4 x USB 3.2 Gen1x1 & 6 x USB 2.0 (2 ports onboard, 4 ports on SHB connector-C golden fingers) Intel® H310: 4 x USB 3.2 Gen1x1 & & 6 x USB 2.0 (2 ports onboard, 4 ports on SHB connector-C golden fingers)
Ethernet	1 x 10/100/1000 Mbps (Intel® I219-LM; AMT) 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display	1 x DVI-I 1 x DisplayPort++ (internal header)
Digital I/O	N/A
Audio	HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage	M.2 Key M 2280, PCIe x4 signal (C246, Q370) C246/Q370: 6 x SATA-600, support RAID 0/1/5/10 H310: 4 x SATA-600
Expansion	1 x PCIe x16 Gen3 1 x PCIe x4 or 4 x PCIe x1 Gen3 4 x 32-bit PCI bus masters
Others	1 x PS/2 keyboard internal connector 1 x PS/2 mouse internal connector TPM 2.0 module (optional) 1 x LPT 1 x Smart CPU fan 1 x Smart system fan
Battery	Lithium 3V/220 mAH
Power Consumption (Max.)	Intel® Core™ i7-9700TE with 32GB 2 x DDR4-2666 +12V @ 2.8A, +5V @ 2.4A, +3.3V @ 1.3A
Watchdog Timer	225 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	338 x 126 mm
Board Thickness	1.6 mm
Certifications	CE

訂購資訊

SHB150RDGG-Q370 (P/N-E38C150106)
PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® Q370, DVI-I, 2 GbE LAN, and PCIe x4
SHB150RDGG-Q370 (P/N-E38C150107)
PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® Q370, DVI-I, 2 GbE LAN, and PCIe x1
SHB150RDGG-H310 (P/N-E38C150108)
PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® H310, DVI-I, 2 GbE LAN, and PCIe x4
SHB150RDGG-H310 (P/N-E38C150109)
PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® H310, DVI-I, 2 GbE LAN, and PCIe x1
SHB150RDGG-C246 (P/N-E38C150110)
PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® C246, DVI-I, 2 GbE LAN, and PCIe x4
SHB150RDGG-C246 (P/N-E38C150111)
PICMG 1.3 full-size CPU card with LGA1151 socket, Intel® C246, DVI-I, 2 GbE LAN, and PCIe x1
5938A808010E
2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
5948C122800E
1 x Dual USB 3.2 (Gen1x1) cable with bracket, L=400 mm
59401502800E
1 x Dual USB 3.2 (Gen2x1) cable with bracket, L=400 mm
59380000290E
PS/2 keyboard & mouse cable with bracket
593826A0000E
SATA signal cable/red, L=500mm
E393242100
AX93242-RC HD audio converter kit
59380402010E
1 x COM port cable with bracket, P=2.54 mm, L=300 mm
59380703000E
2 x COM port cable with bracket, P=2.54 mm, L=300 mm
594826A0010E
DVI-I to DVI-D+VGA Y cable
83935151000E
TPM 2.0 module (AX93515)
83987091000E
DisplayPort++ kit with bracket
