MANO311

產品階段 : 供應中

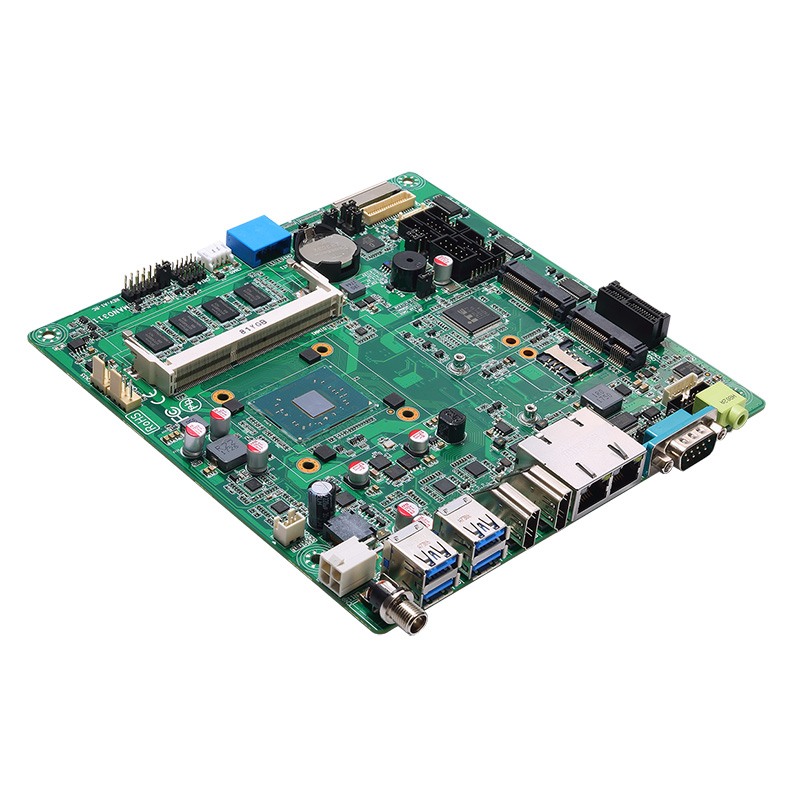

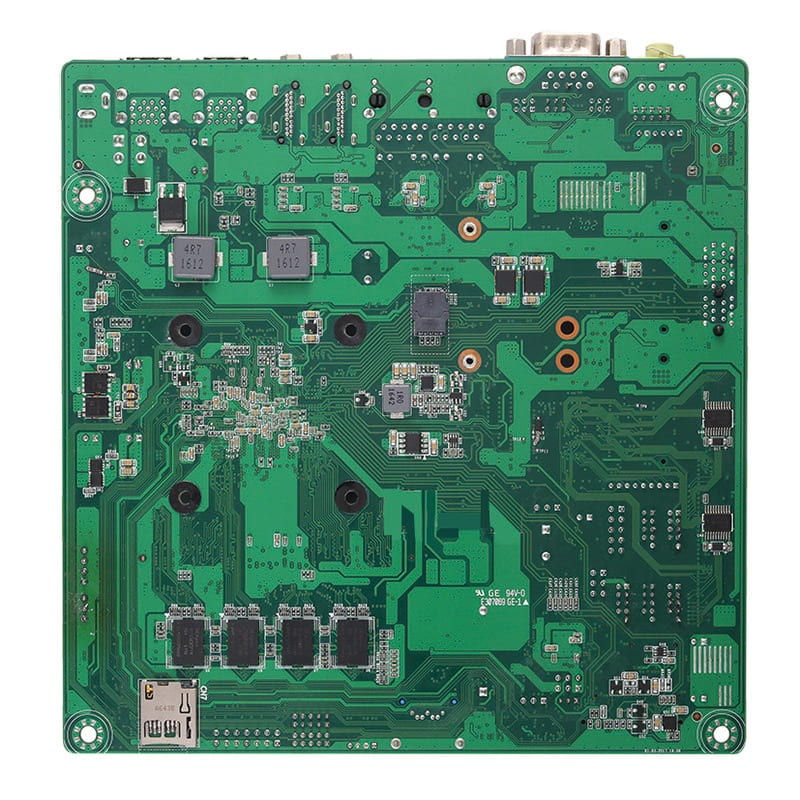

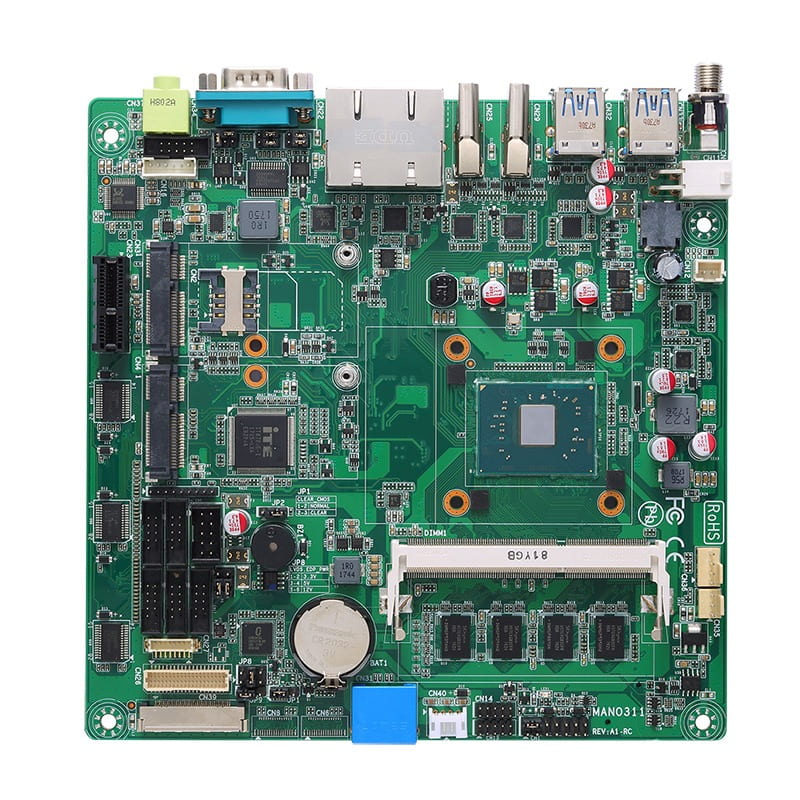

Thin Mini-ITX SBC with Intel® Celeron® Processor N3350, Dual HDMI, LVDS, USB 3.0, PCI Express Mini Card, mSATA and HD Audio

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
MANO311
MANO311
MANO311
Fanless

Fanless

Low Power

Low Power

Low Profile

Low Profile

TPM

TPM

Triple-View

Triple-View

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Intel® Celeron® processor N3350
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 4GB DDR3L onboard memory (optional)
  • 1 PCI Express Mini Card slot and PCIe x1
  • 4 USB 3.0 and 2 USB 2.0
  • 1 SATA-600, 1 mSATA and 1 SDXC
  • 6 COM supported
  • Low profile

產品規格

CPU
  • Intel® Celeron® processor N3350
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
  • 4GB onboard memory (optional)
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (Rear I/O)
  • 5 x RS-232 (One with +5/+12V powered)
USB
  • 2 x USB 2.0 (internal)
  • 4 x USB 3.0 (rear I/O)
Ethernet
  • 2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display
  • 2 x HDMI
  • 1 x LVDS
  • 1 x eDP (optional)
GPIO
  • 16-channel in/out programmable
Audio
  • Mic-in/Line-out
Storage
  • 1 x mSATA
  • 1 x SDXC slot
  • 1 x SATA-600
Expansion
  • 1 x PCIe x1
  • 1 x PCI Express Mini Card slot
  • 1 x SIM card slot
Others
  • 1 x PS/2 keyboard and mouse
Battery
  • Lithium 3V/220 mAH
Power Input
  • 1 x 12V/5A DC jack power
  • 1 x 12V to 24V 4-pin ATX power
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

訂購資訊

  • MANO311HGGA-N3350 (P/N-E38M311100)
    Mini-ITX SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB cache, 6W), 2 HDMI, LVDS, 2 GbE LANs, 6 COM, USB 3.0, mSATA, PCI Express Mini Card slot and HD audio
  • 594P8800600E
    SATA power cable, 4-pin to 15-pin, P=2.0 mm, L=200 mm
  • 59382620000E
    COM port cable, P=2.0 mm, L=300 mm
  • 594M5002A00E
    6-pin wafer to PS/2 cable, P=2.0 mm, L=200 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=420 mm
  • 59386831000E
    2-port USB cable with bracket, 5-pin header, P=2.54 mm, L=180 mm
  • 59381560000E
    6-pin PS/2 cable adapter
  • E9CA000012
    MANO311 half-height rear I/O metal shield

技術文件

Drivers

日期 說明 版本 下載檔案
2025/09/04 Audio Driver V1.1
2018/07/19 Win10_Driver_TXE V1.0
2018/07/19 Win10_Driver_Serial IO V1.0
2018/07/19 Win10_Driver_Graphics V1.0
2018/07/19 Win10_Driver_LAN V1.0
2018/07/19 Win10_Driver_Chipset V1.0

Software

Manual

日期 說明 版本 下載檔案
2019/06/25 User's Manual V2.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/03 UKCA Declaration of Conformity
2021/04/15 CE-Conformity Declaration
