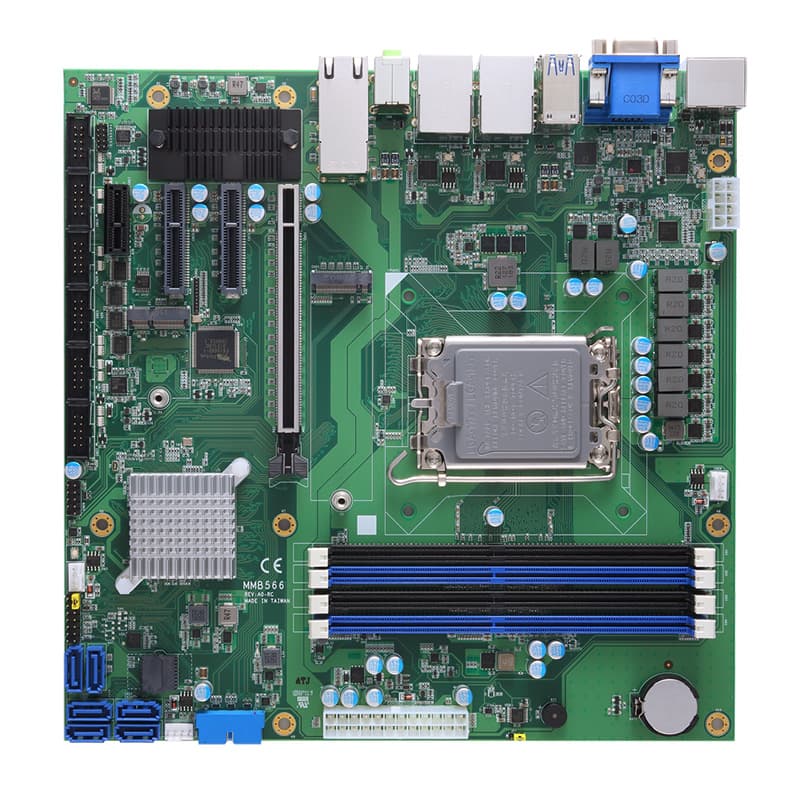

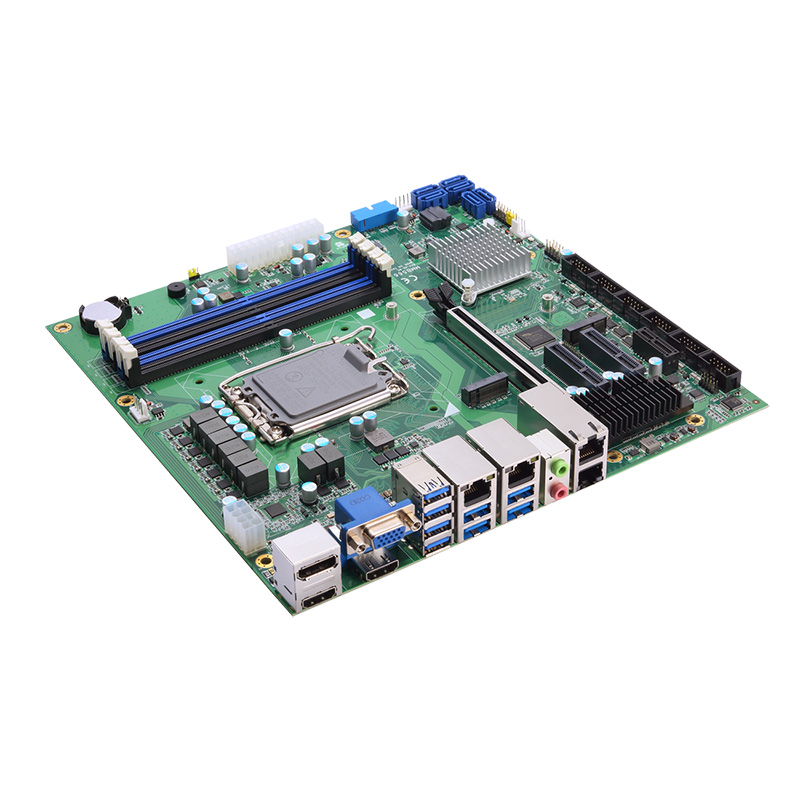

The MMB566 supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processors with the Intel® Q670E, R680E, or H610E chipsets, providing high processing power for industrial and commercial workloads.

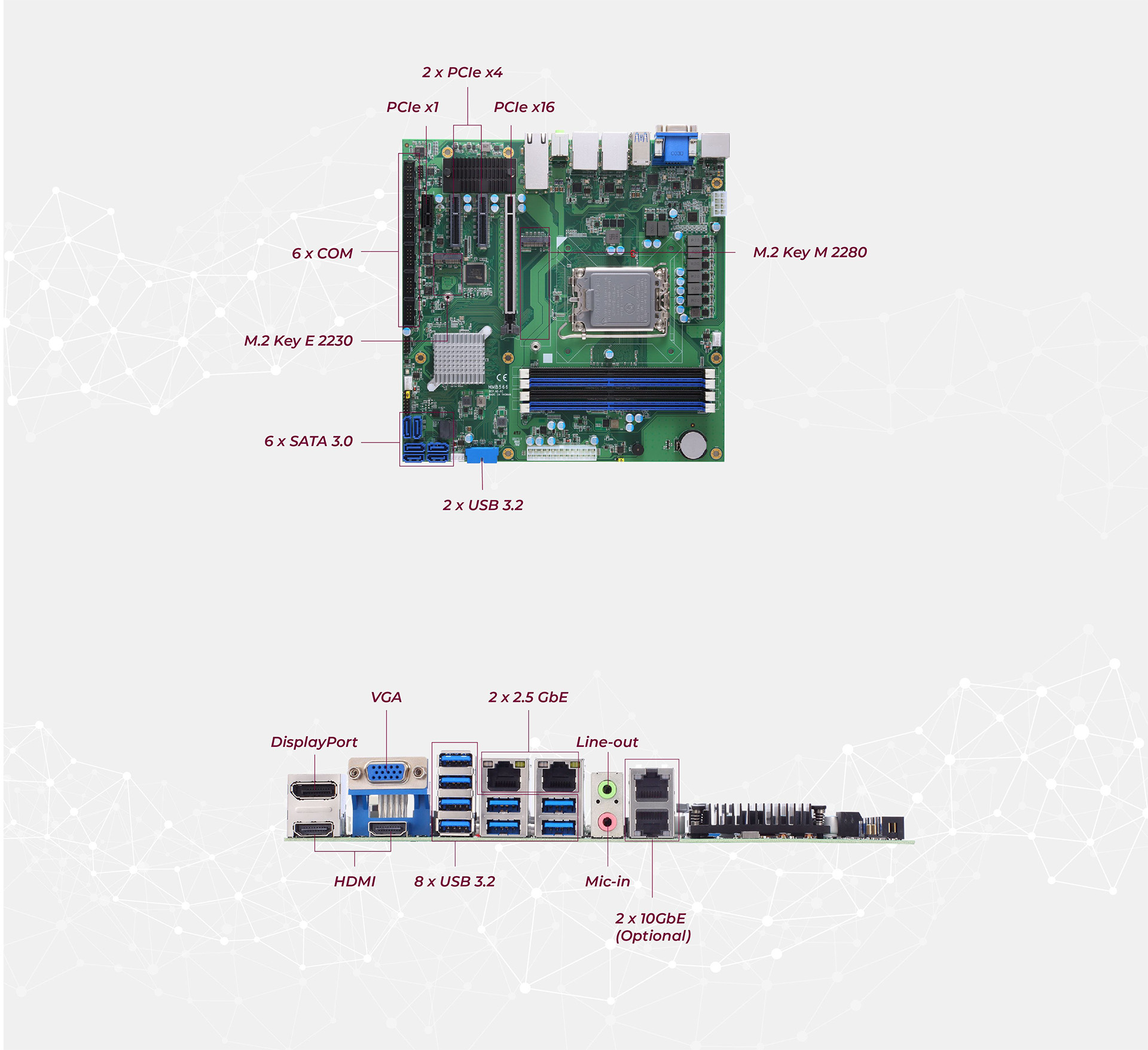

The MMB566 provides two 2.5GbE LAN ports, optional dual 10GbE LAN, up to six SATA 3.0 ports, twelve USB ports, six COM ports, and 8-channel programmable digital I/O. Expansion options include one PCIe x16, two PCIe x4, one PCIe x1, one M.2 Key E 2230, and one M.2 Key M 2280 for NVMe storage. The PCIe x4 slots and M.2 Key M interface are not supported by the H610E SKU, which supports up to four SATA ports.

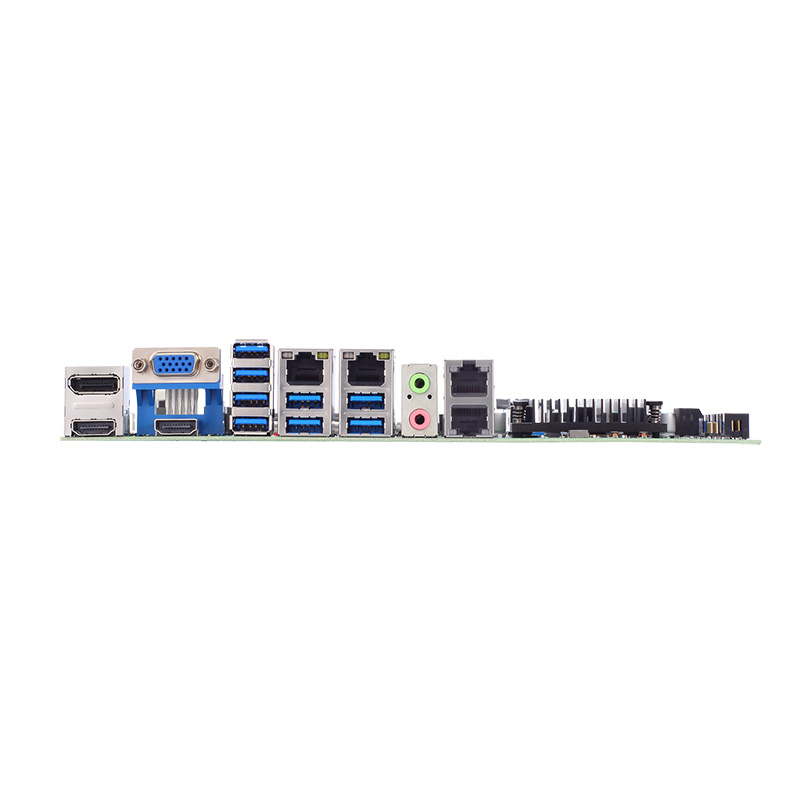

The MMB566 integrates Intel® UHD Graphics 700 series, supporting quad-display output via DisplayPort++, dual HDMI, and VGA, enabling multi-monitor setups for industrial monitoring and commercial applications.
It operates in a 0°C to +60°C temperature range and features hardware monitoring for CPU/system temperature, voltage, and fan speed, along with TPM 2.0 with Intel® PTT support. The 24+8-pin ATX power connector with AT Mode Auto Power ensures stable, efficient power delivery for continuous operation.
The MMB566 is guaranteed for a 10-year supply, ensuring long-term availability for embedded systems. Its robust industrial design, high reliability, and comprehensive connectivity make it ideal for future-proof industrial and commercial deployments.
With rich connectivity, multi-display support, extensive expansion slots, RAID storage options, and programmable digital I/O, the MMB566 can be tailored for automation systems, data analysis, ATMs, and complex embedded projects, delivering optimized performance and flexibility.
