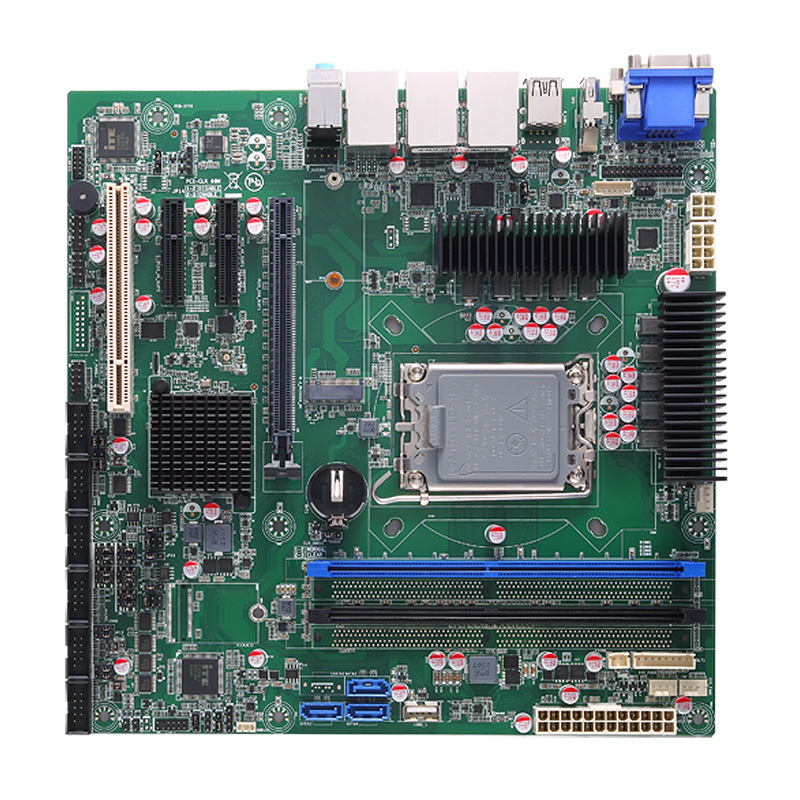

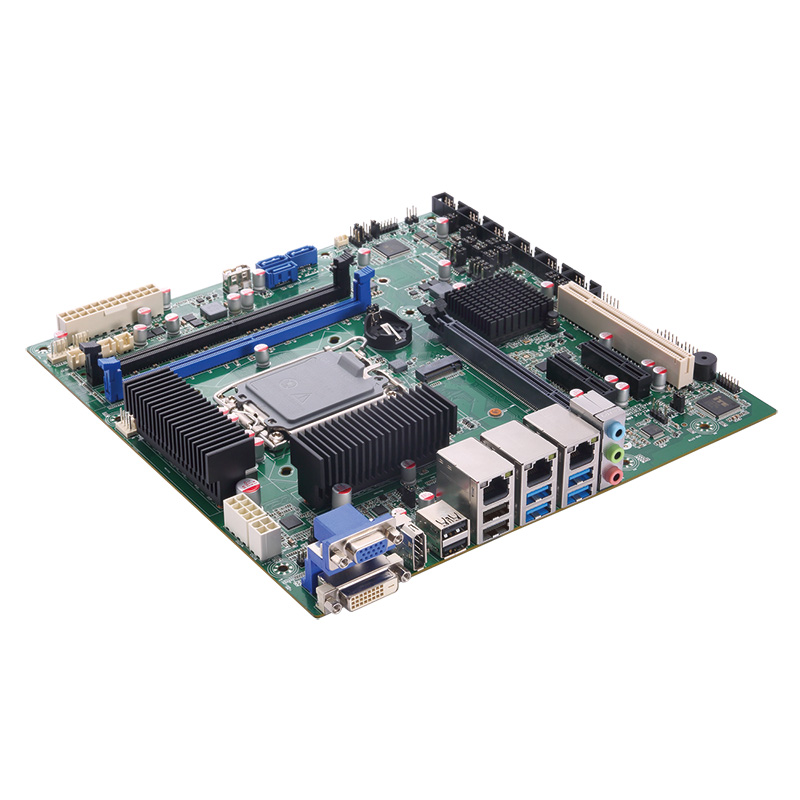

The MMB541 is a high-performance Micro ATX motherboard designed for enterprise and industrial applications, delivering reliable computational power, advanced connectivity, and scalability for demanding workloads. It is ideal for AI workstations, factory automation, motion control, vision processing, and other data-intensive industrial environments.
The motherboard supports LGA1700 socket 14th, 13th, and 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors from Intel Corporation with up to 125W TDP, providing scalable performance for diverse industrial and AI tasks.
The MMB541 is built on the Intel® H610 chipset from Intel Corporation, ensuring stable operation, compatibility with high-performance CPUs, and robust support for connectivity and expansion options.
It has dual 288-pin DDR4-3200 non-ECC Long-DIMM slots, supporting up to 64GB of system memory for high-speed data processing and multitasking in AI and industrial workloads.
The motherboard includes an M.2 Key M 2280/2242 slot for SATA SSDs, providing flexible storage expansion and support for high-speed data-intensive applications.

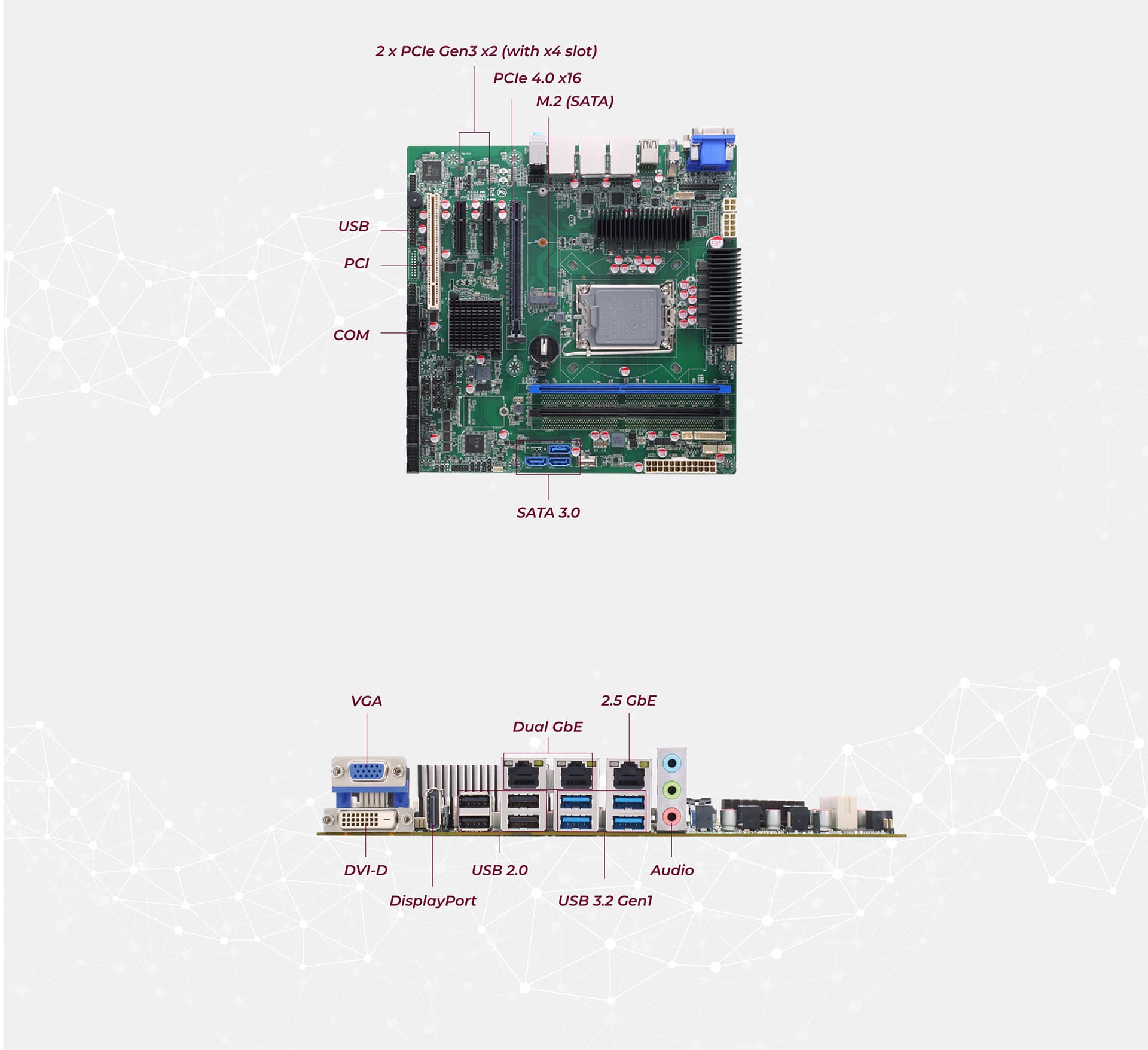

It features one PCIe Gen4 x16 slot, two PCIe Gen3 x2 slots from the PCH, and one 32-bit PCI slot, enabling integration of GPU and AI accelerator cards, vision-processing modules, motion control devices, and other add-on I/O cards.
The MMB541 provides triple-display output options through DisplayPort, VGA, and DVI-D, making it suitable for multi-screen industrial automation and AI environments.

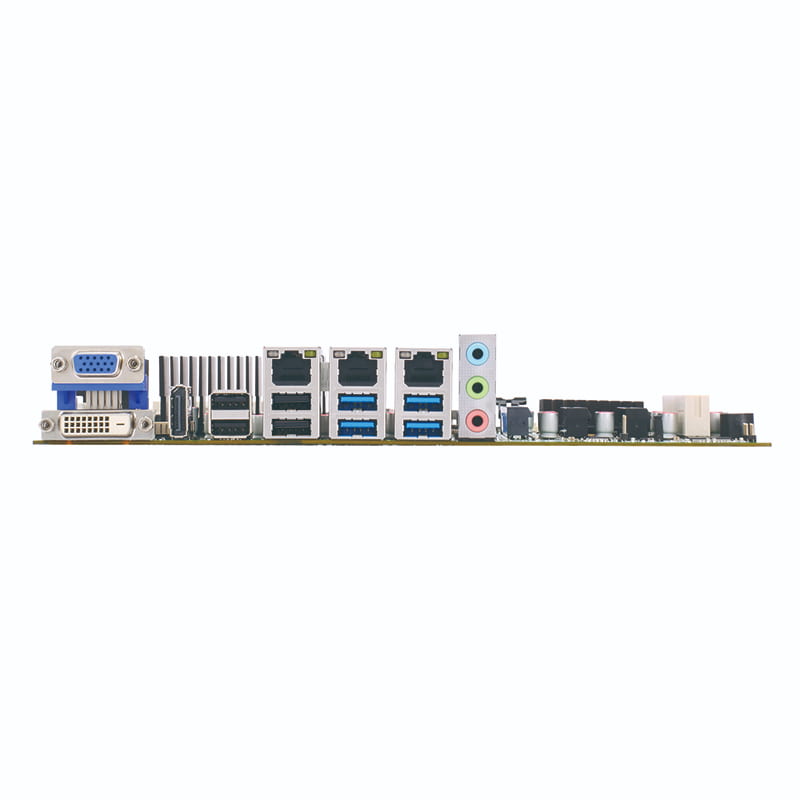

It supports four USB 3.2 Gen1 ports, nine USB 2.0 ports, four RS-232 ports, one RS-232/422/485 port, one RS-232/485 port, one 2.5GbE LAN port, and two 1GbE LAN ports, offering versatile connectivity for a wide range of devices and peripherals.
