IMB760

產品階段 : 供應中

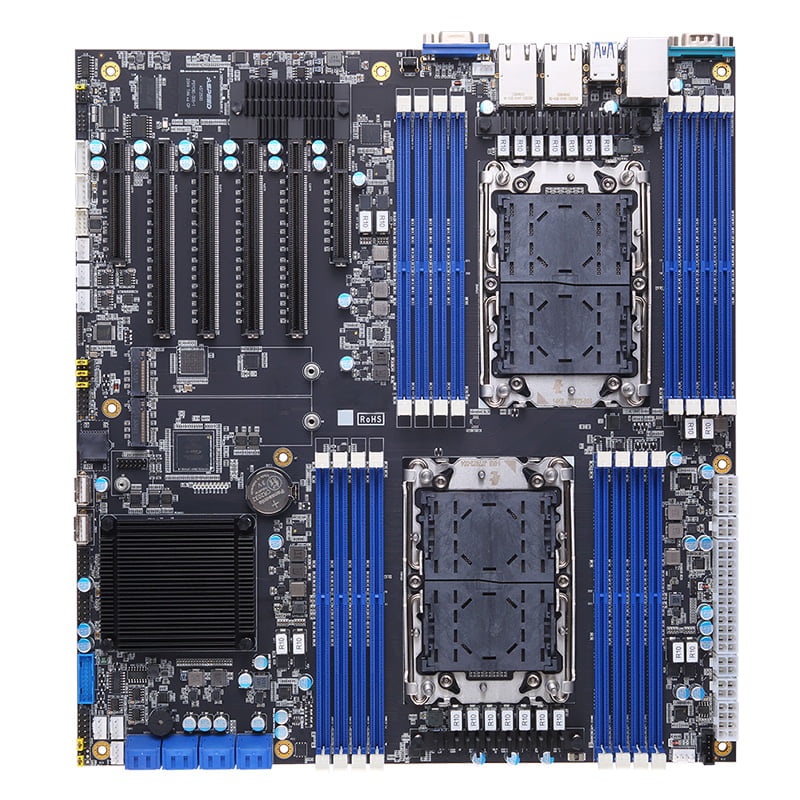

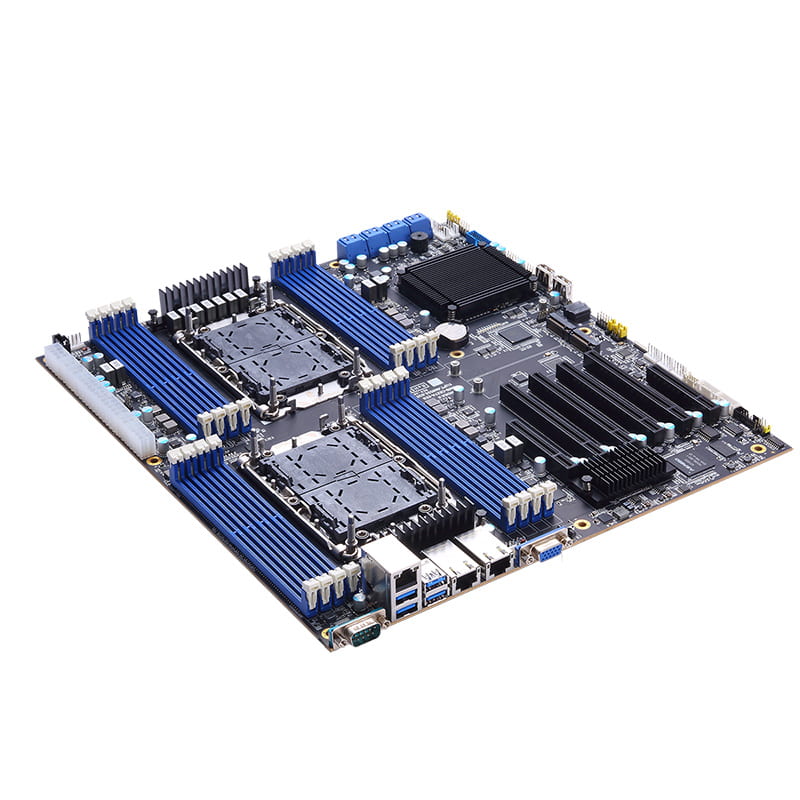

EATX Motherboard with Dual LGA4189 Socket 3rd Gen Intel® Xeon® Scalable Processors, Intel® C621A/C627A, 4 PCIe x16, 2 PCIe x8, VGA, NVMe, and IPMI

產品規格表 (PDF)
產品規格表 (PDF)
立即詢價
立即詢價
IMB760
IMB760
10G LAN

10G LAN

IPMI

IPMI

PCIe Expansion

PCIe Expansion

RAID

RAID

TPM

TPM

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Dual 3rd gen Intel® Xeon® Scalable processors (Ice Lake-SP)
  • 16 288-pin DDR4-3200 RDIMM for up to 1TB of memory
  • 4 PCIe x16 and 2 PCIe x8
  • Supports 2 M.2 Key M slots for NVMe with RAID 0 & 1
  • Supports TPM 2.0 module (optional)
  • Two 10GbE ports
  • IPMI (optional)

產品規格

CPU
  • 3rd gen Intel® Xeon® Scalable processors (TDP up to 270W)
Chipset
  • Intel® C621A
  • Intel® C627A (by project)
System Memory
  • 16 x 288-pin DDR4-3200 RDIMM un-bufferrd memory, up to 1TB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (rear I/O)
Ethernet
  • 1 x IPMI LAN via Intel® I210-AT (shared with BMC AST2500)
  • 2 x 10 GbE Ethernet (Intel® X550-AT2)
USB
  • 4 x USB 3.2 Gen1 (rear I/O)
  • 2 x USB 3.2 Gen1 (internal box header)
  • 4 x USB 2.0 (internal box header)
  • 2 x USB 2.0 (180D TypeA)
Display
  • 1 x VGA
Digital I/O
  • 8-channel programmable
Audio
  • N/A
Storage
  • 8 x SATA-600 with RAID 0/1/5/10
  • 2 x M.2 Key M 2280 slot (PCIe x4/SATA signal) for NVMe SSD with RAID 0, 1 supported
Expansion
  • Slot2: PCIe x8 (Gen4)
  • Slot3: PCIe x16 (Gen4)
  • Slot4: PCIe x16 (Gen4)
  • Slot5: PCIe x16 (Gen4)
  • Slot6: PCIe x16 (Gen4)
  • Slot7: PCIe x8 (Gen4)
Others
  • 1 x PS/2 keyboard (internal box header)
  • 8 x 4-pin fan header (2 for the CPU & 6 for the system)
  • ASPEED AST2500 BMC (optional)
Battery
  • TBD
TPM
  • TPM 2.0 module (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 10°C to +35°C (+50°F to +95°F) (depends on cooler solution)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 305 x 330 mm
Board Thickness
  • 2.4 mm
Certifications
  • CE

訂購資訊

  • IMB760-C621A-IP SP (P/N-E38F760107)
    EATX Motherboard with dual LGA4189 socket Intel® Xeon® Scalable processors, Intel® C621A, 4 PCIe x16, 2 PCIe x8, VGA, NVMe, and IPMI
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 5948C122800E
    2 x USB 3.1 Gen1 cable with bracket, L=400 mm
  • 594G5208010E
    SATA3 cable 180D w/ B.sleeve, L=50 cm
  • 713WFB30000E
    IMB700_CL_LGA4189_4U_CPU up to 270W
  • 713JYC1M000E
    IMB700_CL_LGA4189_2U_CPU up to 205W
