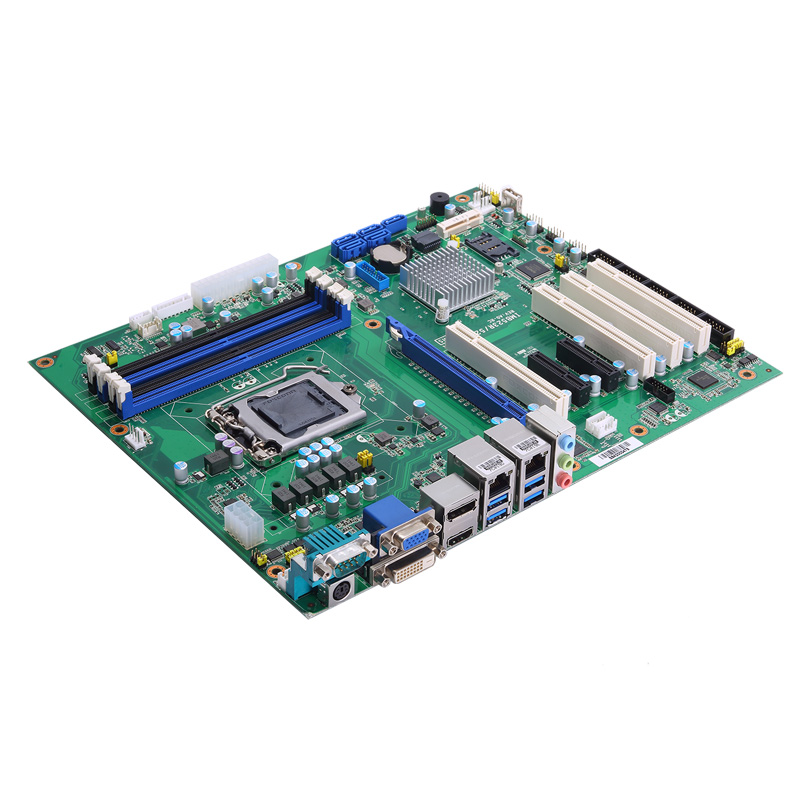

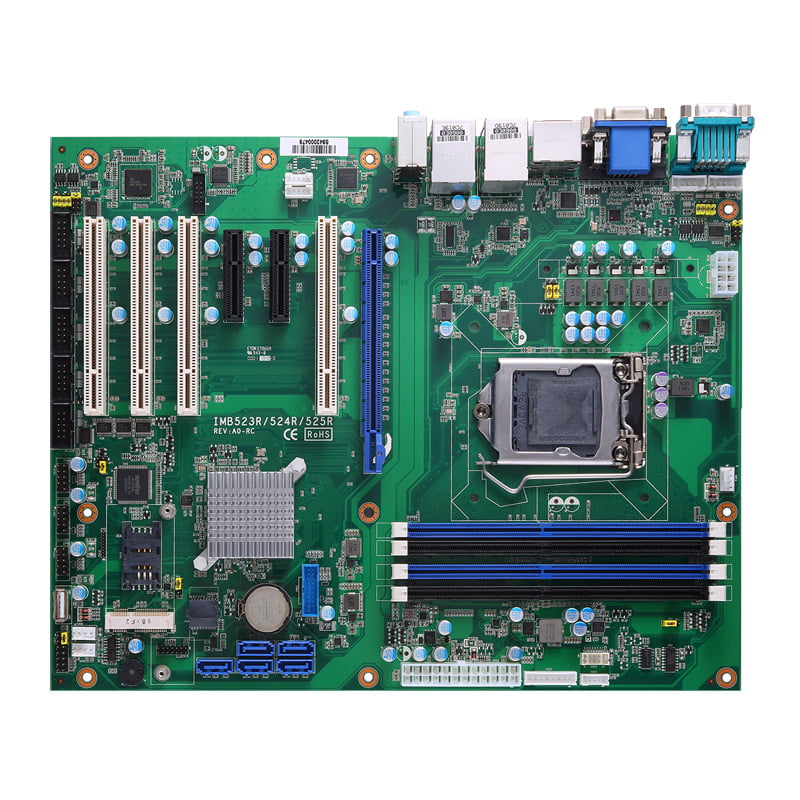

IMB525R

產品階段 : 供應中

ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™, Xeon® E Processor, Intel® C246, USB 3.2 Gen1/ Gen2, SATA 3.0, PCI Express Mini Card Slot, VGA, DisplayPort++, DVI-D, and HDMI

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
IMB525R
IMB525R
PCIe Expansion

PCIe Expansion

RAID

RAID

TPM

TPM

Triple-View

Triple-View

USB 3.2

USB 3.2

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (Coffee Lake Refresh)
  • Four 288-pin DDR4-2666/2400 ECC DIMM for up to 128GB of memory
  • DisplayPort, DVI-D, HDMI and VGA with triple-view supported
  • 5 SATA-600 with RAID 0/1/5/10
  • 1 PCI Express Mini Card slot
  • 2 USB 3.2 Gen2 and four USB 3.2 Gen1
  • TPM 2.0 supported (optional)

產品規格

CPU
  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (up to 95W)
Chipset
  • Intel® C246
System Memory
  • 4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 128GB (Intel® Core™ i7/i5 only support non-ECC)
BIOS
  • AMI
COM
  • 4 x RS-232 (Internal box header)
  • 2 x RS-232/422/485 (1 rear I/O; 1 internal box header)
USB
  • 2 x USB 3.2 Gen 2x1 (10Gbps) (rear I/O)
  • 4 x USB 3.2 Gen 2x1 (5Gbps) (rear I/O, internal box header)
  • 7 x USB 2.0 (pin header, 180D type A)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I219-LM, AMT)
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x DisplayPort++
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888
Storage
  • 5 x SATA-600 with RAID 0/1/5/10
Expansion
  • 1 x PCIe x16 slot
  • 2 x PCIe x4 slot
  • 4 x PCI slot
  • 1 x PCIe Mini Card slot with PCIe x1, USB 2.0 & SATA
Others
  • 1 x PS/2 keyboard and mouse
  • SMBus
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • TPM 2.0 (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

訂購資訊

  • IMB525RVDHGGA-C246 (P/N-E38F525104)
    ATX motherboard with LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor, Intel® C246, USB 3.2 Gen2, SATA 3.0, 2 GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen 1x1 cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=450 mm
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 5076E510000E
    CPU heatsink for 1U chassis (AX61135TM)
  • 50761222000E
    CPU cooler for 2U, 4U, and wall mount chassis

技術文件

Drivers

日期 說明 版本 下載檔案
2023/11/20 4. Intel LAN Driver VA1.3
2023/11/20 5. Intel ME Driver VA1.3
2023/11/20 6. Intel RST Driver VA1.3
2023/11/20 2. Intel Graphic Driver VA1.3
2023/11/20 3. Realtek Audio Driver VA1.3
2023/11/20 1. Intel Chipset Driver VA1.3

Software

Manual

日期 說明 版本 下載檔案
2020/07/21 User Manual VA2

Design Guide

Technical Announcement

Certificates
