CAPA332

產品階段 : 供應中

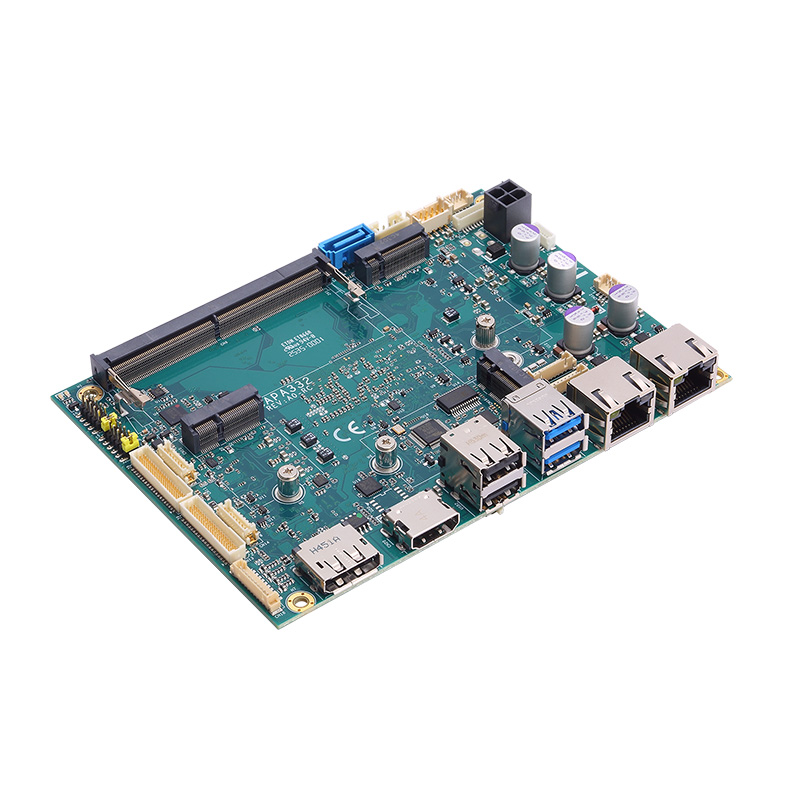

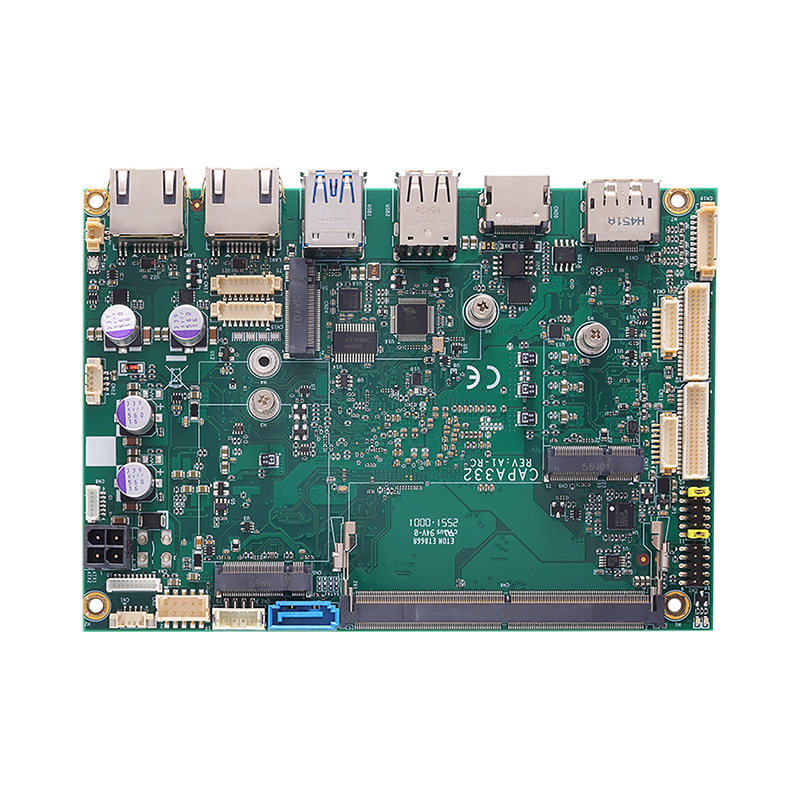

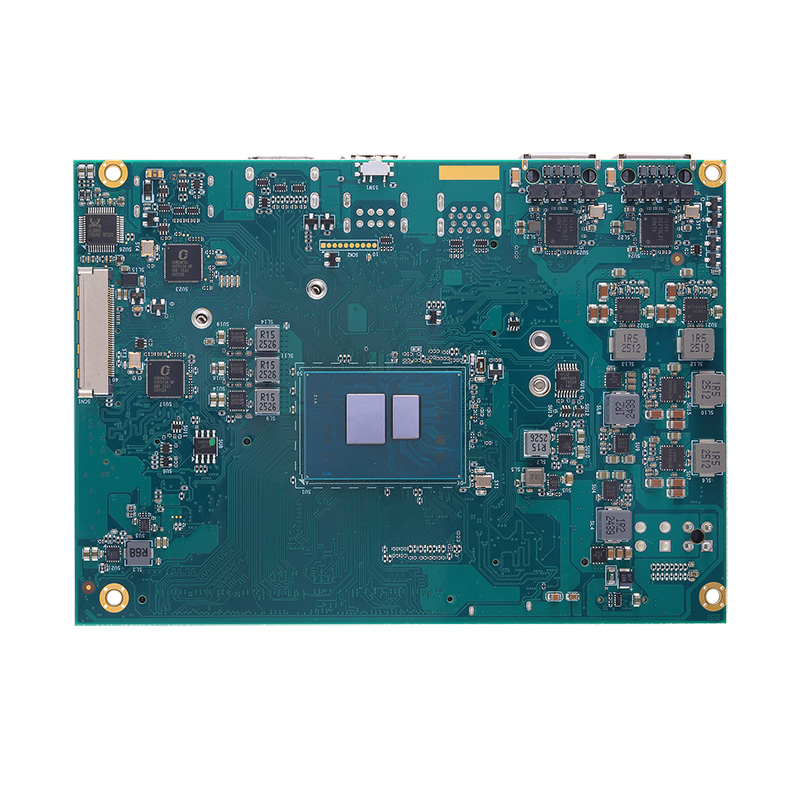

3.5" Embedded SBC with Intel® Processor N97/N150, HDMI, DisplayPort, LVDS, Two 2.5GbE, and Audio

2.5G LAN

CPU	Intel® processor N97/N150
Chipset	SoC integrated
System Memory	1 x 260-pin DDR5-4800 SO-DIMM, up to 32GB
BIOS	AMI
COM	1 x RS-232 1 x RS-232/422/485
USB	2 x USB 3.2 4 x USB 2.0
Ethernet	2 x 2.5GbE with Intel® I226-V
Display	1 x HDMI 1.4 1 x LVDS 1 x DisplayPort 1 x eDP (optional) 1 x LVDS (optional)
Digital I/O	8-channel in/out programmed
Audio	1 x Mic-in/Line-in/Line-out
Storage	1 x SATA 3.0 1 x M.2 Key M 2242 (PCIe x2)
Expansion	1 x M.2 Key E 2230 (PCIe x1/USB 2.0) 1 x M.2 Key B 3042/3052 (USB 3.2 Gen 2/USB 2.0) 1 x SIM connector via pin header
Others	TPM 2.0 onboard
Battery	Lithium 3V/220mAH
Power Input	2 x 2-pin connector 12V and 19–24V DC-in (12V-only optional) AT Auto Power On function supported
Power Requirements	N97: 23.56W
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	Passive: -20°C to +70°C (+32°F to +158°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE
Industrial Chassis	N/A

CAPA332-N97-L (P/N-E38E332100)
3.5" SBC with Intel® processor N97 (2.0 to 3.6 GHz, 6MB cache, 12W), HDMI, DisplayPort, LVDS, 2.5GbE, audio, and heatsink
CAPA332-N150-L (P/N-E38E332101)
3.5" SBC with Intel® processor N150 (1.0 to 3.6 GHz, 6MB cache, 6W), HDMI, DisplayPort, LVDS, 2.5GbE, audio, and heatsink
AX93A19 (P/N-E393A19100)
SIM card slot board
594E8422800E
2 USB 2.0 wafer cables with bracket, 180 mm
59380880250E
COM port cable DB-9 x 1P, P=1.25 mm, L=250 mm
594H3186800E
Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm
