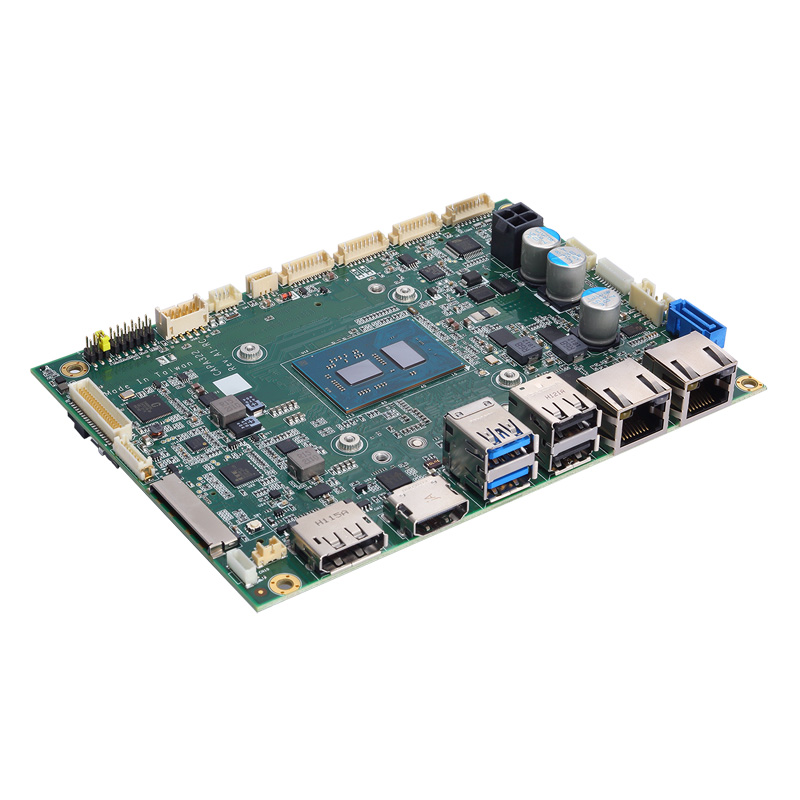

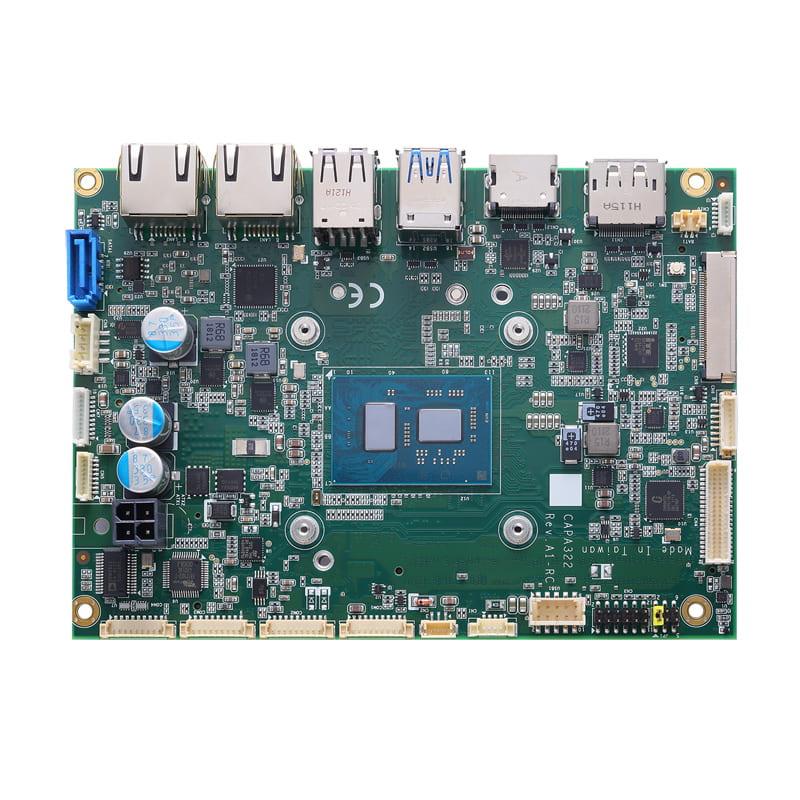

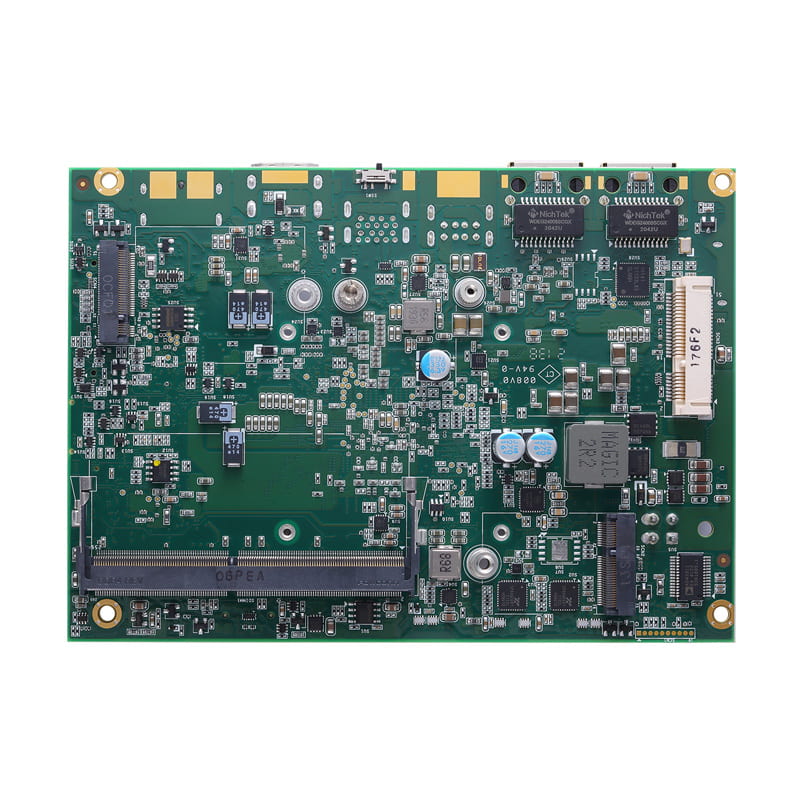

CAPA322

產品階段 : 供應中

3.5" Embedded SBC with Intel® Celeron® Processor N6210/J6412 or Intel Atom® x6413E Processor, HDMI, LVDS, DisplayPort, Optional eDP, and Dual 2.5GbE LAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
CAPA322
CAPA322
CAPA322
Fanless

Fanless

Low Power

Low Power

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Intel® Celeron® processor N6210/J6412 or Intel Atom® x6413E processor
  • 1 DDR4 SO-DIMM for up to 32GB
  • 4 USB 2.0 and 2 USB 3.2 Gen2
  • 1 PCI Express Mini Card or mSATA
  • 1 M.2 Key E and 1 M.2 Key B

產品規格

CPU
  • Intel® Celeron® processor N6210/J6412 or Intel Atom® x6413E processor onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 2 x RS-232
USB
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2
Ethernet
  • 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-V)
Display
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x LVDS
  • 1 x eDP (optional)
Digital I/O
  • 8-channel in/out programmed
Audio
  • HD Audio link via pin header
Storage
  • 1 x SATA-600
  • 1 x mSATA (refer to ordering information, A SKU)
  • 1 x M.2 Key B 2242 (PCIe x 2, USB 2.0) (refer to ordering information, B SKU)
Expansion
  • 1 x Full-size PCI Express Mini Card (refer to ordering information, B SKU)
  • 1 x M.2 Key E 2230 (PCIe x 1, USB 2.0)
  • 1 x M.2 Key B 3042/3050 (PCIe x 1, USB 3.2 Gen1, USB 2.0) (refer to ordering information, A SKU)
Others
  • TPM 2.0
  • SMBus (compatible with I2C)
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V to 24V DC-in
  • AT Auto Power On function supported
Power Requirements
  • N/A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +70°C (-4°F to 158°F) for Intel® Celeron® processor
  • -40°C to +80°C (-40°F to 176°F) for Intel Atom® x6413E processor
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

訂購資訊

  • CAPA322-J6412-A (P/N-E38E322101)
    3.5" Embedded SBC with Intel® Celeron® processor J6412 (2.0-2.6 GHz, 10W), HDMI/LVDS/DisplayPort, 2.5GbE LAN, mSATA and heatsink
  • CAPA322-N6210-A (P/N-E38E322100)
    3.5" Embedded SBC with Intel® Celeron® processor N6210 (1.2-2.6 GHz, 6.5W), HDMI/LVDS/DisplayPort, 2.5GbE LAN, mSATA and heatsink
  • CAPA322-x6413E-A (P/N-E38E322102)
    3.5" Embedded SBC with Intel Atom® x6413E processor (1.5-3.0 GHz, 9W), HDMI/LVDS/DisplayPort, 2.5GbE LAN, mSATA and heatsink
  • CAPA322-N6210-B (P/N-E38E322103)
    3.5" Embedded SBC with Intel® Celeron® processor N6210 (1.2-2.6 GHz, 6.5W), HDMI/LVDS/DisplayPort, 2.5GbE LAN, NvMe M.2 Key B, and heatsink
  • CAPA322-J6412-B (P/N-E38E322104)
    3.5" Embedded SBC with Intel® Celeron® processor J6412 (2.0-2.6 GHz, 10W), HDMI/LVDS/DisplayPort, 2.5GbE LAN, NvMe M.2 Key B, and heatsink
  • CAPA322-x6413E-B (P/N-E38E322105)
    3.5" Embedded SBC with Intel Atom® x6413E processor (1.5-3.0 GHz, 9W), HDMI/LVDS/DisplayPort, 2.5GbE LAN, NvMe M.2 Key B, and heatsink
  • AX93A19 (P/N-E393A19100)
    SIM card slot board
  • AX93A22 (P/N-E393A22100)
    HD codec audio board for Mic-in/Line-in/Line-out
  • 594E8422800E
    2 USB 2.0 wafer cables w/bracket, 180 mm
  • 59380880250E
    COM port cable DB-9 x 1P, P=1.25 mm, L=250 mm
  • 594H3186800E
    Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm

技術文件

Drivers

日期 說明 版本 下載檔案
2025/07/22 ME Driver VA1.2
2025/07/22 LAN Driver VA1.2
2025/07/22 Serial IO Driver VA1.2
2025/07/22 Graphic Driver VA1.2
2025/07/22 Chipset Driver VA1.2

Software

Manual

日期 說明 版本 下載檔案
2025/07/24 User Manual VA4

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2024/01/18 UKCA Declaration of Conformity
2024/01/18 CE-Conformity Declaration
