CAPA310

產品階段 : 供應中

3.5” Embedded SBC with Intel Atom® x5-E3940 Processor, LVDS, HDMI, 2 GbE LAN and Audio

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

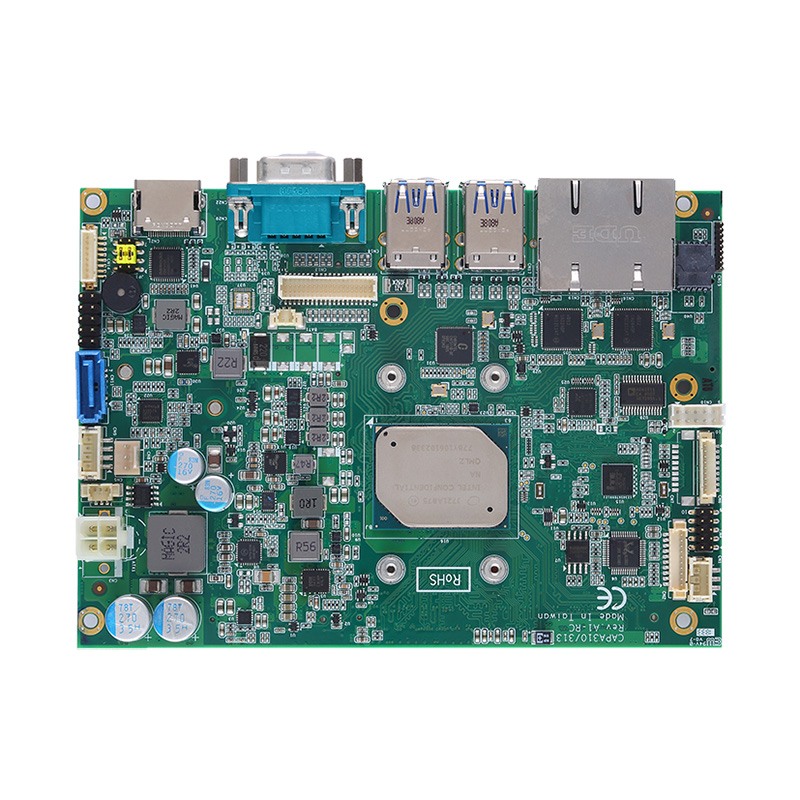

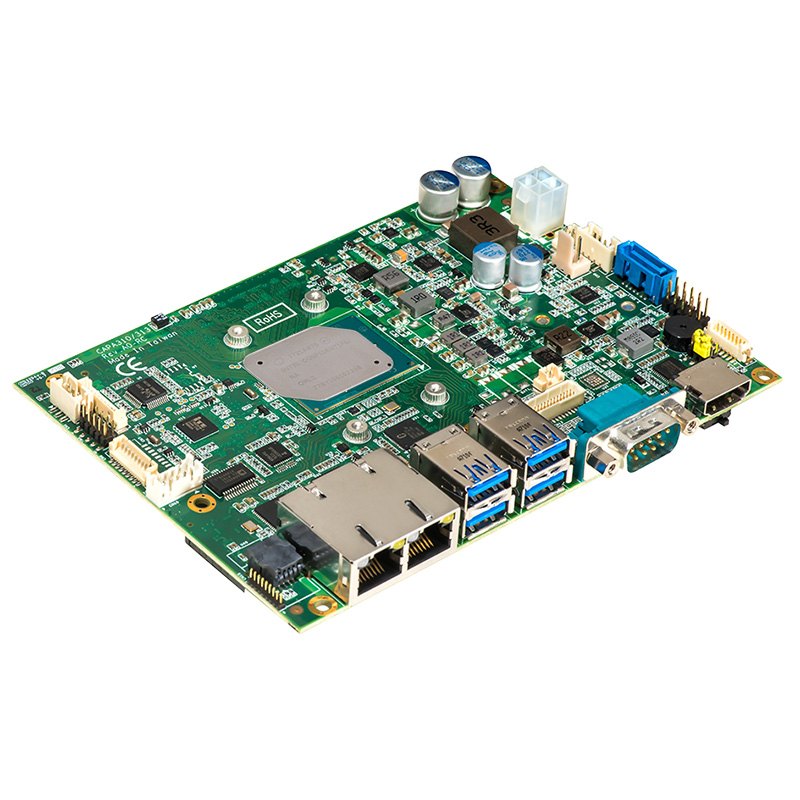

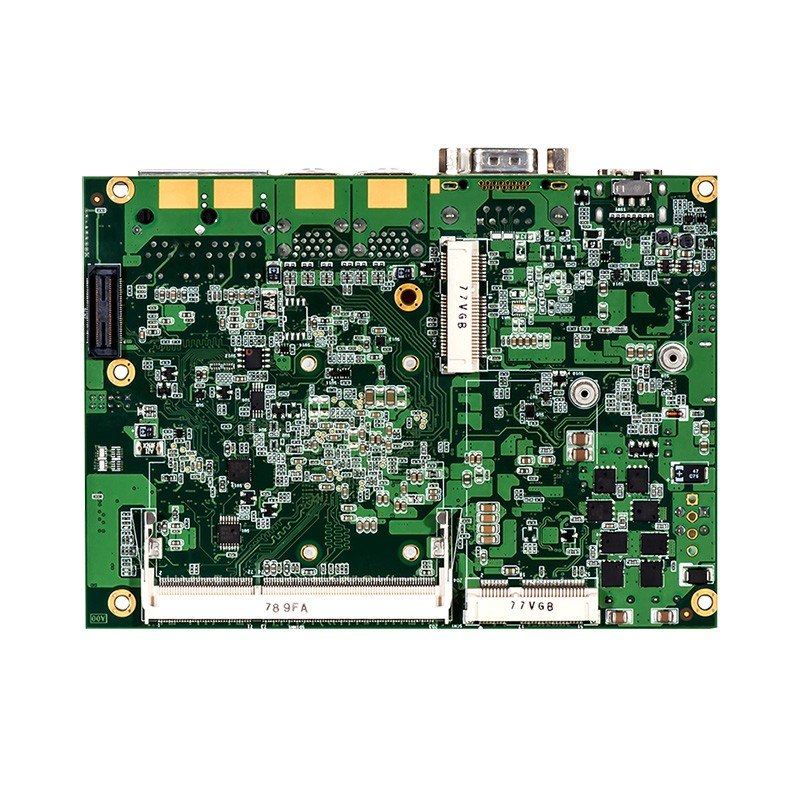

CAPA310
CAPA310
CAPA310
Fanless

Fanless

Low Power

Low Power

TPM

TPM

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Intel® Atom® x5-E3940 processor
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 2 USB 2.0 and 4 USB 3.0
  • 1 PCI Express Mini Card slot

產品規格

CPU
  • Intel® Atom® x5-E3940 processor onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT);
Display
  • 1 x HDMI
  • 1 x LVDS
  • 1 x VGA (optional)
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line out
Storage
  • 1 x mSATA
  • 1 x SATA-600
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x USB, 1x PCIe x1, 1x LPC, 1 x SMBus through a ZIO connector
Others
  • ST ST33HTPH2X32AHD8 with TPM 2.0 compliant (optional)
  • 1 x I2C
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2 pin connector
  • +12V to 24 VDC-in
  • AT Auto Power On function supported
Power Requirements
  • Intel® Atom® x5-E3940 @1.6GHz 8GB DDR3L
  • Max. RMS: +24V @0.8A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +80°C (-40°F to 185°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

訂購資訊

  • CAPA310HGGA-E3940-ZIO (P/N-E38E310100)
    3.5” embedded SBC with Intel Atom® x5-E3940 processor (1.6 to 1.8 GHz, 2MB Cache, 9.5W), HDMI, LVDS, 2 GbE LAN, audio, ZIO, and heatsink
  • CAPA310HGGA-E3940-ZIO w/TPM (P/N-E38E310104)
    3.5" embedded SBC with Intel Atom® x5-E3940 processor (1.6 to 1.8 GHz, 2MB Cache, 9.5W), HDMI, LVDS, 2 GbE LAN, audio, TPM2.0, ZIO, and heatsink
  • 59380880250E
    COM port cable DB9-9 x 1-pin, P=1.25 mm, L=250 mm
  • 594E8422800E
    2 x USB 2.0 cable with bracket L=180 mm
  • E393A19100
    AX93A19, SIM card slot board
  • 59312260020E
    Audio cable with bracket, P=1.25 mm, L=450 mm

技術文件

Drivers

日期 說明 版本 下載檔案
2019/08/27 LAN driver VA1.0
2019/08/27 HD Audio driver VA1.0
2019/08/27 Graphic driver VA1.0
2019/08/27 TXE driver VA1.0
2019/08/27 Chipset driver VA1.0

Software

Manual

日期 說明 版本 下載檔案
2025/10/21 User Manual VA5

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/06 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration

您可能也會喜歡

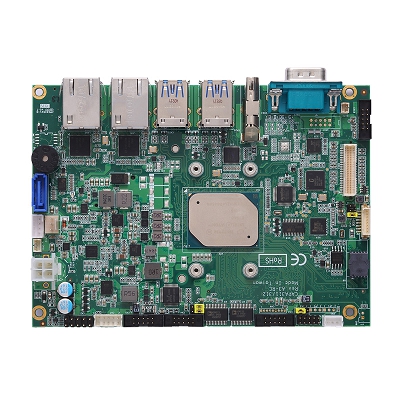

產品圖片 CAPA311

CAPA311

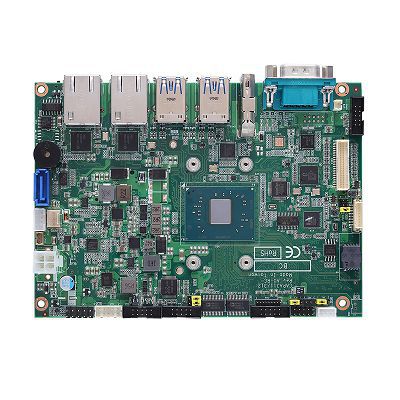

產品圖片 CAPA312

CAPA312

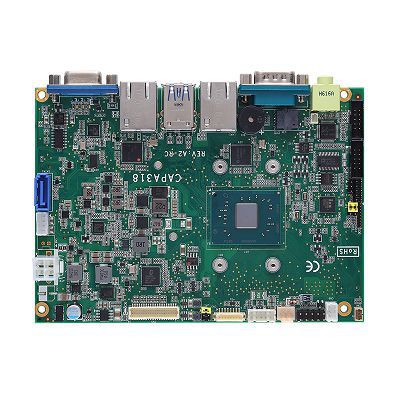

產品圖片 CAPA318
