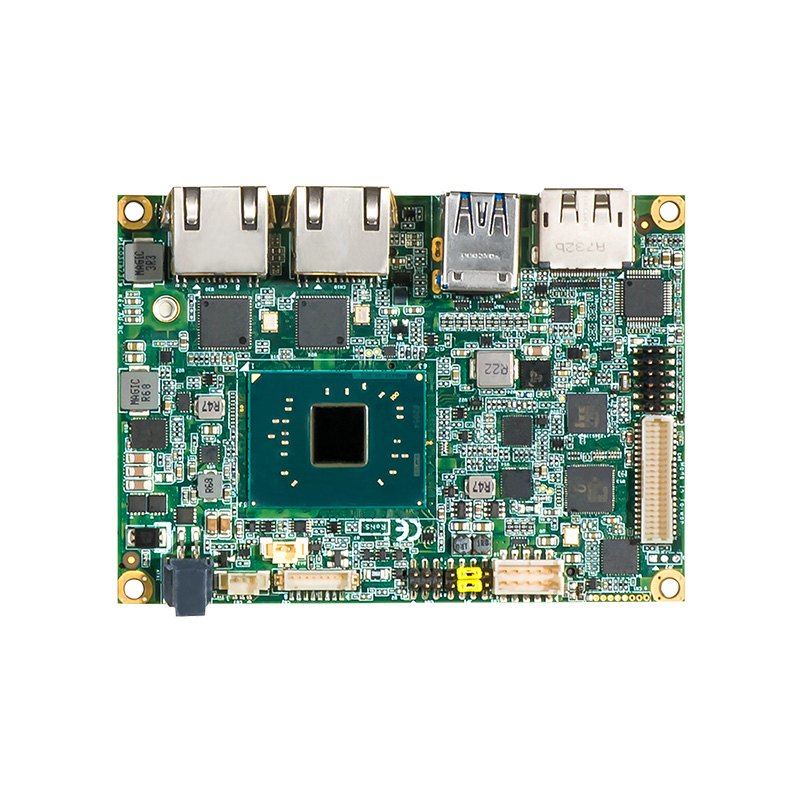

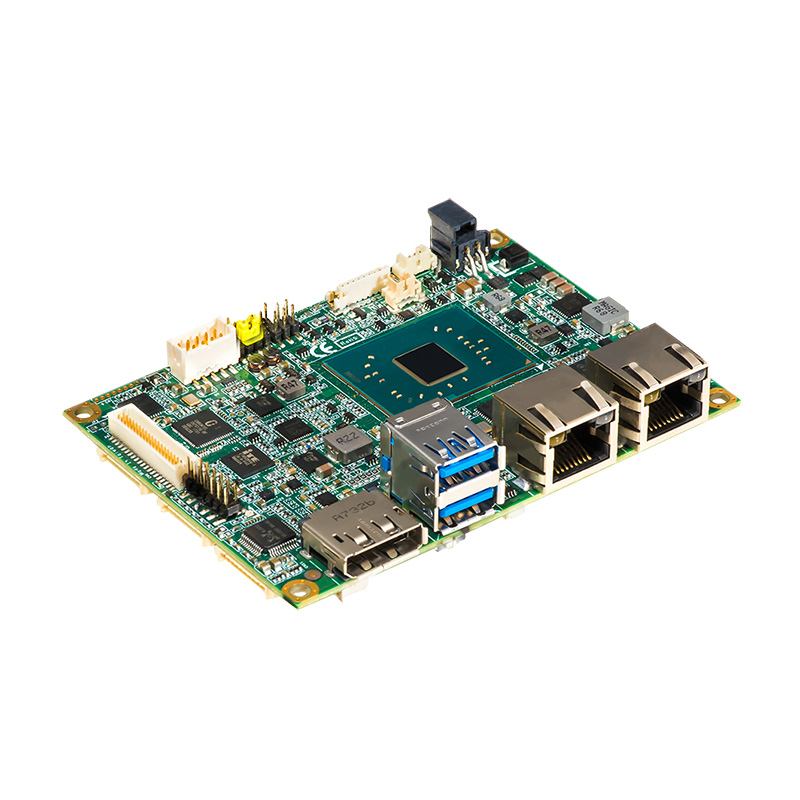

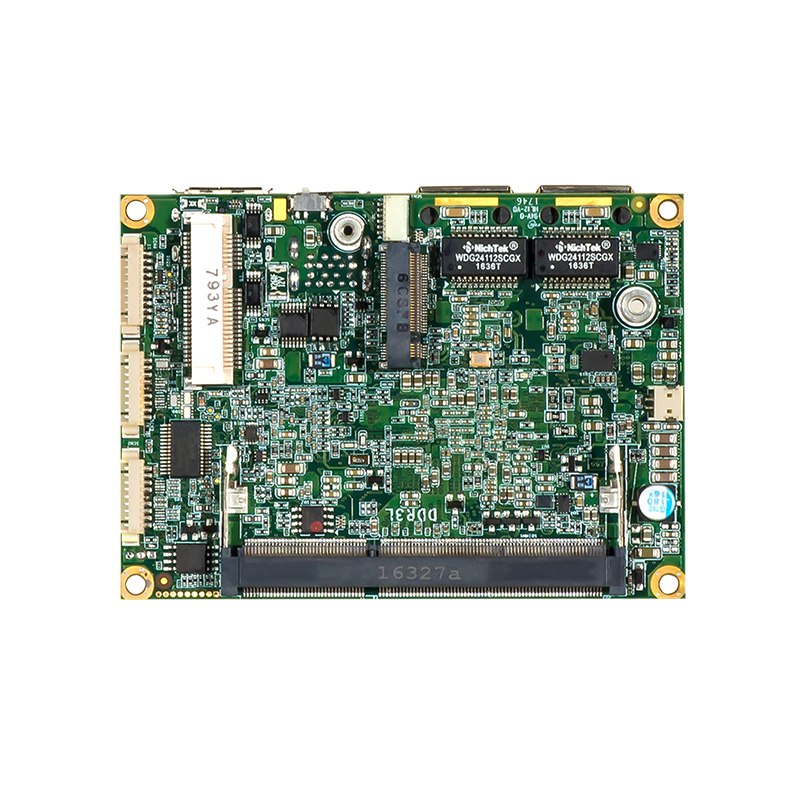

PICO318

產品階段 : 供應中

Pico-ITX SBC with Intel® Pentium® Processor N4200/Celeron® Processor N3350, DisplayPort++, LVDS, 2 GbE LAN, and Audio

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
PICO318
PICO318
PICO318
PICO318
PICO318
Dual-View

Dual-View

Fanless

Fanless

Solid CAP

Solid CAP

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Intel® Pentium® processor N4200/Celeron® processor N3350
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 1 PCI Express Mini Card slot with mSATA supported
  • 2 GbE LAN
  • M.2 Key B

產品規格

CPU
  • Intel® Pentium® processor N4200 or Celeron® processor N3350 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x DisplayPort++
  • 1 x LVDS
Digital I/O
  • 4-channel in/out programmable
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x M.2 KEY B (SATA, USB 2.0, PCIe x2 optional) in 22 x 42 or 30 x 42
Expansion
  • 1 x Half-size PCI Express Mini Card slot with mSATA supported
Others
  • 1 x I2C
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Pentium® N4200 @ 1.1 GHz, min. RMS: +12V @1.3A
  • Celeron® N3350 @ 1.1 GHz, min. RMS: +12V @1.1A
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis

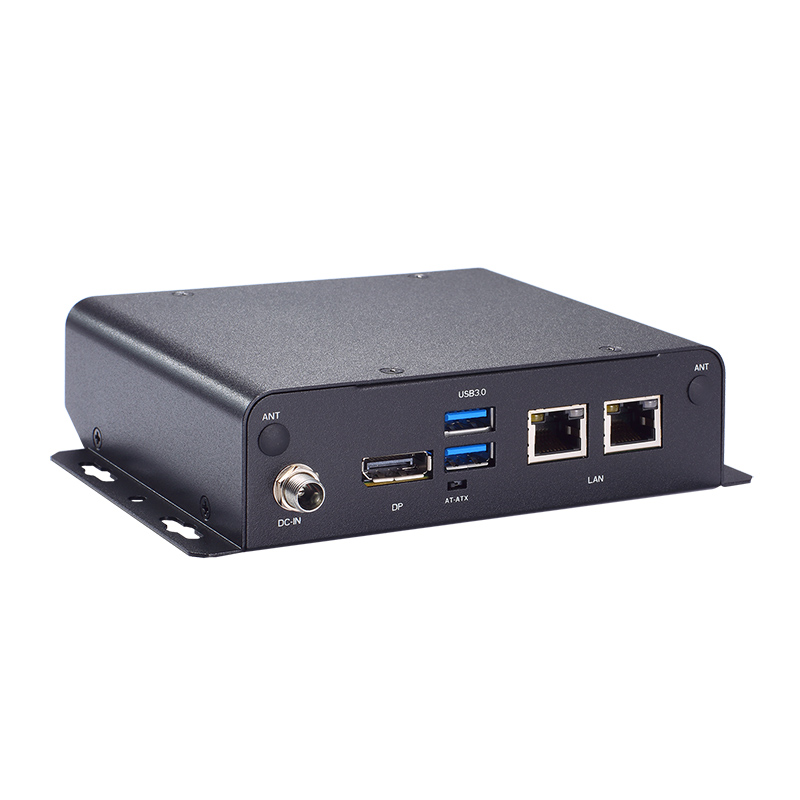

  • APC203 (P/N-E27P203100): Embedded chassis with PICO318PGGA-N3350 (P/N-E38H318102), 8GB RAM, 64GB M.2 Key B card and 12V/60W adapter
  • I/O: 2 x GbE LAN, 2 x USB 3.0, 1 x DisplayPort++, 1 x 12V DC Jack
  • Dimensions (with wall mount ear): 152.5 mm (6") (W) x 107.5 mm (4.23”) (D) x 37.5mm (1.48") (H)
  • Operating Temperature: -10°C to +50°C (+14°F to +122°F)

訂購資訊

  • PICO318PGGA-N4200 (P/N-E38H318101)
    Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 - 2.5 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
  • PICO318PGGA-N3350 (P/N-E38H318100)
    Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 - 2.4 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
  • PICO318PGGA-N3350 60°C (P/N-E38H318102)

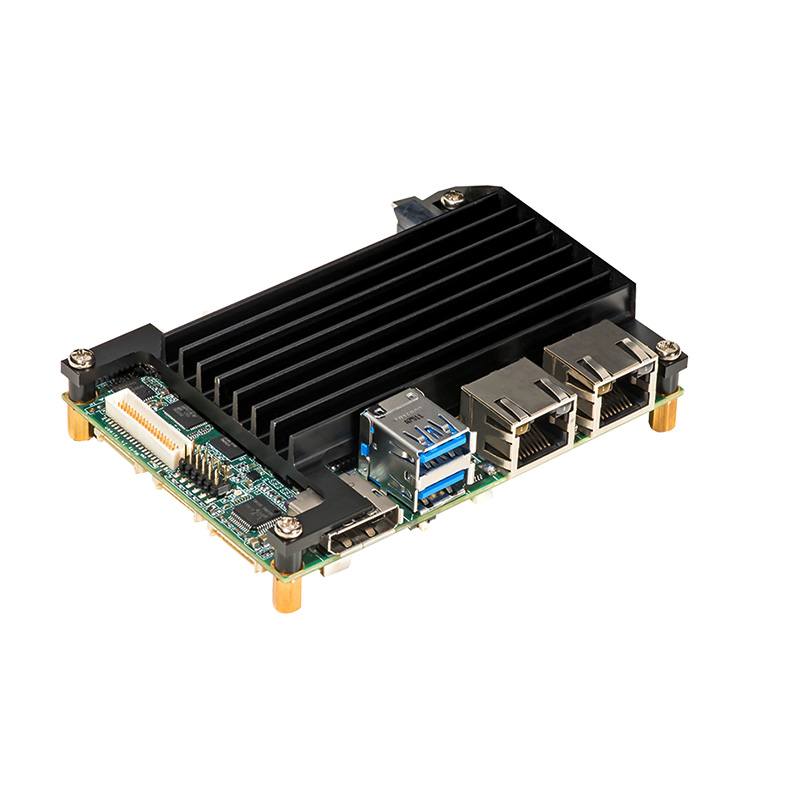

    Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 - 2.4 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and heatsink
  • PICO318PGGA-N4200 60°C (P/N-E38H318103)
    Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 - 2.5 GHz, 2MB cache, 6W), DisplayPort, LVDS, 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and heatsink
  • 7128H318000E
    Heatspreader
  • 590000086600
    DC power cable for adapter, L=180 mm
  • 50966124050E
    Adapter 12V 60W FSP060-DHAN3 with screw
  • 59312260020E
    Audio cable with bracket, P=1.25 mm, L=450 mm
  • 59380880250E
    COM port cable DB9-9 x 1-pin, P=1.25 mm, L=250 mm
  • 594E8422800E
    2 x USB 2.0 cable with bracket, L=180 mm
  • 594H3186800E
    Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm
  • E393A19100
    AX93A19 SIM card slot board

技術文件

Drivers

日期 說明 版本 下載檔案
2023/05/17 SerialPatch VA1.1
2023/05/17 LAN Driver VA1.1
2023/05/17 Audio Driver VA1.1
2023/05/17 Graphic Driver VA1.1
2023/05/17 Chipset Driver VA1.1
2023/05/17 TXE Driver VA1.1

Software

Manual

日期 說明 版本 下載檔案
2023/06/19 User Manual VA6
2018/12/07 Quick Manual VA1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/03 UKCA Declaration of Conformity
2021/04/15 CE-Conformity Declaration

您可能也會喜歡

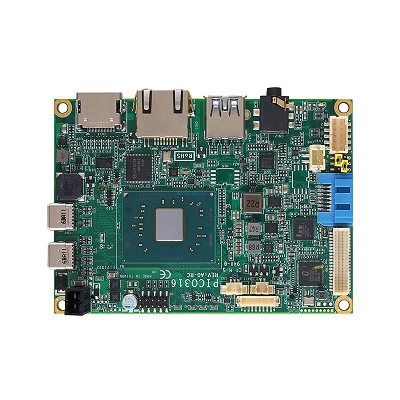

產品圖片 PICO316
