PICO316

產品階段 : 供應中

Pico-ITX SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350/J3455, LVDS, HDMI, GbE LAN and Audio

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

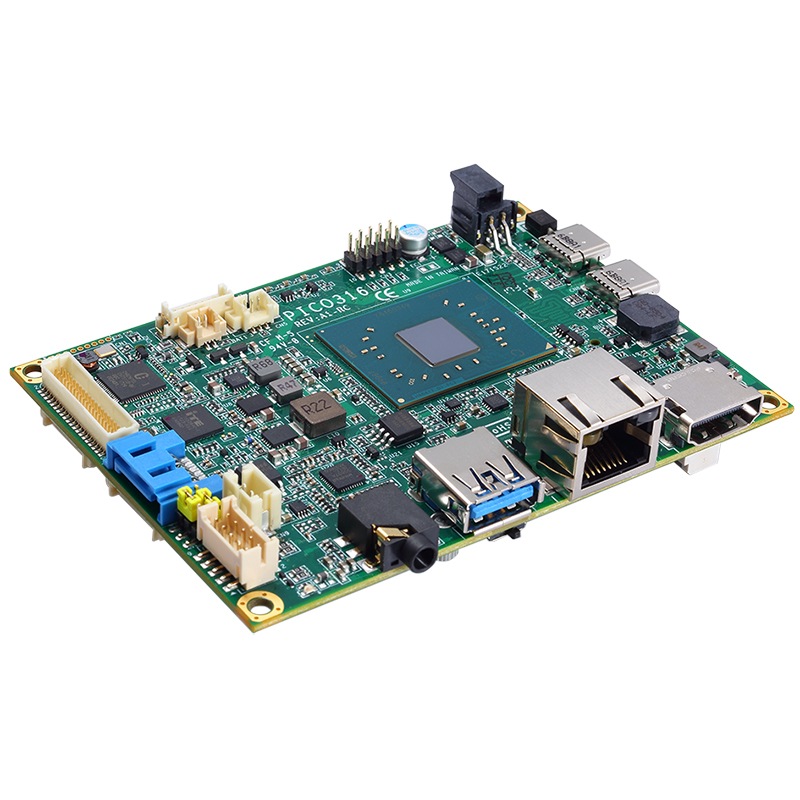

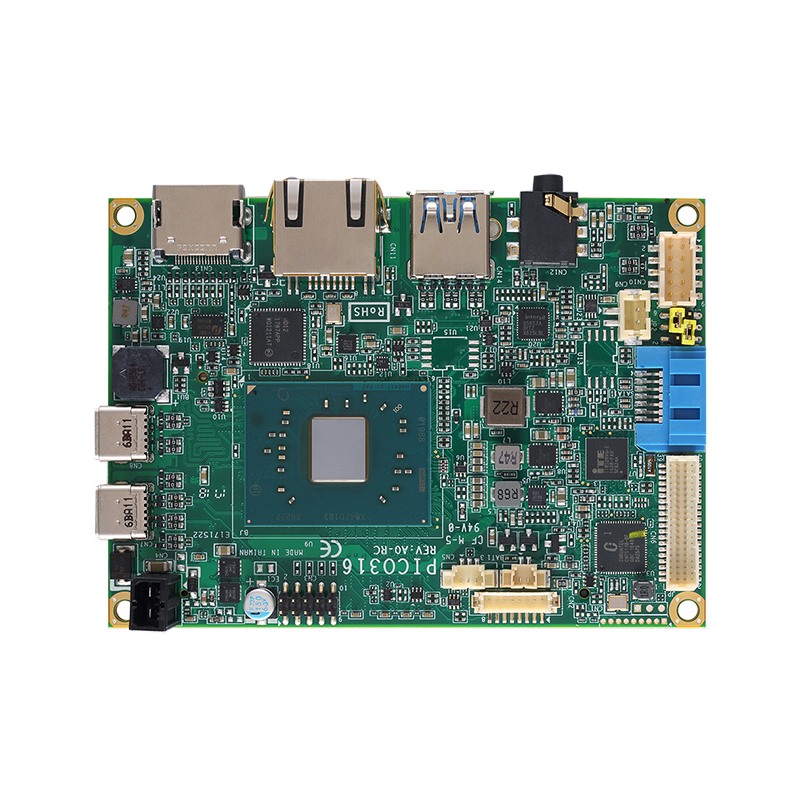

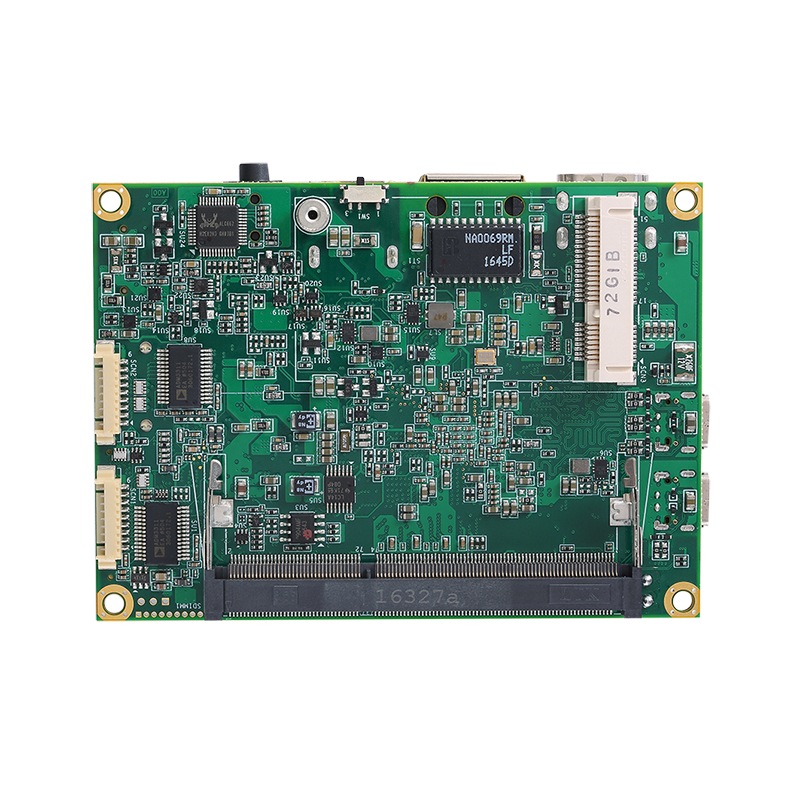

PICO316
PICO316
PICO316
PICO316
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

Pocket Size

Pocket Size

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Intel® Pentium® processor N4200 & Celeron® processor N3350/J3455
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 2 USB 2.0 and 3 USB 3.0
  • 1 PCI Express Mini Card slot with mSATA supported

產品規格

CPU
  • Intel® Pentium® processor N4200 & Celeron® processor N3350/J3455 onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232
USB
  • 2 x USB 2.0
  • 3 x USB 3.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x LVDS
  • 1 x HDMI
Digital I/O
  • N/A
Audio
  • HD Codec audio as Line-out with Realtek ALC888S
Storage
  • 1 x SATA-600
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA supported
Others
  • I2C
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +5V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Pentium® N4200 @ 1.1 GHz 8GB DDR3L Max RMS: +5V @ 3.3A
  • Intel® Celeron® N3350 @ 1.1 GHz 8GB DDR3L Max RMS: +5V @ 2.3A
  • Intel® Celeron® J3455 @1.5 GHz 8GB DDR3L Max RMS: +5V @4A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • Standard: -20°C to +60°C (-4°F to +140°F)
  • Optional: -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

訂購資訊

  • PICO316HGA-N4200 (P/N-E38H316101)
    Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 to 2.5 GHz, 2MB Cache, 6W), LVDS, HDMI, GbE LAN, 3 USB 3.0 and 2 USB 2.0 without heatsink
  • PICO316HGA-N3350 (P/N-E38H316100)
    Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB Cache, 6W), LVDS, HDMI, GbE LAN, 3 USB 3.0 and 2 USB 2.0 without heatsink
  • PICO316HGA-J3455 (P/N-E38H316106)
    Pico-ITX SBC with Intel® Celeron® processor J3455 (1.5 to 2.3 GHz, 2MB cache, 10W), LVDS, HDMI, GbE LAN, 3 USB 3.0 and 2 USB 2.0 without heatsink
  • PICO316HGA-N3350 60°C (P/N-E38H316102)
    Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB Cache, 6W), LVDS, HDMI, GbE LAN, 3 USB 3.0, 2 USB 2.0 and low profile heatsink
  • PICO316HGA-N4200 60°C (P/N-E38H316103)
    Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 to 2.5 GHz, 2MB Cache, 6W), LVDS, HDMI, GbE LAN, 3 USB 3.0, 2 USB 2.0 and low profile heatsink
  • PICO316HGA-N3350 70°C (P/N-E38H316104)
    Pico-ITX SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB Cache,6W), LVDS, HDMI, GbE LAN, 3 USB 3.0, 2 USB 2.0 and high profile heatsink

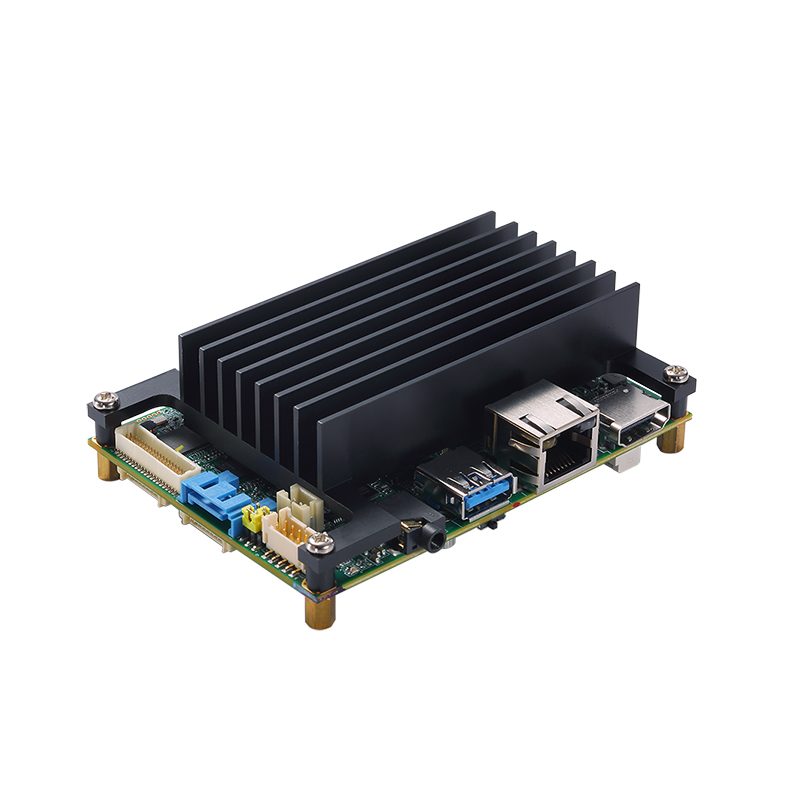

  • PICO316HGA-N4200 70°C (P/N-E38H316105)
    Pico-ITX SBC with Intel® Pentium® processor N4200 (1.1 to 2.5 GHz, 2MB Cache,6W), LVDS, HDMI, GbE LAN, 3 USB 3.0, 2 USB 2.0 and high profile heatsink
  • PICO316HGA-J3455 60°C (P/N-E38H316107)
    Pico-ITX SBC with Intel® Celeron® processor J3455 (1.5 to 2.3 GHz, 2MB cache, 10W), LVDS, HDMI, GbE LAN, 3 USB 3.0 and 2 USB 2.0 and high profile heatsink
  • E29R114100
    5V/6A 30W adapter
  • 7128H316000E
    Heatspreader
  • 59380880250E
    COM port cable, DB9--9 x 1P, L=250 mm, P=1.25
  • 594E8422800E
    2 x USB 2.0 cable with bracket, L=180 mm

技術文件

Drivers

日期 說明 版本 下載檔案
2018/12/27 Graphics Driver VA1.1
2018/12/27 LAN Driver VA1.1
2018/12/27 TXE Driver VA1.1
2018/12/27 Audio Driver VA1.1
2018/12/27 Chipset Driver VA1.1

Software

Manual

日期 說明 版本 下載檔案
2022/08/05 User Manual VA4
2018/12/27 Quick Manual VA2

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/03 UKCA Declaration of Conformity
2021/03/26 CE-Conformity Declaration
2017/11/06 CE-Conformity Declaration
