AX92322

產品階段 : 供應中

2-port/4-port GigE PCI Express Card

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • 2 or 4 independent Intel® Ethernet Controller i210-AT
  • Supports 9.5KB Jumbo Frame and IEEE 1588
  • Supports two or four GbE LAN ports
  • PCI Express x4 interface
  • Operating temperature from 0˚C to 70°C

產品規格

Bus Type
  • PCI Express x4
Connector
  • 2 x GbE LAN port or 4 x GbE LAN port
  • Intel® Ethernet Controller i210-AT
  • Supports 9.5KB Jumbo Frame and IEEE 1588
Power Connector
  • Power from PCIe slot
  • 1.73A@+3.3V max.
Power Requirements
  • N/A
Operating Temperature
  • 0°C to +70°C (+32°F to +158°F)
Relative Humidity
  • 10 - 95% RH, non-condensing
Dimensions
  • 125 x 111 mm
Certifications
  • CE
Software
  • N/A
OS
  • Windows® 7/Windows® 10 (32/64bit), Linux

訂購資訊

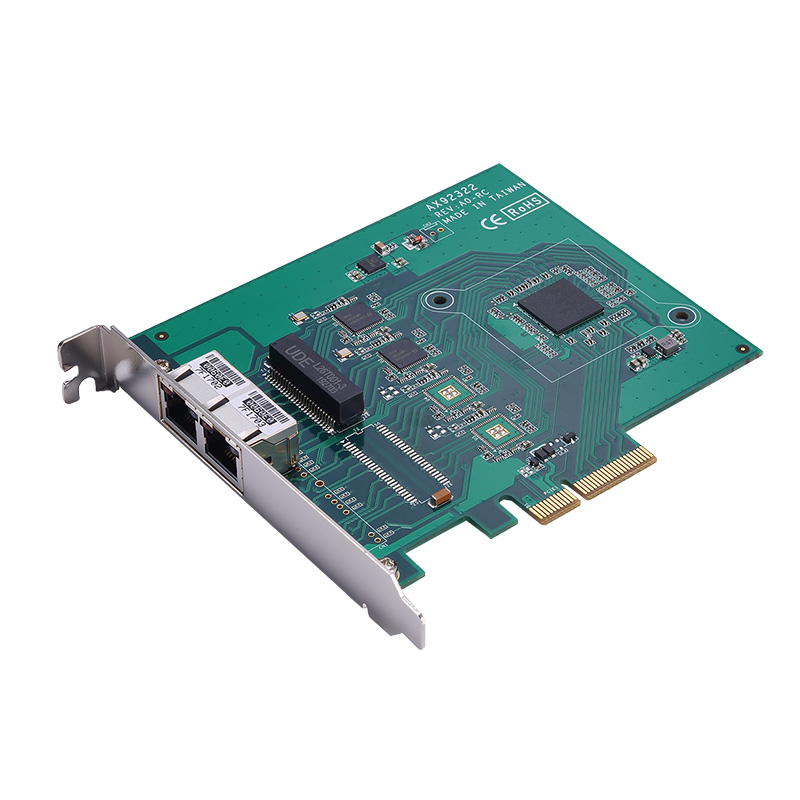

  • AX92322-2GbE (P/N-E392322103)
    2-port GigE PCI Express card

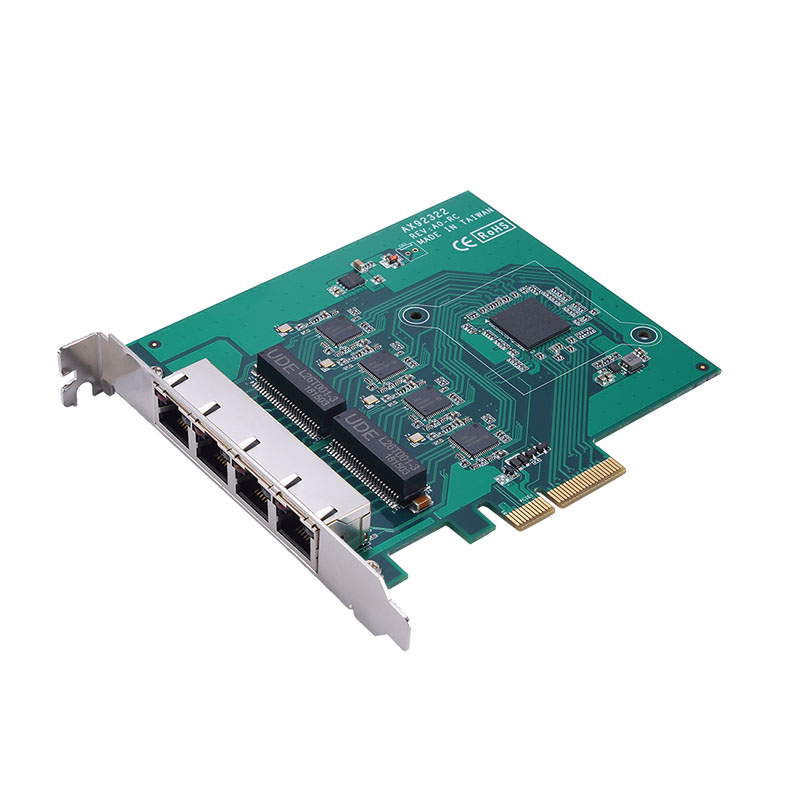

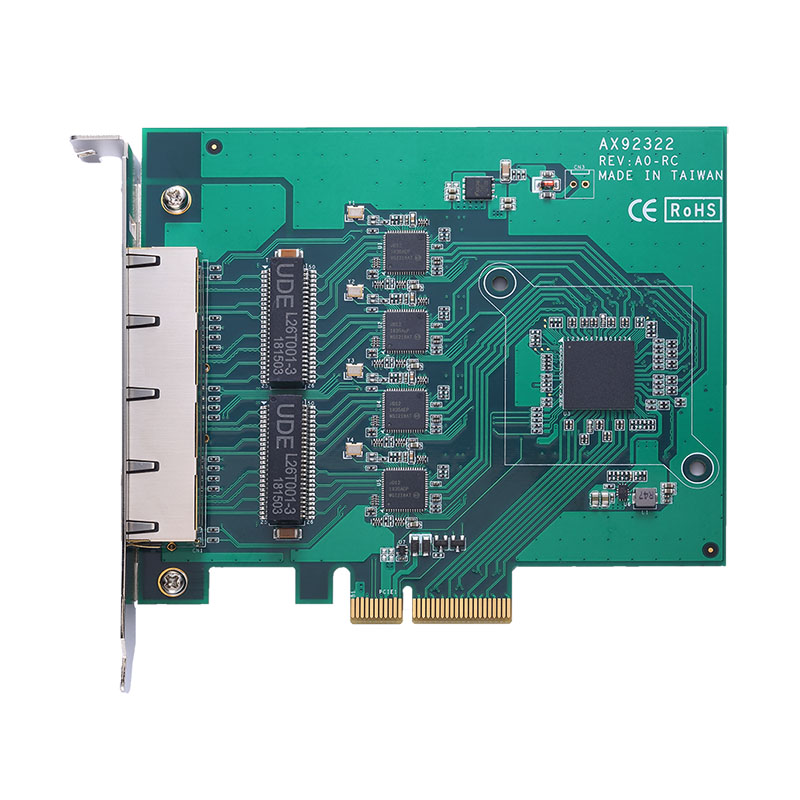

  • AX92322-4GbE (P/N-E392322102)
    4-port GigE PCI Express card

技術文件

Drivers

日期 說明 版本 下載檔案
2019/11/06 I210-AT Driver VA1.0

Software

Manual

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2020/02/15 CE-Conformity Declaration
